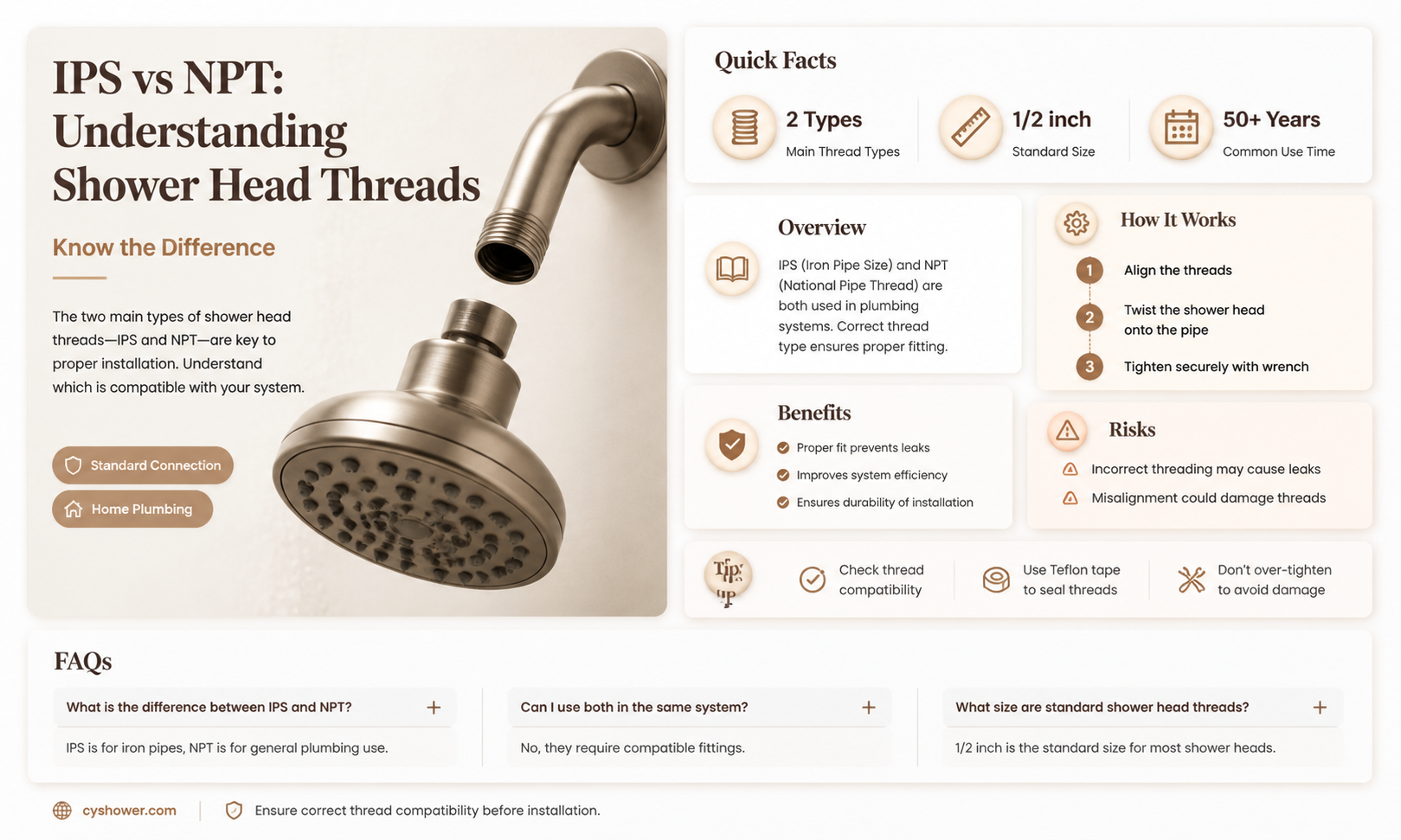

When it comes to shower head installations, understanding the type of connection is crucial for a leak-free and secure fit. The two most common thread types used in plumbing are IPS (Iron Pipe Size) and NPT (National Pipe Tapered), both of which are often found in shower head connections. IPS threads are straight and parallel, while NPT threads are tapered, designed to create a tight seal with the use of Teflon tape or pipe dope. Most shower head connections in the United States are NPT, as the tapered design ensures a watertight seal, which is essential in preventing leaks in high-moisture environments like bathrooms. However, it’s always advisable to verify the thread type before purchasing a new shower head or replacement parts to ensure compatibility and avoid installation issues.
| Characteristics | Values |
|---|---|
| Standard Thread Type | Most shower head connections in the United States use NPT (National Pipe Tapered) threads. |
| Thread Compatibility | NPT threads are tapered and seal with Teflon tape or pipe dope, while IPS (Iron Pipe Straight) threads are straight and less common in modern plumbing. |
| Prevalence | NPT is the dominant standard for shower heads and plumbing fixtures in North America. |
| Sealing Mechanism | NPT threads rely on thread deformation and sealing compounds for a watertight connection. |
| Interchangeability | NPT and IPS threads are not directly interchangeable due to differences in thread design. |
| Material | Both NPT and IPS threads are typically made of brass, stainless steel, or plastic. |
| Application | NPT is widely used in residential and commercial plumbing, including shower heads, faucets, and pipes. |
| International Standards | Outside the U.S., other standards like BSP (British Standard Pipe) may be used, but NPT remains prevalent in North America. |
| Thread Size | Common sizes for shower heads are 1/2-inch NPT, though other sizes may exist. |
| Installation | NPT connections require proper threading and sealing to prevent leaks. |
Explore related products
What You'll Learn
IPS vs NPT Standards
Shower head connections often adhere to either IPS (Iron Pipe Size) or NPT (National Pipe Tapered) standards, but distinguishing between the two can be confusing. IPS, historically used for iron pipes, now primarily refers to the outer diameter of the pipe, while NPT involves threads that taper to create a seal. Most modern plumbing fixtures, including shower heads, use NPT connections due to their ability to form a tight seal without additional sealing materials. However, older systems or specific applications might still rely on IPS standards, making it essential to verify compatibility before installation.
When replacing or installing a shower head, the first step is to identify the thread type. NPT threads are tapered and finer, designed to tighten and seal as they are screwed together, whereas IPS threads are straight and require additional sealing materials like Teflon tape or pipe dope. A simple visual inspection can often reveal the difference: NPT threads appear angled, while IPS threads are parallel. If unsure, measure the thread diameter; common NPT sizes for shower heads include 1/2-inch, while IPS might align with older, less standardized measurements.
Choosing the correct thread type is critical to avoid leaks and ensure longevity. NPT connections are preferred for shower heads because their tapered design provides a reliable seal under water pressure. IPS connections, while less common in modern plumbing, may still appear in older homes or industrial settings. If an IPS connection is identified, use thread seal tape or pipe dope to prevent leaks, as the straight threads alone do not create a watertight seal. Always hand-tighten connections first to avoid cross-threading, which can damage the threads and compromise the seal.
For DIY enthusiasts, understanding the difference between IPS and NPT can save time and prevent frustration. If upgrading an older shower head, check the existing connection type and purchase a replacement with matching threads. When in doubt, consult a plumber or bring the old fixture to a hardware store for comparison. Modern shower heads typically specify NPT compatibility, but verifying this detail ensures a seamless installation. Remember, while NPT is the industry standard, IPS connections still exist, particularly in legacy systems, so adaptability is key.
In summary, while NPT connections dominate modern shower head installations due to their self-sealing design, IPS connections remain relevant in specific contexts. Proper identification and preparation are crucial for a leak-free installation. Whether dealing with a tapered NPT thread or a straight IPS one, using the right sealing materials and techniques ensures functionality and durability. Always prioritize compatibility to avoid common pitfalls and achieve professional results.
Easy DIY Guide: Replacing Shower Door Rollers Smoothly and Safely
You may want to see also
Explore related products
Shower Head Thread Types
Shower head connections primarily use either IPS (Iron Pipe Size) or NPT (National Pipe Tapered) threads, with NPT being the more common standard in the United States. Understanding the difference is crucial for installation and replacement, as mismatched threads can lead to leaks or incompatible fittings. IPS threads are straight and parallel, while NPT threads are tapered, designed to create a tight seal with the use of Teflon tape or pipe dope. Most modern shower heads and plumbing fixtures adhere to the NPT standard, ensuring compatibility across various brands and models.
When replacing a shower head, start by identifying the thread type on your existing fixture. Use a thread pitch gauge or compare it to a known NPT or IPS fitting. If the threads are tapered and require sealing tape, it’s likely NPT. For straight threads, it’s probably IPS, though this is less common in residential plumbing. Always apply Teflon tape clockwise to NPT threads, wrapping 2-3 layers to ensure a watertight seal. Over-tightening can damage the threads, so hand-tighten and then use a wrench to secure it no more than one additional turn.
The prevalence of NPT threads in shower heads stems from their reliability in preventing leaks. Tapered threads create a mechanical seal, reducing the reliance on external sealants. IPS threads, while simpler, are less common in shower applications due to their lower resistance to water pressure changes. If you encounter an IPS connection, consider using a thread adapter to convert it to NPT, ensuring compatibility with standard shower heads. Adapters are readily available at hardware stores and typically cost between $5 and $10.
For DIY enthusiasts, knowing the thread type simplifies troubleshooting. Leaks at the shower head connection often result from stripped threads, insufficient sealing tape, or incorrect thread type. If you’re unsure, consult a plumber or bring the old fixture to a hardware store for expert advice. Upgrading to a universal NPT connection during renovations can future-proof your plumbing, making replacements easier and more cost-effective in the long run. Always verify compatibility before purchasing a new shower head to avoid unnecessary returns or modifications.
Retractable Shower Doors in RVs: Space-Saving Bathroom Innovation Explained
You may want to see also
Explore related products
Common Plumbing Connections
Shower head connections typically adhere to standardized threading to ensure compatibility and ease of installation. The two most common types are IPS (Iron Pipe Size) and NPT (National Pipe Tapered) threads. While both are prevalent in plumbing, NPT threads dominate shower head connections due to their self-sealing properties when tightened, reducing the risk of leaks. IPS threads, though similar in appearance, are straight and less commonly used for shower heads because they require additional sealing materials like Teflon tape or pipe dope.
When replacing or installing a shower head, always verify the thread type to avoid mismatches. NPT threads are tapered, allowing them to create a tight seal as the threads are tightened, while IPS threads rely on external sealing agents. A simple test involves examining the threads: NPT threads narrow toward the end, whereas IPS threads remain uniform. Most modern shower heads and arms use 1/2-inch NPT threads, a standard size that ensures compatibility across brands and models.
For DIY enthusiasts, using Teflon tape is essential when working with NPT connections. Wrap the tape clockwise around the male threads in a thin, even layer to enhance the seal without over-tightening. Over-tightening NPT connections can damage the threads or warp the fitting, leading to leaks. If you encounter an IPS connection, apply pipe dope or Teflon tape generously, as the straight threads lack the self-sealing advantage of NPT.
In older homes, you may encounter adaptors or converters between IPS and NPT connections. These are particularly useful when retrofitting modern shower heads to legacy plumbing systems. However, replacing outdated connections with NPT fittings is often more reliable in the long term, as it eliminates the need for additional sealing materials and reduces the likelihood of leaks. Always consult a plumber if you’re unsure about compatibility or installation techniques.
Understanding the difference between IPS and NPT threads not only simplifies shower head installations but also prevents common plumbing issues. By recognizing the thread type, using the appropriate sealing materials, and avoiding over-tightening, homeowners can ensure a leak-free and durable connection. While NPT remains the standard for shower heads, familiarity with both systems equips you to handle a variety of plumbing scenarios with confidence.
Unwashed Hair: The Surprising Effects of Skipping Showers
You may want to see also
Explore related products
Identifying IPS or NPT
Shower head connections often leave homeowners puzzled, especially when distinguishing between Iron Pipe Size (IPS) and National Pipe Tapered (NPT) threads. The confusion arises because both standards are prevalent in plumbing, yet they serve different purposes and have distinct characteristics. To identify whether your shower head connection is IPS or NPT, start by examining the threads. IPS threads are straight and parallel, designed for use with a separate coupling or fitting, while NPT threads are tapered and angled, intended to create a seal when tightened.
A practical method to differentiate between the two is to use a thread gauge or caliper. Measure the diameter of the threads at their widest point. IPS threads maintain a consistent diameter throughout, whereas NPT threads taper, meaning the diameter decreases as you move inward. Additionally, NPT connections often require thread sealant like Teflon tape to ensure a watertight seal, whereas IPS connections typically rely on gaskets or O-rings. If you notice a taper or have used sealant in the past, it’s likely NPT.
Another approach is to consider the application. IPS connections are more common in older plumbing systems and are often found in supply lines and larger pipes. NPT, on the other hand, is standard for shower heads, faucets, and other fixtures where a leak-proof seal is critical. If your shower head is part of a modern installation, it’s more likely to use NPT threads. However, always verify visually or with measurements to avoid mistakes.
For DIY enthusiasts, a simple visual inspection can often suffice. Hold the connection up to a light source and observe the threads. Straight, uniform threads indicate IPS, while a noticeable angle or taper points to NPT. If you’re still unsure, consult the manufacturer’s specifications or seek advice from a plumbing professional. Misidentifying the thread type can lead to leaks or improper fitting, so accuracy is key.
In summary, identifying IPS or NPT threads involves a combination of visual inspection, measurement, and understanding the application. By recognizing the differences in thread design, purpose, and sealing requirements, you can confidently determine the correct type for your shower head connection. This knowledge not only ensures a proper fit but also prevents potential plumbing issues down the line.
Top Retailers for Oil-Rubbed Bronze Shower Doors: A Buyer's Guide
You may want to see also
Explore related products
![[2 Pack] Shower Head Shut Off Valve 304 Stainless Steel Mini Ball Valve(1/2" Female X Male) NPT Thread Water Flow Control，RV Shower Head with Hose Flow Restrictor](https://m.media-amazon.com/images/I/61z5hkXXmsL._AC_UL320_.jpg)
Compatibility with Fixtures
Shower head connections are typically standardized to ensure compatibility across fixtures, but the thread types—IPS (Iron Pipe Size) and NPT (National Pipe Tapered)—can cause confusion. IPS threads are straight and parallel, while NPT threads are tapered, designed to create a seal as they are tightened. Most residential shower heads in the United States use 1/2-inch NPT threads, which have become the industry standard due to their ability to form a leak-proof seal without additional tape or sealant. However, older fixtures or international products may use IPS threads, which require thread sealant or Teflon tape to prevent leaks. Understanding this distinction is crucial when replacing or installing shower heads to avoid incompatibility issues.
When selecting a shower head, verify the thread type of your existing fixture to ensure a proper fit. NPT threads are more common in modern plumbing, but IPS threads can still be found in older homes or specialty fixtures. A simple way to identify the thread type is to examine the fitting: if the threads are tapered and narrow toward the end, it’s likely NPT. If they are straight and uniform, it’s IPS. Using an NPT shower head on an IPS fitting without sealant will result in leaks, while forcing an IPS fitting into an NPT connection can damage the threads. Always check the manufacturer’s specifications or consult a plumber if you’re unsure.
For DIY installations, use Teflon tape or pipe sealant when connecting NPT threads to ensure a watertight seal. Wrap the tape clockwise around the threads in a thin, even layer, covering 2-3 threads beyond the end of the fitting. Avoid over-tightening, as this can strip the threads or damage the fixture. If working with IPS threads, apply a generous amount of pipe sealant to the male threads before connecting the shower head. This extra step prevents leaks and ensures long-term reliability. Keep in mind that mixing thread types without proper sealing can lead to recurring plumbing issues.
Incompatibility between IPS and NPT threads highlights the importance of standardization in plumbing fixtures. While NPT has become dominant in the U.S., the persistence of IPS threads in older systems underscores the need for vigilance during installation. Manufacturers often include adapters or specify thread types in product documentation, but it’s the installer’s responsibility to ensure compatibility. By understanding these differences and taking proactive measures, homeowners can avoid common pitfalls and maintain efficient, leak-free shower systems. Always prioritize precision and preparation when dealing with plumbing connections to save time and prevent costly repairs.
Unclog Your Shower Head Easily with Vinegar: A Simple Guide
You may want to see also
Frequently asked questions
Most shower head connections in the United States are NPT (National Pipe Tapered) threads, not IPS (Iron Pipe Straight).
IPS threads are straight (parallel) and typically used for pipes, while NPT threads are tapered and designed for sealing with Teflon tape or thread sealant.
No, IPS and NPT threads are not compatible. Using an IPS shower head on an NPT connection will result in leaks.
NPT threads are tapered and have a slight angle, while IPS threads are straight. You can also check the threading direction and measure the thread pitch.
Shower head connections vary by region. In the U.S., NPT is standard, while other countries may use different thread types, such as BSP (British Standard Pipe) in Europe. Always check local standards before purchasing.
