Hinging a glass shower door on a glass panel is a question that often arises in modern bathroom design, where aesthetics and functionality intersect. While it may seem unconventional, advancements in glass technology and engineering have made it possible to create sturdy, safe, and visually appealing solutions. The key lies in using tempered or laminated glass for both the door and the panel, ensuring structural integrity and safety. Specialized hinges designed for glass-to-glass applications are essential, as they provide the necessary support and stability while maintaining a sleek, frameless look. However, proper installation by a professional is crucial to avoid issues like leaks or structural failure. When executed correctly, hinging a glass shower door on a glass panel can enhance the overall design, creating a seamless and luxurious shower experience.
| Characteristics | Values |
|---|---|
| Feasibility | Possible with proper structural support and professional installation |
| Glass Thickness Requirement | Minimum 3/8" (10 mm) tempered glass for both panel and door |
| Hinge Type | Specialized glass-to-glass hinges (e.g., pivot or swing hinges) |
| Weight Capacity | Hinges must support the weight of the glass door (typically up to 100 lbs) |
| Structural Support | Requires reinforced walls or framing to handle the load |
| Waterproofing | Proper sealing and silicone application to prevent leaks |
| Installation Complexity | High; requires precise measurements and professional expertise |
| Cost | Higher than standard shower door installations due to specialized hardware |
| Aesthetic Appeal | Modern, frameless look with minimal visual obstruction |
| Maintenance | Regular cleaning and hinge lubrication to ensure smooth operation |
| Safety Standards | Must comply with local building codes and use tempered/safety glass |
| Customization | Available in various hinge finishes (e.g., chrome, brushed nickel) and glass types (clear, frosted) |
Explore related products
What You'll Learn
Hinge Types for Glass Doors
Hinging a glass shower door on a glass panel requires careful selection of hinge types to ensure safety, functionality, and aesthetics. The hinge must support the weight of the door while maintaining structural integrity, as glass-to-glass connections lack the stability of traditional framed installations. Here’s a breakdown of hinge types suited for this application:
Pivot Hinges are a popular choice for glass shower doors hinged on glass panels. These hinges allow the door to pivot smoothly, typically at the top and bottom. The top pivot is often fixed to the glass panel via a clamp or screw mechanism, while the bottom pivot rests on a base plate. This design minimizes stress on the glass and provides a clean, frameless look. Ensure the glass panel is at least 3/8-inch thick to handle the load, and use tempered glass for safety.
Wall-Mount Hinges are another option, though less common for glass-to-glass applications. These hinges attach the door to a fixed glass panel via a wall-mounted bracket. While they offer stability, they require precise alignment and may not achieve the seamless appearance of pivot hinges. This type is better suited for heavier doors or installations where the glass panel is reinforced with additional framing.

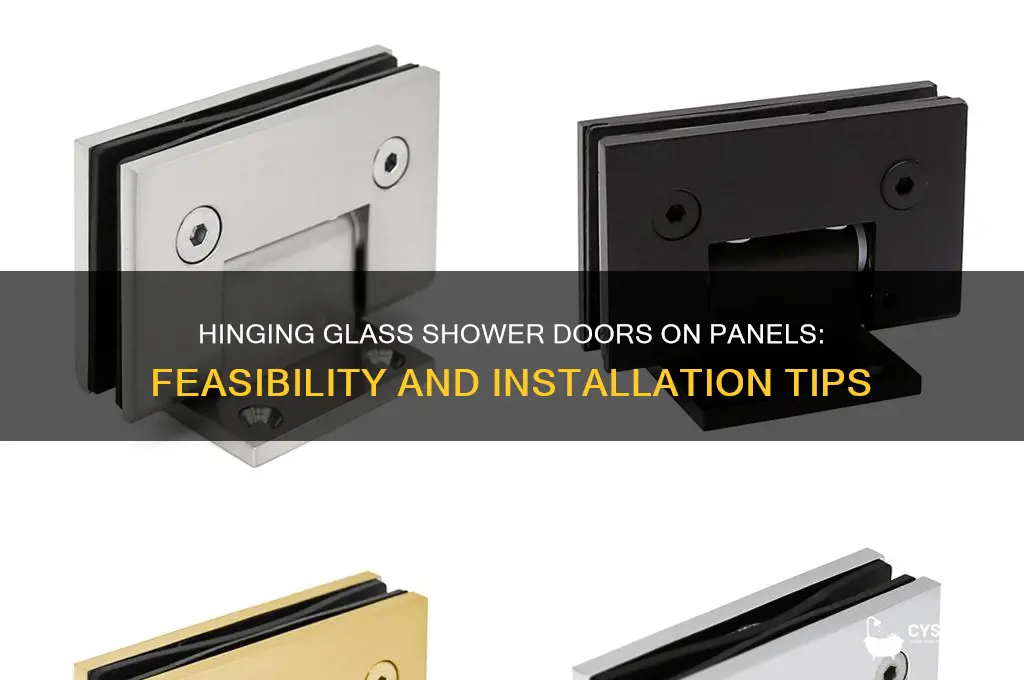

Glass-to-Glass Hinges are specifically designed for connecting two glass panels. These hinges feature clamps or brackets that secure directly to the glass, eliminating the need for metal framing. They are ideal for achieving a minimalist, all-glass aesthetic. When using these hinges, ensure the glass panels are properly tempered and meet building code requirements. The hinge material should be corrosion-resistant, such as stainless steel or brass with a protective coating, to withstand moisture in shower environments.
Self-Closing Hinges add functionality by automatically closing the door after it’s opened. These hinges incorporate a spring mechanism that gently pulls the door shut, preventing water from escaping the shower area. While self-closing hinges are practical, they require careful installation to avoid excessive tension, which could stress the glass panel. Pair them with pivot or glass-to-glass hinges for optimal performance.
In conclusion, selecting the right hinge type for a glass shower door hinged on a glass panel depends on factors like glass thickness, desired aesthetics, and functional needs. Pivot hinges offer simplicity and elegance, while glass-to-glass hinges maximize the frameless look. Always prioritize safety by using tempered glass and corrosion-resistant materials, and consult a professional for installations requiring precise measurements or heavy loads.
Easy DIY Guide: Replacing Your Aquabrass Shower Cartridge Step-by-Step
You may want to see also
Explore related products
Glass Panel Thickness Requirements
Hinging a glass shower door on a glass panel demands precise thickness considerations to ensure safety, durability, and functionality. The glass panel must bear the weight of the door, withstand daily use, and resist stress from hinges and movement. Industry standards typically recommend a minimum thickness of 3/8 inch (10 mm) for fixed glass panels supporting hinged doors, though 1/2 inch (12 mm) is often preferred for added stability, especially in larger or heavier installations. Thicker glass minimizes the risk of breakage and provides a more robust foundation for the hinge mechanism.
Selecting the appropriate glass thickness involves balancing aesthetics and structural integrity. Thinner glass (e.g., 1/4 inch or 6 mm) is insufficient for this application, as it lacks the strength to support the door’s weight and may crack under pressure. Conversely, thicker glass (e.g., 3/4 inch or 19 mm) offers superior strength but can be unnecessarily heavy and costly for most residential showers. A 1/2-inch panel strikes an optimal balance, providing ample strength without compromising design or budget. Always consult local building codes, as some regions mandate specific thickness requirements for safety.
The hinge system itself plays a critical role in determining the necessary glass thickness. Heavy-duty hinges designed for thicker glass distribute weight more effectively, reducing stress on the panel. Lightweight hinges may require thicker glass to compensate for their lower load capacity. When in doubt, opt for a thicker panel and high-quality hinges to ensure long-term reliability. Additionally, tempered or laminated glass is essential for safety, as it shatters into small, blunt pieces or holds together upon impact, respectively.
Practical installation tips further enhance the performance of the glass panel. Ensure the panel is securely anchored to the wall or floor using proper brackets and silicone sealant to prevent shifting or flexing. The hinge should be mounted at least 4 inches from the top and bottom edges of the panel to avoid weak points. Regularly inspect the hinges and glass for signs of stress or wear, and address any issues promptly. By adhering to these guidelines, you can create a safe, functional, and visually appealing glass shower door installation.
Shower Pump Replacement Cost: What to Expect and Budget For
You may want to see also
Explore related products
Installation Techniques for Hinged Doors
Hinging a glass shower door on a glass panel requires precision and specialized techniques to ensure safety, functionality, and aesthetics. The key lies in using tempered glass for both the door and panel, as it’s four to five times stronger than standard glass and less prone to shattering. The hinge mechanism must be designed for glass-to-glass applications, typically featuring a clamp or through-the-glass design. Clamps attach to the exterior of the glass using screws, while through-the-glass hinges require holes drilled into the glass, secured with stainless steel or brass fittings to prevent corrosion. Always verify the glass thickness (usually 3/8" to 1/2") matches the hinge specifications to avoid stress fractures.
The installation process begins with meticulous measurement and marking. Use a center punch and straightedge to mark drill points, ensuring symmetry and alignment with the shower frame. For through-the-glass hinges, employ a diamond-tipped core drill to create holes without cracking the glass. Apply a silicone sealant around the hinge fittings to waterproof the connection and distribute stress evenly. When attaching the door, use a level to confirm vertical alignment and adjust the hinge tension to allow smooth swinging without binding. Double-check that the door clears the shower threshold and adjacent walls by at least 1/4" to prevent chipping.
One critical consideration is the weight distribution of the door. Hinges must be rated to support the door’s weight, typically 50–80 pounds for standard shower doors. For heavier doors or high-traffic areas, consider adding a bottom pivot hinge or floor-mounted support to reduce strain on the glass panel. Avoid over-tightening screws, as this can cause glass distortion or breakage. Instead, tighten incrementally while testing the door’s movement. If using a frameless design, incorporate a header or transom bar to stabilize the panel and prevent lateral movement.
Comparing hinge materials, stainless steel offers superior durability in wet environments, while brass provides a more luxurious finish but requires regular maintenance to avoid tarnishing. Self-closing hinges add convenience but may require periodic adjustment of the hydraulic mechanism. For a minimalist look, pivot hinges embedded within the glass panel create a seamless appearance but demand exacting installation to ensure proper alignment. Regardless of style, prioritize hinges with a load-bearing capacity exceeding the door’s weight by at least 20% to account for dynamic forces during use.
In conclusion, hinging a glass shower door on a glass panel is feasible with the right techniques and materials. Prioritize tempered glass, compatible hinges, and precise drilling to ensure structural integrity. Balance aesthetics with functionality by selecting hinges that complement the design while meeting weight requirements. Regular maintenance, such as lubricating moving parts and inspecting seals, will prolong the system’s lifespan. By adhering to these principles, you can achieve a sleek, modern shower enclosure that combines elegance with reliability.
Using Backsplash Tile to Create a Stunning Shower Accent Wall
You may want to see also
Explore related products
Safety and Structural Integrity Tips
Hinging a glass shower door on a glass panel is structurally feasible but demands meticulous attention to safety and integrity. The pivot point of the hinge system must be anchored to a tempered glass panel rated for structural loads, typically ⅜" to ½" thick. Thinner glass risks shattering under the dynamic stress of door operation. Always verify the panel’s tempering standards (e.g., ANSI Z97.1 or EN 12150) to ensure it can withstand both static and operational forces.
Material Selection and Load Distribution
Choose hardware designed explicitly for glass-to-glass applications, such as stainless steel hinges with self-centering mechanisms. These distribute weight evenly, reducing stress concentrations at the hinge interface. Avoid aluminum or low-grade alloys, which corrode in humid environments and compromise long-term stability. For added safety, incorporate a bottom support bracket or channel to mitigate sway and lateral movement, particularly in frameless designs.
Installation Precision and Stress Mitigation
Drilling holes for hinges requires a diamond-tipped core bit and precise alignment to prevent microfractures. Holes should be no larger than 1.5 times the hinge post diameter to maintain glass edge strength. Apply a silicone sealant around hardware interfaces to dampen vibrations and prevent water infiltration, which can weaken adhesive bonds over time. Double-check that the door’s weight does not exceed the panel’s load capacity—a 36” wide door typically weighs 50–70 lbs, requiring a panel engineered to bear this load.
Regulatory Compliance and Testing
Adhere to local building codes, which often mandate impact-resistance testing for glass panels supporting hinged doors. For instance, the International Building Code (IBC) requires shower glass to withstand a 400-pound concentrated load test. Engage a certified installer to perform a deflection test post-installation, ensuring the panel bends no more than L/175 (span length divided by 175) under operational stress. Non-compliance not only voids warranties but poses severe injury risks.
Maintenance and Longevity Strategies
Inspect hinges quarterly for loose screws, corrosion, or misalignment, tightening components with a torque wrench to manufacturer specifications (typically 15–20 in-lbs for glass screws). Clean glass surfaces with non-abrasive solutions to prevent etching, which weakens the panel over time. Replace worn gaskets or seals immediately to maintain water containment and reduce sway. By treating the system as a precision mechanism, not just a static barrier, you ensure decades of safe, reliable performance.
Upgrade Your Bathroom: Step-by-Step Guide to Replacing a Shower with a Bathtub
You may want to see also
Explore related products
Common Issues and Troubleshooting Hacks
Hinging a glass shower door on a glass panel is technically possible but fraught with challenges. The primary issue lies in the structural integrity of the glass panel itself. Unlike traditional framed enclosures, glass panels lack the inherent rigidity to support the weight and movement of a hinged door. Over time, this can lead to stress fractures, especially if the panel is not tempered or if the hinge mechanism is improperly installed. To mitigate this, ensure the glass panel is at least 3/8-inch thick, tempered, and professionally installed with reinforced hinges designed for glass-to-glass applications.
Another common problem is water leakage, which often occurs due to misalignment or inadequate sealing. Hinged glass doors rely on precise alignment to create a watertight seal, but even minor shifts can compromise this. Troubleshooting involves checking the hinge pivot points for wear and tear, ensuring the door is level, and applying a high-quality silicone sealant along the edges. For persistent leaks, consider installing a magnetic strip along the door’s edge to enhance the seal, or consult a professional to realign the hinges.
Noise and movement are additional concerns, particularly with cheaper hinge mechanisms. The constant opening and closing of the door can cause squeaking or wobbling, detracting from the shower’s functionality and aesthetic. To address this, lubricate the hinges with a silicone-based lubricant rather than oil, which can attract dust and grime. For wobbling doors, tighten the hinge screws carefully, ensuring not to overtighten, as this can crack the glass. Upgrading to self-closing hinges with adjustable tension can also improve stability and reduce noise.
Finally, maintenance is critical to prolonging the life of a hinged glass shower door. Hard water stains and soap scum can accumulate on the glass and hinges, leading to corrosion and reduced functionality. Regularly clean the glass with a non-abrasive cleaner and dry it with a microfiber cloth to prevent water spots. For the hinges, wipe them down monthly with a damp cloth and inspect for signs of rust or wear. If corrosion is detected, replace the hinges promptly to avoid structural failure. By addressing these issues proactively, you can enjoy a sleek, modern shower design without compromising durability.
Removing Shower Ceramic Tile with a Sawzall: Tips and Tricks
You may want to see also
Frequently asked questions
Yes, a glass shower door can be hinged directly on a glass panel, provided the glass panel is thick enough (typically 3/8" to 1/2") and properly reinforced to support the weight and movement of the door.
A pivot hinge or glass-to-glass hinge is typically recommended for this application, as it is designed to securely attach the door to the glass panel while allowing smooth operation.
Yes, the glass panel must be structurally sound and properly installed to handle the stress of the hinged door. It’s crucial to consult a professional to ensure the glass thickness, tempering, and installation meet safety standards.
