When installing or replacing a shower head, you might wonder whether a dielectric union is necessary for the shower head pipe. A dielectric union is a plumbing fitting designed to prevent galvanic corrosion by separating two different types of metals in a piping system. While it’s commonly used in water heaters and other applications where dissimilar metals meet, its need for a shower head pipe depends on the specific materials involved and local plumbing codes. If your shower head pipe connects metals like copper and steel, a dielectric union can help prevent corrosion, but if the materials are compatible or non-metallic, it may not be required. Always check local regulations and consult a professional plumber to ensure compliance and longevity of your plumbing system.
| Characteristics | Values |
|---|---|
| Purpose of Dielectric Union | Prevents galvanic corrosion between dissimilar metals (e.g., copper and steel) in plumbing systems. |
| Relevance to Shower Head Pipe | Required if connecting dissimilar metals (e.g., copper pipe to steel shower head). |
| Building Code Requirement | Often mandated by local plumbing codes when joining dissimilar metals. |
| Material Composition | Typically made of brass, plastic, or other non-conductive materials. |
| Installation Location | Installed at the junction where dissimilar metals meet. |
| Cost | Relatively inexpensive ($5–$20 USD depending on size and material). |
| Alternative Solutions | Use same-material fittings or corrosion-resistant materials to avoid the need for a dielectric union. |
| Maintenance | Requires periodic inspection for leaks or damage. |
| Lifespan | Typically lasts as long as the plumbing system if properly installed. |
| Environmental Impact | Helps prevent water contamination caused by corrosion. |
| DIY Installation Feasibility | Can be installed by homeowners with basic plumbing skills. |
Explore related products
What You'll Learn

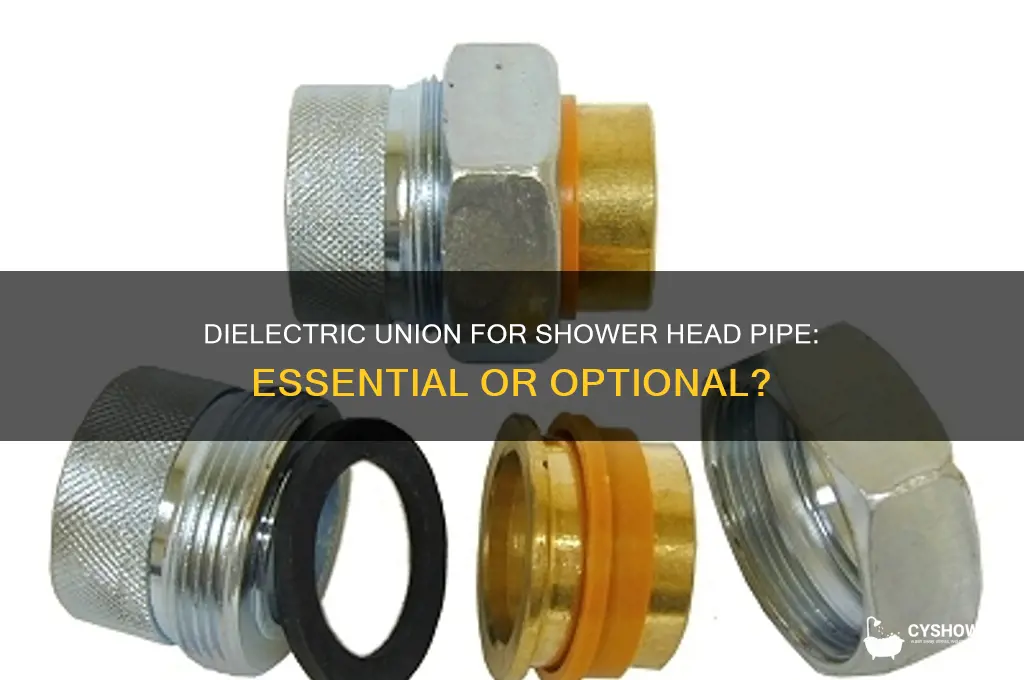

What is a dielectric union?
A dielectric union is a specialized plumbing fitting designed to prevent galvanic corrosion between two dissimilar metals in a water system. Unlike standard couplings, it incorporates an insulating material—typically a non-conductive sleeve or washer—that electrically isolates the connected pipes. This isolation disrupts the flow of electrons, halting the electrochemical reaction that causes corrosion. For instance, if you’re connecting a copper pipe to a galvanized steel pipe in your shower head installation, a dielectric union acts as a barrier, preventing the metals from interacting and degrading over time.
Consider the science behind galvanic corrosion: when two dissimilar metals come into contact in the presence of an electrolyte (like water), one metal corrodes faster than it would on its own. In plumbing, this can lead to leaks, reduced water flow, and costly repairs. A dielectric union addresses this by breaking the electrical circuit between the metals. The insulating material, often made of plastic or rubber, ensures that the metals remain electrically isolated while still allowing water to flow freely. This simple yet effective design makes it a critical component in mixed-metal plumbing systems.
Installing a dielectric union is straightforward but requires attention to detail. First, identify the point where dissimilar metals meet—for example, where a copper shower head pipe connects to a steel supply line. Shut off the water supply and drain the pipes to avoid spills. Remove the existing coupling and replace it with the dielectric union, ensuring the insulating material is correctly positioned between the metals. Tighten the union securely, but avoid over-tightening, as this can damage the insulating components. Regularly inspect the union for signs of wear or leakage, especially in high-moisture areas like showers.
While dielectric unions are essential in certain scenarios, they aren’t always necessary. If your shower head pipe and supply lines are made of the same material—say, all copper or all PVC—a dielectric union is redundant. However, if you’re unsure about the materials in your plumbing system or if you’re retrofitting fixtures, err on the side of caution. Local building codes may also mandate their use in specific situations, so consult regulations or a licensed plumber for guidance. Remember, the goal is to protect your plumbing investment and avoid future headaches.
In summary, a dielectric union is a small but mighty tool in the fight against galvanic corrosion. By electrically isolating dissimilar metals, it extends the lifespan of your plumbing system and prevents costly damage. Whether you’re installing a new shower head or upgrading existing pipes, understanding its function and proper application ensures your water system remains efficient and corrosion-free. If in doubt, consult a professional to determine if a dielectric union is right for your setup.
Easy Steps to Clean Your Shower Head Cartridge Effectively
You may want to see also
Explore related products
When is a dielectric union necessary?
A dielectric union is necessary when connecting pipes made of dissimilar metals to prevent galvanic corrosion. This occurs when two different metals come into contact in the presence of an electrolyte, such as water, causing one metal to corrode more rapidly. In the context of a shower head pipe, if your supply line is made of copper and the shower head or its arm is made of brass or another metal, a dielectric union can act as a barrier, interrupting the electrical connection between the metals and preventing corrosion.
Consider the age and material of your plumbing system. Older homes with mixed metal pipes are particularly susceptible to galvanic corrosion. If you’re installing a new shower head or replacing pipes, inspect the existing materials. Copper and galvanized steel, for instance, are a common problematic pair. In such cases, installing a dielectric union at the junction of the shower head pipe can extend the lifespan of your plumbing by decades. Always check local plumbing codes, as some regions mandate dielectric unions in specific scenarios.
From a practical standpoint, dielectric unions are inexpensive and easy to install, making them a proactive measure rather than a reactive fix. They typically consist of a plastic or non-conductive sleeve between two metal fittings, ensuring no direct metal-to-metal contact. When installing, ensure the union is rated for potable water and complies with NSF/ANSI 61 standards. Tighten the fittings according to manufacturer instructions, but avoid over-tightening, as this can damage the dielectric material.
Comparatively, while dielectric unions are effective, they are not always necessary. If your shower head and supply line are made of the same material, such as all-brass or all-stainless steel, a dielectric union is redundant. Additionally, if your water has low mineral content and is non-conductive, the risk of galvanic corrosion decreases. However, in most mixed-metal scenarios, the small investment in a dielectric union outweighs the potential cost of repairing corroded pipes or fixtures. Always prioritize prevention over replacement.
Are All UK Shower Head Fittings the Same Size?
You may want to see also
Explore related products
Shower head pipe material compatibility
Galvanic corrosion occurs when two dissimilar metals come into contact in the presence of an electrolyte, such as water. In shower head installations, this often happens when copper pipes connect directly to steel or galvanized iron pipes. The electrolyte-rich environment of a bathroom accelerates the corrosion process, leading to leaks, reduced water flow, and potential pipe failure. To mitigate this, a dielectric union—a fitting with a non-conductive barrier—is inserted between the dissimilar metals. This simple addition disrupts the electrical connection, preventing galvanic corrosion and extending the lifespan of your plumbing system.
Choosing the right materials for your shower head pipe is crucial, but compatibility goes beyond aesthetics or cost. Copper pipes, prized for their durability and corrosion resistance, are incompatible with steel or galvanized iron without a dielectric union. Similarly, PVC pipes, known for their affordability and ease of installation, should not be directly connected to metal pipes due to differences in thermal expansion and chemical reactivity. Always consult manufacturer guidelines or a licensed plumber to ensure material compatibility, especially in mixed-material systems. Ignoring this step can lead to costly repairs and water damage.
For DIY enthusiasts, installing a dielectric union is a straightforward task. First, shut off the water supply and drain the pipes. Next, cut the pipes to the appropriate length and clean the ends to ensure a secure fit. Insert the dielectric union between the dissimilar materials, using thread seal tape or pipe dope to prevent leaks. Tighten the fittings by hand before using a wrench to secure them, being careful not to overtighten. Finally, turn the water back on and check for leaks. This small investment of time and effort can save you from significant plumbing issues down the line.
While dielectric unions are essential for preventing galvanic corrosion, they are not a one-size-fits-all solution. In systems with consistent materials—such as all-copper or all-PVC piping—a dielectric union is unnecessary. Additionally, some modern plumbing codes require the use of dielectric unions in specific scenarios, so check local regulations before proceeding. For older homes with mixed-material plumbing, a thorough inspection by a professional is recommended to identify potential corrosion risks. By understanding material compatibility and taking proactive measures, you can ensure a safe and efficient shower head installation.
Effortless Shower Head Cleaning: Vinegar Hacks for Sparkling Results
You may want to see also
Explore related products
Preventing galvanic corrosion in pipes
Galvanic corrosion occurs when two dissimilar metals come into contact in the presence of an electrolyte, such as water. In plumbing systems, this often happens when copper pipes connect to galvanized steel or brass fixtures. The result? Accelerated deterioration of one metal, leading to leaks, reduced water flow, and costly repairs. Shower head pipes, being a common junction point, are particularly vulnerable if not properly protected.
One effective solution is installing a dielectric union, a fitting with a non-conductive material (like plastic or rubber) separating the two metals. This breaks the electrical connection, halting the flow of electrons that drives galvanic corrosion. For shower head installations, dielectric unions are especially crucial if your supply lines are a mix of copper and galvanized steel. Without this barrier, the constant moisture and temperature fluctuations in showers create ideal conditions for corrosion.
However, dielectric unions aren’t the only preventive measure. Using corrosion-resistant materials like PEX or stainless steel piping can eliminate the risk altogether. If replacing pipes isn’t feasible, applying thread sealants with anti-corrosion properties or installing sacrificial anodes (which corrode instead of your pipes) are viable alternatives. Regular inspections and maintenance, such as checking for green or blue stains near joints (signs of corrosion), can also catch issues early.
While dielectric unions are a straightforward fix, they require proper installation to be effective. Ensure the union is correctly oriented, with the dielectric material fully intact and no metal-to-metal contact. Over-tightening can damage the insulating barrier, so use a torque wrench to follow manufacturer specifications. For DIYers, this step is critical—a small mistake can render the union useless.
In summary, preventing galvanic corrosion in shower head pipes demands proactive measures. Dielectric unions offer a simple, cost-effective solution, but they’re just one tool in your arsenal. Combining them with corrosion-resistant materials, protective sealants, and regular maintenance ensures your plumbing system remains leak-free and efficient for years to come.
Easy Wassa Shower Head Installation Guide: Step-by-Step DIY Tips
You may want to see also
Explore related products
Alternatives to dielectric unions
Dielectric unions are often recommended to prevent galvanic corrosion between dissimilar metals in plumbing systems, but they aren’t the only solution. If you’re installing or replacing a shower head pipe and want to avoid dielectric unions, consider these alternatives tailored to specific scenarios.
- Use Same-Material Fittings: The simplest way to eliminate corrosion risk is to ensure all components in the shower head assembly are made of the same material. For example, pair a brass shower arm with a brass shower head and brass connectors. This uniformity removes the galvanic reaction entirely, making dielectric unions unnecessary. Always verify material compatibility by checking manufacturer specifications or consulting a plumber.
- Install Plastic or PEX Components: Non-metallic materials like plastic or PEX (cross-linked polyethylene) are inherently corrosion-resistant and can serve as effective alternatives. Replace the shower arm or connectors with plastic variants, which are lightweight, affordable, and widely available. PEX, often used in water supply lines, can also be adapted for shower head installations with the right fittings. Ensure the plastic components meet local plumbing codes and are rated for hot water use.
- Apply Thread Sealants with Corrosion Inhibitors: If you’re sticking with metal fittings but want to avoid dielectric unions, use thread sealants containing corrosion inhibitors. Products like Teflon tape with PTFE (polytetrafluoroethylene) or pipe dope with anti-corrosion additives create a barrier between dissimilar metals, reducing the risk of galvanic action. Apply the sealant evenly to threaded connections, following the manufacturer’s instructions for proper dosage and technique.
- Consider Isolation Flanges or Sleeves: For more complex setups, isolation flanges or sleeves made of non-conductive materials can separate dissimilar metals without the bulk of a dielectric union. These components are installed between the shower arm and head, providing a physical barrier that prevents electrical contact. While less common in residential applications, they’re a viable option for those seeking a discreet, long-term solution.
Each alternative has its merits, but the best choice depends on your plumbing setup, budget, and local regulations. Always prioritize safety and compliance, and consult a professional if you’re unsure about the suitability of a particular method for your shower head pipe installation.
Easy Shower Head Replacement: Removal and Installation Guide
You may want to see also
Frequently asked questions
Yes, a dielectric union is recommended if you are connecting pipes made of different metals (e.g., copper and galvanized steel) to prevent galvanic corrosion caused by the interaction of dissimilar metals and water.
Without a dielectric union, the contact between dissimilar metals can lead to corrosion, reduced water flow, leaks, and potential damage to your plumbing system over time.
No, a dielectric union is not necessary if the pipes are made of the same material, as there is no risk of galvanic corrosion in this case. It’s only needed when connecting different metals.
