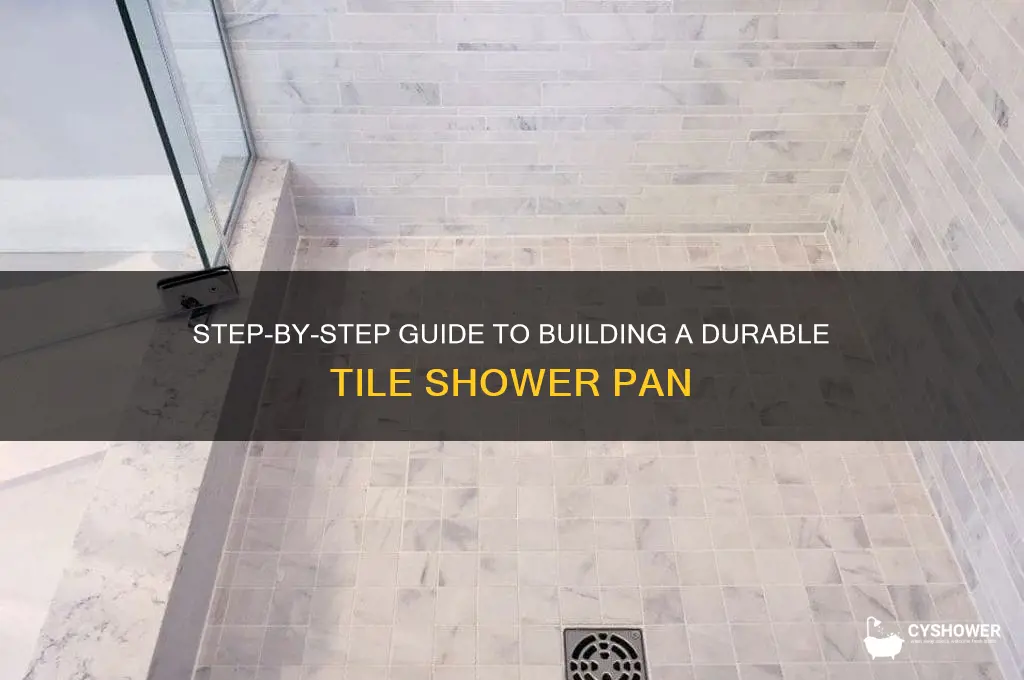

Building a tile shower pan is a crucial step in creating a durable and waterproof shower system. It involves careful planning, precise measurements, and the use of appropriate materials to ensure a leak-free and long-lasting installation. The process typically includes preparing the subfloor, installing a waterproof membrane, constructing a slope for proper drainage, and laying the mortar bed before setting the tiles. Attention to detail is essential, as even small errors can lead to water damage or structural issues. Whether you're a DIY enthusiast or a professional, understanding the steps and techniques involved in building a tile shower pan is key to achieving a functional and aesthetically pleasing shower.
| Characteristics | Values |
|---|---|
| Materials Needed | Cement backer board, thin-set mortar, waterproof membrane, tile, grout, pre-sloped shower pan kit (optional), screws, silicone caulk, trowel, notched trowel, utility knife, tile cutter, sponge, bucket, mixing tools. |
| Subfloor Preparation | Ensure subfloor is clean, level, and structurally sound. Use a pre-sloped shower pan kit or build a sloped mortar bed for proper drainage. |
| Waterproofing | Apply a waterproof membrane (e.g., liquid waterproofing or sheet membrane) to the subfloor and walls, extending 6-8 inches above the shower pan. |
| Mortar Bed Construction | Mix thin-set mortar and apply it to create a sloped base (1/4 inch per foot) toward the drain. Use a notched trowel for even application. |
| Cement Backer Board Installation | Attach cement backer board to the mortar bed using corrosion-resistant screws. Ensure seams are offset and waterproofed. |
| Tile Installation | Apply thin-set mortar to the backer board using a notched trowel. Set tiles, ensuring proper spacing with tile spacers. Allow mortar to cure. |
| Grouting | Mix grout and apply it to the tile joints using a grout float. Wipe excess grout with a damp sponge. Allow grout to cure. |
| Drain Installation | Install the shower drain according to manufacturer instructions, ensuring it is level and properly sealed. |
| Sealing | Apply silicone caulk to all corners, edges, and seams to prevent water intrusion. Allow caulk to cure fully. |
| Curing Time | Allow mortar, grout, and caulk to cure for at least 48-72 hours before using the shower. |
| Maintenance | Regularly clean tiles and grout to prevent mold and mildew. Reapply sealant as needed. |
| Optional Additions | Linear drains, niche shelves, or decorative tiles for customization. |
| Safety Considerations | Wear protective gear (gloves, goggles, mask) when working with mortar and chemicals. Ensure proper ventilation. |
Explore related products
What You'll Learn
- Materials Needed: Essential supplies for constructing a durable and waterproof tile shower pan
- Base Preparation: Steps to prepare the subfloor and ensure proper slope for drainage
- Waterproofing Techniques: Methods to apply waterproofing membranes and liners effectively
- Mortar Bed Installation: How to mix and lay the mortar bed for tile support
- Tile Layout & Grouting: Tips for arranging tiles and applying grout for a finished look
Materials Needed: Essential supplies for constructing a durable and waterproof tile shower pan
Building a tile shower pan requires a meticulous selection of materials to ensure durability and waterproofing. The foundation of any successful shower pan lies in its substrate, typically a layer of cement backer board or concrete slab. These materials provide a stable base that resists moisture and supports the tile installation. Unlike drywall or greenboard, cement backer board is impervious to water, making it essential for wet environments. For added strength, consider using a wire mesh embedded in a mortar bed, which enhances structural integrity and prevents cracking under pressure.
Waterproofing is non-negotiable in shower pan construction, and liquid waterproofing membranes like RedGuard or Hydro Barrier are indispensable. Applied in thin, even coats, these membranes create a seamless barrier that prevents water infiltration. For corners and seams, waterproofing tape reinforces vulnerable areas, ensuring no moisture seeps through gaps. Another critical component is the shower pan liner, typically made of PVC or chlorinated polyethylene. This flexible sheet is installed beneath the mortar bed, directing water toward the drain and protecting the subfloor from leaks.
The mortar mix used for the shower pan must be specifically designed for wet areas, such as a polymer-modified thinset mortar. This type of mortar bonds strongly to the substrate and tile while maintaining flexibility to accommodate minor movements without cracking. For the slope, a pre-sloped shower pan kit or mortar screed ensures proper drainage toward the drain. A consistent slope of 1/4 inch per foot is crucial to prevent standing water, which can lead to mold or structural damage.
Finally, the drain assembly is the heart of the shower pan, and selecting a high-quality shower drain with a removable grate simplifies maintenance and ensures efficient water flow. Pair the drain with a drain membrane or bonding flange to integrate it seamlessly with the waterproofing system. For the tile surface, choose porcelain or ceramic tiles with a slip-resistant finish, and use unsanded grout for joints smaller than 1/8 inch to prevent surface scratching. Each material plays a specific role, and their proper selection and installation are key to a long-lasting, leak-free shower pan.
Matching Shower Curb and Wall Tiles: Design Harmony or Creative Freedom?
You may want to see also
Explore related products
Base Preparation: Steps to prepare the subfloor and ensure proper slope for drainage
A well-prepared subfloor is the foundation of a successful tile shower pan, ensuring proper drainage and preventing water damage. Begin by removing any existing flooring materials, such as tile or vinyl, down to the bare subfloor. Inspect the subfloor for damage, warping, or soft spots; repair or replace compromised areas with exterior-grade plywood, ensuring a stable and level surface. Use a 4-foot level to check for flatness, as even minor irregularities can disrupt water flow.
Achieving the correct slope is critical for effective drainage. The industry standard is a ¼-inch per foot slope toward the drain. To create this slope, install a layer of cement backer board or mortar beneath the shower pan area, tapering it down from the shower threshold to the drain. For precision, use a pre-sloped shower pan kit or mix a dry-pack mortar bed, following a 4:1 ratio of sand to cement. Apply the mortar in layers, allowing each to cure before adding the next, and use a straightedge to ensure consistent grading.
Before proceeding, test the slope by pouring water onto the subfloor. It should flow smoothly toward the drain without pooling. If adjustments are needed, add or remove mortar in small increments, retesting until the slope is correct. This step is non-negotiable, as improper drainage can lead to mold, mildew, and structural issues over time.
Finally, waterproof the subfloor to protect against moisture penetration. Apply a liquid waterproofing membrane, such as a polymer-modified coating, in two thin coats, allowing the first to dry completely before applying the second. Pay special attention to corners, seams, and the drain area, using a brush or roller to ensure even coverage. Once the membrane is fully cured, typically after 24 hours, the subfloor is ready for the installation of the shower pan liner and tile. This meticulous preparation guarantees a durable, leak-free shower pan.
Waterproofing Behind Shower Tiles: Essential Tips for a Leak-Free Bathroom
You may want to see also
Explore related products
Waterproofing Techniques: Methods to apply waterproofing membranes and liners effectively
Effective waterproofing is the linchpin of a durable tile shower pan, preventing leaks that can lead to structural damage and mold. Among the most reliable methods are waterproofing membranes and liners, which act as barriers against moisture intrusion. Membranes like liquid-applied waterproofing or sheet membranes (e.g., PVC or CPE) are favored for their flexibility and seamless coverage, while liners such as chlorine-free rubber or vinyl offer robust protection but require precise installation. The choice depends on factors like shower size, substrate material, and budget, with membranes often preferred for complex shapes and liners for straightforward designs.
Applying liquid waterproofing membranes involves a systematic process to ensure complete coverage. Begin by cleaning and priming the substrate to enhance adhesion. Using a roller or brush, apply the first coat in thin, even strokes, focusing on corners and seams. Allow it to cure according to manufacturer guidelines (typically 4–6 hours), then apply a second coat perpendicularly to the first for maximum coverage. For added protection, embed a fabric mesh into the wet membrane at seams and corners. This method is ideal for custom showers with niches or benches, as it conforms to irregular surfaces.
Sheet membranes, such as PVC or CPE, require meticulous installation to avoid gaps or wrinkles. Start by cutting the membrane to size, leaving a 6–8 inch overhang on walls and curbs. Secure it to the substrate using approved adhesives or mechanical fasteners, ensuring all seams are overlapped by at least 2 inches and sealed with compatible tape. For inside corners, create a "field seam" by cutting and overlapping the membrane in a stepped pattern. This method is particularly effective for pre-sloped shower pans, where water naturally drains to the center.
Liners, though less common in modern installations, remain a viable option for DIYers due to their simplicity. Chlorinated polyethylene (CPE) or vinyl liners are cut to fit the shower pan and secured with a bead of silicone adhesive along the edges. The liner is then pressed into the mortar bed, ensuring all air bubbles are smoothed out. While liners are cost-effective, they lack the flexibility of membranes and can puncture if not handled carefully. This method is best suited for rectangular showers with minimal curvature.
Regardless of the method chosen, proper surface preparation and adherence to manufacturer instructions are critical. For instance, liquid membranes may require a third coat in high-moisture areas, while sheet membranes demand precise seam sealing. Always conduct a flood test by filling the pan with water for 24 hours before tiling to identify and rectify leaks. By mastering these techniques, you can ensure your tile shower pan remains watertight for years, safeguarding your investment and peace of mind.
Tile Shower Value: Boosting Home Worth with Stylish Bathroom Upgrades
You may want to see also
Explore related products
Mortar Bed Installation: How to mix and lay the mortar bed for tile support
A solid mortar bed is the unsung hero of a tile shower pan, providing the critical foundation that ensures longevity and prevents leaks. Without it, even the most exquisite tiles will fail under the constant moisture and weight. This layer, typically made from a mixture of sand, Portland cement, and water, must be meticulously prepared and installed to achieve the necessary slope and structural integrity.
Mixing the mortar requires precision. Combine one part Portland cement with three parts masonry sand in a wheelbarrow or mixing tub. Gradually add water, aiming for a consistency similar to peanut butter—firm enough to hold its shape but pliable enough to spread. Overmixing or adding too much water weakens the bond, while too little water makes it unworkable. A 5-gallon bucket of dry mix typically yields enough mortar for about 10 square feet of coverage at a 1-inch thickness. Always wear gloves and a dust mask during mixing to avoid skin and respiratory irritation.
Laying the mortar bed demands both skill and patience. Begin by applying a bonding agent, such as a latex additive or thinset, to the shower pan’s subfloor to enhance adhesion. Using a trowel, spread the mortar in even layers, starting from the drain and working outward. Create a slope of 1/4 inch per foot toward the drain to facilitate proper water runoff. For larger areas, work in sections to prevent the mortar from drying prematurely. Embed a waterproof membrane, like PVC or CPE, into the wet mortar near the drain to prevent water penetration at this vulnerable point.
Curing is as crucial as the installation itself. Keep the mortar bed moist for at least 24 hours by lightly misting it with water and covering it with plastic sheeting. Avoid walking on it for 48 hours to prevent cracks or indentations. After curing, test the slope by pouring water near the edges—it should flow seamlessly toward the drain. Any pooling indicates an uneven surface that requires correction before tiling.
While the process is labor-intensive, the payoff is a shower pan that withstands decades of use. A properly installed mortar bed not only supports the tile but also acts as a secondary waterproofing layer, safeguarding against leaks that could damage subfloors and framing. Skipping this step or cutting corners risks costly repairs down the line, making it a non-negotiable investment in any tile shower project.
Fiberglass Shower Base and Tile Walls: A Compatible Bathroom Combo?
You may want to see also
Explore related products
Tile Layout & Grouting: Tips for arranging tiles and applying grout for a finished look
Tile layout is the backbone of a shower pan’s aesthetic and structural integrity. Start by dry-fitting tiles without adhesive to visualize patterns and ensure symmetry. Center the design on the shower entrance for visual balance, and avoid narrow slivers of tile at edges by adjusting the layout early. Use a chalk line or laser level to mark reference points, ensuring straight lines even on uneven surfaces. For complex shapes or gradients, create a paper template of the shower pan to map tile placement before installation. This step prevents costly mistakes and ensures a professional finish.
Grouting is both functional and decorative, sealing tiles while defining their pattern. Choose a grout color that contrasts subtly with the tile to enhance the design without overwhelming it. For shower pans, epoxy or cementitious grout with a latex additive is ideal due to its water resistance and durability. Mix grout to a toothpaste-like consistency, applying it diagonally across tiles with a rubber float. Work in small sections to avoid drying, and remove excess grout at a 45-degree angle. Allow grout to haze slightly before wiping with a damp sponge—rinsing frequently to avoid residue.
A common mistake is rushing the grouting process, leading to uneven joints or incomplete coverage. After initial wiping, let the grout cure for 24–48 hours before sealing. Use a penetrating grout sealer to protect against moisture and stains, applying it with a small brush or spray bottle. Reapply sealer annually in high-moisture areas like shower pans. For intricate tile patterns, consider using grout bags for precision in tight spaces, ensuring consistent depth and appearance.
The interplay between tile layout and grouting can elevate or undermine the shower pan’s final look. For example, large-format tiles paired with thin grout lines create a sleek, modern aesthetic, while mosaic tiles with wider grout lines add texture and character. Always account for grout width when planning tile spacing to maintain uniformity. Test grout color on a spare tile to see how it dries, as wet grout often appears darker. By integrating layout precision and grouting technique, you achieve a cohesive, watertight shower pan that marries form and function.
Can Car Paste Wax Seal Stone Shower Tiles? Expert Insights
You may want to see also
Frequently asked questions
To build a tile shower pan, you will need materials such as cement backer board, waterproof membrane (e.g., CPE or PVC liner), thin-set mortar, sand mix (for the mortar bed), tile, grout, a shower drain assembly, and waterproofing sealant. Tools like a trowel, utility knife, and level are also essential.
The shower pan should slope toward the drain at a gradient of 1/4 inch per foot. To achieve this, create a mortar bed using sand mix, shaping it with a trowel to ensure the slope. Use a level to check the gradient and make adjustments as needed before the mortar sets.
The waterproof membrane acts as a secondary barrier to prevent water from seeping through the mortar bed and causing damage to the subfloor. It is installed between the cement backer board and the mortar bed, ensuring that any water that penetrates the tile and grout is directed toward the drain.
