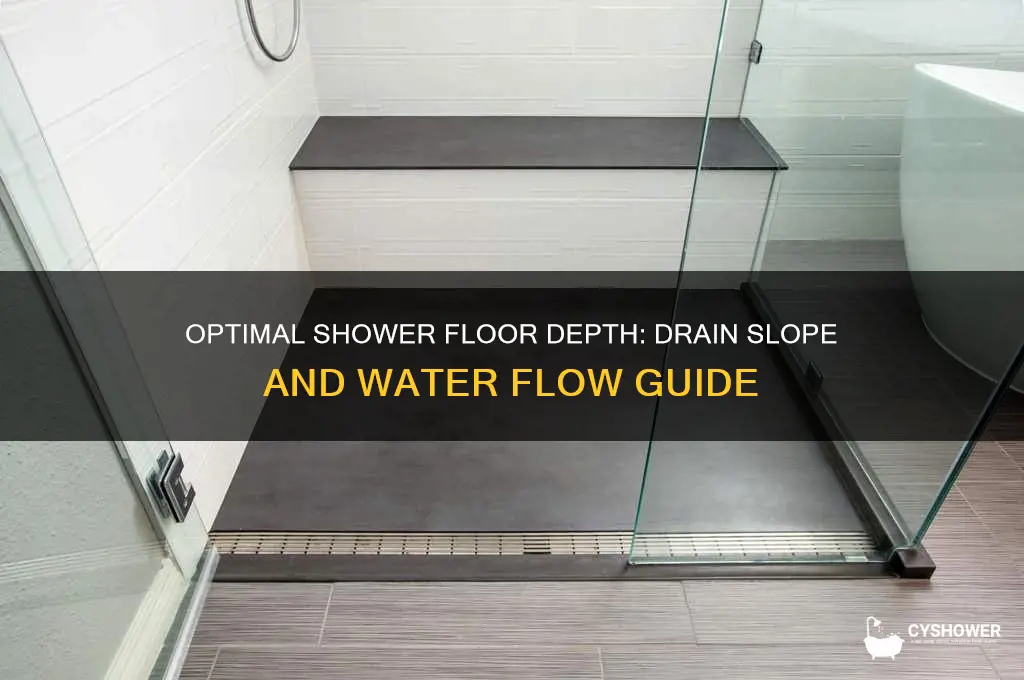

When designing or renovating a shower, one critical aspect often overlooked is the depth of the shower floor at the drain. The ideal depth is essential for ensuring proper water drainage, preventing standing water, and maintaining a safe and functional shower space. Typically, the shower floor should slope gently toward the drain, with a recommended gradient of about 1/4 inch per foot. This slope allows water to flow efficiently without pooling, reducing the risk of mold, mildew, and slip hazards. Additionally, the depth at the drain itself should be shallow enough to facilitate quick drainage but not so shallow that it compromises the structural integrity of the shower pan or tile installation. Striking the right balance ensures both practicality and longevity in your shower design.
| Characteristics | Values |
|---|---|
| Minimum Depth at Drain | 2 inches (50 mm) to ensure proper water flow and prevent standing water |
| Slope Requirement | 1/4 inch per foot (2% slope) toward the drain for efficient drainage |
| Standard Shower Floor Depth | 3 to 4 inches (75 to 100 mm) from the top of the shower curb to the drain |
| Linear Drain Depth | Typically requires a shallower slope (1/8 inch per foot) due to design |
| Curbless Shower Depth | 2 to 3 inches (50 to 75 mm) at the drain to maintain accessibility |
| Material Considerations | Tile or stone floors may add thickness, affecting overall depth |
| Waterproofing Layer | Adds approximately 1/8 to 1/4 inch, factored into total depth |
| Local Building Code Compliance | Varies by region; always check local codes for specific requirements |
| Accessibility Standards (e.g., ADA) | Requires a maximum threshold height of 1/2 inch for wheelchair access |
| Shower Pan Liner Depth | Typically 1/4 to 1/2 inch, included in overall floor depth |
Explore related products
What You'll Learn
- Standard shower drain depth requirements for proper water flow and drainage efficiency
- Sloping shower floors: ideal gradient for effective water runoff to the drain
- Linear drain vs. center drain: depth differences and installation considerations
- Shower floor material impact on depth and waterproofing needs for longevity
- Building code compliance: minimum and maximum depth regulations for shower drains
Standard shower drain depth requirements for proper water flow and drainage efficiency
When designing or renovating a shower, ensuring proper water flow and drainage efficiency is crucial to prevent standing water, mold, and other issues. The depth of the shower floor at the drain plays a significant role in achieving this. Standard shower drain depth requirements typically dictate that the shower floor should slope toward the drain at a gradient of about 1/4 inch per foot (approximately 2%). This slope ensures that water flows efficiently toward the drain without pooling. The drain itself should be installed at the lowest point of the shower floor, and the surrounding area should be graded to direct water toward it.
The depth of the shower floor at the drain is not just about the slope but also about the overall height of the drain relative to the finished floor. Standard requirements suggest that the shower drain should be flush with or slightly below the surface of the shower floor tiles. This ensures that water does not accumulate around the drain and that the transition from the shower floor to the drain is seamless. A common practice is to set the drain top about 1/8 to 1/4 inch below the finished floor level to allow for proper water flow without creating a tripping hazard.
Another critical aspect of standard shower drain depth requirements is the rough-in height of the drain during installation. The rough-in height refers to the elevation of the drain pipe before the shower base or floor is installed. It is essential to follow manufacturer guidelines or local building codes, as these often specify the exact height for the rough-in to ensure compatibility with the chosen drain assembly. Typically, the rough-in height should allow for the slope of the shower floor while accommodating the thickness of the mortar bed and tiles.
For tiled showers, the standard depth requirements also involve creating a pre-slope beneath the waterproof membrane to further ensure proper drainage. This pre-slope is usually steeper than the finished slope, often around 1/2 inch per foot, and directs water toward the drain before the final floor slope is established. The combination of the pre-slope and the finished slope guarantees that water moves efficiently toward the drain, even if the shower floor is not perfectly graded.
Lastly, it’s important to consider the type of drain being used, as this can influence depth requirements. For example, linear drains, which are becoming increasingly popular, may require a different slope or depth compared to traditional center drains. Regardless of the drain type, adhering to standard shower drain depth requirements ensures that the shower functions effectively and remains low-maintenance. Always consult local building codes and manufacturer instructions to confirm specific depth and slope requirements for your project.
Soothing Itchy Skin Post-Shower: Quick Fixes and Gentle Remedies
You may want to see also
Explore related products
Sloping shower floors: ideal gradient for effective water runoff to the drain
When designing a shower floor, ensuring proper slope toward the drain is critical for effective water runoff and to prevent standing water, which can lead to mold, mildew, and structural damage. The ideal gradient for a sloping shower floor is generally accepted to be 1/4 inch per foot (approximately 2% slope). This slope allows water to flow efficiently toward the drain without being too steep, which could make the shower floor uncomfortable or unsafe. A 2% slope strikes a balance between functionality and user comfort, ensuring that water drains quickly while maintaining a stable surface for showering.
The depth of the shower floor at the drain is directly influenced by the chosen gradient. For example, if your shower floor is 3 feet from the drain to the farthest wall, the floor should be 3/4 inch lower at the drain than at the wall (3 feet × 1/4 inch per foot = 3/4 inch). This calculation ensures that water naturally flows toward the drain without pooling. It’s essential to measure and plan this slope carefully during installation, as even a slight deviation can lead to drainage issues. Using a level and marking the slope before tiling or applying the shower base material is a best practice.
In addition to the gradient, the size and placement of the drain itself play a role in effective water runoff. A larger drain or one with a higher flow rate can accommodate a slightly shallower slope, but adhering to the 1/4 inch per foot rule is still recommended for most residential showers. For barrier-free or curbless showers, precise slope management is even more critical, as water must drain efficiently without a raised threshold to contain it. In such cases, the slope may need to extend beyond the shower area to ensure water doesn't escape into the bathroom.
Another factor to consider is the material used for the shower floor. Linear drains, for instance, often allow for a shallower slope because of their elongated design, which captures water across a wider area. However, the 1/4 inch per foot gradient remains a reliable standard regardless of drain type. For DIY installations, pre-sloped shower pans or mortar beds can simplify the process, as they come pre-formed with the correct gradient. If building a custom slope, use a mortar mix or waterproof foam to create the incline, ensuring it’s smooth and consistent.
Finally, testing the slope before finalizing the shower floor is crucial. Pour water across the surface to observe its flow toward the drain, making adjustments as needed. Proper slope not only ensures efficient drainage but also prolongs the life of the shower by preventing water-related damage. By adhering to the ideal gradient of 1/4 inch per foot and carefully planning the depth at the drain, you can create a shower floor that is both functional and durable.
Easy DIY Guide to Repairing Your Shower Enclosure Quickly
You may want to see also
Explore related products
Linear drain vs. center drain: depth differences and installation considerations
When considering the depth of your shower floor at the drain, the choice between a linear drain and a center drain plays a significant role in both design and functionality. Linear drains are typically installed along the length of one side of the shower, often against a wall. This design allows for a shallow slope across the shower floor, usually around 1/4 inch per foot. The advantage here is that the entire shower floor can be sloped toward the linear drain, ensuring efficient water evacuation. This shallow slope also contributes to a more modern, sleek appearance and can make the shower feel more spacious. However, the installation requires precise grading to ensure water flows correctly, and the drain itself must be level to avoid pooling.
Center drains, on the other hand, are positioned in the middle of the shower floor, necessitating a more complex slope. The shower floor must be sloped in all directions toward the drain, typically at a steeper angle of around 1/2 inch per foot. This steeper slope can make the shower floor feel less even underfoot and may limit design options, especially in smaller showers. While center drains are often easier to install due to their straightforward plumbing requirements, the deeper slope can be less aesthetically pleasing and may require more material for the shower base.
One of the key depth differences between linear and center drains lies in the overall shower floor construction. Linear drains allow for a flatter, more gradual slope, which can reduce the total depth of the shower floor. This is particularly beneficial in renovations where floor height is a concern. Center drains, with their steeper slope, often require a deeper shower base, which can be a challenge in spaces with limited vertical clearance. Additionally, the depth at the drain itself is typically shallower for linear drains, as the water only needs to travel a short distance to reach the drain opening.
Installation considerations also differ significantly between the two drain types. Linear drains require careful planning to ensure the slope is consistent across the shower floor, often involving more intricate waterproofing and tiling work. The drain itself must be installed perfectly level to prevent water from pooling at one end. Center drains, while simpler in terms of slope, require precise positioning to ensure water drains effectively from all sides. Both types require proper waterproofing, but linear drains may demand additional attention due to their elongated shape and potential for leaks at the edges.
Finally, the choice between a linear drain and a center drain should align with your shower’s design and functional needs. Linear drains offer a contemporary look and shallow slope, ideal for minimalist or barrier-free showers, but require meticulous installation. Center drains are more traditional and easier to plumb, but their steeper slope and deeper floor may not suit all spaces. Understanding these depth differences and installation considerations will help you make an informed decision that balances aesthetics, practicality, and structural requirements.
Quick DIY Guide: Repairing Your Broken Shower Pull Easily
You may want to see also
Explore related products
Shower floor material impact on depth and waterproofing needs for longevity
When determining the depth of your shower floor at the drain, the choice of shower floor material plays a critical role in both depth requirements and waterproofing needs for long-term durability. Different materials have varying thicknesses, which directly impact the overall depth of the shower floor. For instance, traditional tile floors typically require a thicker mortar bed for proper slope and drainage, often resulting in a deeper shower floor compared to thinner materials like acrylic or fiberglass. The depth at the drain must accommodate the material’s thickness while ensuring a consistent slope (usually 1/4 inch per foot) to prevent water pooling. Thicker materials may necessitate a deeper drain installation to maintain the necessary gradient without compromising the structural integrity of the shower base.
The material of the shower floor also significantly influences waterproofing requirements. Tile floors, for example, demand a robust waterproofing membrane beneath the mortar bed and tiles to prevent water infiltration into the subfloor. This adds to the overall depth but is essential for longevity. In contrast, pre-fabricated materials like acrylic or fiberglass often come with integrated waterproofing, reducing the need for additional layers and allowing for a shallower installation. However, even with these materials, proper sealing at joints and edges is crucial to avoid leaks over time. The choice of material thus dictates not only the depth but also the complexity and extent of waterproofing measures needed.
Natural stone shower floors introduce another layer of consideration due to their weight and thickness. Stone slabs are typically thicker than tiles or pre-fabricated materials, requiring a deeper shower floor to accommodate both the stone and the necessary mortar or adhesive layers. Additionally, stone is inherently porous, necessitating a high-quality sealant and waterproofing membrane to prevent water absorption and potential cracking. This combination of material thickness and waterproofing needs can result in a deeper drain installation compared to lighter, less porous options.
For those opting for concrete shower floors, depth and waterproofing are equally critical. Concrete is durable but requires a significant thickness to ensure structural stability, often making it one of the deeper shower floor options. Waterproofing concrete involves applying liquid membranes or sheet membranes, which add to the overall depth. Proper curing and sealing are essential to prevent cracking and water penetration, ensuring the longevity of the shower floor. The depth at the drain must account for the concrete’s thickness and the waterproofing layers, making precise planning imperative.
Lastly, the interplay between shower floor material and depth affects not only waterproofing but also maintenance and repair needs. Materials like tile, while customizable and aesthetically versatile, may require more frequent grout maintenance and potential re-sealing to prevent water damage. Thinner materials like acrylic or fiberglass, while easier to install and maintain, may lack the same longevity if not properly supported or sealed. Understanding how the material impacts depth and waterproofing allows homeowners to make informed decisions that balance aesthetics, functionality, and long-term durability. In all cases, ensuring the correct depth at the drain is fundamental to achieving effective drainage and preventing water-related issues.
Easy Steps to Remove a Shower Drain Cover Quickly and Safely
You may want to see also
Explore related products
Building code compliance: minimum and maximum depth regulations for shower drains
When designing or renovating a shower, ensuring compliance with building codes is crucial for safety, functionality, and longevity. One critical aspect of shower construction is the depth of the shower floor at the drain. Building codes typically specify minimum and maximum depth requirements to facilitate proper drainage, prevent water pooling, and reduce the risk of slips and falls. These regulations vary by jurisdiction, but they generally aim to balance practicality with safety standards.
Minimum Depth Requirements
Most building codes mandate a minimum slope for shower floors to ensure efficient water flow toward the drain. The International Residential Code (IRC) and International Building Code (IBC), widely adopted in the United States, recommend a minimum slope of 1/4 inch per foot (approximately 2%). This slope ensures water does not stagnate, which can lead to mold, mildew, or structural damage. At the drain, the shower floor should be deep enough to accommodate this slope while maintaining a functional and safe shower entry height. Typically, the minimum depth at the drain is around 2 inches below the shower threshold, though this can vary based on local codes and the specific drain design.
Maximum Depth Considerations
While minimum depth is essential for drainage, maximum depth is equally important to ensure accessibility and safety. Building codes often limit the depth of the shower floor at the drain to prevent tripping hazards and accommodate individuals with mobility challenges. For example, the Americans with Disabilities Act (ADA) guidelines recommend that the shower floor should not exceed 1/2 inch below the threshold at the drain to allow for easy entry and exit. Exceeding this depth can create a safety risk, particularly for elderly or disabled users.
Drain Design and Compliance
The type of drain installed also influences depth requirements. Traditional center drains often require a deeper slope compared to linear or trench drains, which can achieve effective drainage with a shallower gradient. Building codes may specify different depth regulations based on drain type, so it’s essential to consult local regulations and manufacturer guidelines. Additionally, the use of pre-sloped shower pans or mortar beds can simplify compliance with depth requirements while ensuring proper water flow.
Local Code Variations
It’s important to note that building code requirements can vary significantly by location. Local jurisdictions may impose stricter or more lenient standards based on regional factors such as climate, plumbing practices, and accessibility priorities. Always consult local building codes or a licensed contractor to ensure your shower floor depth complies with specific regulations. Failure to adhere to these standards can result in failed inspections, costly rework, or safety hazards.
In summary, building code compliance for shower drain depth involves adhering to minimum slope requirements for effective drainage and maximum depth limits for safety and accessibility. By understanding and applying these regulations, homeowners and contractors can create showers that are both functional and compliant with legal standards. Always prioritize local code requirements and professional guidance to achieve a successful and safe shower installation.
Unscrew a Stuck Shower Drain: Quick Fixes and Pro Tips
You may want to see also
Frequently asked questions
The shower floor should slope toward the drain at a gradient of about 1/4 inch per foot (2% slope). At the drain, the floor should be approximately 2 inches deep to allow water to flow efficiently without pooling.
Yes, if the shower floor is too deep at the drain, it can create an awkward step-down and may not comply with building codes. A depth of more than 2 inches at the drain is generally unnecessary and can make the shower less comfortable to use.
Yes, the depth of the shower floor at the drain is crucial for accessibility. A shallow slope (around 1/4 inch per foot) ensures a gradual transition, making it easier for individuals with mobility challenges to enter and exit the shower safely.
