Olivia Waters

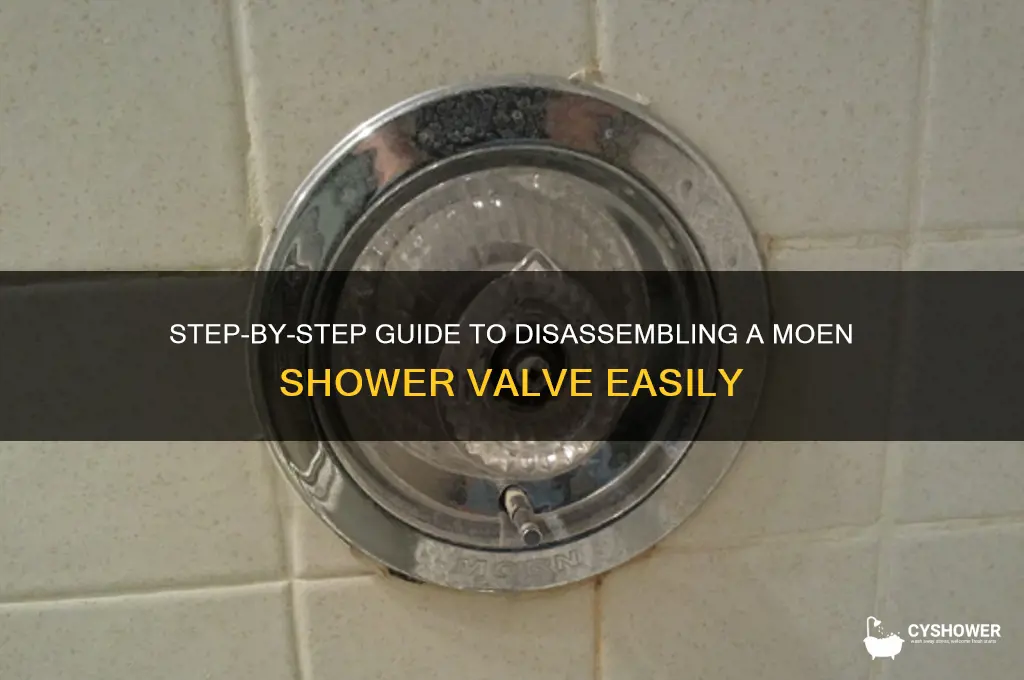

Taking apart a Moen shower valve can seem daunting, but with the right tools and a clear understanding of the process, it’s a manageable DIY task. Moen shower valves are designed for durability and ease of maintenance, but disassembly requires careful attention to avoid damaging components. The process typically involves shutting off the water supply, removing the handle and escutcheon, and then accessing the valve cartridge or mechanism. Understanding the specific model of your Moen valve is crucial, as designs can vary slightly. By following step-by-step instructions and using basic plumbing tools, you can successfully disassemble the valve for repair, replacement, or cleaning, ensuring your shower functions smoothly once reassembled.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (Phillips or flathead), adjustable wrench, pliers, utility knife, penetrating oil (optional) |
| Safety Precautions | Turn off water supply to the shower, wear safety goggles, ensure proper ventilation |
| Valve Type | Moen Posi-Temp, Moen Pressure Balance, Moen Single-Control |
| Steps to Disassemble | 1. Remove handle screw and handle, 2. Extract cartridge clip or retainer, 3. Pull out cartridge, 4. Inspect and clean components, 5. Reassemble or replace parts as needed |
| Common Issues | Leaks, temperature control problems, mineral buildup, worn-out cartridge |
| Replacement Parts | Cartridge (1222, 1222B, 1200, etc.), O-rings, retainer clip, handle adapter kit |
| Maintenance Tips | Regularly clean showerhead and valve, check for leaks, lubricate O-rings with silicone grease |
| Difficulty Level | Moderate (requires basic plumbing skills and tools) |
| Time Required | 30 minutes to 1 hour, depending on valve condition and experience |
| Warranty | Moen offers limited lifetime warranty on most shower valves; check specific model for details |
| Additional Resources | Moen's official website, YouTube tutorials, plumbing forums, and user manuals |
Explore related products
What You'll Learn
- Gather necessary tools: screwdriver, pliers, Allen wrench, replacement parts, and safety gear
- Shut off water supply: locate main valve, turn clockwise to stop water flow
- Remove handle and escutcheon: unscrew handle, pry off decorative plate carefully
- Access cartridge: loosen retaining nut, pull out valve cartridge gently
- Inspect and replace parts: check for damage, install new cartridge or components as needed
Gather necessary tools: screwdriver, pliers, Allen wrench, replacement parts, and safety gear
Before disassembling a Moen shower valve, ensure you have the right tools to avoid frustration and potential damage. A screwdriver is essential, as most Moen valves require removing screws to access internal components. Opt for a flathead or Phillips screwdriver depending on the screw type, and ensure the tip size matches to prevent stripping. Pliers are equally critical for gripping and turning stubborn parts, such as retaining nuts or cartridges, especially if they’re corroded or stuck. Needle-nose pliers can also help extract small components like O-rings or clips.
An Allen wrench (hex key) is often overlooked but indispensable for Moen valves with set screws, commonly found in handle assemblies. These screws are typically small and recessed, so having the correct size Allen wrench ensures precision and prevents damage. Additionally, prepare replacement parts like cartridges, O-rings, or washers, as worn components are often the root cause of leaks or malfunctions. Check your valve model number beforehand to purchase compatible parts, as Moen offers various designs.
Safety should never be an afterthought. Wear safety gear, including gloves to protect against sharp edges and eye protection to guard against debris or spring-loaded parts. While disassembling, work in a well-lit area and keep a towel nearby to catch any falling screws or parts. Proper preparation not only streamlines the process but also minimizes the risk of injury or costly mistakes.
Finally, organize your tools and parts before starting. Lay out everything on a clean surface, grouping similar items together. This systematic approach ensures you don’t lose track of small components and allows you to work efficiently. By gathering these tools and taking precautions, you’ll transform a potentially daunting task into a manageable DIY project.
Winter Shower Frequency: Balancing Hygiene and Skin Health in Cold Weather
You may want to see also
Explore related products
$33.99 $41.95
Shut off water supply: locate main valve, turn clockwise to stop water flow
Before dismantling a Moen shower valve, the first critical step is to shut off the water supply to prevent flooding and ensure a dry workspace. This process begins with locating the main water valve, typically found near the water meter or where the main water line enters your home. In most residential setups, this valve is a large, round handle or lever that controls the flow of water to the entire house. Once identified, turn the valve clockwise to shut off the water supply. This action is essential because it stops water from flowing into the plumbing system, allowing you to work on the shower valve without the risk of leaks or water damage.
The direction in which you turn the valve—clockwise—is a universal standard for most water shut-off valves, often referred to as the "righty-tighty" rule. Applying firm, steady pressure is key, as older valves may require more force due to mineral buildup or corrosion. If the valve is difficult to turn, using a valve wrench or pliers can provide additional leverage, but be cautious not to overtighten, as this could damage the valve stem. After turning the valve, open the shower faucet to release any residual water in the pipes, confirming that the supply has been successfully shut off.
While shutting off the main water valve is the most comprehensive method, it’s worth noting that some homes have individual shut-off valves for specific fixtures, such as showers. These are typically located near the shower valve itself, often in an access panel behind the shower wall or under the tub. If such a valve is present, turning it clockwise will isolate the water supply to the shower alone, minimizing disruption to other household water usage. However, if you’re unsure whether these valves exist or function properly, defaulting to the main valve is the safest approach.
A practical tip for homeowners is to familiarize themselves with the location of both the main and fixture-specific shut-off valves during non-emergency times. Labeling these valves or marking their positions can save time and reduce stress when repairs or maintenance are needed. Additionally, periodically testing these valves ensures they operate smoothly when required, as neglected valves can seize up over time. By mastering this initial step of shutting off the water supply, you lay the foundation for a safe and efficient Moen shower valve disassembly process.
Shower Confusion: Unraveling the Debate of 'Have' vs. 'Take' a Shower
You may want to see also
Explore related products
Remove handle and escutcheon: unscrew handle, pry off decorative plate carefully
The first step in dismantling a Moen shower valve is to remove the handle and escutcheon, a process that requires precision and care to avoid damaging the fixture. Begin by locating the screw that secures the handle to the valve stem. This screw is often hidden beneath a small cap or button at the center of the handle. Use a flathead screwdriver to gently pry off this cap, revealing the screw underneath. Once exposed, use an appropriate screwdriver to unscrew the handle. Take note of the screw’s size and type, as Moen handles typically use Phillips or Allen screws, and having the right tool ensures you don’t strip the screw head.
With the handle removed, your attention shifts to the escutcheon, the decorative plate surrounding the valve. This component is often secured by friction or adhesive, making it delicate to remove. Insert a thin, flat tool—such as a putty knife or a specialized pry bar—between the escutcheon and the wall. Apply gentle, even pressure to pry the plate away, working your way around its circumference. Be cautious not to scratch the surrounding tile or wall surface. If the escutcheon resists, check for hidden screws or clips that may still be holding it in place. Some models use small retaining screws located at the top or bottom of the plate, which should be removed before prying.
The success of this step hinges on patience and the right tools. For stubborn escutcheons, consider using a hairdryer to warm the plate and soften any adhesive, making it easier to remove without damage. Avoid excessive force, as this can crack the plate or damage the valve body. Once the escutcheon is free, inspect the area for any residual adhesive or debris, which can be cleaned with a mild solvent or rubbing alcohol. This ensures a clean workspace for the next steps in disassembling the valve.
Comparing this process to other shower valve brands highlights Moen’s focus on aesthetics and user-friendly design. While some brands use visible screws for both the handle and escutcheon, Moen often conceals fasteners to maintain a sleek appearance. This design choice, while visually appealing, requires a more thoughtful approach to disassembly. By understanding these nuances, you can approach the task with confidence, ensuring you preserve the integrity of the fixture while accessing the internal components for repair or replacement.
Showering Safely with New Ear Piercings: Tips for Healing and Hygiene
You may want to see also
Explore related products
$199
Access cartridge: loosen retaining nut, pull out valve cartridge gently
The retaining nut is your gateway to the valve cartridge, the heart of your Moen shower valve. This unassuming component, often overlooked, holds the key to repairing leaks, replacing worn parts, or upgrading your shower experience. To access it, you'll need a wrench or pliers, but proceed with caution—overtightening can damage the threads, turning a simple repair into a costly replacement.
Loosening the retaining nut requires precision and patience. Grip the nut firmly but gently, turning counterclockwise. If it resists, apply steady pressure rather than brute force. A stuck nut may benefit from penetrating oil, applied sparingly and allowed to sit for 10–15 minutes. Remember, the goal is to loosen, not strip, the threads. Once free, set the nut aside in a secure place—you’ll need it for reassembly.
With the retaining nut removed, the valve cartridge is exposed but not yet free. Pulling it out requires finesse. Grip the cartridge stem firmly but avoid excessive force, as plastic cartridges can crack under pressure. If the cartridge is stubborn, use a cartridge puller tool designed for Moen valves. This tool hooks onto the cartridge, providing leverage without damaging surrounding components.
Gently extract the cartridge, noting its orientation for reassembly. Inspect it for wear, mineral deposits, or damage. A worn cartridge often manifests as a leaky shower or inconsistent water temperature. If replacement is necessary, ensure the new cartridge matches the model number, typically found on the valve body or in your Moen manual.
This process, while straightforward, demands attention to detail. Rushing can lead to broken parts or misalignment during reassembly. Take your time, and if unsure, consult a Moen troubleshooting guide or video tutorial. Mastering this step not only saves you from unnecessary expenses but also empowers you to tackle future shower valve issues with confidence.
Purr-fectly Clean: Gentle Tips for Showering Your Cat Stress-Free
You may want to see also
Explore related products
Inspect and replace parts: check for damage, install new cartridge or components as needed
After disassembling your Moen shower valve, the next critical step is to inspect each component for wear, corrosion, or damage. Start with the cartridge, the heart of the valve, which often becomes the culprit behind leaks or erratic water temperature. Look for cracks, mineral deposits, or a worn-out surface that might compromise its sealing ability. Similarly, examine the O-rings and gaskets for brittleness or deformation—these small parts play a significant role in maintaining a watertight seal. If any component shows signs of deterioration, replacement is not just recommended but necessary to restore functionality.
When replacing parts, precision is key. For cartridges, Moen typically uses either a 1222 or 1225 model, depending on the valve series. Ensure you have the correct replacement by cross-referencing the model number or consulting Moen’s compatibility guide. Installation involves aligning the cartridge with the notches in the valve body and securing it firmly. For O-rings and gaskets, use silicone-based lubricant to ease installation and enhance sealing, but avoid petroleum-based products, which can degrade rubber components. A common mistake is over-tightening, which can warp the valve body—hand-tighten until snug, then give it a quarter-turn with pliers for security.
Consider this scenario: you’ve noticed a persistent drip even after adjusting the handle. Upon inspection, the cartridge shows mineral buildup, and the O-ring is cracked. Replacing these parts not only stops the leak but also prevents long-term damage to the valve body. This proactive approach saves both water and money, as a neglected leak can escalate into a costly plumbing issue. By addressing wear early, you extend the valve’s lifespan and maintain consistent shower performance.
While replacing parts is straightforward, be mindful of potential pitfalls. For instance, forcing a cartridge into place can damage the valve body, rendering it unusable. If the cartridge is stuck, soak it in vinegar for an hour to dissolve mineral deposits before removal. Additionally, always turn off the water supply before beginning work to avoid accidental flooding. For those less experienced, Moen’s online tutorials or a quick consultation with a plumber can provide visual guidance, ensuring confidence and accuracy in the process.
In conclusion, inspecting and replacing damaged components is a vital step in maintaining your Moen shower valve. By focusing on the cartridge, O-rings, and gaskets, you address the most common failure points. Armed with the right parts, tools, and techniques, even a novice can tackle this task effectively. Remember, a well-maintained valve not only functions better but also avoids the inconvenience and expense of larger repairs down the line.
Boxers and Showers: Pre-Weigh-In Rituals Explained
You may want to see also
Frequently asked questions
Locate the model number on the valve body or trim, often found on a tag or engraved surface. Alternatively, examine the handle style and cartridge type (e.g., 1222, 1225, or Posi-Temp) to determine the valve model.
Common tools include a Phillips or flathead screwdriver, an adjustable wrench, pliers, and a cartridge puller (if the cartridge is stuck). For older models, a socket wrench or Moen-specific removal tool may be required.
First, remove the handle screw or cap, then lift off the handle. Use a cartridge puller or pliers to extract the cartridge gently. For Posi-Temp valves, rotate the cartridge back and forth while pulling to release it.
Apply penetrating oil (e.g., WD-40) to the cartridge and let it sit for 15–30 minutes. Use a cartridge puller or Moen removal tool for stubborn cartridges, ensuring not to damage the valve body during extraction.
