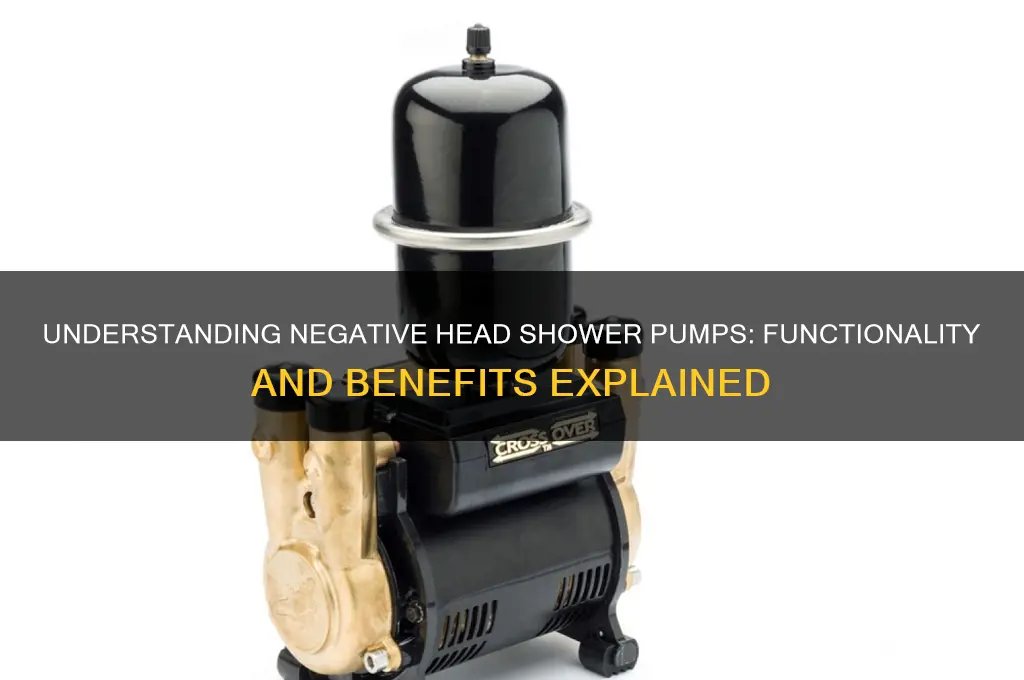

A negative head shower pump is a specialized device designed to boost water pressure in gravity-fed systems where the water supply relies on a tank or cistern located above the shower. Unlike positive head systems, where water is already under pressure, negative head systems often struggle to deliver adequate flow due to insufficient pressure or height differences. The pump works by creating suction to draw water from the source and then pressurizing it to ensure a consistent and powerful shower experience. It typically consists of two impellers: one to draw water in and another to push it out, effectively overcoming the challenges of low pressure. This type of pump is particularly useful in older properties or setups where the water tank is positioned below the shower level, ensuring a reliable and enjoyable shower even in less-than-ideal plumbing configurations.
| Characteristics | Values |
|---|---|
| Purpose | Boosts water pressure in shower systems where gravity or system design results in low pressure. |
| Operation Principle | Uses a centrifugal impeller to increase water pressure by creating a negative head (suction effect). |
| Installation Location | Typically installed close to the shower or at the base of the system to counteract negative head conditions. |
| Power Source | Electric, requiring a connection to a power supply. |
| Flow Rate | Varies by model, typically ranges from 8 to 20 liters per minute. |
| Pressure Boost | Can increase pressure by up to 1.5 to 3 bar, depending on the model. |
| Compatibility | Works with both gravity-fed and low-pressure water systems. |
| Noise Level | Generally quiet, with noise levels around 40-60 dB. |
| Size and Dimensions | Compact, typically 20-30 cm in length and width, suitable for tight spaces. |
| Material | Constructed from durable materials like brass, stainless steel, or plastic. |
| Maintenance | Requires periodic cleaning and checking for blockages or leaks. |
| Safety Features | Includes thermal overload protection and automatic shut-off in case of dry running. |
| Energy Efficiency | Designed to be energy-efficient, with many models consuming less than 200 watts. |
| Lifespan | Typically lasts 5-10 years with proper maintenance. |
| Cost | Ranges from $100 to $500, depending on brand and features. |
| Environmental Impact | Minimal, as it uses electricity efficiently and reduces water wastage by improving pressure. |
| Regulations Compliance | Must meet local plumbing and electrical safety standards (e.g., CE, UL). |
Explore related products
What You'll Learn
- Understanding Negative Head Systems: Explains how pumps work in systems where water supply is below the outlet level
- Pump Mechanism: Describes the impeller and motor function to boost water pressure effectively
- Installation Requirements: Highlights necessary setup conditions for optimal pump performance and longevity
- Common Issues: Addresses typical problems like airlocks, leaks, and insufficient pressure solutions
- Maintenance Tips: Provides guidelines for regular upkeep to ensure efficient and reliable operation
Understanding Negative Head Systems: Explains how pumps work in systems where water supply is below the outlet level
In systems where the water supply is below the outlet level, negative head shower pumps are essential for maintaining adequate water pressure. These pumps are designed to overcome the gravitational challenge of lifting water upwards, ensuring a consistent and powerful flow to your showerhead. The core principle involves creating a pressure differential that forces water to rise against gravity, transforming a potentially weak trickle into a robust stream. This is particularly crucial in basements, bungalows, or properties with water tanks located below the shower level.
To understand how these pumps work, consider the mechanics of water movement. A negative head pump typically consists of two key components: an impeller and a motor. The motor drives the impeller, which spins rapidly to draw water from the supply source. As the impeller rotates, it generates centrifugal force, pushing water outward and upward through the system. However, because the water source is below the outlet, the pump must also create a vacuum to initiate the flow. This is achieved through a combination of the pump’s design and the activation of a pressure switch, which detects low pressure and signals the pump to start.
One practical example of a negative head system is a shower setup in a basement bathroom where the cold water tank is located in the loft. Without a pump, water would barely reach the showerhead due to the height difference. A negative head shower pump solves this by priming itself when activated, drawing water from the tank and pushing it through the pipes. It’s important to note that these pumps are not self-priming indefinitely; they rely on water being present in the system to function. If the system runs dry, the pump may need to be manually primed by filling the pipes with water before use.
When installing a negative head shower pump, consider the following tips: ensure the pump is positioned close to the water source to minimize suction lift, use high-quality pipework to reduce friction losses, and install a non-return valve to prevent water from flowing back into the tank when the pump stops. Additionally, check the pump’s flow rate and pressure specifications to match your shower’s requirements. For instance, a pump with a flow rate of 20 liters per minute and a maximum head of 6 meters is suitable for most domestic showers.
In conclusion, negative head shower pumps are a vital solution for properties with water supplies below the outlet level. By understanding their mechanics and following practical installation guidelines, homeowners can ensure a reliable and powerful shower experience. Whether you’re retrofitting an existing system or planning a new installation, these pumps offer a straightforward yet effective way to overcome the challenges of gravity-defying water flow.
Easy Steps to Open and Clean Your Jaquar Shower Head
You may want to see also
Explore related products
Pump Mechanism: Describes the impeller and motor function to boost water pressure effectively
At the heart of a negative head shower pump lies the impeller, a rotating component with curved blades designed to accelerate water flow. As the motor drives the impeller, centrifugal force pushes water outward, creating a low-pressure zone at the center that draws more water into the system. This process effectively increases the kinetic energy of the water, transforming it into pressure energy as it exits the pump. The impeller’s design is critical—its blade angle, speed, and material determine efficiency, with high-quality models often featuring corrosion-resistant materials like stainless steel or reinforced plastics to ensure longevity.
The motor’s role is equally vital, as it provides the mechanical energy needed to spin the impeller at optimal speeds. In negative head systems, where water supply relies on gravity or low-pressure sources, the motor must work harder to overcome resistance and maintain consistent flow. Modern pumps often include variable-speed motors that adjust automatically based on demand, ensuring energy efficiency without sacrificing performance. For instance, a 1.5 kW motor can deliver up to 2.0 bar pressure, sufficient for most domestic shower systems, while advanced models may offer up to 3.0 bar for multi-outlet setups.
One practical consideration is the pump’s installation and maintenance. Positioning the pump close to the shower but below the water source minimizes airlocks, a common issue in negative head systems. Regularly checking for leaks, cleaning the impeller, and ensuring the motor’s thermal protection is functioning can prevent costly repairs. For DIY enthusiasts, installing a pump with a built-in anti-vibration mounting system reduces noise, while professional plumbers often recommend models with integrated flow switches for automatic operation.
Comparatively, negative head pumps differ from positive head systems in their ability to handle scenarios where water supply pressure is insufficient or inconsistent. While positive head pumps rely on existing pressure to function, negative head pumps actively create pressure, making them ideal for gravity-fed systems or properties with weak mains supply. This distinction highlights the importance of selecting the right pump mechanism based on your water system’s characteristics, ensuring both efficiency and reliability.
In conclusion, the impeller and motor are the unsung heroes of a negative head shower pump, working in tandem to transform low-pressure water into a powerful shower experience. Understanding their function not only demystifies the pump’s operation but also empowers homeowners to make informed decisions about installation, maintenance, and troubleshooting. Whether upgrading an existing system or installing a new one, focusing on these components ensures optimal performance and long-term satisfaction.
Easy Steps to Secure Your Shower Head Flange Effectively
You may want to see also
Explore related products
Installation Requirements: Highlights necessary setup conditions for optimal pump performance and longevity
A negative head shower pump is designed to boost water pressure in gravity-fed systems where the water tank is located below the pump. However, its effectiveness hinges on precise installation conditions. Proper setup ensures not only optimal performance but also prolongs the pump’s lifespan, preventing issues like airlocks, overheating, or premature wear. Here’s what you need to know to get it right.
Location Matters: Positioning for Efficiency
Place the pump as close as possible to the outlets it serves, typically near the shower or bathroom. This minimizes pipe runs, reducing friction losses and ensuring consistent pressure. Ensure the pump is installed on a flat, stable surface to avoid vibrations that can damage components. If wall-mounted, use vibration-damping mounts to further protect the unit. Avoid areas prone to freezing, as this can damage the pump and pipes. For outdoor installations, use a weatherproof enclosure rated IPX5 or higher to protect against water ingress.
Pipework Precision: Sizing and Layout
Use correctly sized pipes to match the pump’s flow rate, typically 15mm or 22mm copper or plastic piping. Undersized pipes restrict flow, while oversized ones can lead to inefficient operation. Keep pipe runs straight and minimize bends to reduce resistance. If bends are unavoidable, use smooth, sweeping elbows instead of sharp angles. Install isolation valves on both the inlet and outlet sides to allow for maintenance without draining the system. Ensure all joints are securely sealed to prevent leaks, which can reduce pump efficiency and cause water damage.
Electrical and Ventilation: Power and Cooling
Negative head pumps require a dedicated electrical supply, typically a 13-amp fused spur. Ensure the wiring complies with Part P of the Building Regulations and is installed by a qualified electrician. The pump should be positioned in a well-ventilated area to prevent overheating, with at least 150mm clearance around all sides. Avoid installing in confined spaces like cupboards unless adequate ventilation is provided. Use a residual current device (RCD) for added safety, especially in wet areas.
Priming and Commissioning: Initial Setup
Before powering on, prime the pump by filling the system with water to eliminate air pockets, which can cause the pump to run dry and overheat. Open all outlets briefly to allow air to escape, then close them before starting the pump. Run the pump for a few minutes to ensure smooth operation and check for leaks. Follow the manufacturer’s instructions for specific priming procedures, as these can vary by model. Regularly inspect the pump during the first week of operation to ensure all connections are secure and functioning correctly.
By adhering to these installation requirements, you’ll maximize the performance and longevity of your negative head shower pump, ensuring a reliable and efficient water supply for years to come.
Easy Steps to Install a Fire Hydrant Shower Head at Home
You may want to see also
Explore related products
Common Issues: Addresses typical problems like airlocks, leaks, and insufficient pressure solutions
Airlocks are a common issue in negative head shower pumps, often caused by air entering the system during installation or maintenance. When air becomes trapped in the pump, it disrupts water flow, leading to sputtering or complete loss of pressure. To resolve this, start by turning off the pump and isolating the water supply. Open the bleed valves on the pump to release trapped air, ensuring all air is expelled before restarting the system. Regularly checking for airlocks during routine maintenance can prevent this issue from recurring.
Leaks in a negative head shower pump can stem from worn seals, loose fittings, or cracked pipes. Even a small leak can reduce system efficiency and cause water damage over time. Inspect all connections, including the pump’s inlet and outlet, for signs of moisture or dripping. Tighten loose fittings with a wrench, but avoid over-tightening to prevent damage. If seals are compromised, replace them with manufacturer-recommended parts. For persistent leaks, consult a professional to assess the pump’s integrity and ensure proper installation.
Insufficient pressure is a frustrating problem that can arise from clogged filters, incorrect pump sizing, or inadequate water supply. Begin by checking the pump’s pre-filter for debris and clean or replace it as needed. Ensure the pump is appropriately sized for your system; undersized pumps struggle to deliver adequate pressure. If the issue persists, verify that the cold water storage tank is supplying sufficient water to the pump. Adjusting the tank’s ball valve to maintain the correct water level can improve performance. In extreme cases, upgrading to a higher-capacity pump may be necessary.
Preventative measures are key to avoiding these common issues. Schedule regular inspections to identify potential problems early, such as loose connections or worn components. Keep detailed records of maintenance activities, including part replacements and adjustments. Educate household members on proper usage, such as avoiding simultaneous high-demand water activities that strain the pump. By staying proactive and addressing issues promptly, you can ensure your negative head shower pump operates efficiently and reliably for years to come.
DIY Exposed Shower Head: Craft Your Own Stylish Bathroom Upgrade
You may want to see also
Explore related products
Maintenance Tips: Provides guidelines for regular upkeep to ensure efficient and reliable operation
Regular maintenance is crucial for ensuring your negative head shower pump operates efficiently and reliably. These pumps, designed to boost water pressure in gravity-fed systems, rely on a delicate balance of components to function optimally. Neglecting upkeep can lead to reduced performance, increased energy consumption, and even premature failure. By following a few simple guidelines, you can extend the lifespan of your pump and maintain a consistent shower experience.
Inspect and Clean the Pump Regularly: Dust, debris, and limescale buildup can hinder the pump's performance. Every three months, switch off the power supply and carefully remove the pump's cover. Use a soft brush or cloth to wipe away any accumulated dirt, paying close attention to the impeller and inlet/outlet ports. For limescale removal, consider using a descaling solution specifically designed for shower pumps. Mix 1 part white vinegar with 3 parts water, and allow the solution to soak for 30 minutes before rinsing thoroughly.
Check for Leaks and Vibrations: Leaks, no matter how small, can indicate a problem with seals or connections. Periodically inspect the pump and surrounding pipes for any signs of moisture or dripping. Unusual vibrations during operation can also signal an issue, such as misalignment or worn bearings. If you notice excessive vibrations, switch off the pump immediately and consult a qualified plumber to diagnose and rectify the problem.
Monitor Pressure and Flow: Negative head shower pumps are designed to work within specific pressure ranges. Use a pressure gauge to regularly check the system pressure, ensuring it falls within the manufacturer's recommended limits. If the pressure is consistently too high or too low, it may indicate a problem with the pump's settings or the overall plumbing system. Similarly, keep an eye on water flow rate; a significant decrease could suggest a blockage or pump malfunction.
Annual Professional Servicing: While regular DIY maintenance is essential, it's equally important to have your negative head shower pump professionally serviced at least once a year. A qualified technician can perform a comprehensive inspection, including checking electrical connections, testing motor performance, and verifying the pump's overall condition. They can also identify potential issues that may not be apparent during routine maintenance, ensuring your pump continues to operate safely and efficiently. By investing in annual servicing, you can prevent costly repairs and enjoy peace of mind knowing your shower pump is in optimal condition.
Quick Fix for a Dripping Delta Shower Head: DIY Repair Guide
You may want to see also
Frequently asked questions
A negative head shower pump is designed for gravity-fed systems where the cold water tank is located below the pump. It differs from positive head pumps, which require the water source to be above the pump, and universal pumps, which can handle both scenarios.
A negative head shower pump works by boosting water pressure from a cold water tank located below the pump. It uses an impeller to draw water from the tank and increase the pressure, ensuring a strong and consistent flow to the shower.
No, a negative head shower pump is specifically designed for systems where the water tank is below the pump. If the tank is above, a positive head or universal pump would be more appropriate.
The key components include an impeller to draw and pressurize water, a motor to drive the impeller, and a control system to regulate flow and pressure. Some models also feature anti-vibration feet and quiet operation technology.
Yes, regular maintenance includes checking for leaks, ensuring the pump is free from debris, and periodically testing the pressure and flow. It’s also important to follow the manufacturer’s guidelines for servicing and replacing parts as needed.
