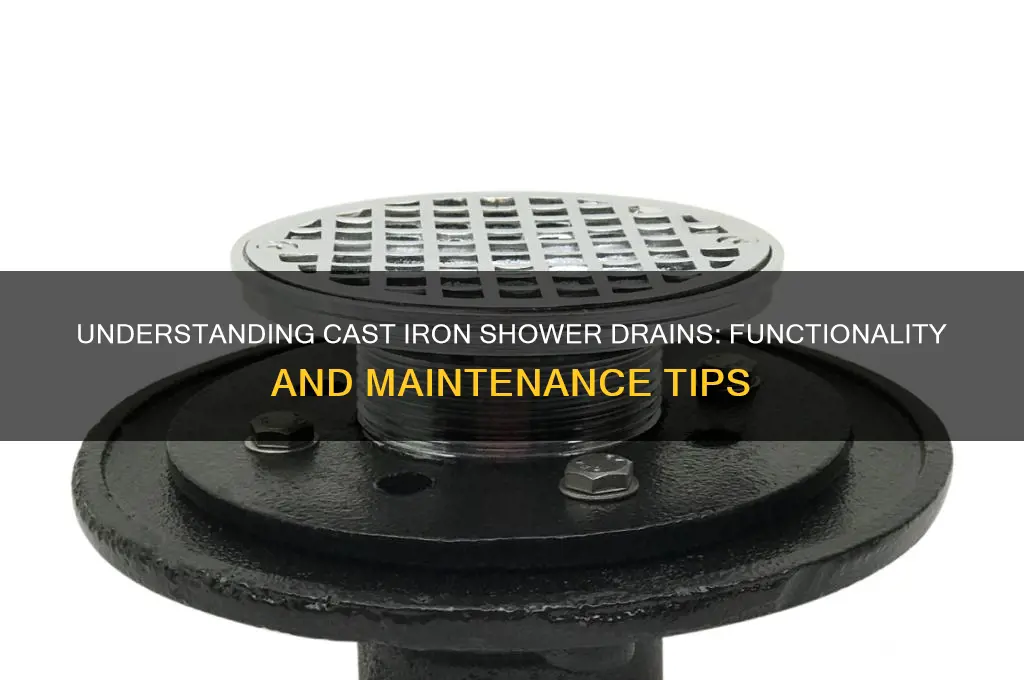

Cast iron shower drains are a durable and traditional solution for managing water flow in bathrooms, combining strength and longevity with functional design. These drains work by utilizing a sloped or grated surface that allows water to flow efficiently into the plumbing system while preventing debris from clogging the pipes. The cast iron material provides exceptional resistance to corrosion and wear, making it ideal for high-moisture environments. Typically, the drain is connected to a P-trap, which holds water to block sewer gases from entering the bathroom while allowing wastewater to pass through. Proper installation and maintenance, including regular cleaning to remove hair and soap scum, ensure the drain functions effectively and remains a reliable component of the shower system for years.
| Characteristics | Values |
|---|---|
| Material | Cast Iron |
| Function | To drain water from shower area |
| Design | Typically consists of a grate or cover with holes/slots to allow water to flow through |
| Mechanism | Gravity-based: water flows downward due to slope of shower floor and drain pipe |
| Components | Drain body, grate/cover, strainer (optional), P-trap, vent pipe |
| Installation | Requires proper slope (1/4 inch per foot) for efficient drainage |
| Maintenance | Regular cleaning to prevent clogging from hair, soap scum, and debris |
| Durability | High; cast iron is resistant to corrosion and can last for decades |
| Flow Rate | Depends on drain size (typically 2-3 inches in diameter) and slope |
| Noise Level | Minimal, but can vary based on water flow and pipe insulation |
| Compatibility | Works with most shower systems, including tile and acrylic showers |
| Cost | Moderate to high, depending on brand and additional features |
| Environmental Impact | Long lifespan reduces need for frequent replacements; recyclable material |
| Common Issues | Clogs, rust (if not properly maintained), and misalignment during installation |
| Advantages | Durable, efficient, and reliable for long-term use |
| Disadvantages | Heavy, requires precise installation, and can be prone to rust if not maintained |
Explore related products
What You'll Learn
- Trap Mechanism: Prevents sewer gases from entering the bathroom while allowing water to flow
- Grate Design: Filters debris, ensuring smooth drainage and preventing clogs in the pipe system
- Material Durability: Cast iron resists corrosion, ensuring long-term functionality and structural integrity
- Installation Process: Proper alignment and sealing are crucial for leak-free operation and efficiency
- Maintenance Tips: Regular cleaning and inspection prevent buildup, ensuring optimal drain performance
Trap Mechanism: Prevents sewer gases from entering the bathroom while allowing water to flow
The trap mechanism is a critical component in a cast iron shower drain system, designed to prevent sewer gases from entering the bathroom while allowing water to flow freely. This mechanism operates on a simple yet effective principle: it creates a water seal that blocks gases from rising up through the drain. Typically, the trap is a curved or U-shaped pipe located beneath the drain opening. When water flows down the drain, it passes through the trap and continues into the main plumbing system. However, a small amount of water remains pooled in the curved section of the trap, forming a barrier that prevents gases from the sewer system from traveling back up into the bathroom.
The design of the trap ensures that it does not impede the flow of water. As water enters the drain, it fills the trap and then flows out the other side due to gravity. The trap's shape and angle are carefully engineered to allow for smooth drainage while maintaining the water seal. This balance is essential, as an improperly designed trap could lead to slow drainage or, conversely, an ineffective seal that allows gases to escape. Cast iron traps are particularly durable and resistant to corrosion, making them a reliable choice for long-term use in shower drain systems.
Maintenance of the trap mechanism is relatively straightforward but important to ensure its continued effectiveness. Over time, debris such as hair, soap scum, or other particles can accumulate in the trap, potentially reducing its capacity to hold water or causing blockages. Regular cleaning of the drain and trap can prevent these issues. Additionally, periodic checks to ensure the trap remains filled with water are necessary, as evaporation or siphoning can break the seal. If the trap dries out, sewer gases can enter the bathroom, leading to unpleasant odors and potential health hazards.
Another key aspect of the trap mechanism is its compliance with plumbing codes and standards. Most regions have regulations that specify the minimum depth and design requirements for drain traps to ensure they effectively block sewer gases. Cast iron traps are often favored in construction due to their robustness and ability to meet these standards. Proper installation is also crucial, as misaligned or damaged traps may not function correctly. Plumbers must ensure the trap is securely connected to the drain and vent systems to maintain the integrity of the water seal.
In summary, the trap mechanism in a cast iron shower drain is a vital feature that safeguards indoor air quality by preventing sewer gases from entering the bathroom. Its U-shaped design creates a water seal that blocks gases while permitting water to flow unimpeded. Durability, proper maintenance, and adherence to plumbing codes are essential factors in ensuring the trap operates effectively. By understanding and maintaining this mechanism, homeowners can enjoy a functional and odor-free shower drain system for years to come.
Shower Faucet Repair Costs: What to Expect for Fixes
You may want to see also
Explore related products
Grate Design: Filters debris, ensuring smooth drainage and preventing clogs in the pipe system
Cast iron shower drains are renowned for their durability and efficiency, and a critical component of their functionality is the grate design. This design plays a pivotal role in filtering debris, ensuring smooth drainage, and preventing clogs in the pipe system. The grate is typically made of sturdy materials like cast iron or stainless steel, which are resistant to corrosion and wear. Its primary function is to act as a barrier, allowing water to flow freely while trapping larger particles such as hair, soap scum, and other debris that could otherwise obstruct the drain. This dual purpose ensures that the drain remains functional over time, reducing the need for frequent maintenance.
The design of the grate often features strategically placed openings or slots that are wide enough to permit water passage but narrow enough to catch potential clogging agents. These openings are engineered to balance flow rate and filtration efficiency, ensuring that water drains quickly without sacrificing the debris-catching capability. Additionally, some grates incorporate a slight slope or curvature to direct water toward the center of the drain, further enhancing drainage speed and preventing standing water. This thoughtful design minimizes the risk of water pooling, which can lead to mold, mildew, or unpleasant odors.
Another key aspect of grate design is its ease of removal and cleaning. Most cast iron shower drains are equipped with grates that can be lifted out effortlessly, allowing homeowners to access and clear accumulated debris regularly. This accessibility is crucial for maintaining optimal drain performance and preventing blockages. Some advanced designs even include a secondary layer or basket beneath the grate to catch smaller particles, providing an additional line of defense against clogs. Regular cleaning of the grate and its components ensures that the drain continues to function efficiently, prolonging the lifespan of the entire system.
Incorporating a grate with a fine mesh or micro-perforations can further enhance its debris-filtering capabilities. These designs are particularly effective in catching finer particles, such as sand or small hair strands, that might slip through larger openings. While these grates may require more frequent cleaning due to their finer filtration, they significantly reduce the likelihood of deep-seated clogs in the pipe system. This level of detail in grate design underscores its importance in maintaining a healthy and functional drainage system.
Finally, the grate’s integration with the cast iron drain body is designed to be seamless, ensuring no gaps or spaces where debris can accumulate unnoticed. This tight fit prevents particles from bypassing the grate and entering the pipe system, where they could cause more serious blockages. The combination of robust materials, precise engineering, and user-friendly features makes the grate design a cornerstone of cast iron shower drain functionality. By effectively filtering debris, it ensures smooth drainage and safeguards the entire plumbing system from potential clogs, making it an indispensable component of any shower drain.
Stop Annoying Shower Squeals: Quick Fixes for a Peaceful Bathing Experience
You may want to see also
Explore related products
Material Durability: Cast iron resists corrosion, ensuring long-term functionality and structural integrity
Cast iron is renowned for its exceptional durability, making it an ideal material for shower drains that require long-term reliability in wet, humid environments. One of the key factors contributing to its durability is its inherent resistance to corrosion. Unlike many other metals, cast iron forms a protective layer of iron oxide, commonly known as rust, which actually shields the underlying material from further degradation. This natural process, called passivation, significantly slows down corrosion, ensuring the structural integrity of the shower drain over decades of use. This resistance to corrosion is particularly crucial in shower drains, as they are constantly exposed to water, soap scum, and other potentially corrosive substances.
The durability of cast iron extends beyond its corrosion resistance. Its robust nature allows it to withstand heavy loads and physical stress without deforming or cracking. This is essential for shower drains, which must support the weight of users and resist impacts from dropped objects. Additionally, cast iron’s ability to maintain its shape and functionality under pressure ensures that the drain remains leak-free and efficient, preventing water damage to the surrounding structure. This combination of strength and resilience makes cast iron a superior choice for applications where long-term performance is non-negotiable.
Another advantage of cast iron in shower drains is its ability to resist wear and tear from chemical exposure. Many household cleaners and chemicals can degrade lesser materials over time, but cast iron’s protective oxide layer acts as a barrier, minimizing the effects of such substances. This chemical resistance, coupled with its corrosion resistance, ensures that the drain retains its functionality and appearance even after years of exposure to harsh cleaning agents. For homeowners and builders, this means fewer replacements and repairs, translating to cost savings and reduced maintenance efforts.
Furthermore, the longevity of cast iron shower drains contributes to their sustainability. By choosing a material that lasts for decades, users reduce the need for frequent replacements, thereby minimizing waste and the environmental impact associated with manufacturing and disposing of lesser-quality materials. Cast iron’s durability aligns with modern construction practices that prioritize sustainability and long-term value. Its ability to resist corrosion and maintain structural integrity ensures that it remains a reliable component of plumbing systems for generations.
In summary, the material durability of cast iron, particularly its resistance to corrosion, is a cornerstone of its effectiveness in shower drains. This resistance, combined with its strength, chemical resilience, and sustainability, ensures long-term functionality and structural integrity. For those seeking a reliable, low-maintenance solution for shower drainage, cast iron stands out as a material that delivers unparalleled performance and longevity. Its proven track record in demanding environments makes it a trusted choice for both residential and commercial applications.
Should You Grout Around a Shower Drain? Expert Tips and Advice
You may want to see also
Explore related products
Installation Process: Proper alignment and sealing are crucial for leak-free operation and efficiency
The installation of a cast iron shower drain requires meticulous attention to proper alignment and sealing to ensure leak-free operation and long-term efficiency. Begin by positioning the drain body in the shower base, ensuring it aligns perfectly with the pre-cut hole. The drain should sit flush with the shower floor to allow for proper water flow and to prevent any tripping hazards. Use a level to confirm that the drain is perfectly horizontal, as improper alignment can lead to water pooling or inadequate drainage. Once aligned, secure the drain body temporarily to hold it in place during the next steps.
Next, apply a high-quality waterproofing membrane or sealant around the drain flange to create a watertight barrier between the drain and the shower base. This step is critical to prevent water from seeping beneath the drain and causing damage to the subfloor or surrounding structures. Ensure the sealant is applied evenly and extends slightly beyond the flange to overlap with the shower waterproofing layer. Allow the sealant to cure according to the manufacturer’s instructions before proceeding.
After sealing the flange, connect the drain body to the plumbing system. Cast iron drains typically feature a hub or no-hub connection, depending on the model. For hub connections, use a coupling or fitting that matches the pipe diameter, and secure it with stainless steel clamps or bands to prevent corrosion. For no-hub connections, apply a suitable gasket and tighten the coupling nuts evenly to ensure a secure, leak-free joint. Double-check that all connections are tight and properly aligned with the drain body to avoid misalignment issues.
Once the plumbing connections are complete, test the drain for leaks by pouring water into the shower and observing the drain’s performance. Inspect the area beneath the shower for any signs of moisture or dripping, which could indicate a faulty seal or connection. If leaks are detected, disassemble the drain and reapply sealant or adjust the connections as needed. Proper testing at this stage is essential to avoid costly repairs after the shower is fully installed.
Finally, install the drain strainer or cover, ensuring it fits securely over the drain body. The strainer should be easy to remove for cleaning while remaining firmly in place during use. Verify that the strainer does not obstruct water flow and that it aligns seamlessly with the shower floor for a polished appearance. By following these steps with precision, you can achieve a cast iron shower drain installation that operates efficiently and remains leak-free for years to come.
Free DIY Guide: Repairing a Leaky Moen Shower Valve Easily
You may want to see also
Explore related products
Maintenance Tips: Regular cleaning and inspection prevent buildup, ensuring optimal drain performance
Cast iron shower drains are known for their durability and longevity, but they require regular maintenance to function effectively. Maintenance Tips: Regular cleaning and inspection prevent buildup, ensuring optimal drain performance. Over time, hair, soap scum, and mineral deposits can accumulate, leading to slow drainage or clogs. To avoid these issues, establish a routine cleaning schedule. Start by removing the drain cover and using a mixture of baking soda and vinegar to break down organic matter. Follow this with hot water to flush out the residue. For stubborn buildup, a drain snake or a specialized cleaning brush can be used to dislodge debris from the cast iron pipes.
Inspection is just as crucial as cleaning in maintaining your cast iron shower drain. Maintenance Tips: Regular cleaning and inspection prevent buildup, ensuring optimal drain performance. Periodically check for signs of corrosion, cracks, or loose connections, as cast iron can rust or weaken over time. Use a flashlight to examine the drain opening and visible pipe sections for any abnormalities. If you notice rust, apply a rust-inhibiting primer and paint to protect the metal. Addressing minor issues early can prevent costly repairs or replacements down the line.
Water quality plays a significant role in the maintenance of cast iron shower drains. Maintenance Tips: Regular cleaning and inspection prevent buildup, ensuring optimal drain performance. Hard water, which is high in minerals, can accelerate buildup and corrosion. Installing a water softener can reduce mineral deposits and extend the life of your drain. Additionally, consider using a drain strainer to catch hair and larger particles before they enter the system. This simple tool can significantly reduce the frequency of deep cleaning.
Preventive measures are key to keeping your cast iron shower drain in top condition. Maintenance Tips: Regular cleaning and inspection prevent buildup, ensuring optimal drain performance. Avoid pouring grease, oil, or harsh chemicals down the drain, as these can damage the cast iron and create blockages. Instead, opt for natural cleaning agents like lemon juice or mild dish soap. During inspections, ensure the drain’s P-trap is intact and functioning, as it prevents sewer gases from entering your home. Regularly tightening connections and replacing worn-out parts will also maintain the drain’s efficiency.
Lastly, staying proactive with maintenance ensures your cast iron shower drain remains reliable for years. Maintenance Tips: Regular cleaning and inspection prevent buildup, ensuring optimal drain performance. Keep a log of cleaning and inspection dates to stay organized and consistent. If you encounter persistent issues despite regular maintenance, consult a professional plumber to assess the system. By investing time in care and upkeep, you can avoid the inconvenience of a malfunctioning drain and preserve the integrity of your cast iron plumbing.
Can Cornstarch in Shower Steamers Cause Drain Clogs? Find Out
You may want to see also
Frequently asked questions
A cast iron shower drain works by channeling water from the shower floor through a grated or perforated opening into a pipe system. The drain is typically connected to a P-trap, which prevents sewer gases from entering the bathroom while allowing water to flow freely. The cast iron material provides durability and resistance to corrosion, ensuring long-term functionality.
Cast iron shower drains are known for their strength, durability, and resistance to wear and tear. Unlike plastic or PVC drains, cast iron can withstand heavy use and high temperatures without warping or degrading. Additionally, its rust-resistant properties make it ideal for wet environments like showers.
Yes, a cast iron shower drain can clog due to hair, soap scum, or debris buildup. To prevent clogs, regularly remove hair from the drain cover and use a drain strainer. Periodically flush the drain with hot water or a mixture of baking soda and vinegar to break down residue. Avoid using harsh chemicals that could damage the cast iron surface.
