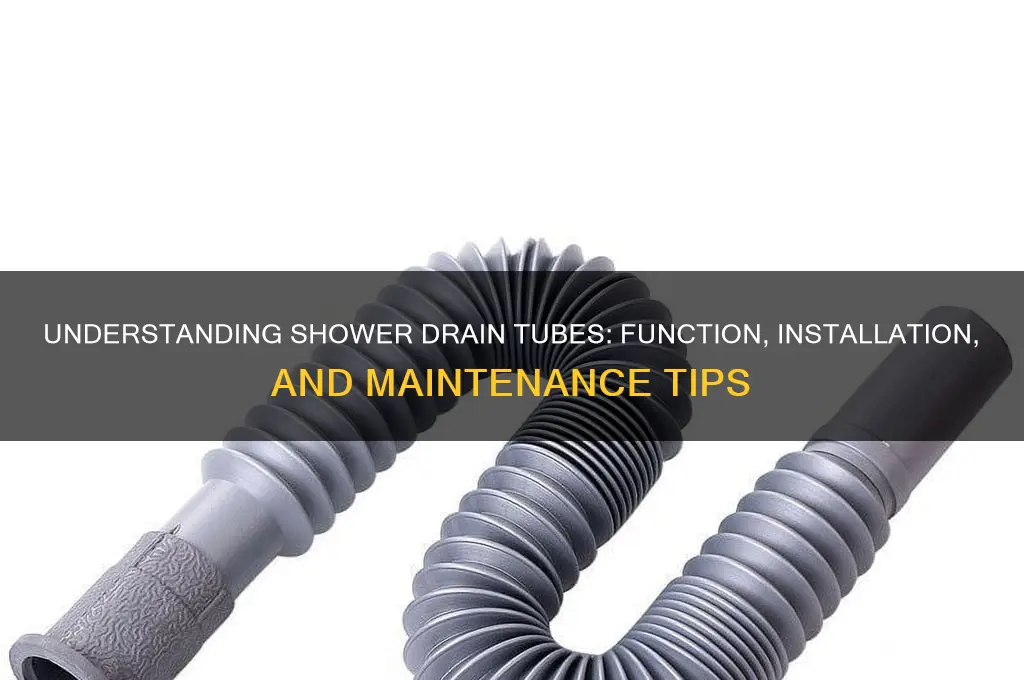

Shower drain tubes are an essential yet often overlooked component of bathroom plumbing, designed to efficiently remove wastewater from the shower area. These tubes, typically made of PVC or ABS plastic, connect the shower drain to the main plumbing system, ensuring water flows smoothly away from the shower pan. The system relies on gravity, with the drain tube angled downward to facilitate the natural flow of water. Additionally, traps—curved sections of pipe—are integrated into the design to prevent sewer gases from entering the bathroom while allowing water to pass through. Proper installation and maintenance of these tubes are crucial to avoid clogs, leaks, or unpleasant odors, making them a vital part of a functional and hygienic shower system.
| Characteristics | Values |
|---|---|
| Function | Removes water from the shower area to prevent flooding and maintain hygiene. |
| Design | Typically a P-trap or S-trap design to prevent sewer gases from entering the shower. |
| Material | Commonly made of PVC, ABS, or cast iron for durability and corrosion resistance. |
| Diameter | Standard sizes range from 1.5 to 2 inches (38 to 50 mm) for efficient drainage. |
| Slope | Requires a minimum slope of 1/4 inch per foot (2% gradient) to ensure proper water flow. |
| Ventilation | Connected to a vent stack to allow air to enter the drain system, preventing airlocks. |
| Trap Mechanism | Contains water in the P-trap or S-trap to block sewer gases while allowing water to pass. |
| Grate/Strainer | Includes a removable grate or strainer to catch hair, soap scum, and debris. |
| Connection | Connects to the main plumbing stack via a branch line, often with a cleanout access point. |
| Maintenance | Requires periodic cleaning to remove clogs and ensure proper functionality. |
| Water Flow Rate | Designed to handle flow rates of 2-5 gallons per minute (7.6-19 liters per minute). |
| Installation | Installed below the shower floor, often with a waterproof membrane to prevent leaks. |
| Code Compliance | Must adhere to local plumbing codes for size, slope, and ventilation requirements. |
| Additional Features | Some drains include anti-clog mechanisms or integrated overflow prevention systems. |
Explore related products
What You'll Learn
- Gravity Flow Mechanism: Sloped pipes allow water to flow downward naturally, utilizing gravity for efficient drainage
- Trap Design: P-traps prevent sewer gases from entering by holding water, creating a barrier
- Ventilation System: Vents equalize air pressure, ensuring smooth water flow and preventing suction issues
- Pipe Material: PVC or metal pipes are used for durability, corrosion resistance, and longevity
- Clog Prevention: Hair catchers and regular cleaning prevent blockages, maintaining optimal drainage performance
Gravity Flow Mechanism: Sloped pipes allow water to flow downward naturally, utilizing gravity for efficient drainage
The gravity flow mechanism is a fundamental principle behind the functionality of shower drain tubes. This system relies on the natural force of gravity to move water from the shower floor down through the pipes and into the main drainage system. The key to this mechanism is the slope of the pipes, which is carefully designed to ensure a consistent and efficient flow. When water enters the shower drain, it is immediately directed into a pipe that angles downward, typically at a gradient of 1/4 inch per foot. This slight incline is crucial as it provides just enough slope for gravity to pull the water downward without causing it to stagnate or back up.
The sloped pipes are usually made of durable materials like PVC or ABS plastic, which are resistant to corrosion and can maintain their shape over time, ensuring the slope remains effective. As water flows into the drain, it follows the path of least resistance, naturally moving downward due to gravity. This simple yet effective design minimizes the need for additional mechanical components, reducing the potential for clogs and maintenance issues. The gravity flow mechanism is particularly efficient because it works silently and continuously, requiring no external energy source other than the force of gravity itself.
To ensure optimal performance, plumbers must carefully measure and install the drain pipes with the correct slope. If the slope is too steep, water may flow too quickly, leaving behind soap scum and debris that can accumulate over time. Conversely, if the slope is too shallow, water may drain too slowly, leading to standing water and potential odors. The ideal slope strikes a balance, allowing water to flow steadily while carrying away any debris that might otherwise cause blockages. This precision in installation is critical to the long-term effectiveness of the gravity flow mechanism.
Another important aspect of the gravity flow mechanism is the trap, a curved section of pipe located beneath the drain. The trap is designed to hold a small amount of water after each use, creating a seal that prevents sewer gases from rising back up into the shower area. Despite this curve, the overall slope of the pipe system ensures that water continues to flow downward through the trap and into the main drain line. This combination of sloped pipes and a trap is essential for maintaining both drainage efficiency and indoor air quality.
In summary, the gravity flow mechanism in shower drain tubes is a testament to the elegance of simplicity in plumbing design. By utilizing sloped pipes, this system harnesses gravity to ensure water flows downward naturally and efficiently. Proper installation, including the correct slope and the inclusion of a trap, is vital to prevent issues like clogs and odors. This mechanism not only ensures effective drainage but also minimizes the need for complex maintenance, making it a reliable and widely used solution in residential and commercial plumbing systems. Understanding this principle provides valuable insight into how shower drains work and why they are designed the way they are.
