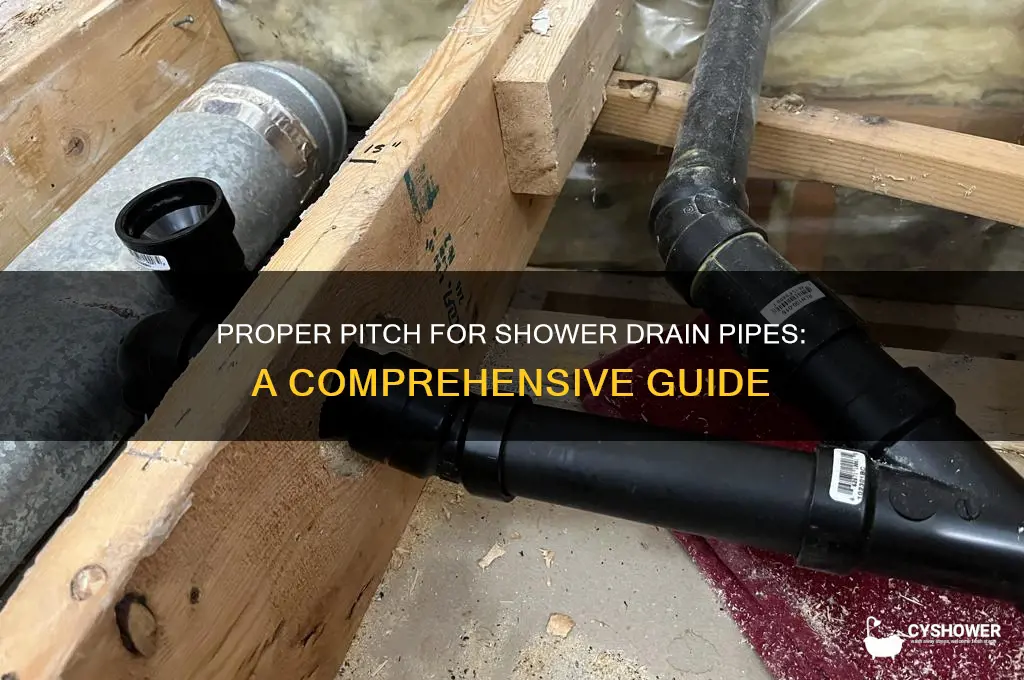

Installing a shower drain pipe requires careful consideration of the pitch to ensure proper water flow and prevent clogs. The ideal pitch for a shower drain pipe is typically between 1/4 inch per foot (2%) and 3/8 inch per foot (3%), though local building codes may specify exact requirements. This slope allows water to drain efficiently without pooling, reducing the risk of standing water and associated issues like mold or odors. Achieving the correct pitch involves precise measurements and planning during installation, ensuring the pipe slopes consistently toward the main drain line. Properly pitched drain pipes not only enhance functionality but also contribute to the longevity of the plumbing system.
Explore related products
What You'll Learn
Standard pitch requirements for shower drain pipes
When installing a shower drain pipe, ensuring the correct pitch is crucial for proper drainage and to prevent water from pooling or causing backups. The standard pitch requirement for shower drain pipes is typically 1/4 inch per foot (approximately 2% slope). This means that for every foot of horizontal run, the pipe should drop by 1/4 inch. This slope allows water to flow efficiently toward the drain while minimizing the risk of clogs or standing water. It’s important to maintain this consistent pitch throughout the entire length of the pipe to ensure optimal performance.
Achieving the correct pitch begins with careful planning and layout. Start by identifying the location of the shower drain and the point where the pipe will connect to the main drain line or vent stack. Use a level or laser level to mark the height difference required between these two points, ensuring the 1/4 inch per foot slope is maintained. If the pipe run is longer or includes bends, account for the additional drop needed to maintain the slope at each turn. Proper planning ensures that the pitch is consistent and avoids flat spots or excessive slope that could hinder drainage.
The material of the drain pipe also plays a role in meeting pitch requirements. PVC and ABS pipes are commonly used for shower drains due to their durability and ease of installation. When cutting and fitting these pipes, ensure that joints are securely connected and aligned to maintain the slope. Avoid forcing pipes into position, as this can disrupt the pitch. Using pre-sloped fittings or adjustable hangers can help maintain the correct angle, especially in complex installations.
In some cases, local building codes may specify slightly different pitch requirements for shower drain pipes, so it’s essential to check these regulations before starting the project. For example, some codes may allow a minimum slope of 1/8 inch per foot for certain types of drains or materials, but the standard 1/4 inch per foot is generally recommended for best results. Adhering to these guidelines ensures compliance and long-term functionality of the drainage system.
Finally, testing the pitch before finalizing the installation is a critical step. Pour water into the shower drain and observe how it flows through the pipe. Water should move steadily without pooling or slowing down. If adjustments are needed, make them before securing the pipe permanently. Properly pitched shower drain pipes not only ensure efficient drainage but also reduce the likelihood of future plumbing issues, making the initial effort well worth it.
Fix Double Shower Knobs: Stop Leaks and Turn Off Water Easily
You may want to see also
Explore related products
Calculating slope per foot for proper drainage
When installing a shower drain pipe, ensuring the correct slope is crucial for proper drainage and to prevent water from pooling. The slope, or pitch, is typically measured in inches of fall per foot of run. The standard recommendation for shower drain pipes is a slope of 1/4 inch per foot, which translates to a gradient of approximately 2%. This slope allows water to flow efficiently without being too steep, which could lead to erosion or too shallow, leading to standing water and potential clogs.
To calculate the slope per foot, start by determining the total length of the pipe run from the shower drain to the main drain line. Measure the distance in feet. For example, if the pipe runs 5 feet from the shower to the main drain, you’ll need a total fall of 1.25 inches (5 feet × 1/4 inch per foot). Mark the starting point at the shower drain and the endpoint at the main drain. Use a level or laser level to ensure accuracy when measuring the height difference.
Next, establish the starting elevation of the shower drain. If the shower floor is already installed, measure from the bottom of the drain to a reference point, such as the floor or a fixed surface. Then, subtract the required fall from this elevation to determine the height at the endpoint. For instance, if the shower drain is 10 inches above the reference point and you need a 1.25-inch fall over 5 feet, the endpoint should be 8.75 inches above the same reference point.
To verify the slope during installation, use a string level or a laser level. Attach a string with a line level to the starting point at the shower drain and pull it taut to the endpoint at the main drain. Adjust the height at the endpoint until the string level indicates a consistent slope of 1/4 inch per foot. Alternatively, you can use a carpenter’s level and a straightedge to check the slope along the pipe’s run.
Finally, ensure the pipe is securely supported along its entire length to maintain the calculated slope. Use hangers or straps every 4 to 6 feet to prevent sagging, which could disrupt the drainage flow. Double-check the slope after securing the pipe to confirm it hasn’t shifted during installation. Properly calculating and maintaining the slope per foot guarantees efficient drainage, reduces the risk of clogs, and extends the lifespan of your shower drain system.
Stop the Squeak: Quick Fixes for a Leaky Shower Faucet
You may want to see also
Explore related products
Common mistakes in shower drain pipe pitch
When installing a shower drain pipe, achieving the correct pitch is crucial for ensuring proper drainage and preventing water buildup, leaks, and potential damage. However, many DIYers and even some professionals make common mistakes that compromise the effectiveness of the drainage system. One of the most frequent errors is insufficient pitch, where the pipe does not slope enough to allow water to flow freely. The recommended pitch for a shower drain pipe is typically 1/4 inch per foot (approximately 2% slope). Failing to achieve this gradient can result in standing water, slow drainage, and even clogs. Many people mistakenly believe that a slight angle is enough, but without the proper pitch, water will pool in the pipe, leading to mold, mildew, and unpleasant odors.
Another common mistake is over-pitching the pipe, which can be just as problematic as under-pitching. While it might seem logical to increase the slope for faster drainage, an excessive pitch (greater than 1/2 inch per foot) can cause water to flow too quickly, leaving solids and debris behind. This can lead to clogs and reduce the overall efficiency of the drainage system. Additionally, over-pitching can make it difficult to align the pipe properly with the drain and vent systems, potentially causing installation issues and leaks. Striking the right balance is essential to ensure optimal performance.
A third mistake often seen is inconsistent pitch throughout the pipe run. Some installers start with the correct slope but fail to maintain it as the pipe extends, resulting in flat spots or uneven angles. This inconsistency can create areas where water pools or flows too quickly, defeating the purpose of a properly pitched pipe. To avoid this, it’s important to use a level or laser tool to check the slope at regular intervals during installation. Ensuring a consistent pitch from the shower pan to the main drain line is key to a functional drainage system.
Lastly, ignoring venting requirements is a critical error that often accompanies improper pitch. A shower drain pipe must be properly vented to allow air to enter the system, preventing airlocks and ensuring smooth water flow. Without adequate venting, even a correctly pitched pipe can experience drainage problems. Many people focus solely on the pitch and overlook the importance of connecting the drain to a vent stack. This oversight can lead to gurgling sounds, slow drainage, and backups, undermining the entire plumbing system.
In summary, common mistakes in shower drain pipe pitch include insufficient or excessive slope, inconsistent pitch, and neglecting proper venting. Each of these errors can lead to drainage issues, clogs, and potential water damage. By adhering to the recommended 1/4 inch per foot pitch, maintaining consistency, and ensuring proper venting, you can avoid these pitfalls and create an efficient, long-lasting shower drainage system. Taking the time to measure and plan carefully will save you from costly repairs and frustrations down the line.
Fishy Shower Drain Odor: Causes and Quick Fixes Explained
You may want to see also
Explore related products
Tools needed to measure and set pitch
When measuring and setting the pitch for a shower drain pipe, having the right tools is essential to ensure accuracy and efficiency. The pitch, or slope, of the drain pipe is crucial for proper water flow and to prevent standing water, which can lead to clogs and odors. Here are the tools you’ll need to get the job done correctly.
Level and String Line: A level is indispensable for determining the slope of the pipe. A long, straight level (at least 24 inches) is ideal for this task. Pair it with a string line to create a reference point for the slope. Attach the string line at the starting point (usually the shower drain) and the endpoint (where the pipe connects to the main drain line). The string should be taut and represent the desired slope, typically 1/4 inch per foot. This setup allows you to visually and accurately measure the pitch as you work.
Measuring Tape: A measuring tape is necessary to calculate distances and ensure the slope is consistent throughout the pipe’s length. Use it to mark intervals along the pipe’s path and verify that each section maintains the correct pitch. For example, if you’re aiming for a 1/4-inch drop per foot, measure 12 inches along the pipe and ensure it drops by 1/4 inch at that point. Repeat this process to confirm uniformity.
Shims or Spacers: Shims or spacers are useful for fine-tuning the pitch during installation. Place them beneath the pipe as needed to achieve the desired slope. Shims can be made of plastic, wood, or other materials, but ensure they are durable enough to support the pipe without shifting. Adjust their thickness to incrementally increase or decrease the slope until it matches the required pitch.
Laser Level (Optional but Helpful): For larger or more complex installations, a laser level can provide a highly accurate reference line for setting the pitch. Position the laser level at the starting point and project a straight line along the pipe’s intended path. This tool eliminates the need for a string line and offers precision, especially in situations where visibility or space is limited. It’s particularly useful for ensuring consistency over longer distances.
Pipe Cutter or Hacksaw: While not directly related to measuring pitch, a pipe cutter or hacksaw is essential for cutting the drain pipe to the correct length. Accurate cuts ensure the pipe fits properly and aligns with the slope. A clean, straight cut also prevents leaks and ensures a secure connection to fittings or the main drain line.
By equipping yourself with these tools—a level and string line, measuring tape, shims, a laser level (optional), and a pipe cutter—you’ll be well-prepared to measure and set the correct pitch for a shower drain pipe. Proper pitch ensures efficient drainage and prevents future plumbing issues, making the investment in these tools worthwhile.
Best Places to Purchase Shower Drain Preslope for Easy Installation
You may want to see also
Explore related products
Impact of incorrect pitch on plumbing systems
The pitch, or slope, of a shower drain pipe is a critical factor in ensuring proper drainage and preventing plumbing issues. An incorrect pitch can lead to a cascade of problems within the plumbing system, affecting both functionality and longevity. When the pitch is too shallow, water flows sluggishly, causing slow drainage. This not only creates inconvenience but also allows debris, hair, and soap scum to accumulate in the pipe, leading to clogs. Over time, these blockages can become severe, requiring professional intervention to clear. Additionally, stagnant water in poorly pitched pipes can emit foul odors, as bacteria thrive in standing water, further degrading the indoor environment.
Another significant impact of incorrect pitch is the increased risk of water backup and leaks. If the slope is inadequate, water may not drain completely, causing it to pool in the pipe. This pooling can exert pressure on the pipe joints and seals, leading to leaks or even pipe damage. In colder climates, standing water in pipes with improper pitch can freeze, expanding and cracking the pipes. Such damage not only disrupts the plumbing system but also results in costly repairs and potential water damage to surrounding structures.
Improper pitch can also compromise the overall efficiency of the plumbing system. When water does not drain effectively, it places additional strain on the entire system, including pumps, traps, and vents. This inefficiency can lead to higher water bills, as more water is required to clear the drain. Moreover, the increased workload on plumbing components accelerates wear and tear, reducing their lifespan and necessitating premature replacements. For instance, a poorly pitched drain can cause the P-trap to dry out, allowing sewer gases to enter the home, which poses health risks and requires immediate attention.
Furthermore, the environmental impact of incorrect pitch should not be overlooked. Slow drainage and frequent clogs often lead to the overuse of chemical drain cleaners, which contain harsh substances harmful to both plumbing systems and the environment. These chemicals can corrode pipes and contaminate water supplies, exacerbating the problem. Proper pitch ensures that water flows freely, reducing the need for such interventions and promoting a more sustainable plumbing system.
Lastly, the financial implications of incorrect pitch are substantial. While installing a drain pipe with the correct pitch requires careful planning and execution, the long-term savings far outweigh the initial effort. Repairing water damage, replacing damaged pipes, and addressing recurring clogs can be expensive. By ensuring the proper pitch during installation, homeowners and plumbers can avoid these issues, maintaining a reliable and efficient plumbing system. In summary, the correct pitch for a shower drain pipe is not just a technical detail but a fundamental aspect of plumbing health, directly influencing functionality, durability, and cost-effectiveness.
Effective Shower Drain Venting: Best Locations and Installation Tips
You may want to see also
Frequently asked questions
A pitch of 1/4 inch per foot (approximately 2%) is recommended for proper drainage in a shower drain pipe.
While a steeper pitch (up to 1/2 inch per foot) is acceptable, it’s not necessary and may complicate installation without significant benefit.
A pitch that’s too shallow (less than 1/4 inch per foot) can lead to slow drainage, standing water, and potential clogs in the shower drain pipe.
No, the recommended pitch of 1/4 inch per foot applies to all types of shower drain pipes, regardless of material or diameter.
Use a level and measuring tape to ensure the pipe drops 1/4 inch for every foot of horizontal run, maintaining consistent slope throughout.
