Olivia Waters

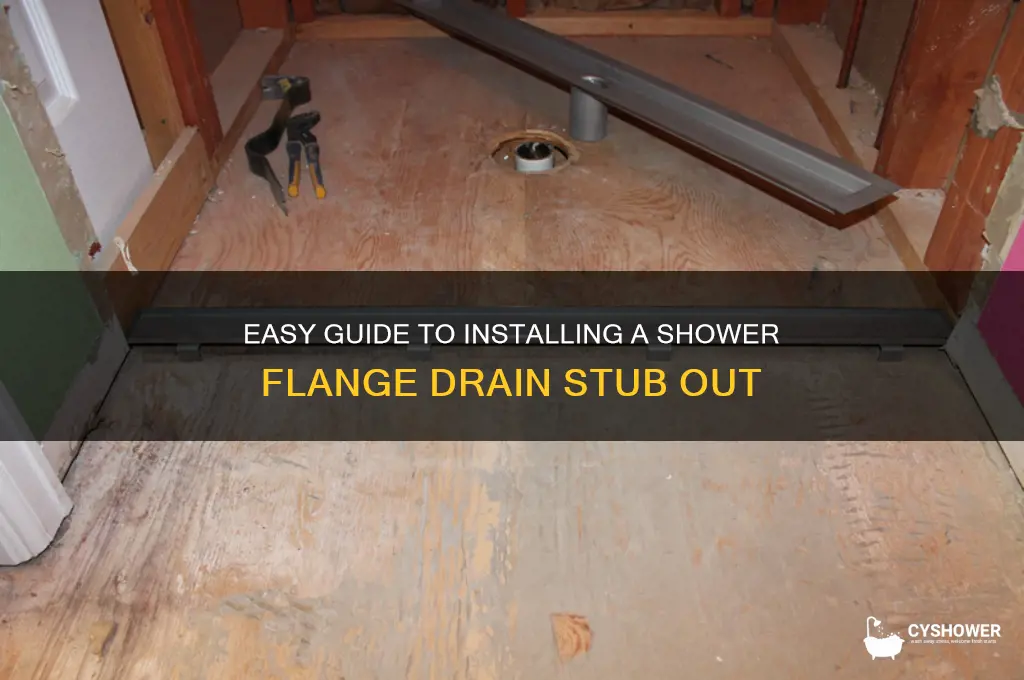

Adding a shower flange drain or stub out is a crucial step in any shower installation or renovation project, ensuring proper drainage and waterproofing. This process involves securing a drain assembly to the shower floor, which connects to the plumbing system, allowing water to flow efficiently. The flange, typically made of PVC or ABS plastic, provides a watertight seal and a stable base for the shower pan or tile. To begin, you'll need to determine the correct drain location, cut an opening in the subfloor, and install the drain body, ensuring it aligns with the plumbing pipes. Proper installation is essential to prevent leaks and water damage, making it a task that requires careful planning and attention to detail. This guide will walk you through the necessary steps, tools, and materials to successfully add a shower flange drain or stub out, ensuring a functional and long-lasting shower system.
| Characteristics | Values |
|---|---|
| Purpose | To install a shower drain flange or stub out during shower construction. |
| Tools Required | Screwdriver, wrench, utility knife, drill, reciprocating saw, pliers. |
| Materials Needed | Shower drain flange, PVC pipe, ABS cement, silicone caulk, screws. |
| Pipe Material Compatibility | PVC or ABS (ensure compatibility with existing plumbing). |
| Drain Size | Standard 2-inch diameter for most residential showers. |
| Stub Out Height | Typically 2-3 inches above the subfloor for proper alignment. |
| Waterproofing | Apply waterproofing membrane around the drain area. |
| Sealing | Use silicone caulk to seal the flange and prevent leaks. |
| Ventilation Requirement | Ensure proper venting to comply with plumbing codes. |
| Code Compliance | Follow local building codes for drain installation and slope. |
| Slope Requirement | 1/4 inch per foot slope toward the drain for proper drainage. |
| Installation Time | 1-2 hours depending on experience and complexity. |
| Difficulty Level | Intermediate (basic plumbing skills required). |
| Cost Estimate | $20-$50 for materials (excluding tools). |
| Maintenance Tip | Regularly clean the drain to prevent clogs and ensure longevity. |
Explore related products
What You'll Learn
Measure and Mark Drain Location
Before you begin installing a shower flange drain or stub out, accurately measuring and marking the drain location is crucial for a proper fit and functionality. Start by referring to your local building codes to ensure compliance with required dimensions, such as the minimum distance from walls or other fixtures. Typically, the shower drain should be centered in the shower pan or area to ensure effective water drainage. Use the dimensions of your shower base or the layout of your shower area as a guide. If you’re working with a pre-fabricated shower base, the drain location may already be indicated, but double-check its alignment with your plumbing layout.
Next, measure the exact center of the shower area using a tape measure. For rectangular or square showers, find the midpoint of both the length and width, then mark the intersection of these points. If your shower is irregularly shaped, measure from the walls or corners to ensure the drain is equidistant from the edges where possible. Transfer these measurements to the subfloor or surface where the drain will be installed. Use a pencil or marker to make a clear, visible mark at the center point.
Once the center is marked, verify the location by measuring from the mark to the nearest walls or reference points to ensure symmetry. If you’re working with a shower pan, place it in position and check that the marked drain location aligns with the pan’s drain hole. Adjust the mark if necessary to ensure a precise fit. For stub-out installations, ensure the mark aligns with the existing plumbing lines to avoid complications during installation.
Consider the slope of the shower floor for proper drainage. The shower floor should slope slightly toward the drain, typically at a gradient of 1/4 inch per foot. Use a level or straightedge to confirm the slope direction from the marked drain location. If adjustments are needed, remeasure and remark the drain location to accommodate the slope while maintaining central alignment.
Finally, double-check all measurements and markings before proceeding. Use a square or straightedge to ensure the mark is accurate and visible. If you’re working with a team, have someone verify your measurements to avoid errors. Accurate marking at this stage will save time and prevent issues during the installation of the shower flange drain or stub out. With the drain location clearly marked, you’re ready to move on to the next steps of the installation process.
Effective Solutions to Repair a Second Floor Shower Leak
You may want to see also
Explore related products
Cut Hole for Drain Pipe
Before you begin cutting any holes, it's essential to ensure you have the correct tools and materials for the job. You'll need a hole saw with a diameter matching your drain pipe (typically 2 inches), a drill, and a reciprocating saw or jigsaw for any additional cutting. Mark the center point for the drain pipe on the floor, ensuring it aligns with the shower flange and the existing plumbing. Double-check the measurements to avoid any costly mistakes, as precision is crucial for proper drainage and a watertight seal.
With your markings in place, attach the hole saw to the drill and carefully begin cutting through the floor material. Apply steady pressure and maintain a consistent speed to achieve a clean cut. If you're working with thicker materials like concrete or tile, you may need to use a specialized hole saw or a diamond-tipped core drill bit. Take your time and clear away debris regularly to prevent overheating and ensure a smooth cutting process.
Once you've cut through the floor, inspect the hole to ensure it's the correct size and shape. If necessary, use a reciprocating saw or jigsaw to refine the edges, especially if you're dealing with rough or uneven cuts. Be cautious not to damage any surrounding materials or utilities, such as electrical wires or water pipes. It's always better to start with a slightly smaller hole and gradually enlarge it than to cut too much and compromise the structural integrity of the floor.
After refining the hole, test-fit the drain pipe to ensure a proper fit. The pipe should slide through the hole with minimal resistance, but not be so loose that it shifts or moves. If adjustments are needed, use a file or sandpaper to smooth any rough edges or burrs around the hole. Remember, a precise fit is essential for a secure connection between the drain pipe and the shower flange, preventing leaks and ensuring long-term durability.
Finally, with the hole cut and the drain pipe test-fitted, you can proceed to the next steps of installing the shower flange and connecting the plumbing. Take a moment to clean up any debris or dust generated during the cutting process, as this will help create a better seal and reduce the risk of contamination. By following these detailed instructions for cutting the hole for the drain pipe, you'll be well on your way to successfully adding a shower flange drain or stub out.
Effective Tools to Quickly Fix a Slow Shower Drain
You may want to see also
Explore related products
Install Shower Flange Securely
When installing a shower flange securely, the first step is to ensure the stub out—the vertical pipe extending from the drain line—is properly prepared. The stub out should be cut to the correct height, typically flush with the shower floor, and cleaned of any debris or burrs. Use a hacksaw or PVC cutter to achieve a straight, clean cut. If the stub out is not level, use a small level tool to check and adjust accordingly, as an uneven surface can compromise the flange’s stability. Once the stub out is ready, dry-fit the shower flange to ensure it sits evenly and covers the drain opening completely.
Next, apply a generous bead of silicone caulk or plumber’s putty around the underside of the flange to create a watertight seal. This step is crucial to prevent leaks and water damage beneath the shower floor. Carefully center the flange over the stub out and press it firmly into place, ensuring it is level and seated evenly. Some flanges come with pre-drilled holes for screws, which can be used to secure the flange to the shower pan or subfloor for added stability. If screws are used, drill pilot holes to avoid cracking the flange or surrounding material.
After the flange is positioned, secure it to the stub out using a threaded adapter or solvent cement, depending on the type of pipe material. For PVC or ABS pipes, apply primer and solvent cement to the stub out and the inside of the flange, then twist the flange onto the stub out to create a strong, permanent bond. Hold the flange in place for a few minutes to ensure the cement sets properly. If using a threaded adapter, wrap the stub out threads with Teflon tape and screw the adapter into place before attaching the flange.
Once the flange is securely attached, test its stability by applying gentle pressure from all sides. It should not wobble or shift. If the flange feels loose, recheck the connections and ensure the cement or screws are tightened properly. Allow the cement to cure fully according to the manufacturer’s instructions before proceeding with tiling or waterproofing the shower floor.
Finally, inspect the flange and surrounding area for any gaps or imperfections. Fill any small gaps with additional caulk or putty, and smooth the surface to ensure a seamless finish. Properly securing the shower flange not only ensures a watertight seal but also provides a solid foundation for the shower drain, preventing future issues such as leaks or tile damage. With these steps completed, the shower flange will be installed securely and ready for the next phase of the shower installation.
Easy DIY Guide to Repairing Your Shower Converter Quickly and Efficiently
You may want to see also
Explore related products
Connect Drain to Stub Out
Before connecting the drain to the stub out, ensure you have the necessary tools and materials: a shower drain assembly, plumber’s tape, pipe wrench, hacksaw, and PVC primer and cement if working with PVC pipes. Begin by inspecting the stub out to confirm it is clean, debris-free, and properly aligned with the shower drain location. If the stub out is not at the correct height, adjust it by cutting or extending the pipe as needed, ensuring it sits flush with the shower pan or mortar bed. Use a level to verify the stub out is perfectly horizontal to ensure proper drainage.
Next, prepare the stub out for connection. If the stub out is threaded, wrap plumber’s tape clockwise around the threads to create a watertight seal. For PVC or ABS stub outs, apply primer to the outside of the pipe and the inside of the drain fitting, then follow with cement to create a secure bond. Hold the fitting in place for 30 seconds to allow the cement to set initially. Ensure the drain assembly aligns with the stub out and is positioned correctly to avoid leaks.
Attach the shower drain body to the stub out according to the manufacturer’s instructions. For threaded connections, screw the drain onto the stub out by hand, then tighten with a pipe wrench, being careful not to overtighten and damage the threads. For solvent-welded connections, slide the drain fitting over the stub out and allow the cement to cure fully. Double-check that the drain is level and securely attached to prevent movement or misalignment.
Once the drain is connected, test the seal by pouring water into the drain to ensure there are no leaks at the stub out joint. If leaks are detected, tighten the connection or reapply cement as necessary. After confirming a watertight seal, proceed with installing the shower pan or mortar bed, ensuring the drain remains level and properly seated.
Finally, install the strainer or cover plate onto the drain body, securing it with screws or by snapping it into place, depending on the design. Test the drain once more to ensure water flows freely and there are no obstructions. Properly connecting the drain to the stub out is critical for a functional and leak-free shower system, so take your time to ensure each step is completed accurately.
Quick Fixes: Thaw and Unclog Your Frozen Shower Drain Easily
You may want to see also
Explore related products
Test for Leaks and Seal
Before finalizing the installation of your shower flange drain or stub out, it’s crucial to test for leaks and seal all connections properly to prevent water damage. Start by ensuring all pipes and fittings are dry to avoid false leak detections. Turn on the water supply and allow water to flow through the drain assembly. Carefully inspect all joints, connections, and the flange itself for any signs of moisture or dripping. Pay close attention to areas where the drain pipe meets the P-trap, the flange meets the shower pan, and any threaded or glued connections. Even a small leak can lead to significant issues over time, so thorough inspection is essential.
Once you’ve confirmed there are no leaks, proceed to seal the flange to the shower pan or base. Apply a bead of silicone caulk or plumber’s putty around the base of the flange where it meets the shower surface. Ensure the caulk is smooth and continuous to create a watertight barrier. Avoid over-applying the sealant, as excess material can interfere with the drain’s functionality. Allow the sealant to cure according to the manufacturer’s instructions before using the shower to ensure a strong, durable bond.
If you’re working with a stub out, test the integrity of the pipe by capping the end and filling it with water. Check for any drops in water level, which could indicate a leak in the pipe or fittings. If the stub out is part of a larger plumbing system, pressure-test the entire line to ensure there are no hidden leaks. Use a pressure gauge and maintain the recommended PSI for the duration of the test, typically 10-15 minutes. Address any leaks immediately by tightening connections or replacing faulty components.
After sealing and testing, double-check all work to ensure everything is secure and watertight. Wipe away any excess sealant and ensure the drain is clear of debris. If you’re installing a shower pan or tile, confirm that the flange is properly integrated and sealed to prevent water from seeping underneath. Proper sealing at this stage is critical to avoid future water damage and mold growth.
Finally, run water through the drain one more time to ensure everything functions correctly. Listen for gurgling sounds, which could indicate improper venting, and check for any signs of water escaping from the sealed areas. Once you’re confident that the installation is leak-free and fully sealed, you can proceed with finishing the shower area, knowing your drain assembly is secure and reliable.
Fixing a Faulty Shower Valve: A Step-by-Step Repair Guide
You may want to see also
Frequently asked questions
A shower flange drain stub out is a temporary pipe extension installed during rough-in plumbing to ensure proper alignment and positioning of the shower drain. It’s important because it allows for accurate placement of the shower drain before the final flange is installed, preventing leaks and ensuring proper drainage.
The stub out should be installed at the same height as the finished shower floor. Measure from the subfloor to the desired finished floor height, and ensure the stub out extends above the subfloor by that amount. This ensures the final drain will be flush with the shower floor.
You’ll need a PVC or ABS pipe (typically 2 inches in diameter), a coupling, primer, glue, and a hacksaw or pipe cutter. Optionally, use a drain flange as a guide for positioning the stub out.
If you have basic plumbing knowledge and tools, you can install the stub out yourself. However, if you’re unsure about local building codes or the process, hiring a professional plumber is recommended to ensure proper installation.
Use the shower base or a template to mark the center of the drain location. Ensure the stub out is plumb (vertical) and level with the finished floor height. Double-check alignment with a level and adjust as needed before securing it in place.
