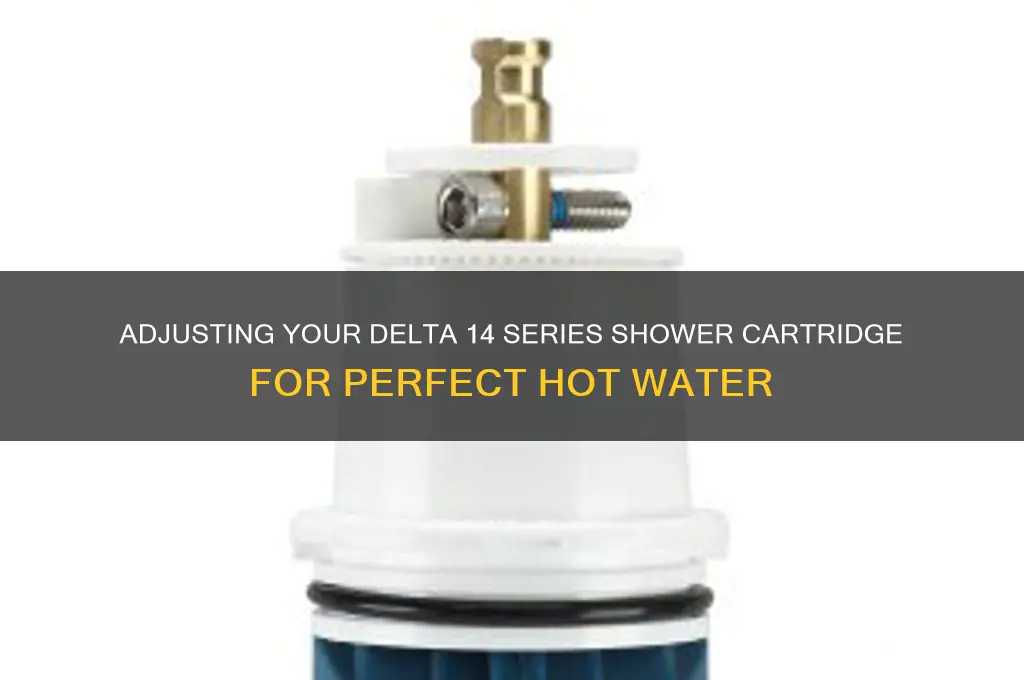

Adjusting a Delta 14 Series shower cartridge to regulate hot water temperature can be a straightforward DIY task if approached with the right tools and knowledge. This cartridge, commonly found in Delta Monitor showers, controls the balance between hot and cold water, ensuring a comfortable shower experience. Over time, mineral buildup or wear can cause the temperature to become unbalanced, necessitating an adjustment. The process involves accessing the cartridge, typically located behind the shower handle, and using a small tool to rotate the rotational limit stop (RLS) or adjusting the temperature control sleeve. Properly adjusting the cartridge not only restores the desired hot water temperature but also prevents scalding or discomfort. Understanding the specific steps and safety precautions for your model is essential to avoid damage and ensure long-term functionality.
| Characteristics | Values |
|---|---|
| Cartridge Type | Delta 14 Series (Monitor or Single-Control) |
| Adjustment Purpose | Increase hot water flow or adjust temperature limit stop |
| Tools Required | Flathead screwdriver, needle-nose pliers, Allen wrench (if applicable) |
| Steps to Adjust | 1. Turn off water supply. 2. Remove handle and escutcheon. 3. Pull out cartridge. 4. Rotate temperature limit stop clockwise for more hot water. 5. Reassemble components. |
| Temperature Limit Stop | Located at the bottom of the cartridge; adjustable with a flathead screwdriver or Allen wrench. |
| Cartridge Replacement | If adjustment doesn't work, replace the cartridge (RP19804 or RP32104). |
| Safety Feature | Prevents scalding by limiting maximum hot water temperature. |
| Compatibility | Delta Monitor 1400/1500 Series shower valves. |
| Common Issues | Insufficient hot water, stuck limit stop, or worn-out cartridge. |
| Maintenance Tip | Periodically check and adjust the limit stop to ensure proper temperature control. |
Explore related products
What You'll Learn
- Removing the Old Cartridge: Shut off water, remove handle, unscrew cover, pull out old cartridge carefully
- Installing the New Cartridge: Align new cartridge, insert firmly, reattach cover, test for leaks
- Adjusting Water Temperature: Rotate temperature limit stop clockwise to increase hot water flow
- Troubleshooting Leaks: Check cartridge alignment, tighten screws, replace O-rings if necessary
- Testing Shower Function: Turn on water, verify temperature balance, ensure smooth handle movement
Removing the Old Cartridge: Shut off water, remove handle, unscrew cover, pull out old cartridge carefully
Before you begin the process of adjusting the hot water on your Delta 14 Series shower cartridge, it's essential to remove the old cartridge. Start by shutting off the water supply to the shower to prevent any accidental spills or leaks. Locate the main water shut-off valve, typically found in the basement, garage, or near the water heater, and turn it off. If there’s a local shut-off valve for the shower, use that instead for convenience. Once the water is off, open the shower valve to release any residual water pressure, ensuring a dry and safe working environment.
With the water supply securely off, the next step is to remove the handle of the shower valve. This usually involves locating a small screw or set screw on the underside or side of the handle. Use an appropriate screwdriver to carefully remove this screw. Once the screw is out, gently pull the handle away from the valve body. If the handle feels stuck, wiggle it slightly or use a handle puller tool to avoid damaging the handle or valve. Set the handle and screw aside in a safe place to keep track of the components.
After removing the handle, you’ll need to unscrew the cover or escutcheon that sits behind it. This cover is typically held in place by screws or clips. Use a screwdriver to remove any visible screws, or gently pry off the cover if it’s clipped in place. Be cautious not to damage the finish or surrounding tile. Once the cover is removed, you’ll expose the cartridge retention nut or bonnet. This component holds the cartridge in place and must be unscrewed next. Use an adjustable wrench or pliers, taking care not to overtighten or damage the nut.
With the retention nut removed, you’re now ready to pull out the old cartridge. Carefully inspect the cartridge to ensure there are no retaining clips or additional screws holding it in place. If everything is clear, grip the cartridge firmly and pull it straight out of the valve body. Be gentle but firm, as old cartridges may be stuck due to mineral buildup or wear. If it resists, use a cartridge puller tool to avoid breaking the cartridge inside the valve. Once removed, inspect the valve body for any debris or damage before proceeding with the adjustment or replacement.
Finally, take a moment to clean the area where the cartridge was seated. Use a damp cloth to wipe away any mineral deposits, dirt, or old lubricant. Ensuring the valve body is clean will help the new cartridge function smoothly and prolong its lifespan. With the old cartridge successfully removed, you’re now prepared to adjust the hot water settings or install a new cartridge, depending on your needs. Always refer to the manufacturer’s instructions for specific details related to your Delta 14 Series model.
