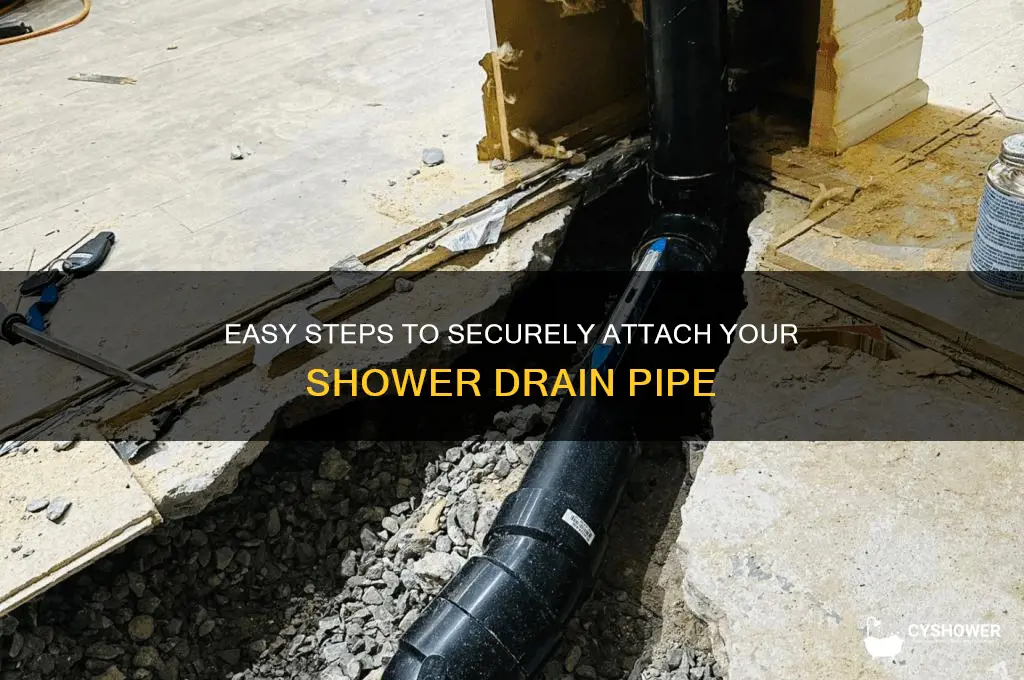

Attaching a shower drain pipe is a crucial step in any bathroom renovation or installation project, ensuring proper water drainage and preventing leaks. The process typically involves connecting the shower drain assembly to the existing plumbing system, which requires careful planning and execution. To begin, you’ll need to select the appropriate drain pipe size and material, such as PVC or ABS, based on your local building codes and the layout of your plumbing. Next, ensure the drain assembly is securely fitted into the shower base or floor, using a waterproof seal to prevent water seepage. Finally, connect the drain pipe to the main waste line, ensuring proper alignment and slope for efficient water flow. Following these steps will help you achieve a reliable and long-lasting shower drain installation.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, plumber's tape, hacksaw, PVC primer/cement, adjustable wrench, utility knife |
| Materials Needed | Shower drain pipe, PVC fittings, drain assembly, silicone caulk, rubber gasket |
| Pipe Material | PVC or ABS (check local plumbing codes) |
| Pipe Diameter | Typically 2 inches (standard for shower drains) |
| Steps | 1. Measure and cut pipe to length. 2. Apply primer and cement to fittings. 3. Assemble pipe. 4. Secure drain assembly. 5. Seal with silicone caulk. |
| Sealing Method | Use plumber's tape on threads and silicone caulk around the drain flange |
| Ventilation Requirement | Ensure the drain pipe is properly vented to prevent water trap siphoning |
| Slope Requirement | 1/4 inch per foot slope toward the drain to ensure proper water flow |
| Code Compliance | Follow local plumbing codes for pipe material, size, and installation methods |
| Testing | Fill the shower pan with water to check for leaks before finalizing installation |
| Maintenance Tip | Regularly clean the drain to prevent clogs and ensure proper water flow |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect PVC pipe, primer, glue, hacksaw, tape measure, and fittings
- Measure and Cut Pipe: Measure the distance, mark the pipe, and cut it straight with a hacksaw
- Prepare Fittings: Clean pipe ends, apply primer, then glue fittings securely for a watertight seal
- Attach to Drain: Connect the pipe to the shower drain outlet using appropriate fittings and clamps
- Test for Leaks: Run water through the drain, check for leaks, and tighten connections if necessary
Gather Tools and Materials: Collect PVC pipe, primer, glue, hacksaw, tape measure, and fittings
Before you begin attaching a shower drain pipe, it’s essential to gather all the necessary tools and materials to ensure a smooth and efficient process. Start by collecting PVC pipe, which is the primary material for the drain system. Choose the appropriate size and length based on your shower setup and local plumbing codes. Typically, 2-inch PVC pipe is commonly used for shower drains, but verify the requirements for your specific project. Ensure the PVC pipe is clean and free of any debris or damage that could affect the installation.
Next, you’ll need PVC primer and glue to securely join the pipe sections and fittings. PVC primer prepares the surfaces by softening them, while PVC glue creates a strong, watertight bond. Both are crucial for a leak-free installation. Make sure to use products specifically designed for PVC to avoid compatibility issues. Keep a clean cloth or rag nearby to wipe away any excess primer or glue during the process.
A hacksaw is another essential tool for this task. You’ll use it to cut the PVC pipe to the required lengths. Ensure the hacksaw blade is sharp and suitable for cutting plastic to achieve clean, straight cuts. If you prefer more precision, a PVC pipe cutter can be an excellent alternative, though a hacksaw is generally sufficient for most DIY installations. Always measure twice and cut once to avoid mistakes.
A tape measure is indispensable for accurately measuring the lengths of pipe needed and ensuring proper alignment of fittings. Double-check all measurements before cutting or gluing to prevent errors that could require redoing work. Additionally, having a permanent marker on hand to mark cut lines on the PVC pipe can improve accuracy and make the cutting process smoother.
Finally, gather the necessary fittings for your shower drain system. This typically includes a PVC drain body, couplings, and possibly a P-trap, depending on your setup. Ensure all fittings match the size of your PVC pipe and comply with local plumbing regulations. Having all fittings ready before you start will save time and prevent interruptions during installation. Once you’ve collected all these tools and materials, you’ll be well-prepared to proceed with attaching the shower drain pipe.
Quick and Easy Guide to Plunging Your Shower Drain
You may want to see also
Explore related products
Measure and Cut Pipe: Measure the distance, mark the pipe, and cut it straight with a hacksaw
Before you begin cutting any pipes, it’s crucial to measure the distance accurately to ensure a proper fit for your shower drain. Start by measuring the vertical distance from the bottom of the shower pan or base to the existing drain pipe or the point where the new drain pipe will connect. Use a tape measure for precision, and double-check the measurement to avoid errors. If the pipe needs to extend horizontally, measure that distance as well, ensuring you account for any bends or angles in the pipe’s path. Write down the measurements clearly to reference later.
Once you have the correct measurements, transfer them to the pipe you’ll be cutting. Place the pipe on a flat surface and use a permanent marker or pencil to mark the exact length needed. Ensure the mark is straight and visible, as this will guide your cut. If the pipe needs to align with specific fittings or angles, mark those points as well. For accuracy, align the mark with a straight edge or ruler to ensure the cut will be perpendicular to the pipe’s length.
With the pipe marked, it’s time to cut it using a hacksaw. Secure the pipe in a vise or clamp it firmly to a workbench to keep it steady during cutting. Position the hacksaw blade on the marked line and begin cutting with steady, even strokes. Apply moderate pressure and let the saw do the work—forcing it can lead to jagged edges or mistakes. Keep the blade perpendicular to the pipe to ensure a straight cut. If the pipe is thick or difficult to cut, take your time and avoid rushing the process.
After cutting the pipe, inspect the edge to ensure it is straight and free of burrs or rough spots. Use a fine-grit sandpaper or a deburring tool to smooth the edges, as rough cuts can interfere with proper fitting or sealing. Additionally, check that the length matches your initial measurement by holding the cut pipe up to the installation area. If adjustments are needed, remeasure and trim the pipe slightly, as it’s easier to remove more material than to add it back.
Finally, dry-fit the cut pipe into the drain assembly to ensure it fits correctly before proceeding with the installation. Align the pipe with the shower pan and the drain outlet, checking for any gaps or misalignments. If the fit is tight and secure, you’re ready to move on to the next steps of attaching the shower drain pipe. Proper measurement and cutting are essential for a leak-free and functional drain system, so take your time to get this step right.
Quick Fixes for Unclogging Toilets and Shower Drains Easily
You may want to see also
Explore related products
Prepare Fittings: Clean pipe ends, apply primer, then glue fittings securely for a watertight seal
Before attaching any fittings to your shower drain pipe, it's essential to prepare the pipe ends to ensure a secure and watertight connection. Start by cleaning the pipe ends thoroughly to remove any debris, dirt, or grease that may interfere with the bonding process. Use a clean cloth or a wire brush to scrub the pipe ends, making sure to remove any rough spots or burrs that could prevent a proper seal. For PVC pipes, you can also use a mild solvent, such as acetone or PVC cleaner, to wipe down the pipe ends and ensure a clean surface.
Once the pipe ends are clean, the next step is to apply a primer to the areas where the fittings will be attached. The primer serves as a preparatory coat that helps the glue bond more effectively to the pipe and fitting surfaces. Choose a primer that is specifically designed for the type of pipe and fittings you're using, such as PVC or ABS. Apply the primer to the pipe end and the inside of the fitting, following the manufacturer's instructions for proper application. Typically, you'll use a small brush or swab to apply a thin, even coat of primer, making sure to cover the entire surface area that will come into contact with the glue.
After applying the primer, allow it to dry for the recommended time, which is usually around 1-2 minutes. The primer should become tacky to the touch, indicating that it's ready for the next step. It's crucial not to let the primer dry completely, as this can make it difficult for the glue to bond properly. If the primer does dry out, you may need to reapply it before proceeding. Proper primer application is vital for ensuring a strong and durable bond between the pipe and fittings, so take your time and follow the instructions carefully.
With the primer in place, you can now apply the glue to the pipe end and fitting. Use a glue that is compatible with your pipe and fitting materials, such as PVC cement or ABS glue. Apply a generous amount of glue to the pipe end, making sure to coat the entire surface area that will be inserted into the fitting. Also, apply glue to the inside of the fitting, ensuring that the glue coats the entire surface that will come into contact with the pipe. Be careful not to use too much glue, as excess glue can interfere with the connection and potentially cause leaks.
As you insert the pipe end into the fitting, twist it slightly to help spread the glue evenly and ensure a secure bond. Hold the pipe and fitting together firmly for about 30 seconds to 1 minute, or until the glue begins to set. This will help create a watertight seal and prevent any leaks from occurring. After the initial set, you can release the pressure and allow the glue to cure fully, which typically takes around 24 hours. During this time, avoid disturbing the connection or applying any stress to the pipe and fittings. By following these steps to prepare and glue your fittings, you'll create a strong, durable, and watertight connection that will ensure the proper functioning of your shower drain pipe.
Finally, after the glue has cured, it's a good idea to test the connection for leaks before fully installing the shower drain pipe. You can do this by capping the end of the pipe and filling it with water, then checking for any signs of leakage around the fittings. If you notice any leaks, you may need to re-glue the fittings or check for any gaps or imperfections in the connection. By taking the time to properly prepare and glue your fittings, you'll ensure a reliable and long-lasting installation that will provide years of trouble-free service. Remember to always follow the manufacturer's instructions and safety guidelines when working with pipes, fittings, and adhesives.
Understanding the Purpose of the Floor Drain Next to Your Shower
You may want to see also
Explore related products
Attach to Drain: Connect the pipe to the shower drain outlet using appropriate fittings and clamps
To successfully attach a shower drain pipe, the first step is to ensure you have the correct fittings and clamps for your specific drain system. Most shower drains have a standard outlet size, but it’s essential to verify compatibility with the pipe you’re using. Common materials for shower drain pipes include PVC, ABS, or copper, each requiring specific fittings. For instance, PVC pipes typically use solvent cement and PVC fittings, while ABS pipes require ABS cement and fittings. Ensure the fittings match the pipe diameter and material to avoid leaks or improper connections. Additionally, inspect the drain outlet for any damage or debris that could interfere with the connection.
Once you’ve gathered the appropriate fittings, begin by preparing the pipe for attachment. Measure and cut the pipe to the desired length, ensuring it aligns properly with the shower drain outlet. Use a fine-toothed saw or pipe cutter to achieve a clean, straight cut. If using PVC or ABS pipes, lightly sand the end of the pipe and the inside of the fitting to ensure a smooth surface for adhesion. For metal pipes, ensure the threads are clean and undamaged. If the drain outlet has threads, wrap plumber’s tape around them to create a tighter seal. This preparation step is crucial for a secure and leak-free connection.
Next, attach the pipe to the shower drain outlet using the appropriate fittings. If the drain outlet is threaded, screw the pipe directly into place, ensuring it is tight but not over-tightened to avoid damaging the threads. For solvent-welded connections, apply the recommended cement to both the pipe and fitting, then quickly insert the pipe into the drain outlet and hold it in place until the cement sets. Use clamps or straps to secure the pipe if required, especially for larger or heavier pipes. Ensure the pipe is aligned straight and level to prevent drainage issues or strain on the connection.
After connecting the pipe, double-check the stability and alignment of the joint. Gently tug the pipe to ensure it is securely attached to the drain outlet. If using clamps, tighten them evenly to avoid putting unnecessary stress on the pipe or fitting. Inspect the connection for any signs of gaps or misalignment, as these can lead to leaks. If the drain outlet is below floor level, ensure the pipe slopes slightly downward toward the main drain line to facilitate proper water flow. A properly attached pipe should sit firmly in place without wobbling or shifting.
Finally, test the connection to ensure it is watertight. Pour water into the shower drain and observe the joint for any signs of leakage. If leaks are detected, tighten the fittings or reapply cement as needed. Once the connection is secure and leak-free, proceed with securing the pipe to the surrounding structure using additional clamps or supports as necessary. Properly attaching the pipe to the shower drain outlet is a critical step in ensuring efficient drainage and preventing future plumbing issues. With the right fittings, careful preparation, and attention to detail, you can achieve a durable and reliable connection.
Fixing a Leaky Shower: Repairing Your Drain Plug in Shower Insert
You may want to see also
Explore related products
Test for Leaks: Run water through the drain, check for leaks, and tighten connections if necessary
Once you’ve completed the installation of the shower drain pipe, the next critical step is to test for leaks to ensure everything is sealed properly. Begin by slowly running water through the drain to simulate normal usage. Use a bucket or turn on the shower at a moderate flow rate to allow water to pass through the drain pipe. Observe the connections closely, including the joint between the drain body and the pipe, as well as any threaded or glued fittings. Look for any signs of water seeping out, no matter how small, as even minor leaks can lead to significant water damage over time.
After running water through the drain, check for leaks by inspecting the area around the drain pipe and the connections. Use a flashlight if necessary to get a clear view of hard-to-see areas, such as under the shower base or behind the drain assembly. Pay special attention to the seals, gaskets, and threaded connections, as these are common areas where leaks can occur. If you notice any moisture or dripping, mark the spot with a dry cloth or tape for easier identification later.
If you detect a leak, tighten connections as needed, but be cautious not to overtighten, as this can damage the threads or crack the pipe. Use a wrench or pliers to gently tighten the fittings, ensuring they are snug but not forced. For glued connections, allow the adhesive to cure fully before retesting, as moving the pipe too soon can disrupt the bond. If the leak persists after tightening, inspect the gasket or seal for damage and replace it if necessary.
After addressing any leaks, retest the drain by running water through it again. Repeat the process of checking for leaks and tightening connections until the system is completely watertight. It’s important to be thorough during this step, as undetected leaks can cause mold, rot, or structural damage to your bathroom. If you’re unsure about the integrity of the connections, consider applying plumber’s tape or a waterproof sealant to provide an extra layer of protection.
Finally, once you’re confident there are no leaks, clean up any residual water and ensure the area around the drain is dry. This not only prevents slipping hazards but also allows you to inspect the area one last time for any missed issues. Testing for leaks is a crucial part of attaching a shower drain pipe, as it ensures the longevity and functionality of your plumbing system. By following these steps carefully, you can avoid future problems and enjoy a properly installed shower drain.
Quick Fixes for a Running Shower: DIY Repair Guide
You may want to see also
Frequently asked questions
You will need a hacksaw or PVC cutter, plumber’s tape or putty, a wrench or pliers, a utility knife, and possibly a drill with appropriate bits for securing the drain assembly.
Align the drain pipe with the existing plumbing, ensuring it slopes slightly toward the main drain line for proper flow. Use plumber’s putty or silicone sealant around the drain flange to create a watertight seal.
Yes, you can attach a shower drain pipe to an existing PVC drain line by cutting the PVC pipe to size, using a coupling or adapter if needed, and securing it with primer and PVC cement for a leak-free connection.
