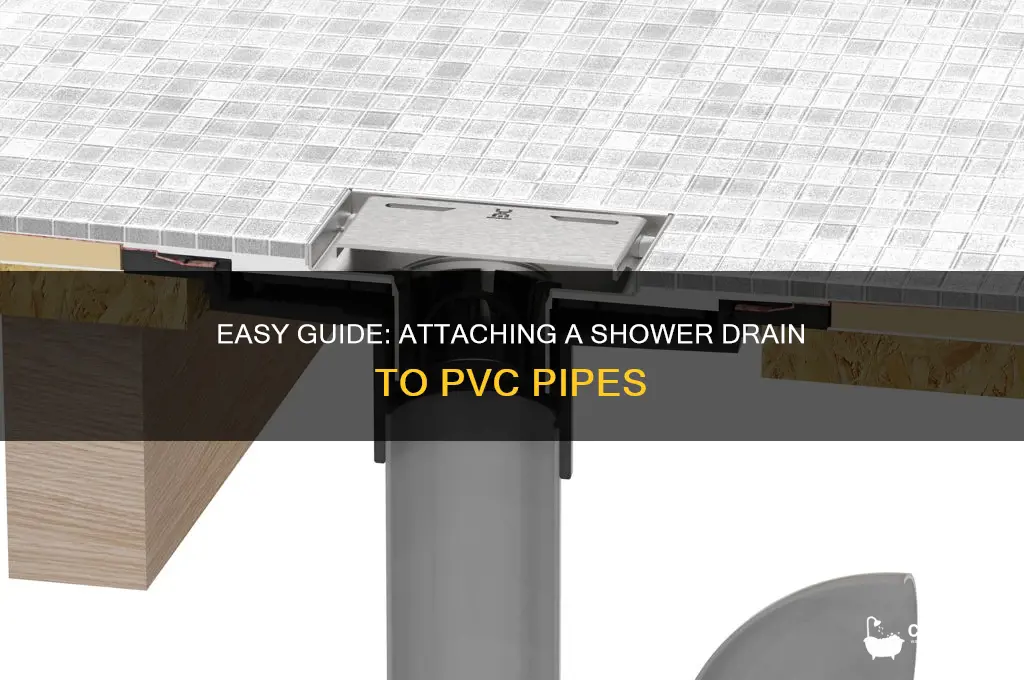

Attaching a shower drain to PVC piping is a crucial step in any bathroom renovation or installation project, requiring precision and adherence to plumbing codes to ensure proper drainage and prevent leaks. The process involves selecting the correct drain assembly compatible with PVC pipes, preparing the pipe by cutting and deburring it, and applying primer and solvent cement to create a secure, watertight seal. Proper alignment and securing of the drain body to the shower base or floor are essential, followed by allowing sufficient time for the adhesive to cure before testing the connection. This task demands attention to detail and familiarity with plumbing tools and materials to achieve a functional and long-lasting result.
| Characteristics | Values |
|---|---|
| Drain Type | Shower drain specifically designed for PVC pipe compatibility |
| Pipe Size | Typically 2-inch PVC pipe (check local building codes) |
| Drain Assembly Components | Drain body, strainer, locking nut, gasket, PVC adapter |
| Tools Required | Hacksaw or PVC cutter, primer, PVC cement, adjustable wrench, screwdriver, silicone sealant |
| Preparation | Cut PVC pipe to correct length, ensure proper slope (1/4 inch per foot), dry fit all components |
| Connection Method | Solvent weld (PVC cement) |
| Sealing | Use gasket and silicone sealant around drain body |
| Ventilation | Ensure proper venting of drain system according to plumbing codes |
| Testing | Fill drain with water to check for leaks before finalizing installation |
| Code Compliance | Adhere to local plumbing codes and regulations |
Explore related products
What You'll Learn
- Gather Tools & Materials: PVC primer, cement, hacksaw, drain assembly, gloves, rag, measuring tape
- Measure & Cut PVC: Ensure proper length for drain pipe, mark, and cut straight using a hacksaw
- Prepare PVC Joints: Clean, dry, and apply primer/cement to both pipe and fitting surfaces evenly
- Assemble Drain Components: Attach drain body to PVC pipe, ensuring tight fit and correct alignment
- Secure & Test Drain: Tighten screws, check for leaks, and test water flow before finalizing installation
Gather Tools & Materials: PVC primer, cement, hacksaw, drain assembly, gloves, rag, measuring tape
Before you begin attaching a shower drain to PVC, it’s essential to gather all the necessary tools and materials to ensure a smooth and efficient process. Start by acquiring PVC primer and PVC cement, which are crucial for creating a strong, leak-proof bond between the PVC pipes and the drain assembly. The primer prepares the PVC surface by cleaning and slightly softening it, while the cement permanently fuses the pieces together. Both are typically available at hardware stores and come in small cans, so ensure you have enough for your project. Always handle these chemicals with care, as they can be strong-smelling and irritating to the skin.
Next, you’ll need a hacksaw to cut the PVC pipe to the appropriate length. A hacksaw with a fine-tooth blade works best for PVC, as it allows for clean, precise cuts. If you don’t have a hacksaw, a PVC pipe cutter or reciprocating saw with a PVC blade can also be used. Ensure the blade is sharp to avoid jagged edges, which can interfere with the fit and sealing of the drain assembly. Additionally, a measuring tape is indispensable for accurately measuring the pipe length and ensuring the drain aligns correctly with the shower base or floor.
The drain assembly itself is a critical component and should be selected based on the specific requirements of your shower setup. It typically includes the drain body, strainer, and any necessary gaskets or screws. Ensure the assembly is compatible with PVC piping and meets local plumbing codes. Some drain assemblies come with adjustable heights or threading options, so choose one that suits your installation needs. Double-check that all parts are included before starting the project.
Safety should always be a priority, so gloves are a must-have to protect your hands from the chemicals in the PVC primer and cement, as well as any sharp edges from cutting the pipe. Nitrile or latex gloves work well for this purpose. Additionally, keep a rag handy for wiping away excess primer, cement, or debris during the installation process. A clean rag will help maintain a tidy workspace and prevent accidental messes.
Finally, organize all your tools and materials in a readily accessible area before starting the project. Lay out the PVC primer, cement, hacksaw, measuring tape, drain assembly, gloves, and rag in a logical order to streamline the installation process. Having everything within reach will save time and reduce the risk of interruptions. With these tools and materials gathered, you’ll be well-prepared to attach the shower drain to PVC efficiently and effectively.
Easy Steps to Repair a Dipping Moen Tub Shower Faucet
You may want to see also
Explore related products
Measure & Cut PVC: Ensure proper length for drain pipe, mark, and cut straight using a hacksaw
Before you begin attaching your shower drain to PVC, it's crucial to ensure that the drain pipe is the correct length. Start by measuring the distance from the shower drain outlet to the point where the pipe will connect to the existing plumbing. Use a tape measure to get an accurate measurement, taking into account any bends or angles in the pipe. It's essential to measure twice to avoid mistakes, as cutting the PVC pipe too short will require you to start over with a new piece. Once you have the correct measurement, transfer this length to the PVC pipe using a permanent marker or pencil. Make a clear, straight mark to guide your cut.
With the PVC pipe marked, it's time to cut it to the proper length. A hacksaw is the most suitable tool for this task, as it allows for a straight and precise cut. Secure the pipe in a vise or clamp it to a workbench to keep it steady while cutting. Position the hacksaw blade on the marked line, ensuring it's perpendicular to the pipe. Apply gentle pressure and use long, smooth strokes to cut through the PVC. Take your time and maintain a steady pace to achieve a clean, straight cut. Avoid forcing the saw, as this can lead to jagged edges or an uneven cut.
As you near the end of the cut, pay extra attention to maintain control and precision. When the hacksaw blade breaks through the pipe, carefully remove the cut piece and inspect the edge. If the cut is not perfectly straight or has any burrs, use a fine-grit sandpaper or a deburring tool to smooth it out. A clean, straight cut is essential for a secure and leak-free connection between the shower drain and the PVC pipe. Take the time to ensure the edge is smooth and free of any imperfections before proceeding to the next step.
After cutting the PVC pipe to length, it's a good idea to dry-fit the pieces together to ensure a proper fit. Insert the cut end of the pipe into the shower drain fitting and check that it aligns correctly with the existing plumbing. If the pipe is too long or short, or if the cut is not straight, the connection may not be secure. In this case, you may need to make adjustments by cutting the pipe again or using a different piece of PVC. A proper fit is crucial for the overall success of the project, so take the time to verify that everything lines up correctly before finalizing the connection.
When you're confident that the PVC pipe is cut to the correct length and fits properly, you can proceed with attaching the shower drain. Remember that a precise and straight cut is key to achieving a watertight seal. If you're unsure about your cutting skills or the fit of the pipe, don't hesitate to seek advice from a professional or consult additional resources. With the PVC pipe measured, marked, and cut accurately, you'll be well on your way to successfully attaching your shower drain to the PVC plumbing system.
Should You Pour Drano Down Your Shower Drain Regularly?
You may want to see also
Explore related products
Prepare PVC Joints: Clean, dry, and apply primer/cement to both pipe and fitting surfaces evenly
Before you begin the process of attaching a shower drain to PVC, it's crucial to properly prepare the PVC joints to ensure a secure and watertight connection. The first step in preparing PVC joints is to clean both the pipe and fitting surfaces thoroughly. Use a clean cloth or a fine-grit sandpaper to remove any dirt, debris, or rough spots from the areas that will be joined. This ensures that the primer and cement will adhere properly, creating a strong bond between the pipe and fitting. Be meticulous in this step, as any leftover residue or imperfections can compromise the integrity of the joint.
After cleaning, it’s essential to dry the surfaces completely. Moisture can interfere with the adhesion of the primer and cement, leading to weak or failed joints. Wipe down the cleaned areas with a dry cloth and allow them to air dry for a few minutes, ensuring no moisture remains. If you’re working in a humid environment, consider using a hairdryer on a low setting to expedite the drying process. Properly dried surfaces will ensure that the next steps in the preparation process are effective.
Once the surfaces are clean and dry, apply a PVC primer to both the pipe and fitting. The primer prepares the PVC by slightly softening the surface, allowing the cement to create a stronger bond. Use a brush or dauber that comes with the primer to apply a thin, even coat to both surfaces. Work quickly but carefully, as the primer begins to set rapidly. Ensure full coverage of the areas that will be joined, but avoid over-application, as excess primer can lead to mess and waste.
After the primer has been applied and allowed to dry for a few seconds, it’s time to apply the PVC cement. Open the cement can and use the same brush or dauber to apply a generous, even coat to both the pipe and fitting surfaces. The cement will activate the primer, creating a chemical bond between the PVC materials. Again, work swiftly and ensure complete coverage of the joint areas. Insert the pipe into the fitting immediately after applying the cement, as it sets quickly.
Finally, hold the joint firmly in place for about 30 seconds to one minute, depending on the manufacturer’s instructions, to allow the cement to set and create a strong bond. Wipe away any excess cement that squeezes out of the joint with a clean cloth. Properly prepared PVC joints will result in a leak-free and durable connection, ensuring your shower drain functions effectively for years to come. Always follow safety precautions, such as wearing gloves and working in a well-ventilated area, when handling primer and cement.
Quick DIY Guide to Fixing a Leaky Shower Drain Easily
You may want to see also
Explore related products
Assemble Drain Components: Attach drain body to PVC pipe, ensuring tight fit and correct alignment
To begin assembling the drain components, you'll need to gather the necessary parts, including the drain body, PVC pipe, primer, cement, and a rubber gasket. Start by preparing the PVC pipe by cutting it to the appropriate length, ensuring it matches the distance between the shower drain location and the existing plumbing. Use a fine-grit sandpaper to smooth any rough edges on the pipe, which will help create a secure connection. Next, apply a generous amount of PVC primer to the outside of the pipe and the inside of the drain body's inlet, following the manufacturer's instructions for proper application. This step is crucial in creating a strong, leak-proof bond between the drain body and the PVC pipe.
With the primer applied, it's time to attach the drain body to the PVC pipe. Insert the pipe into the drain body's inlet, making sure it's aligned correctly and pushed in as far as it will go. You should feel a slight resistance as the pipe reaches the proper depth. At this point, check the alignment of the drain body and pipe, ensuring they're straight and level. If necessary, make adjustments by gently twisting or rotating the pipe within the drain body. Remember, a proper alignment is essential for optimal drainage and to prevent any potential leaks.
Now, apply PVC cement to the primed areas, following the manufacturer's guidelines for application. The cement will create a permanent, watertight seal between the drain body and the PVC pipe. Quickly insert the pipe into the drain body again, twisting it slightly to distribute the cement evenly. Hold the components together firmly for about 30 seconds to 1 minute, allowing the cement to set and form a strong bond. Be cautious not to overtighten or force the connection, as this may damage the components or compromise the seal.
After attaching the drain body to the PVC pipe, inspect the connection for any signs of gaps or leaks. Run your finger along the joint to ensure a smooth, even surface. If you notice any excess cement, wipe it away with a clean cloth before it dries. Allow the cement to cure fully, which typically takes around 24 hours, depending on the manufacturer's instructions and environmental conditions. During this time, avoid disturbing the connection to ensure a secure and lasting bond.
Finally, with the drain body securely attached to the PVC pipe, you can proceed to install the rubber gasket and secure the drain assembly to the shower pan or base. This step may involve using screws or other fasteners, depending on the specific drain design. Ensure the gasket is properly seated and compressed to create a watertight seal between the drain assembly and the shower surface. By following these steps and paying close attention to alignment and cement application, you'll achieve a tight, leak-free connection between the drain body and PVC pipe, setting the foundation for a successful shower drain installation.
Fixing RV Shower Drain Leaks: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Secure & Test Drain: Tighten screws, check for leaks, and test water flow before finalizing installation
Once the shower drain is properly aligned and connected to the PVC pipe, the next critical step is to secure and test the drain to ensure a watertight seal and proper functionality. Begin by tightening the screws that secure the drain flange to the shower base or pan. Use a screwdriver to firmly tighten each screw, ensuring they are snug but not over-tightened, as this could damage the threads or crack the drain components. Double-check that the drain is seated evenly and flush with the shower surface to prevent any gaps where water could seep through.
After securing the screws, check for leaks by running water into the drain and inspecting the connection points. Look for any signs of moisture or dripping around the drain flange, PVC pipe, or coupling. If you notice leaks, loosen the screws slightly, reposition the drain or adjust the PVC connection, and re-tighten the screws. Use plumber’s putty or silicone sealant around the drain flange if necessary to create a better seal, but ensure it doesn’t interfere with the drain’s functionality.
Next, test the water flow to ensure the drain functions properly. Pour a bucket of water into the shower and observe how quickly it drains. If the water pools or drains slowly, there may be an obstruction or improper slope in the PVC pipe. Check the pipe for clogs or debris and ensure it is angled correctly to allow for proper drainage. Adjust the pipe’s slope if needed, as water should flow smoothly and efficiently into the drain.
Before finalizing the installation, recheck all connections for tightness and leaks. Run water through the drain again and inspect the area thoroughly. Pay close attention to the joint between the drain and PVC pipe, as this is a common area for leaks. If everything appears secure and leak-free, proceed to cover the drain with a grate or cover, ensuring it fits properly and securely.
Finally, clean the area around the drain to remove any debris, excess sealant, or residue from the installation process. This not only improves the appearance but also prevents potential clogs or issues in the future. Once the drain is fully secured, tested, and cleaned, the installation is complete, and the shower is ready for use. Regularly inspect the drain and PVC connection periodically to ensure long-term reliability and performance.
Shaving in the Shower: Does It Really Clog Your Drain?
You may want to see also
Frequently asked questions
You will need a hacksaw or PVC cutter, PVC primer, PVC cement, a measuring tape, a marker, and a rubber or silicone gasket for sealing.
Measure and mark the PVC pipe to the correct length, ensuring it aligns with the drain’s outlet. Use a deburring tool to smooth the cut edges, then dry-fit the drain to check alignment before applying primer and cement.
Always use PVC cement, as it is specifically designed to create a strong, watertight bond between PVC components. Regular glue will not provide the necessary durability or seal.
