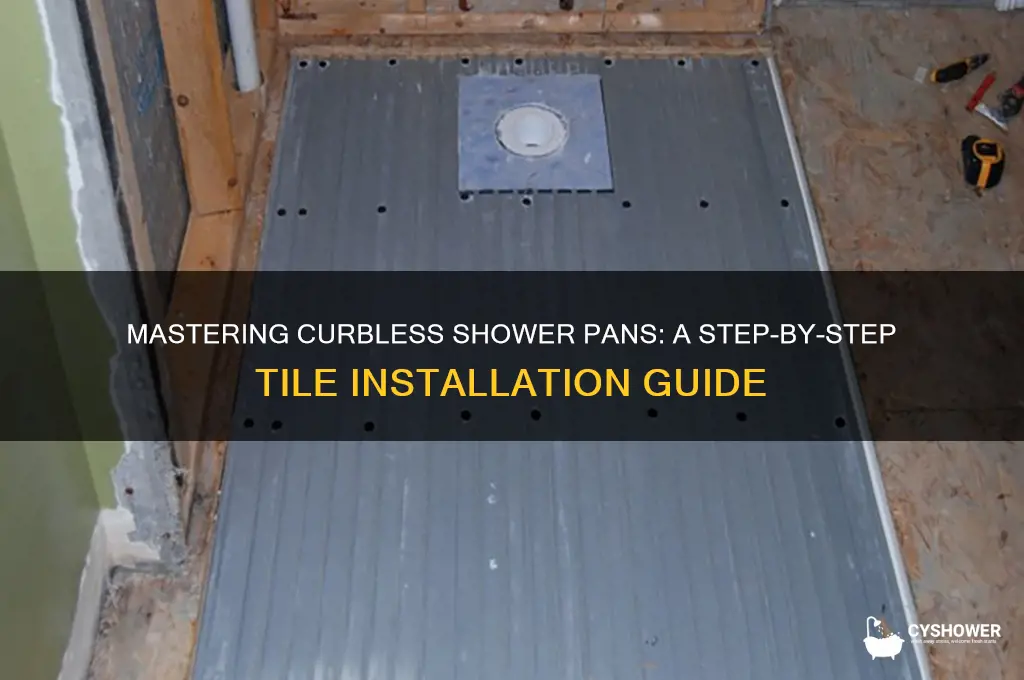

Building a curbless tile shower pan is a meticulous process that combines precision, waterproofing, and aesthetic appeal to create a seamless, barrier-free shower experience. This project requires careful planning, starting with ensuring the subfloor is level and structurally sound to support the weight of the shower and its users. The installation involves creating a slope for proper drainage, typically using a mortar bed or a pre-sloped foam base, followed by applying a reliable waterproofing membrane to prevent leaks. The tile selection and layout are crucial for both functionality and design, as the tiles must align with the slope while maintaining a visually appealing pattern. Finally, the integration of a linear drain enhances the curbless design, ensuring efficient water evacuation while maintaining the sleek, modern look that makes curbless showers a popular choice in contemporary bathrooms.
| Characteristics | Values |
|---|---|
| Shower Pan Slope | 1/4 inch per foot (2% slope) towards the drain for proper water drainage. |
| Waterproofing Membrane | Use a liquid waterproofing membrane (e.g., RedGuard, Hydro Ban) or a sheet membrane (e.g., Kerdi, Wedi). |
| Subfloor Preparation | Ensure subfloor is level, clean, and structurally sound. Use cement backer board or a waterproof substrate. |
| Drain Installation | Use a linear drain or center drain designed for curbless showers. Ensure it’s flush with the floor. |
| Mortar Bed | Apply a mortar bed (dry pack) to create the slope. Use a mixture of sand, Portland cement, and water. |
| Tile Selection | Choose slip-resistant tiles. Large-format tiles minimize grout lines and are easier to clean. |
| Grout and Sealing | Use epoxy or waterproof grout. Seal grout lines and tile edges to prevent water penetration. |
| Threshold Height | Ensure the shower floor is flush with the bathroom floor for a curbless design. |
| Shower Glass | Install frameless glass panels or a half-wall to contain water without a curb. |
| Waterproofing Details | Waterproof corners, seams, and transitions thoroughly to prevent leaks. |
| Drying Time | Allow sufficient drying time for mortar, waterproofing, and tile adhesive (typically 24-48 hours). |
| Compliance with Codes | Follow local building codes for slope, drainage, and waterproofing requirements. |
| Tools Required | Trowel, level, notched trowel, utility knife, mixing drill, sponge, and safety gear. |
| Professional Assistance | Consider hiring a professional for complex installations, especially waterproofing. |
| Maintenance | Regularly clean and inspect the shower to prevent mold, mildew, and water damage. |
Explore related products
What You'll Learn
- Slope & Drain Placement: Ensure proper slope (1/4 per foot) towards drain for efficient water flow
- Waterproofing Membrane: Apply liquid or sheet membrane to prevent leaks under tiles
- Mortar Bed Installation: Create a pre-sloped mortar base for tile adhesion and drainage
- Linear Drain Selection: Choose a low-profile linear drain for seamless curbless design
- Tile Layout & Grout: Use large tiles and waterproof grout for a sleek, barrier-free finish
Slope & Drain Placement: Ensure proper slope (1/4 per foot) towards drain for efficient water flow
Achieving the correct slope is the linchpin of a curbless shower pan’s functionality. A gradient of 1/4 inch per foot ensures water flows decisively toward the drain, preventing pooling and potential leaks. This slope isn’t arbitrary—it’s the Goldilocks zone, steep enough to avoid stagnation yet subtle enough to maintain the sleek, barrier-free aesthetic. Without it, even the most luxurious tile work becomes a liability, as standing water undermines the integrity of the substrate and invites mold.
To execute this slope, start by marking the drain location as your low point. Use a laser level or a straightedge to measure and mark a 1/4-inch drop for every foot of distance from the drain. For example, if your shower pan is 4 feet from the drain to the farthest wall, the wall should sit 1 inch higher than the drain. Dry-fit your mortar bed or underlayment, checking the slope with a level or a water test before finalizing. A common mistake is overestimating the slope, which can make the shower floor feel uneven underfoot. Precision here isn’t just technical—it’s tactile.
Drain placement is equally critical, as it dictates the direction and efficiency of water flow. Centered drains are traditional but can limit design flexibility in curbless showers. Linear drains, positioned along one edge, offer a modern alternative that aligns with the minimalist ethos of curbless designs. They also allow for a single, consistent slope direction, simplifying installation. However, linear drains require meticulous alignment to ensure water doesn’t pool at either end. Consider the shower’s layout and user habits—a drain near the showerhead minimizes water travel distance, reducing splash and improving efficiency.
A practical tip for verifying slope accuracy is the “water test.” After roughing in the mortar bed, pour water across the surface and observe its movement. It should flow smoothly toward the drain without hesitation. If water pools or moves sluggishly, adjust the slope by adding or removing mortar. This step, though time-consuming, is non-negotiable. It’s far easier to correct the slope before tiling than to tear out a finished shower pan.
Finally, remember that the slope isn’t just about water flow—it’s about longevity. A properly sloped shower pan protects the waterproofing membrane and structural layers beneath the tile, ensuring the shower remains functional for decades. Skimping on slope precision or drain placement may save time upfront but will cost exponentially more in repairs down the line. In curbless shower construction, the slope isn’t a detail—it’s the foundation.
Does Flexing in a Shower Pan Cause Tile Cracks? Find Out
You may want to see also
Explore related products
Waterproofing Membrane: Apply liquid or sheet membrane to prevent leaks under tiles
A critical step in building a curbless tile shower pan is ensuring it remains watertight. Waterproofing membranes act as the invisible shield, preventing moisture from seeping beneath tiles and causing structural damage. Without this barrier, even the most meticulously laid tile work can become compromised, leading to mold, rot, and costly repairs.
Two primary types of waterproofing membranes dominate the market: liquid-applied and sheet membranes. Each offers distinct advantages and considerations for your curbless shower project.
Liquid-applied membranes, often polyurethane or acrylic-based, are rolled or brushed onto the shower pan substrate. Their key advantage lies in their ability to conform to complex shapes and details, making them ideal for curbless showers with curved walls or intricate drain assemblies. Application typically involves multiple coats, with drying time between each layer. Follow manufacturer instructions meticulously, as proper curing is essential for optimal performance. Some liquid membranes require a primer coat for better adhesion, while others are self-priming.
Consider using a paint roller with a medium nap for even coverage, and a brush for detailing around drains and corners. Ensure proper ventilation during application, as some liquid membranes can have strong fumes.
Sheet membranes, typically made from PVC, rubber, or modified bitumen, are pre-fabricated sheets that are adhered to the substrate using thinset mortar or specialized adhesives. They offer a more rigid barrier compared to liquid membranes and are often preferred for larger shower areas. Installation involves carefully cutting and fitting the sheets around drains and corners, ensuring tight seams and overlaps. Sheet membranes are generally more forgiving for DIYers, as they don't require the same level of precision in application as liquid membranes. However, achieving a watertight seal at seams and transitions requires careful attention to detail.
The choice between liquid and sheet membranes ultimately depends on your project's specific needs, your skill level, and budget. Liquid membranes offer superior flexibility and detail work, while sheet membranes provide a more robust and potentially easier-to-install solution. Regardless of your choice, remember that proper surface preparation is paramount. The substrate must be clean, dry, and free of debris for the membrane to adhere effectively.
Secure Your Shower: Easy Steps to Install Grab Bars on Tiled Walls
You may want to see also
Explore related products
Mortar Bed Installation: Create a pre-sloped mortar base for tile adhesion and drainage
A critical step in building a curbless tile shower pan is establishing a pre-sloped mortar base. This mortar bed serves as the foundation for your tile, ensuring proper drainage and preventing water pooling. Without a precise slope, water will accumulate, leading to leaks, mold, and structural damage. Achieving the correct gradient—typically 1/4 inch per foot—requires careful planning and execution.
To begin, prepare the subfloor by ensuring it’s clean, dry, and structurally sound. Install a waterproof membrane, such as a liquid waterproofing or a sheet membrane, to protect the substrate from moisture. Next, mark the desired slope on the walls using a level and chalk line. Mix a dry-pack mortar (a 4:1 ratio of sand to Portland cement) to a thick, peanut butter-like consistency. Start by spreading a 1-inch layer of mortar along the drain, compacting it firmly with a trowel. Gradually build up the mortar bed, following your slope markings, and use a straightedge to smooth and shape the surface. Work methodically, ensuring the slope is consistent and directs water toward the drain.
One common mistake is overworking the mortar, which can weaken its structure. Once the base layer is in place, allow it to cure for at least 24 hours before applying a second, thinner layer for final smoothing. This two-step process ensures a solid, even surface for tile adhesion. For added precision, use a laser level or water level to verify the slope during installation. Remember, the mortar bed is not just a base—it’s the backbone of your shower’s functionality.
Comparing this method to alternatives like pre-sloped foam bases, the mortar bed offers superior customization and durability. While foam kits are quicker to install, they lack the strength and longevity of a properly executed mortar bed. Additionally, mortar allows for seamless integration with the drain assembly, reducing the risk of leaks at connection points. For DIYers, mastering this technique is a worthwhile investment, as it ensures a professional-grade result that stands the test of time.
In conclusion, creating a pre-sloped mortar base is a meticulous but essential task in curbless shower construction. By focusing on precise measurements, proper material consistency, and careful execution, you lay the groundwork for a shower that not only looks stunning but functions flawlessly. Take your time, follow these steps, and your mortar bed will serve as the reliable foundation your tile installation deserves.
Mastering Schluter Shower Pan Tiling: A Step-by-Step Installation Guide
You may want to see also
Explore related products
Linear Drain Selection: Choose a low-profile linear drain for seamless curbless design
A low-profile linear drain is the linchpin of a seamless curbless shower design, offering both aesthetic appeal and functional efficiency. Unlike traditional center drains, linear drains run along the shower's edge, creating a sleek, modern look while facilitating efficient water evacuation. This design choice not only enhances the visual continuity of the space but also simplifies the slope requirements for the shower pan, making it easier to achieve the necessary 1/4-inch per foot gradient. By integrating the drain into the shower's perimeter, you eliminate the need for a raised curb, ensuring unobstructed entry and a more open, spa-like experience.
Selecting the right linear drain involves more than just aesthetics; it requires careful consideration of material, size, and compatibility with your tile layout. Stainless steel drains are a popular choice due to their durability and resistance to corrosion, but tile-insert drains offer the added benefit of blending seamlessly with your shower floor. When choosing the length of the drain, aim for a size that accommodates at least 25% of the shower’s width to ensure proper drainage. For example, a 48-inch shower would pair well with a 12-inch drain. Additionally, ensure the drain’s channel width aligns with your tile spacing to avoid awkward gaps or misalignment.
Installation precision is critical to the success of a linear drain in a curbless shower. The drain must be positioned at the lowest point of the shower pan, with the surrounding area sloped toward it at a consistent gradient. Use a pre-sloped shower pan kit or waterproof membrane to simplify this process, ensuring water flows naturally toward the drain. During installation, verify the drain’s alignment with a level and adjust as needed to prevent pooling or inadequate drainage. Proper waterproofing around the drain is equally essential—use a liquid membrane or waterproof flashing to seal all seams and edges, preventing leaks that could compromise the structure.
One often-overlooked aspect of linear drain selection is its impact on tile layout and design. The drain’s location dictates the direction and pattern of your tiles, so plan accordingly to maintain visual harmony. For instance, running large-format tiles parallel to the drain can create a clean, linear effect, while smaller tiles can add texture and interest. Consider using a tile insert that matches your shower floor to make the drain virtually disappear, enhancing the curbless aesthetic. This thoughtful integration ensures the drain becomes a design element rather than an afterthought.
Finally, maintenance and long-term functionality should factor into your linear drain choice. Opt for drains with removable grates or covers for easy cleaning, as hair and debris can accumulate over time. Some models include built-in slope or adjustable components to fine-tune drainage performance, which can be particularly useful in curbless showers where water flow must be precise. By prioritizing both form and function, a low-profile linear drain not only elevates the design of your curbless shower but also ensures it remains a durable, efficient solution for years to come.
Tiling a Shower: Floor or Walls First? Expert Tips & Sequence
You may want to see also
Explore related products
Tile Layout & Grout: Use large tiles and waterproof grout for a sleek, barrier-free finish
Large-format tiles are the cornerstone of a sleek, barrier-free curbless shower pan. Their expansive surface area minimizes grout lines, creating a visually seamless and easier-to-clean surface. Opt for tiles measuring 12x24 inches or larger to achieve this effect. Smaller tiles, while charming in other contexts, introduce more grout lines that can disrupt the smooth, open feel essential for a curbless design. Additionally, larger tiles reduce the risk of water pooling in grout joints, a critical consideration for a shower pan that relies on precise slope and drainage.
Waterproof grout is non-negotiable in a curbless shower pan. Standard grout, even when sealed, can absorb moisture over time, leading to mold, mildew, and structural damage. Choose a grout specifically formulated for wet areas, such as epoxy or polyurethane-based products. These grouts are impervious to water, resistant to stains, and require less maintenance. When applying, ensure the grout is mixed to a smooth, peanut butter-like consistency and pressed firmly into joints to eliminate air pockets. Allow ample curing time—typically 24 to 48 hours—before exposing the grout to water.
The layout of large tiles demands precision to maintain the curbless shower’s clean lines. Start by dry-laying tiles to ensure the pattern aligns with the shower’s dimensions and slope. Use a 1/8-inch spacer to create consistent grout lines, which strike a balance between aesthetics and functionality. Pay particular attention to the drain area, where tiles may need to be cut to fit around the drain assembly. A laser level can help verify the slope, ensuring water flows efficiently toward the drain without compromising the tile layout.
While large tiles and waterproof grout elevate the shower’s appearance and functionality, they also introduce challenges. Cutting large tiles requires a wet saw and careful measurement to avoid chipping or uneven edges. Similarly, working with waterproof grout demands attention to detail, as it sets quickly and is difficult to correct once applied. For DIYers, consider practicing on scrap tiles and grout boards before tackling the actual installation. Hiring a professional tile setter can be a worthwhile investment to ensure a flawless finish.
The combination of large tiles and waterproof grout not only enhances the aesthetics of a curbless shower pan but also contributes to its longevity and ease of maintenance. By minimizing grout lines and eliminating water absorption, this approach aligns with the barrier-free, modern design ethos. While the installation requires precision and care, the result is a shower that feels open, luxurious, and built to withstand the test of time.
Smooth Shower Drain Repair: Fixing Rough Tile Around the Drain
You may want to see also
Frequently asked questions
To build a curbless tile shower pan, you will need materials such as a waterproof membrane (e.g., PVC or CPE liner), mortar or thin-set, cement backer board, tile, grout, a shower drain assembly, and waterproofing sealant. Additionally, tools like a trowel, level, utility knife, and notched spreader are essential.
Proper slope is critical for drainage. Use a pre-sloped shower pan kit or create a slope manually by applying mortar or thin-set. Aim for a gradient of 1/4 inch per foot toward the drain. Use a level to check the slope during installation to ensure water flows efficiently without pooling.
Waterproofing is crucial to prevent leaks. First, install a waterproof membrane over the subfloor and up the walls. Ensure all seams are sealed with waterproofing tape. Apply a liquid waterproofing membrane over the entire surface, including corners and edges. Test the drain for leaks before tiling, and use waterproof grout and sealant to complete the installation.
