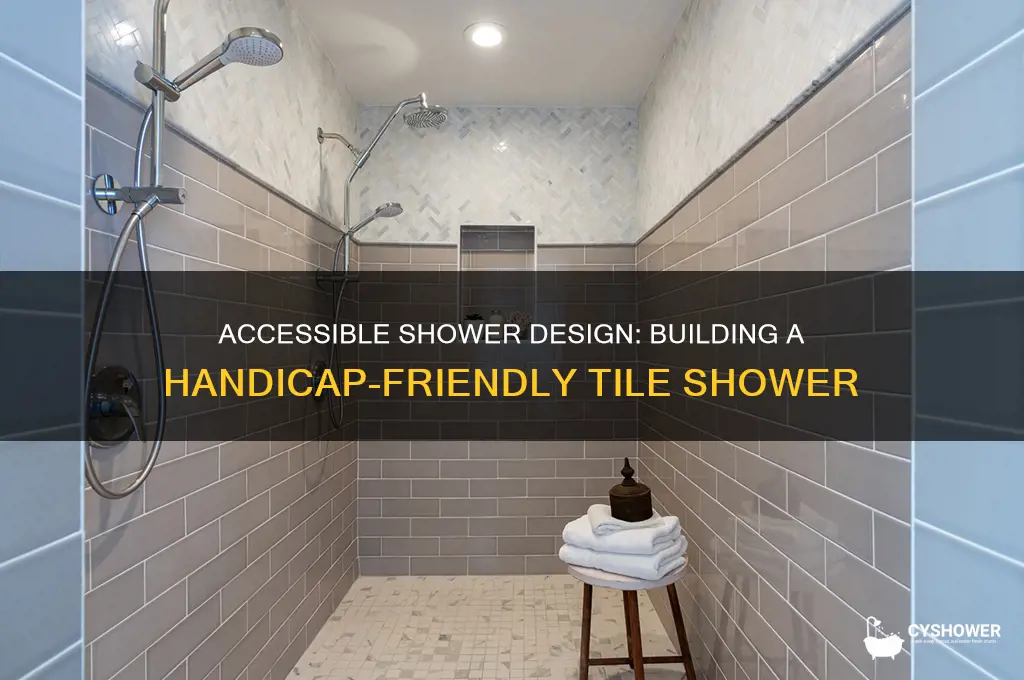

Building a handicap tile shower requires careful planning and attention to detail to ensure accessibility, safety, and functionality. The process begins with designing a barrier-free entry, typically a curbless or low-threshold shower, to accommodate wheelchairs or walkers. Proper slope and drainage are critical to prevent water pooling, often achieved with a linear drain and a pre-sloped shower pan or mud bed. Non-slip tiles should be used for the floor, and walls should incorporate grab bars and a fold-down shower seat for added support. Waterproofing is essential, using materials like liquid membranes or waterproof boards behind the tiles. Additionally, fixtures such as a handheld showerhead and easy-to-reach controls should be installed at appropriate heights. Compliance with ADA (Americans with Disabilities Act) guidelines ensures the shower meets accessibility standards, creating a safe and user-friendly space for individuals with mobility challenges.
Explore related products
What You'll Learn
- Plan Accessible Layout: Ensure 5-foot turning radius, grab bar placement, and curb-free entry for wheelchair access
- Choose Slip-Resistant Tiles: Select textured, matte tiles with high COF (Coefficient of Friction) for safety
- Install Grab Bars Securely: Use ADA-compliant bars, reinforced with blocking behind walls for stability
- Create Sloped Flooring: Build a 1:48 slope for proper drainage and water containment
- Add Folding Shower Seat: Install a wall-mounted, foldable seat for seated showering convenience
Plan Accessible Layout: Ensure 5-foot turning radius, grab bar placement, and curb-free entry for wheelchair access
A wheelchair user needs a 5-foot turning radius to maneuver safely and independently within a shower space. This measurement isn’t arbitrary—it’s the minimum clearance required for a standard wheelchair to complete a full 180-degree turn without hitting walls, fixtures, or other obstacles. When planning your handicap tile shower, visualize this radius as a circle centered around the shower’s primary functional area, typically the showerhead or controls. Use a tape measure or chalk to mark this space during the design phase to ensure no obstructions encroach on this critical zone.
Grab bar placement is both an art and a science, balancing ADA compliance with user comfort. Install horizontal bars at 33–36 inches above the shower floor, the ideal height for most wheelchair users to push up or steady themselves. Vertical bars should be placed near the entry point and shower controls, at a height that allows a firm grip without overextension. Use reinforced wall studs or blocking behind the tiles to support at least 250 pounds of force, as required by accessibility standards. Avoid placing bars too close to the showerhead or valves, as this can create awkward angles or interfere with water flow.
Curb-free entry is non-negotiable for wheelchair access, but it requires careful waterproofing to prevent leaks. Slope the shower floor at a 1/4-inch-per-foot gradient toward the drain to ensure proper water runoff. Use a linear drain along the shower’s threshold for a sleeker, more discreet look compared to traditional center drains. Install a waterproof membrane, such as PVC or liquid waterproofing, under the tile and extending up the walls at least 6 inches to protect against moisture intrusion. Test the waterproofing before tiling by filling the shower pan with water for 24 hours to check for leaks.
Integrating these elements into a cohesive layout demands thoughtful coordination. Start by positioning the shower controls and showerhead within easy reach from the entry point, typically no more than 36 inches from the curb-free threshold. Ensure the 5-foot turning radius doesn’t overlap with the swing of the bathroom door or other fixtures. If space is limited, consider a folding shower seat to maximize open floor area without sacrificing functionality. Use contrasting tile colors or textures to visually define the shower space without adding physical barriers, enhancing both safety and aesthetics.
Finally, consider the user’s long-term needs and preferences. For example, a side-entry layout may offer more independence than a front-entry design, as it allows the user to roll directly into the shower without transferring. If the primary user has limited upper body strength, prioritize additional grab bars or a handheld showerhead mounted on a sliding bar for flexibility. Consult with an occupational therapist or accessibility specialist to tailor the layout to specific mobility challenges, ensuring the shower remains functional and comfortable for years to come.
Fixing Shower Walls: A Guide to Replacing Broken Waterproof Tile Board
You may want to see also
Explore related products
Choose Slip-Resistant Tiles: Select textured, matte tiles with high COF (Coefficient of Friction) for safety
Textured, matte tiles with a high Coefficient of Friction (COF) are non-negotiable in a handicap-accessible shower. Smooth, glossy tiles may look sleek, but they become hazardous when wet, especially for individuals with limited mobility or balance issues. The COF measures a tile's slip resistance, with a rating of 0.60 or higher recommended for wet areas like showers. This isn't just a suggestion—it's a safety standard. Imagine a shower floor that feels secure even when soapy water is involved; that's the peace of mind a high-COF tile provides.
Selecting the right tile goes beyond aesthetics. While a glossy finish might catch your eye, it's the matte, textured surface that will prevent slips and falls. Think of it as choosing function over form, but with a wide range of options, you don't have to sacrifice style entirely. Tiles with a slightly raised pattern or a sandblasted finish offer both grip and visual appeal. For instance, a matte porcelain tile with a subtle linear texture can add depth to the shower design while ensuring safety.
When shopping for tiles, look for products specifically labeled as "slip-resistant" or "high-COF." Manufacturers often test their tiles to meet or exceed industry standards, such as the ANSI A137.1 or ASTM C1028. Don’t hesitate to ask for documentation or test results to verify the tile’s COF rating. It’s a small step that can make a significant difference in preventing accidents. Additionally, consider the grout lines—wider grout lines can enhance traction, but they also require more maintenance to keep clean.
Installation matters just as much as the tile selection. Even the safest tile can become a hazard if not installed correctly. Ensure the shower floor has a slight slope (about 1/4 inch per foot) toward the drain to prevent water pooling. Use a professional installer experienced in accessible design to guarantee proper tile placement and grout application. A well-installed, high-COF tile floor will not only be safe but also durable, standing up to years of use without compromising its slip-resistant properties.
Finally, maintenance plays a role in keeping the shower safe. Regular cleaning is essential to remove soap scum and mineral deposits that can make even textured tiles slippery. Use non-abrasive cleaners and avoid wax-based products that can leave a residue. For added safety, consider installing grab bars and a shower seat, but remember that the foundation of a safe handicap shower starts with the right tiles. By prioritizing slip-resistant, high-COF tiles, you’re not just building a shower—you’re creating a secure, accessible space that promotes independence and confidence.
Mastering Large Shower Wall Tile Installation: A Step-by-Step Guide
You may want to see also
Explore related products
Install Grab Bars Securely: Use ADA-compliant bars, reinforced with blocking behind walls for stability
Grab bars are not just accessories in a handicap tile shower—they are critical safety features that must withstand significant force. To ensure stability, ADA-compliant grab bars require more than just screws into drywall. Reinforcing the walls with blocking—a structural support hidden behind the surface—distributes weight and prevents bars from pulling out under pressure. Without this step, even the most robust grab bar can fail, turning a safety measure into a hazard.
Begin by locating wall studs during installation, but don’t rely solely on them. Cut 2x4 or 2x6 blocking to span the length of the grab bar, securing it horizontally between studs. Position the blocking at the height specified by ADA guidelines (typically 33–36 inches above the finished floor). Attach the blocking to the studs using screws or nails, ensuring it’s flush with the wall surface. This creates a solid foundation for the grab bar, allowing it to support up to 250 pounds of force, as required by ADA standards.
When mounting the grab bar, use corrosion-resistant screws designed for structural applications, not hollow-wall anchors. Drill pilot holes through the bar and into the blocking, ensuring each screw penetrates the wood by at least 1.5 inches. Test the bar’s stability by applying firm pressure in multiple directions before finishing the installation. For tile showers, waterproof the area around the screws to prevent moisture infiltration, which can weaken the blocking over time.
Compare this approach to common DIY mistakes, such as anchoring grab bars directly into tile or drywall. Without blocking, the bar’s screws can loosen, causing it to wobble or detach entirely. In contrast, reinforced installation ensures longevity and reliability, particularly in wet environments where tile and grout may degrade over time. This method not only meets ADA requirements but also provides peace of mind for users who depend on these bars daily.
The takeaway is clear: grab bars are only as secure as their installation. Reinforcing walls with blocking is a non-negotiable step in handicap shower construction. While it adds time and effort upfront, the result is a safer, more durable fixture that stands up to repeated use. Prioritize this detail to transform a functional shower into a truly accessible space.
Revamping Your Shower: Understanding the Cost of Tile Redo
You may want to see also
Explore related products
Create Sloped Flooring: Build a 1:48 slope for proper drainage and water containment
A 1:48 slope is the gold standard for handicap-accessible showers, ensuring water drains efficiently without creating a trip hazard. This gentle incline, rising just 1/4 inch per foot, strikes the perfect balance between accessibility and functionality. It’s steep enough to prevent water pooling but shallow enough for wheelchairs and walkers to navigate safely. Achieving this slope requires precise planning and execution, starting with a well-thought-out substrate layer beneath the tile.
To create the 1:48 slope, begin by marking the shower floor layout, identifying the drain location as the lowest point. Use a laser level or straightedge to establish a reference line from the drain to the shower threshold. For every 48 inches of horizontal distance, the floor should rise 1 inch. This can be achieved by building up the substrate with a cementitious board or mortar bed, gradually sloping it toward the drain. Pre-sloped shower pans are also available, offering a ready-made solution that simplifies the process but may limit customization.
One critical aspect often overlooked is the integration of the slope with the shower’s waterproofing system. The sloped substrate must be seamlessly connected to the drain assembly, ensuring no gaps or weak points where water can seep through. A liquid waterproofing membrane applied over the substrate and up the walls is highly recommended. This creates a continuous barrier that prevents moisture infiltration, which is essential for long-term durability, especially in a wet environment like a shower.
While the 1:48 slope is ideal, real-world constraints may require adjustments. For instance, in retrofits where floor height is limited, a slightly steeper slope might be necessary. However, exceeding 1:48 can compromise accessibility, making it harder for individuals with mobility aids to maneuver. In such cases, consult accessibility guidelines like the Americans with Disabilities Act (ADA) for acceptable tolerances. Additionally, consider using non-slip tiles and grab bars to enhance safety, compensating for any deviations from the ideal slope.
Finally, testing the slope before tiling is a crucial step often skipped. Pour water across the substrate to ensure it flows smoothly toward the drain without pooling. Adjustments can still be made at this stage, whether by adding more mortar or sanding down high spots. Once the slope is verified, proceed with tiling, ensuring the tiles follow the contour of the substrate. Properly executed, a 1:48 sloped floor not only meets accessibility standards but also ensures a functional, leak-free shower that stands the test of time.
Should a Tiler Install Your Shower Pan? Expert Insights
You may want to see also
Explore related products
Add Folding Shower Seat: Install a wall-mounted, foldable seat for seated showering convenience
A wall-mounted, foldable shower seat is a game-changer for accessibility in a handicap tile shower. Its space-saving design ensures the shower remains uncluttered when not in use, while providing a sturdy, safe seating option for those who need it. Unlike permanent benches, a folding seat offers flexibility, allowing caregivers or users to pivot and transfer with ease. When selecting a model, prioritize weight capacity (typically 250–500 lbs), non-slip materials like textured plastic or phenolic resin, and corrosion-resistant hardware (stainless steel or aluminum) to withstand moisture.
Installation requires precision to ensure safety. Begin by locating wall studs using a stud finder, as the seat must anchor securely to support full body weight. Mark the mounting height 17–19 inches from the shower floor to accommodate most users, ensuring feet can comfortably reach the ground. Use a level to align the mounting bracket, and pre-drill holes to avoid splitting the studs. Secure the bracket with corrosion-resistant screws, then attach the seat mechanism, testing its stability before use. For tile showers, integrate the bracket beneath the tile surface during the tiling phase to maintain a seamless, waterproof finish.
While folding seats are practical, their installation demands careful planning. Avoid placing the seat directly under the showerhead to prevent accidental folding or discomfort from water pressure. Ensure the seat folds flush against the wall, leaving at least 18 inches of clear floor space for wheelchair maneuverability when open. For added safety, pair the seat with grab bars positioned within reach, typically 33–36 inches above the floor. Regularly inspect the seat’s hinges and mounting hardware for wear, tightening or replacing components as needed to maintain structural integrity.
The benefits of a folding shower seat extend beyond accessibility. It accommodates aging-in-place designs, supports post-surgery recovery, and provides a resting spot for anyone needing a break during showering. Its discreet, foldable nature preserves the shower’s aesthetic, making it ideal for multi-generational households. When paired with other universal design features like curbless entries and handheld showerheads, it transforms the shower into a safe, inclusive space. By investing in this simple yet impactful addition, you enhance both functionality and independence for all users.
Mastering the Art of Real Shower Tile Installation: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Key considerations include a barrier-free entry (minimum 32" wide), non-slip tiles, a built-in shower seat (17-19" high), grab bars, and a linear drain for better water management. Ensure the shower floor slopes slightly (1/4" per foot) toward the drain for accessibility and safety.
Use non-slip tiles with a matte finish and a COF (Coefficient of Friction) rating of 0.6 or higher. Small mosaic tiles or textured tiles are ideal for added grip. Avoid glossy or large tiles that can be slippery when wet.
Grab bars should be installed at a height of 33-36" from the floor, following ADA guidelines. Use reinforced wall structures or mounting hardware designed to support at least 250 lbs. Place bars horizontally on the side and back walls for maximum support and stability.
