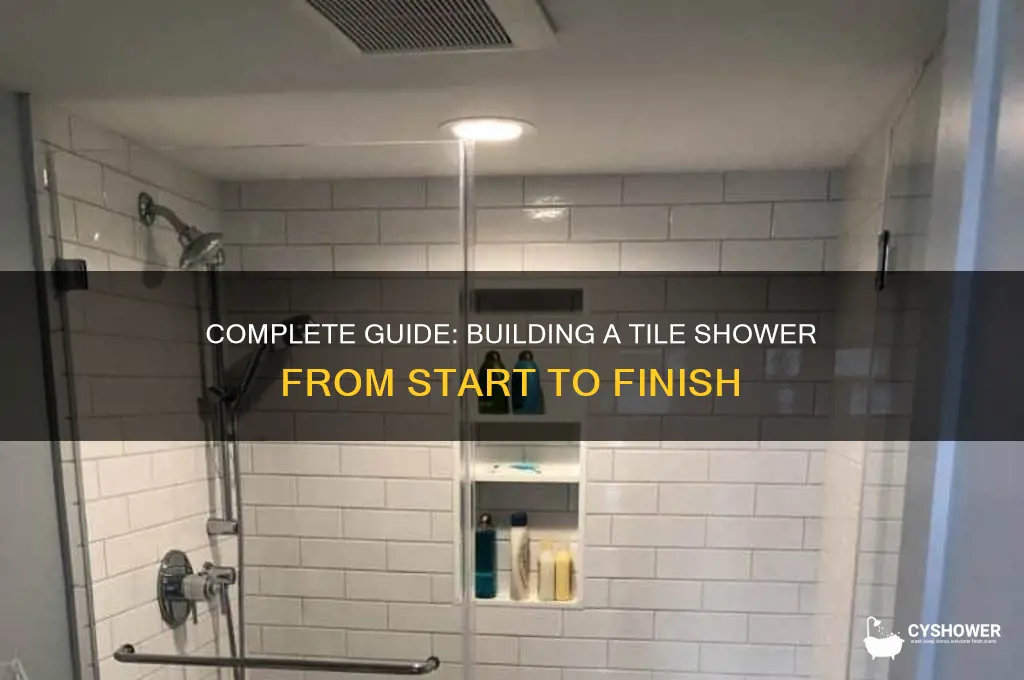

Building a tile shower from start to finish is a rewarding but intricate project that requires careful planning, precision, and attention to detail. The process begins with designing the shower layout, ensuring proper slope for drainage, and selecting high-quality materials such as waterproof membranes, tiles, and grout. Next, the substrate is prepared by installing a waterproof barrier, such as a cement board or membrane, to protect against moisture damage. The shower pan is then constructed with a mortar base and lined with a waterproof liner to create a leak-proof foundation. Once the base is set, tiles are meticulously laid, starting from the bottom and working upward, with spacers ensuring even grout lines. After tiling, grout is applied and sealed to prevent water infiltration. Finally, fixtures like the showerhead, valves, and glass doors are installed, completing the functional and aesthetically pleasing shower. Throughout the process, adherence to building codes and waterproofing best practices is essential to ensure durability and longevity.
Explore related products
What You'll Learn
- Planning and Design: Measure space, choose tiles, layout, drainage, and materials needed for the shower build
- Preparing the Subfloor: Ensure level, waterproof, and structurally sound base for tile installation
- Waterproofing and Membrane: Apply waterproof membrane to walls, floor, and corners to prevent leaks
- Setting Tiles: Lay tiles using adhesive, spacers, and proper alignment for a seamless finish
- Grouting and Sealing: Fill gaps with grout, clean tiles, and apply sealant for durability
Planning and Design: Measure space, choose tiles, layout, drainage, and materials needed for the shower build
Accurate measurements are the foundation of a successful tile shower build. Begin by assessing the available space, considering not just the shower’s footprint but also clearance for doors, fixtures, and ventilation. Use a laser measure or tape measure to record dimensions to the nearest eighth of an inch, noting any irregularities in walls or floors. Sketch a rough diagram to visualize the layout and ensure compatibility with standard tile sizes, which typically range from 1x1 inches to 12x24 inches. This step prevents costly mistakes like ordering insufficient materials or encountering awkward tile cuts during installation.
Tile selection is both aesthetic and functional. Opt for water-resistant materials like ceramic, porcelain, or natural stone, ensuring they meet slip-resistance standards (COF rating of 0.5 or higher for wet areas). Consider grout lines: smaller tiles or mosaic sheets require more grout, which can impact maintenance and visual appeal. For a cohesive look, choose complementary colors and textures, but avoid overly glossy finishes in high-moisture zones, as they can highlight water spots. Sample tiles in the intended space to evaluate how lighting affects their appearance, ensuring the final design aligns with your vision.
A well-planned layout transforms a shower from functional to elegant. Start by determining the focal point, such as a niche or accent wall, and work outward. Use graph paper or digital tools to scale the design, ensuring tiles align with the shower’s centerline and minimize cuts. For a seamless look, stagger joints in a brick pattern or use a grid layout for simplicity. Incorporate slope toward the drain (1/4 inch per foot is standard) to prevent water pooling. This phase requires patience but pays off in a polished, professional finish.
Drainage is critical to prevent leaks and mold. Select a linear drain for modern aesthetics or a center drain for traditional designs, ensuring it aligns with the floor’s slope. Install a waterproof membrane beneath the tile, such as PVC or liquid waterproofing, to protect the substrate. For curb-less showers, integrate a shower pan with a pre-sloped base to direct water efficiently. Test the drainage system before tiling by flooding the area and verifying water flows freely toward the drain. Neglecting this step risks structural damage and costly repairs.
Gathering materials upfront streamlines the build process. Essentials include backer board (cement or foam), thin-set mortar, grout, and silicone caulk. For waterproofing, choose products like RedGuard or Kerdi-Board based on your shower’s design. Tools such as a tile cutter, notched trowel, and rubber float are indispensable. Calculate quantities carefully: for a 3x3-foot shower, plan for approximately 50 square feet of tile (including 10% waste), 20 pounds of thin-set, and 5 pounds of grout. Renting specialized equipment like a wet saw can save time and improve precision, especially for intricate cuts.
Efficiently Removing Subway Tiles from Your Shower Wall: A Step-by-Step Guide
You may want to see also
Explore related products
Preparing the Subfloor: Ensure level, waterproof, and structurally sound base for tile installation
A level, waterproof, and structurally sound subfloor is the unsung hero of a successful tile shower installation. Without it, even the most exquisite tiles will crack, grout will fail, and water damage will ensue. Think of it as the foundation of a house—compromise here, and the entire structure suffers.
Step 1: Assess and Repair the Existing Subfloor
Begin by inspecting the subfloor for any signs of damage, warping, or softness. Plywood subfloors should be at least ¾ inch thick and securely fastened to the joists. For concrete subfloors, repair cracks or uneven areas with a concrete patching compound, following the manufacturer’s instructions for mixing and curing times. For example, a typical concrete patch requires a 24-hour cure time before proceeding. If the subfloor is severely damaged, consult a structural engineer to avoid long-term issues.
Step 2: Ensure a Level Surface
Tiles and grout require a flat surface to prevent lippage and uneven wear. Use a long straightedge or level to identify low spots. For minor imperfections, apply a self-leveling underlayment, such as a cement-based product, following the recommended coverage rate (usually 50–60 square feet per 50-pound bag). For larger gaps, consider a thicker layer of mortar or a leveling compound. Always mix these products thoroughly and pour them in thin, even layers to avoid air pockets.
Step 3: Waterproof the Subfloor
Waterproofing is non-negotiable in a shower installation. Apply a liquid waterproofing membrane, such as a polymer-modified coating, to the entire subfloor and up the walls by 6–8 inches. Follow the product’s instructions for application—typically, two coats are required, with the second applied at a 90-degree angle to the first. Allow each coat to dry completely, often 4–6 hours, depending on humidity. For added protection, install a waterproof membrane like a sheet of PVC or CPE over the subfloor before tiling.
Cautions and Practical Tips
Avoid rushing the drying or curing process, as this can compromise the integrity of the waterproofing or leveling compounds. In high-moisture areas, consider using a moisture barrier beneath the subfloor. For DIYers, invest in a laser level to ensure precision during the leveling process. Lastly, always follow local building codes and manufacturer guidelines, as requirements can vary based on climate and shower design.
By meticulously preparing the subfloor, you create a durable foundation that ensures your tile shower remains beautiful and functional for years to come. Skimp on this step, and you risk costly repairs and a shortened lifespan for your installation.
Building a Tile Shower: Time Investment and Essential Steps Explained
You may want to see also
Explore related products
Waterproofing and Membrane: Apply waterproof membrane to walls, floor, and corners to prevent leaks
Waterproofing is the unsung hero of any tile shower installation—a critical step that, when done correctly, ensures longevity and prevents costly repairs. The shower environment is inherently wet, with constant exposure to moisture, temperature fluctuations, and potential water pressure from showerheads. Without a robust waterproofing system, water can seep through grout lines, penetrate the substrate, and cause mold, mildew, or structural damage over time. This is why applying a waterproof membrane to walls, floors, and corners is non-negotiable. Think of it as the invisible shield that safeguards your investment, turning a vulnerable space into a durable, leak-free sanctuary.
The process begins with selecting the right membrane for your project. Liquid-applied membranes, such as those from brands like Schluter or Laticrete, are popular for their ease of application and ability to conform to corners and curves. Sheet membranes, often made of PVC or CPE, are another option, offering durability and flexibility. For DIYers, liquid membranes are often preferred due to their simplicity—they can be rolled or brushed onto surfaces, curing to form a seamless barrier. When applying, ensure the substrate is clean, dry, and free of debris. Follow manufacturer guidelines for coverage rates; typically, two coats are required, with the second applied at a 90-degree angle to the first for maximum coverage. Allow adequate drying time between coats, usually 24 hours, depending on humidity and temperature.
Corners and seams are the Achilles’ heel of waterproofing, as they are prone to cracking and separation. To address this, use fabric or mesh reinforcements in these areas. For example, embed a polyester mesh tape into the wet membrane at inside corners, ensuring it adheres fully. This creates a flexible bridge that accommodates movement without compromising the seal. Similarly, apply membrane to the floor first, extending it up walls by at least 6 inches, and overlap seams by 2–3 inches to create a continuous barrier. For added protection, consider installing a pre-sloped shower pan or waterproofing the entire shower bench if your design includes one.
A common mistake is neglecting to waterproof the entire wet area, not just the immediate shower space. Water can travel in unexpected ways, so extend the membrane at least 6 inches beyond the shower curb or threshold. If your shower is adjacent to a bathtub or another wet zone, treat the shared wall as part of the shower area. Additionally, test the waterproofing before tiling by filling the shower pan with water for 24 hours and checking for leaks below. This simple step can save you from tearing out tiles later.
In conclusion, waterproofing is a meticulous but essential step in building a tile shower. It requires attention to detail, adherence to product instructions, and a proactive approach to potential weak points. By investing time and care into this phase, you create a foundation that not only prevents leaks but also ensures the shower remains a functional and beautiful space for years to come. Remember, in waterproofing, the goal is not just to meet the minimum requirements but to exceed them—because in this case, overdoing it is the smart choice.
Mastering Corner Shower Seat Tiling: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Setting Tiles: Lay tiles using adhesive, spacers, and proper alignment for a seamless finish
Tile setting is the cornerstone of a shower’s durability and aesthetic appeal. A single misaligned tile or insufficient adhesive can lead to water seepage, mold, or an unsightly finish. To avoid these pitfalls, start by selecting a high-quality, waterproof tile adhesive suitable for wet environments. Follow the manufacturer’s instructions for mixing ratios—typically 5-6 liters of water per 25 kg bag—and allow the mixture to slake for 5-10 minutes before application. Consistency should resemble thick peanut butter; too runny, and it won’t hold; too thick, and it’s difficult to spread.
Once the adhesive is ready, use a notched trowel to apply it to the substrate in small sections, ensuring even coverage. The notch size depends on the tile size: 1/4-inch notches for tiles up to 8 inches, and 3/8-inch for larger formats. Press tiles firmly into the adhesive, using slight twisting motions to ensure full contact. Spacers are essential for maintaining consistent grout lines—2mm for walls and 3mm for floors are standard. Avoid overloading the area; work in 2x2-foot sections to prevent the adhesive from drying prematurely.
Alignment is where precision meets artistry. Use a level to ensure tiles are plumb and even, especially on vertical surfaces. For diagonal or intricate patterns, mark reference lines on the substrate to guide placement. If a tile needs adjustment, lift it carefully, scrape off excess adhesive, and reapply. Remember, the first few tiles set the tone for the entire layout, so take your time to establish a straight baseline.
Caution: rushing this step can lead to costly mistakes. Uneven tiles or inconsistent spacing become glaringly obvious once grouted. Similarly, using too much adhesive can cause it to ooze through grout lines, while too little compromises adhesion. Keep a damp sponge handy to wipe away excess adhesive from tile surfaces immediately. Finally, allow the adhesive to cure fully—typically 24-48 hours—before grouting. This patience ensures a seamless, professional finish that withstands the test of time and daily use.
Easy Steps to Install a Safety Bar in Your Tile Shower
You may want to see also
Explore related products
Grouting and Sealing: Fill gaps with grout, clean tiles, and apply sealant for durability
Grout is the unsung hero of a tile shower, binding the tiles together and preventing water from seeping into the substrate. Choosing the right grout is crucial—epoxy grout, for instance, is highly durable and resistant to stains and moisture, making it ideal for wet environments like showers. Portland cement-based grout, while more common, requires sealing and is less forgiving in humid conditions. Once selected, mix the grout according to the manufacturer’s instructions, typically using a 1:4 ratio of grout to water for cement-based options. Apply the grout diagonally across the tiles using a rubber float, pressing it firmly into the gaps. Allow it to set for 10–15 minutes before moving to the next step.
Cleaning the tiles after grouting is an art that demands patience and precision. As the grout begins to dry, use a damp sponge to wipe the tile surfaces diagonally, avoiding direct contact with the grout lines. Change the sponge water frequently to prevent grout residue from redepositing on the tiles. For stubborn haze, a grout haze remover can be applied after 24 hours, following the product’s guidelines. Skipping this step or rushing through it will leave a filmy residue that’s difficult to remove later. Think of this phase as sculpting the final appearance of your shower—meticulous effort now ensures a pristine finish.
Sealing is the final safeguard against water damage and stains, extending the life of both the grout and tiles. Wait at least 72 hours after grouting to apply a penetrating sealant, as this allows the grout to cure fully. Use a high-quality silicone- or water-based sealant, applying it with a small brush or roller in thin, even coats. Focus on the grout lines, ensuring complete saturation, but avoid over-application, which can lead to a sticky or uneven surface. Reapply the sealant annually, or as recommended by the manufacturer, to maintain its protective barrier. This step is non-negotiable—unsealed grout will absorb moisture, leading to mold, mildew, and eventual deterioration.
Comparing sealing methods reveals the importance of timing and technique. While some sealants can be applied immediately after grouting, they often require reapplication sooner and may not penetrate as deeply. Waiting the full 72 hours ensures maximum absorption, creating a more robust shield. Additionally, testing the sealant on a small area first can prevent unwanted discoloration or reactions with the tile material. For natural stone tiles, for example, a pH-neutral sealant is essential to avoid etching or discoloration. This comparative approach highlights how small decisions in sealing can significantly impact long-term durability.
In practice, grouting and sealing are as much about foresight as they are about execution. Imagine a scenario where grout is applied too thinly or sealant is skipped—water penetrates the gaps, causing the substrate to rot or mold to flourish. Conversely, a well-grouted and sealed shower remains watertight, maintaining its integrity for decades. Practical tips include using painter’s tape to protect adjacent surfaces during sealing and keeping the shower area well-ventilated during curing. By treating these steps as critical components of the build, rather than afterthoughts, you ensure a shower that’s not only beautiful but built to last.
Mastering Tile Cuts Around Shower Fixtures: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Essential tools include a tile cutter, trowel, level, notched spreader, sponge, grout float, and a wet saw. Materials needed are cement board, waterproof membrane (like Kerdi or RedGuard), thinset mortar, tiles, grout, silicone caulk, and a shower pan or liner.
Start by installing a waterproof membrane over the cement board walls and shower pan. Use a liquid waterproofing product like RedGuard or install a sheet membrane like Kerdi. Ensure all seams and corners are properly sealed, and test the shower pan for leaks before proceeding with tiling.
Begin by applying thinset mortar to the walls using a notched trowel, then press tiles firmly into place, using spacers for consistency. Allow the thinset to cure for 24 hours. Once cured, mix and apply grout, pressing it into the joints with a grout float. Wipe away excess grout with a damp sponge, and seal the grout after it dries to protect against moisture.
