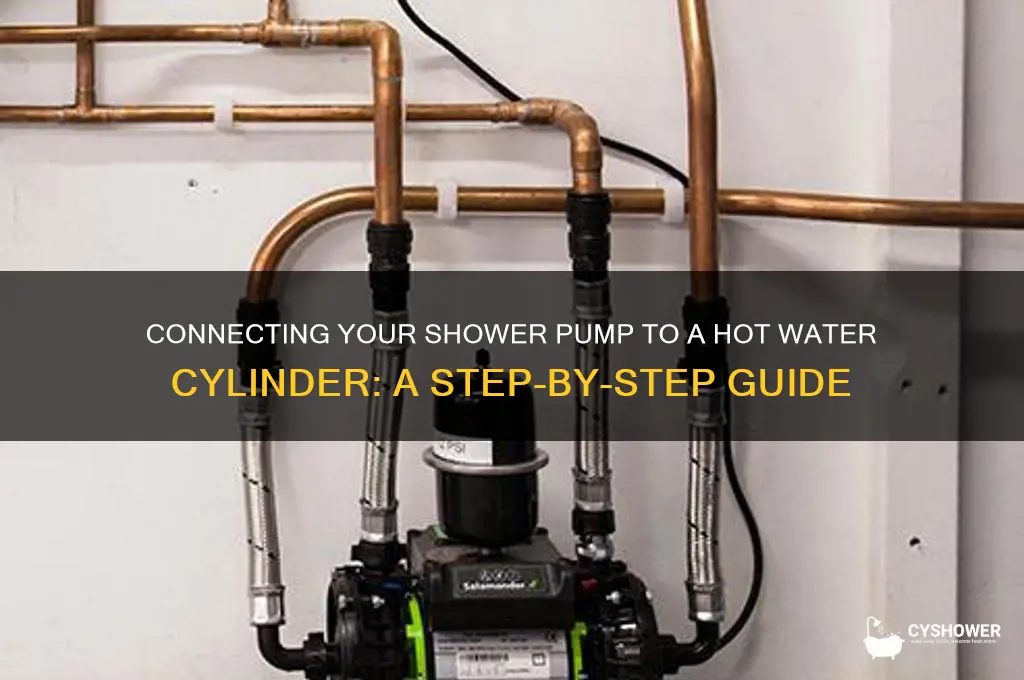

Connecting a shower pump to a hot water cylinder is a task that requires careful planning and execution to ensure efficient water flow and system safety. The process involves selecting the right type of pump, ensuring compatibility with your hot water cylinder, and following a step-by-step installation guide. Properly connecting the pump will enhance water pressure, providing a more enjoyable shower experience while preventing potential issues such as overheating or system damage. It’s essential to adhere to manufacturer guidelines and, if unsure, consult a professional plumber to guarantee a reliable and long-lasting setup.
| Characteristics | Values |
|---|---|
| Pump Type | Twin shower pump (for both hot and cold water) |
| Pump Location | Near the hot water cylinder, ideally below the cylinder to utilize gravity |
| Pipe Connections | 22mm or 15mm (depending on system), using flexible hoses or copper pipes |
| Hot Water Inlet | Connect to the hot water draw-off point on the cylinder (usually near the top) |
| Cold Water Inlet | Connect to the cold water supply (mains or tank) |
| Outlet Connections | To the shower mixer valve or individual hot/cold feeds |
| Electrical Supply | 230V AC, requires a switched fused spur or dedicated circuit |
| Flow Rate | Typically 2-4 bar pressure, 10-20 liters/minute (check pump specifications) |
| Safety Features | Anti-vibration feet, automatic shutdown on dry running, thermal overload protection |
| Isolation Valves | Install on both hot and cold inlets for maintenance |
| Expansion Vessel | Optional, for systems with closed vents or high pressure |
| Noise Level | <60 dB (check pump specifications for quieter models) |
| Compliance | Must meet local building regulations (e.g., UK: Part G, BS EN 60335) |
| Installation | Requires a qualified plumber or electrician for electrical connections |
| Maintenance | Annual checks for leaks, noise, and performance; replace every 8-10 years |
| Warranty | Typically 1-3 years (manufacturer-dependent) |
| Cost | £100-£300 (pump only), excluding installation and additional components |
Explore related products
What You'll Learn
- Pump Selection: Choose correct pump size, type (positive head/universal), and compatibility with cylinder pressure
- Pipework Installation: Connect flow and return pipes from cylinder to pump, ensuring proper sizing and insulation
- Electrical Wiring: Wire pump to power supply, install isolator switch, and comply with safety regulations
- System Priming: Fill pipes with water, bleed air, and ensure pump runs without cavitation or noise
- Testing & Commissioning: Check for leaks, verify water flow, and adjust pump settings for optimal performance
Pump Selection: Choose correct pump size, type (positive head/universal), and compatibility with cylinder pressure
When selecting a shower pump to connect to a hot water cylinder, the first critical step is to choose the correct pump size. The size of the pump is determined by the flow rate required to deliver adequate water pressure to your shower. Measure the flow rate of your existing system by checking the specifications of your shower head or by consulting a plumber. Typically, domestic showers require a flow rate between 8 and 12 liters per minute. Ensure the pump you select can meet or exceed this requirement without overloading the system. Oversized pumps can lead to excessive noise and wear, while undersized pumps will fail to deliver the desired pressure.
Next, determine the type of pump—positive head or universal—based on your system's configuration. A positive head pump is suitable for systems where the shower head is below the level of the hot water cylinder and can maintain a minimum pressure of 0.5 to 1 bar. This type of pump relies on gravity to provide some initial pressure, making it more efficient and quieter. Conversely, a universal pump is designed for systems where the shower head is at the same level or slightly above the cylinder, or where gravity assistance is insufficient. Universal pumps are more versatile but may be noisier and less energy-efficient than positive head pumps. Assess your plumbing layout to make the right choice.
Compatibility with the hot water cylinder's pressure is another crucial factor. Check the maximum operating pressure of your cylinder, typically around 3 to 6 bar, and ensure the pump's pressure output does not exceed this limit. Exceeding the cylinder's pressure rating can cause leaks, damage, or even failure of the cylinder. Most shower pumps are designed to operate within safe domestic pressure ranges, but always verify the specifications. If your cylinder has a lower pressure rating, opt for a pump with adjustable speed settings or a pressure-reducing valve to prevent over-pressurization.
Additionally, consider the pump's materials and construction to ensure compatibility with hot water systems. The pump should be rated for use with hot water, typically up to 85°C, and have components like seals and impellers made from heat-resistant materials. Avoid pumps designed solely for cold water systems, as they may degrade quickly when exposed to high temperatures. Check the manufacturer's guidelines to confirm suitability for hot water cylinders.
Finally, consult a professional plumber or the pump manufacturer if you're unsure about the selection process. They can provide tailored advice based on your specific system requirements, ensuring the pump size, type, and pressure compatibility are optimally matched. Proper pump selection not only enhances shower performance but also prolongs the lifespan of both the pump and the hot water cylinder.
