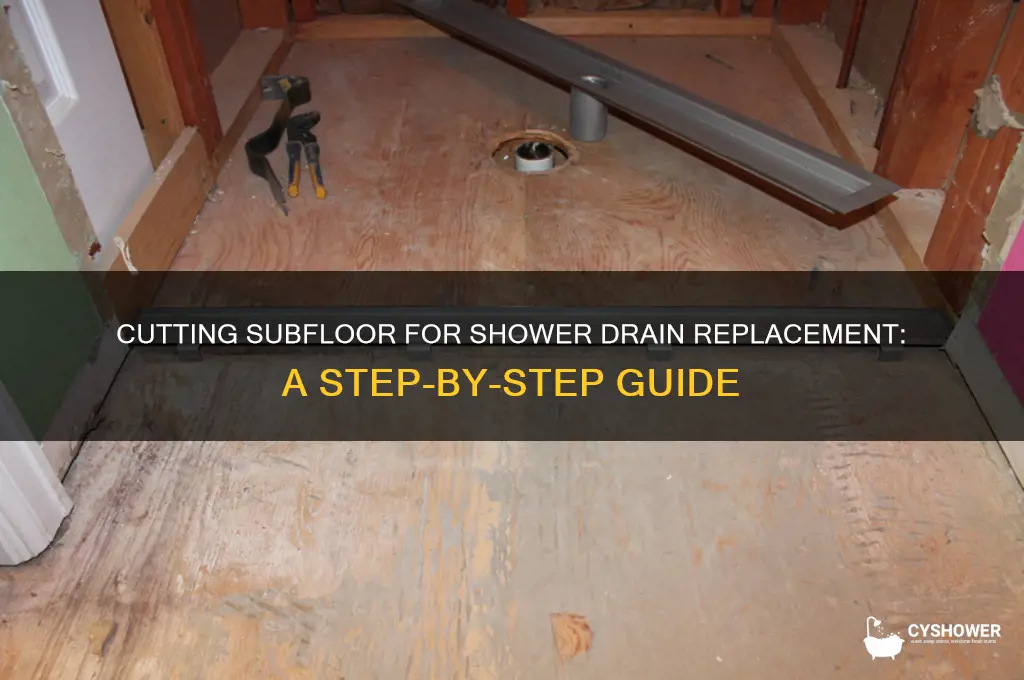

Replacing a shower drain often requires cutting into the subfloor to access the plumbing and ensure a proper installation. This task demands precision and careful planning to avoid damaging surrounding structures or utilities. Begin by turning off the water supply and removing the existing shower drain assembly. Next, mark the area to be cut on the subfloor, ensuring it aligns with the new drain’s dimensions. Use a reciprocating saw or jigsaw with a fine-tooth blade to carefully cut through the subfloor, taking care not to cut into joists or nearby pipes. Once the section is removed, inspect the area for any damage or rot, addressing issues before installing the new drain. Finally, test the fit of the new drain and secure it according to manufacturer instructions before reassembling the shower components.
| Characteristics | Values |
|---|---|
| Tools Required | Jigsaw, reciprocating saw, utility knife, straight edge, safety gear (gloves, goggles) |
| Materials Needed | New shower drain assembly, plywood or replacement subfloor material, screws, sealant |
| Steps | 1. Turn off water supply. 2. Remove shower drain cover. 3. Cut out damaged subfloor area. |
| Cutting Technique | Use a jigsaw or reciprocating saw to cut along the marked outline around the drain. |
| Subfloor Replacement | Cut new plywood to fit the removed area, secure with screws, and ensure it’s level. |
| Drain Installation | Install the new shower drain assembly, ensuring proper alignment and sealing. |
| Safety Precautions | Wear safety gear, avoid cutting electrical wires or plumbing lines, work in a well-lit area. |
| Waterproofing | Apply sealant around the drain to prevent water leakage into the subfloor. |
| Skill Level | Intermediate to advanced DIY skills; professional help recommended for complex cases. |
| Time Required | 2-4 hours depending on the extent of damage and experience. |
| Common Mistakes to Avoid | Cutting too close to plumbing/electrical lines, improper sealing, uneven subfloor replacement. |
Explore related products
What You'll Learn
Measure and Mark Drain Location
Accurate measurement and marking of the drain location are critical to ensuring a seamless replacement process. Begin by identifying the center point of the existing shower drain. Use a tape measure to confirm the distance from the walls or other fixed points, ensuring consistency with the original installation. Mark this center point with a pencil or marker, as it will serve as the reference for cutting the subfloor. Double-check your measurements to avoid costly mistakes, as even a slight misalignment can lead to water leakage or improper fitting of the new drain assembly.
Consider the size and type of the new shower drain when marking the location. Standard shower drains typically have a diameter of 2 inches, but this can vary depending on the model. Measure the diameter of the new drain and transfer these dimensions onto the subfloor. Draw a circle around the center point using a compass or a makeshift guide, such as a string tied to a pencil. This ensures the cutout will match the drain’s size precisely. If the new drain requires additional space for a flange or waterproofing membrane, account for this by extending the marked area accordingly.
For added precision, use a level or straightedge to ensure the marked area is aligned with the slope of the shower floor. Proper drainage relies on a slight gradient, typically 1/4 inch per foot, directing water toward the drain. Verify that your markings maintain this slope to prevent standing water or drainage issues. If the subfloor is uneven, adjust the markings to compensate for any irregularities. This step is particularly important in older homes where settling may have altered the original floor structure.
Instructive Tip: If you’re working with a pre-fabricated shower pan, align the drain location with the pan’s built-in drain hole. Place the pan in position and mark the subfloor through the drain opening to ensure perfect alignment. For tile showers, use the existing tile layout as a guide, ensuring the new drain fits seamlessly within the pattern. Always measure twice and mark once to minimize errors.
Finally, consider the surrounding plumbing and structural elements before finalizing your markings. Ensure the drain location does not interfere with pipes, joists, or other obstructions beneath the subfloor. If necessary, consult the home’s blueprints or use a stud finder to identify potential conflicts. Once you’re confident in your markings, reinforce them with a utility knife or scoring tool to create a clear, visible guide for cutting. This meticulous approach ensures a professional result and avoids complications during installation.
Easy RV Shower Valve Replacement Guide: DIY Step-by-Step Instructions
You may want to see also
Explore related products
Use Jigsaw for Precise Cuts
A jigsaw is an ideal tool for cutting subfloors when replacing a shower drain due to its precision and maneuverability. Unlike circular saws, which excel at straight cuts but struggle with tight spaces, jigsaw blades can pivot and turn, allowing you to follow the contours of the drain pipe or make intricate cuts around obstructions. This versatility is crucial when working in the confined area of a shower stall, where every millimeter counts.
Opt for a jigsaw with variable speed control, as this feature lets you adjust the cutting speed to the material. For subfloors, typically made of plywood or OSB, a moderate speed setting (around 1500-2000 strokes per minute) strikes a balance between cutting efficiency and blade longevity. Use a fine-toothed blade designed for wood to minimize splintering and ensure clean edges.
Before making any cuts, mark the cutting line clearly using a pencil and a straightedge. If you're replacing an existing drain, use the old drain flange as a template to outline the new hole. For new installations, consult the manufacturer's instructions for the drain assembly to determine the correct size and shape. Remember, it's easier to remove more material later than to add back what's been cut away, so err on the side of caution when marking your lines.
"Measure twice, cut once" is especially pertinent here. Double-check your measurements and markings before engaging the jigsaw. Once you start cutting, maintain a steady hand and let the tool do the work. Forceful pushing or pulling can lead to uneven cuts or blade breakage.
One common challenge when using a jigsaw is managing the dust and debris generated during cutting. This can be mitigated by attaching a vacuum hose to the jigsaw's dust port, if available, or by using a shop vac nearby to collect the sawdust. Not only does this keep your work area cleaner, but it also improves visibility and reduces the risk of inhaling wood particles.
Finally, consider the depth of your cut. Most jigsaws have an adjustable base plate that allows you to control the blade's cutting depth. Set this to just slightly deeper than the thickness of your subfloor to avoid damaging the joists or plumbing lines beneath. If you're unsure of the subfloor's thickness, measure it beforehand or make a test cut in a scrap piece of the same material. With careful planning and execution, a jigsaw can make the task of cutting a subfloor for a shower drain replacement both precise and manageable.
Fix Leaking Shower Without Removing Tiles: Quick DIY Repair Guide
You may want to see also
Explore related products
Remove Old Drain Assembly
Before tackling the subfloor, you’ll need to dismantle the existing drain assembly—a task requiring precision and patience. Start by removing the shower drain cover, typically secured with screws or a snap-on mechanism. Use a screwdriver or pry bar carefully to avoid damaging surrounding tiles or the drain itself. Once the cover is off, inspect the strainer body, which is often threaded into the drain pipe. Apply penetrating oil to loosen rusted or stubborn parts, allowing it to sit for 10–15 minutes before attempting removal.
Next, focus on the drain body. If it’s a threaded assembly, grip the strainer firmly with a pair of locking pliers or a drain key tool, turning counterclockwise to unscrew it. For glued or cemented assemblies, a reciprocating saw with a metal-cutting blade can carefully sever the connection, but proceed cautiously to avoid damaging the pipe. In older homes, you may encounter corroded or fused components; in such cases, consider using a drain extraction tool designed to grip and remove stubborn parts without harming the plumbing system.
Once the strainer is removed, inspect the drain pipe for debris, clogs, or damage. Use a flashlight to peer into the pipe, and a plumbing snake or auger to clear any blockages. This step is crucial, as a clogged pipe can render your new drain ineffective. If the pipe is cracked or severely corroded, consult a professional plumber to assess whether it needs replacement before proceeding with the subfloor work.
Finally, clean the area thoroughly to ensure a smooth transition to the next phase. Scrape away old caulk, sealant, or debris around the drain opening, and vacuum the workspace to prevent particles from falling into the pipe. This preparatory step not only ensures a proper fit for the new drain but also minimizes the risk of future leaks or odors. With the old assembly removed and the area prepped, you’re now ready to address the subfloor with confidence.
Easy Hansgrohe Shower Cartridge Replacement Guide: DIY Step-by-Step
You may want to see also
Explore related products
Test Fit New Drain
Before committing to a permanent installation, testing the fit of your new shower drain is a critical step that can save time, money, and frustration. Start by placing the new drain assembly into the existing hole in the subfloor, ensuring it aligns with the plumbing connections below. If the drain is a different size or shape than the old one, this step will reveal any discrepancies. Use a level to check that the drain sits flush with the surrounding subfloor, as any gaps or unevenness can lead to water pooling or structural issues later. This preliminary check is your opportunity to make adjustments before the final installation, ensuring a seamless fit.
One common oversight during this phase is neglecting to account for the thickness of the new drain flange or the waterproofing membrane. If your shower floor will be tiled, the drain’s top surface must be slightly lower than the finished tile height to allow for proper water flow. To test this, place a piece of tile or a spacer on the subfloor around the drain and verify that the drain’s surface is recessed enough. If not, you may need to adjust the subfloor height or choose a drain with a shallower profile. This step bridges the gap between theoretical measurements and real-world application, ensuring functionality and aesthetics align.
A persuasive argument for taking the time to test fit your new drain lies in the potential consequences of skipping this step. An improperly fitted drain can lead to leaks, mold growth, or even structural damage over time. For example, if the drain is too high, water may not flow efficiently, causing it to back up into the shower. Conversely, if it’s too low, it may not integrate properly with the waterproofing system, leading to water seepage beneath the tiles. By investing a few minutes in this test, you’re not just ensuring a proper fit—you’re safeguarding your entire bathroom renovation.
Comparatively, testing the fit of a shower drain is akin to trying on a pair of shoes before buying them. Just as you wouldn’t purchase footwear without ensuring it fits comfortably, you shouldn’t proceed with drain installation without confirming its compatibility with your subfloor and plumbing. This analogy underscores the importance of this step, transforming it from a mere technicality into a practical necessity. By treating the test fit as a non-negotiable part of the process, you’re adopting a proactive approach that minimizes the risk of errors and maximizes the longevity of your shower system.
Easy DIY Guide: Replacing Your Shower Crank Step-by-Step
You may want to see also
Explore related products
Seal and Secure Subfloor
After removing the old shower drain and cutting the subfloor to accommodate the new one, the integrity of your bathroom’s structure hinges on sealing and securing the subfloor properly. Moisture is the enemy of wood, and even minor gaps or cracks can lead to rot, mold, or structural failure over time. Use a high-quality silicone or polyurethane sealant to fill any voids between the new drain assembly and the subfloor. Apply the sealant generously, ensuring it penetrates deep into the seams, and smooth it with a caulking tool for a watertight barrier. This step is non-negotiable—skipping it risks long-term damage that far outweighs the initial effort.
Next, focus on securing the subfloor to prevent movement or shifting, which can compromise the sealant and drain installation. If the subfloor is plywood, reinforce it with a layer of exterior-grade plywood or a cement backer board, especially in high-moisture areas like showers. Fasten the layers together using corrosion-resistant screws spaced no more than 6 inches apart. For added stability, apply a construction adhesive between the layers before screwing them down. This dual approach—mechanical fastening and adhesive bonding—ensures the subfloor remains rigid and flat, providing a solid foundation for the new drain and tile work.
A common oversight is neglecting to test the subfloor’s moisture content before sealing and securing it. Excess moisture trapped beneath the surface can render sealants ineffective and cause adhesives to fail. Use a moisture meter to verify the subfloor’s moisture level is below 12%—the threshold for safe installation. If readings are higher, employ a dehumidifier or fan to dry the area thoroughly before proceeding. This precautionary step, though time-consuming, is critical for preventing future issues like delamination or mold growth.
Finally, consider the long-term maintenance of the sealed and secured subfloor. Periodically inspect the sealant around the drain for cracks or gaps, especially after heavy use or temperature fluctuations. Reapply sealant as needed, using a color-matched product to blend with the surrounding tile grout. Additionally, ensure proper slope and drainage in the shower pan to minimize water pooling, which can stress the subfloor over time. By combining proactive sealing, robust securing techniques, and regular maintenance, you safeguard the subfloor against moisture damage, ensuring the longevity of your shower drain replacement.
Easy DIY Guide: Replacing Your Shower Soap Dish in Simple Steps
You may want to see also
Frequently asked questions
You will need a reciprocating saw, jigsaw, or circular saw with a fine-toothed blade, safety gear (gloves, goggles, and a dust mask), a utility knife, and a straight edge or chalk line for precision.
Remove the old drain assembly and mark the outline of the new drain flange on the subfloor. Use a straight edge or chalk line to ensure straight cuts, and double-check measurements before cutting.
Yes, but proceed carefully. Inspect the area for joists and plumbing lines before cutting. Avoid cutting into structural supports or pipes. Use a utility knife to score the subfloor first if using a saw to minimize the risk of overcutting.
Test-fit the new drain assembly before securing it. Ensure the drain is level and aligned with the shower slope. Use shims or additional subfloor material if needed to achieve a proper fit.
