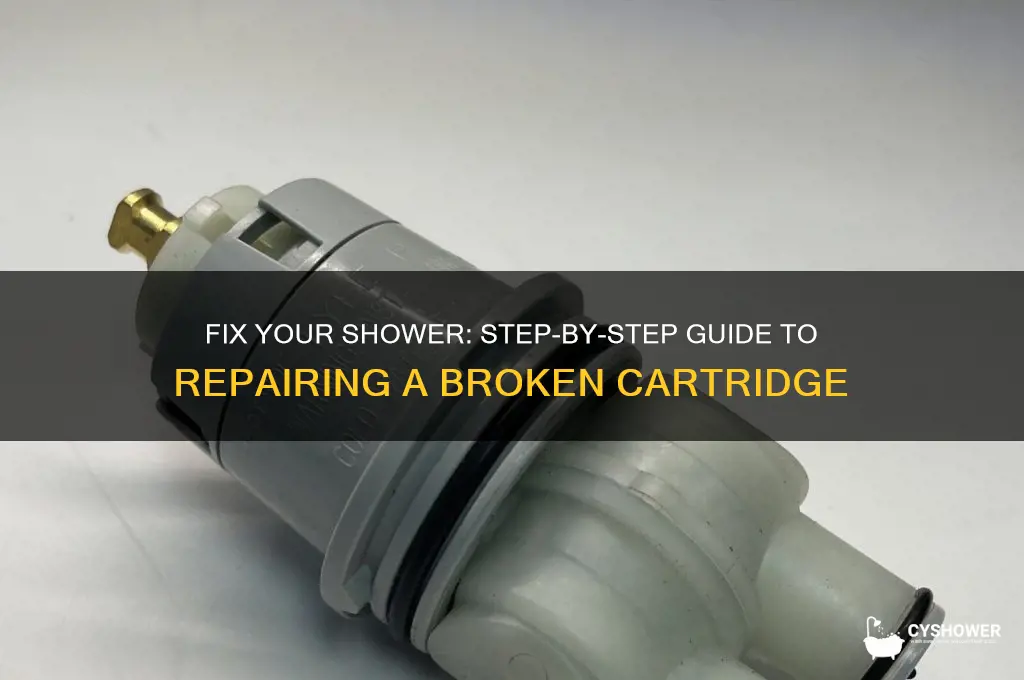

Fixing a broken shower cartridge is a common DIY plumbing task that can save you from costly repairs and restore your shower’s functionality. A faulty cartridge often results in leaks, inconsistent water temperature, or difficulty turning the handle. To begin, you’ll need to identify the type of cartridge your shower uses, as models vary by brand and design. Once identified, turn off the water supply to the shower and remove the handle and escutcheon plate to access the cartridge. Using a cartridge puller or pliers, carefully extract the old cartridge, ensuring not to damage surrounding components. Install the new cartridge by aligning it properly and securing it in place. Finally, reassemble the handle and escutcheon, turn the water back on, and test the shower to ensure it operates smoothly. This process requires basic tools and attention to detail but is well within the capabilities of most homeowners.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, adjustable wrench, Allen wrench, cartridge puller |
| Materials Needed | Replacement cartridge, plumber’s tape, lubricant (e.g., silicone grease) |
| Difficulty Level | Moderate to Difficult (depends on shower type and cartridge accessibility) |
| Time Required | 30 minutes to 2 hours |
| Common Shower Types | Single-control, dual-control, pressure-balance, thermostatic |
| Cartridge Types | Universal, brand-specific (e.g., Moen, Delta, Kohler) |
| Steps to Fix 1. Turn off water supply 2. Remove handle and escutcheon 3. Extract old cartridge 4. Clean valve area 5. Install new cartridge 6. Reassemble and test |
|
| Common Issues | Leaks, difficulty turning handle, inconsistent water temperature |
| Safety Precautions | Wear safety goggles, ensure water is off before starting |
| Cost of Replacement Cartridge | $10 to $50 (varies by brand and type) |
| Professional Help Needed? | Rarely, unless valve is severely damaged or inaccessible |
| Maintenance Tips | Regularly clean showerhead and cartridge, avoid excessive force on handle |
Explore related products
What You'll Learn
Identify the cartridge type and model for accurate replacement parts
Identifying the correct cartridge type and model is a crucial first step in fixing a broken shower cartridge, as it ensures you purchase the right replacement parts. Start by turning off the water supply to the shower to avoid any leaks or accidents during the inspection. Next, remove the handle and escutcheon plate to expose the cartridge. Most shower handles are secured with a screw, which can be removed with a screwdriver. Once the handle is off, you’ll typically find the cartridge directly beneath it. Take note of the brand and any visible markings on the cartridge, as these details are essential for identifying the correct replacement.
If the cartridge doesn’t have clear markings, take it out carefully for a closer inspection. To remove the cartridge, you may need a cartridge puller tool, especially if it’s stuck due to mineral buildup or corrosion. Once removed, examine its shape, size, and any unique features, such as the number of ports or the type of seals it uses. Common cartridge types include single-control, dual-control, and pressure-balance cartridges, each designed for specific shower valve systems. Knowing the type will narrow down your options when searching for a replacement.
To accurately identify the model, refer to the shower valve’s brand and any documentation you have, such as the original installation manual or purchase receipt. If these aren’t available, look for the brand name on the valve itself or any stickers with model numbers. Popular brands like Moen, Delta, and Kohler often have specific cartridge models designed for their valves. If you’re unsure, take the old cartridge to a hardware store or home improvement center, where staff can help match it to the correct replacement part.
Another effective method is to take clear photos of the cartridge from multiple angles and search online using the brand name and visible markings. Many manufacturers provide detailed catalogs or compatibility charts on their websites, making it easier to identify the exact model. Additionally, online forums and DIY communities can be valuable resources, as users often share experiences and advice on identifying and replacing specific cartridge models.
Finally, if you’re still uncertain, consider contacting the manufacturer directly. Provide them with as much information as possible, including the shower valve’s age, brand, and any visible markings on the cartridge. They can guide you to the correct replacement part and may even offer troubleshooting tips. Accurate identification ensures a seamless replacement process, saving you time and preventing the frustration of incompatible parts.
Easy DIY Guide to Repairing Your Shower Drain Seal
You may want to see also
Explore related products
Shut off water supply to prevent leaks during repair
Before you begin the process of replacing a broken shower cartridge, it is crucial to shut off the water supply to prevent any accidental leaks or water damage during the repair. This step is essential for a smooth and mess-free experience. Start by locating the main water shut-off valve for your bathroom or the entire house if a dedicated bathroom valve is not available. Typically, these valves are found in the basement, under the sink, or near the water heater. Turning off the main valve will ensure that no water flows through the pipes, allowing you to work on the shower cartridge without the risk of flooding.
In some cases, you might find a separate shut-off valve specifically for the shower or bathtub. These valves are often located near the shower controls or in a nearby access panel. If you have this dedicated valve, turn it clockwise to shut off the water supply to the shower. This localized approach is more convenient as it allows you to isolate the repair area without affecting the water supply to the rest of the house. However, if you cannot locate a specific shower valve, proceeding with the main water shut-off is the safest option.
Once you've identified the appropriate valve, turn it off by rotating it clockwise. For older valves, you might need a wrench to ensure a tight closure. After shutting off the water, open the shower faucet to release any remaining water pressure in the pipes. This step is vital to ensure that no water spills out when you start disassembling the shower handle and cartridge. Allow the water to run until it stops completely, indicating that the pipes are now water-free and safe for repair work.
It is worth mentioning that some shower systems might have additional safety features or unique shut-off mechanisms. If you're unsure about the plumbing setup, consult the shower manufacturer's guide or seek advice from a professional plumber. Properly shutting off the water supply is a critical initial step that ensures your repair process is safe and efficient, preventing any unwanted surprises during the cartridge replacement.
Remember, taking the time to locate and operate the correct shut-off valves is a small but significant part of the overall repair process, providing a dry and controlled environment for the subsequent steps of fixing the broken shower cartridge. This simple precaution can save you from potential water-related complications and make the repair task much more manageable.
Easy DIY Guide: Repairing Your Delta Shower Knob in Simple Steps
You may want to see also
Explore related products
Remove the handle and trim to access the cartridge
To begin the process of accessing the broken shower cartridge, you'll need to remove the handle and trim. Start by identifying the type of handle and trim assembly your shower has, as this will determine the specific steps required for removal. Typically, shower handles are secured with a screw or a set screw, which may be hidden underneath a cap or cover. Locate this screw and use the appropriate screwdriver to remove it, being careful not to strip the screw head. Once the screw is removed, gently pry off the handle using a flathead screwdriver or a handle puller tool, taking care not to damage the surrounding trim.
With the handle removed, you should now have access to the trim plate or escutcheon. This component is often held in place by screws or clips, which will need to be removed to free the trim. Use a screwdriver to remove any visible screws, and then inspect the trim for any hidden clips or fasteners. If clips are present, you may need to use a flathead screwdriver or a trim removal tool to gently pry them loose. Be patient and work carefully to avoid damaging the trim or the surrounding wall materials.
As you remove the trim, take note of how it is positioned and secured, as this will be important when reinstalling it later. In some cases, the trim may be caulked or sealed to the wall, which will require careful cutting or scraping to release it. Use a utility knife or a caulk removal tool to carefully cut through any caulk or sealant, being mindful not to damage the wall or the trim. Once the trim is free, set it aside in a safe place, taking care not to lose any small components or fasteners.
After removing the trim, you should now have a clear view of the cartridge assembly. However, there may still be a retaining nut or collar holding the cartridge in place. Use an adjustable wrench or pliers to carefully remove this nut, being cautious not to overtighten or damage the surrounding components. With the retaining nut removed, you may also need to remove any additional gaskets, washers, or spacers that are present. Keep track of the order and orientation of these components, as they will need to be reinstalled correctly later.
Before proceeding to the next step, take a moment to inspect the handle, trim, and retaining nut for any signs of damage or wear. If any components are damaged or excessively worn, consider replacing them to ensure a proper repair. Additionally, use this opportunity to clean any debris or mineral deposits from the components, as this can help prevent future issues. With the handle and trim successfully removed, you're now ready to proceed with accessing and replacing the broken shower cartridge.
Quick DIY Guide to Repairing Leaky Shower Pipes Easily
You may want to see also
Explore related products
Extract the old cartridge using pliers or a puller tool
To extract the old cartridge using pliers or a puller tool, you’ll first need to ensure the water supply to the shower is completely turned off to avoid any leaks or accidents. Locate the shut-off valves for the shower, typically found in the bathroom or a nearby utility closet, and turn them clockwise until they are fully closed. If there are no individual shut-off valves, you may need to turn off the main water supply to the house. Once the water is off, open the shower valve to release any residual water pressure, ensuring a dry and safe working environment.
Next, remove the handle of the shower valve to access the cartridge. This usually involves unscrewing a screw or prying off a decorative cap covering the handle’s base. Use a screwdriver or a flathead tool to carefully remove the handle, taking note of how it is attached for reassembly later. With the handle removed, you’ll expose the cartridge retaining clip or screw. Depending on your shower model, this clip may be a metal or plastic piece holding the cartridge in place. Carefully remove the clip using needle-nose pliers or a flathead screwdriver, being cautious not to damage surrounding components.
Once the retaining clip is removed, you’re ready to extract the old cartridge. If the cartridge is stuck due to mineral buildup or corrosion, a cartridge puller tool is highly recommended. Attach the puller tool to the cartridge by aligning its grips with the cartridge’s notches or edges. Slowly and steadily apply force to the puller tool, pulling outward in a straight line to avoid bending or breaking the cartridge. If you don’t have a puller tool, you can use pliers as an alternative, but be extremely careful not to damage the cartridge or the valve body. Grip the cartridge firmly with the pliers and pull it out evenly, ensuring it doesn’t twist or snap.
In some cases, the cartridge may still resist removal due to stubborn buildup. If this happens, apply a penetrating oil or lubricant around the cartridge and let it sit for 15–30 minutes to loosen the debris. After waiting, attempt to extract the cartridge again using the puller tool or pliers. If it still won’t budge, gently tap the tool or pliers with a mallet to provide additional force, but avoid excessive pressure that could damage the valve. Patience and steady force are key to successfully removing the old cartridge without causing further issues.
After the cartridge is fully extracted, inspect the valve body for any remaining debris, corrosion, or damage. Use a damp cloth or a small brush to clean the area, ensuring it’s free of obstructions before installing the new cartridge. Properly removing the old cartridge is crucial for a successful repair, as it ensures the new cartridge will fit correctly and function smoothly. With the old cartridge out, you’re now ready to proceed with installing the replacement cartridge and reassembling the shower valve.
Quick DIY Guide: Repairing Your Bath Shower Mixer Tap Easily
You may want to see also
Explore related products
Install the new cartridge, ensuring proper alignment and sealing
Before installing the new cartridge, ensure the replacement is the correct model for your shower valve. Align the cartridge with the valve body, paying close attention to any notches or tabs that must fit into corresponding slots. These features are designed to ensure the cartridge functions correctly, so proper alignment is critical. Gently but firmly push the cartridge into place, avoiding excessive force that could damage the cartridge or valve. If the cartridge has a specific orientation (e.g., hot/cold indicators), double-check that it is positioned correctly before proceeding.
Once the cartridge is seated, verify its alignment by attempting to turn the shower handle. The handle should move smoothly without binding or resistance, indicating the cartridge is correctly installed. If the handle feels stiff or misaligned, remove the cartridge and recheck its orientation, ensuring all tabs and notches are properly engaged. Proper alignment ensures the cartridge operates efficiently and prevents premature wear or failure.
Next, focus on sealing the cartridge to prevent leaks. Apply a thin, even layer of plumber’s grease or silicone lubricant to the cartridge’s O-rings and any other sealing surfaces. This step enhances the seal and protects the components from drying out or cracking over time. If the cartridge includes a rubber seal or gasket, ensure it is clean, undamaged, and correctly positioned before reinstallation. A compromised seal is a common cause of leaks, so inspect all sealing elements carefully.
After the cartridge is aligned and sealed, secure it in place using the retaining clip, screw, or mechanism provided by the manufacturer. Tighten any screws or fasteners hand-tight, avoiding overtightening that could warp the cartridge or damage the valve body. If your shower valve uses a retaining clip, ensure it snaps firmly into place to hold the cartridge securely. Double-check that the cartridge remains stable and does not shift when the handle is operated.
Finally, reattach the shower handle and test the system for leaks and proper function. Turn the water supply back on and operate the handle through its full range of motion, checking for smooth operation and consistent temperature control. Inspect the valve body and surrounding area for any signs of leakage, addressing any issues immediately. Proper alignment and sealing during cartridge installation are essential for a reliable, long-lasting repair.
Easy DIY Guide to Repairing Your Shower Valve on Faucet
You may want to see also
Frequently asked questions
Signs of a broken shower cartridge include difficulty turning the handle, inconsistent water temperature, leaks around the handle, or water not shutting off completely. If you notice any of these issues, it’s likely time to inspect or replace the cartridge.
You’ll typically need a screwdriver, pliers, an adjustable wrench, a cartridge puller (if the cartridge is stuck), and possibly a replacement cartridge. Some models may require specific tools, so check your shower’s manual or manufacturer guidelines.
Most shower cartridge replacements can be done as a DIY project if you’re comfortable with basic plumbing tasks. However, if you’re unsure or encounter complications (e.g., stuck parts or unusual plumbing setups), it’s best to hire a professional plumber to avoid further damage.
