Fixing a leaky Moen shower cartridge is a common DIY task that can save you from costly plumber fees and prevent water waste. The issue typically arises due to worn-out O-rings, mineral deposits, or a faulty cartridge, causing water to seep through the showerhead or handle. To address this, you’ll need to turn off the water supply, remove the handle and escutcheon plate, extract the old cartridge using a cartridge puller, clean the valve body, and install a new cartridge. Properly reassembling the components and testing for leaks ensures a successful repair, restoring your shower’s functionality and efficiency.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, adjustable wrench, pliers, replacement cartridge (Moen 1222 or 1222B), silicone grease, vinegar or descaling solution (optional) |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Common Causes | Worn-out cartridge, mineral deposits, improper installation, cracked cartridge |
| Symptoms | Leaking shower, inconsistent water temperature, difficulty turning handle |
| Steps | 1. Shut off water supply. 2. Remove handle and escutcheon. 3. Extract retaining nut and old cartridge. 4. Clean cartridge area and inspect for damage. 5. Apply silicone grease to new cartridge. 6. Insert new cartridge and reassemble components. 7. Turn on water supply and test for leaks. |
| Safety Tips | Wear safety goggles, relieve water pressure before starting, avoid overtightening components |
| Cost | $10-$30 (for replacement cartridge and tools) |
| Maintenance Tips | Periodically clean cartridge area, check for leaks, and replace cartridge every 5-7 years |
| Compatibility | Moen single-handle shower faucets with 1222 or 1222B cartridges |
| Troubleshooting | If leak persists, check for damaged O-rings, improper cartridge alignment, or faulty valve body |
| Warranty | Moen cartridges typically come with a limited lifetime warranty (check manufacturer's website) |
Explore related products
What You'll Learn
- Identify the Cartridge Type: Determine Moen cartridge model (1222, 1222B, or 1200) for proper replacement
- Shut Off Water Supply: Locate and turn off water valves before starting repairs
- Remove the Handle: Pry off handle cap, unscrew handle, and access cartridge
- Extract Old Cartridge: Use cartridge puller tool to carefully remove the faulty cartridge
- Install New Cartridge: Insert replacement cartridge, reattach handle, and test for leaks
Identify the Cartridge Type: Determine Moen cartridge model (1222, 1222B, or 1200) for proper replacement
Identifying the correct Moen shower cartridge type is crucial for a successful repair, as using the wrong model can lead to further leaks or damage. Moen cartridges come in several models, but the most common ones you’ll encounter are the 1222, 1222B, and 1200. Each model has distinct features that help you differentiate between them. Start by turning off the water supply to the shower to avoid any mess during the inspection. Then, remove the handle and escutcheon to expose the cartridge. The 1222 cartridge is typically brass-colored and has a balanced pressure design, while the 1222B is an updated version with a plastic body and brass inserts. The 1200 cartridge, on the other hand, is older and less common, featuring a single-function design without temperature balancing.
To determine the exact model, examine the cartridge closely. The 1222 and 1222B cartridges are often stamped with their model number on the side or top, making identification straightforward. If the number isn't visible, look at the material composition. The 1222 is primarily brass, while the 1222B has a plastic body with brass components. The 1200 cartridge is usually all brass and lacks the balancing mechanism found in the 1222 models. Additionally, the 1200 is shorter in length compared to the 1222 series, which can be another distinguishing factor.
Another method to identify the cartridge type is by checking the shower handle and valve configuration. Moen often pairs specific cartridges with certain handle styles. For instance, newer Moen showers with a single-handle design typically use the 1222 or 1222B cartridge. Older models or those with separate hot and cold handles may use the 1200 cartridge. Refer to your shower’s manual or Moen’s online resources if you’re unsure about the compatibility.
If you’re still uncertain after visual inspection, consider consulting Moen’s customer support or a local hardware store. They can provide guidance based on your shower’s age, model, and symptoms. Proper identification ensures you purchase the correct replacement cartridge, saving time and preventing further issues. Once you’ve confirmed the model, proceed with removing the old cartridge and installing the new one according to Moen’s instructions.
Lastly, keep in mind that while the 1222B is an updated version of the 1222, it is not always a direct replacement. Some older Moen valves may require modifications or specific tools to accommodate the 1222B. Always double-check compatibility before purchasing. By accurately identifying the cartridge type, you’ll ensure a smooth repair process and restore your shower to leak-free operation.
Easy DIY Guide to Repairing a Hole in Your Shower Wall
You may want to see also
Explore related products
Shut Off Water Supply: Locate and turn off water valves before starting repairs
Before you begin any repair work on your Moen shower cartridge, it's crucial to shut off the water supply to prevent accidental flooding or water damage. Start by locating the water valves that control the flow of water to your shower. In most homes, these valves are typically found in the basement, crawl space, or utility closet, near the main water supply line. If you're unsure where to find them, follow the pipes from your shower to their origin. Some homes may have dedicated shut-off valves for individual bathrooms, often located behind the shower wall or in a nearby closet. If you cannot find specific valves for the shower, you may need to turn off the main water supply to the entire house, usually located near the water meter.
Once you’ve located the appropriate valves, ensure they are fully turned off. For Moen showers, there are usually two valves: one for hot water and one for cold. Turn these valves clockwise until they stop moving. If the valves are the lever type, turn them perpendicular to the pipe to shut off the water. It’s essential to test the shower after turning off the valves to confirm that the water flow has stopped completely. Turn on the shower faucet to release any residual water in the pipes, and listen for any sounds of running water that might indicate a valve hasn’t been fully closed.
If you’re working with older valves or those that are difficult to turn, apply gentle but firm pressure to avoid damaging them. You can use a valve wrench or pliers for extra leverage, but be careful not to overtighten, as this can cause breakage. In cases where the valves are stuck or corroded, consider applying a penetrating oil like WD-40 and allowing it to sit for a few minutes before attempting to turn them again. If the valves still won’t budge, consult a professional plumber to avoid causing further damage.
After shutting off the water, open the shower faucet again to relieve any remaining pressure in the lines. This step is important because even small amounts of water pressure can cause leaks or accidents during the repair process. Let the water run until it stops completely, ensuring the system is fully depressurized. Once you’re confident the water supply is off and the lines are clear, you can proceed with removing the Moen shower cartridge without the risk of water spraying or flooding.
Finally, double-check that the water supply is indeed off by attempting to run the shower one more time. If no water comes out, you’re ready to begin the repair. Always prioritize safety and precision when shutting off the water supply, as this step is foundational to a successful and stress-free repair process. By taking the time to locate and properly turn off the valves, you’ll create a safe and controlled environment for fixing your leaky Moen shower cartridge.
Easy DIY Shower Hardware Repair: Fix Leaks and Replace Parts
You may want to see also
Explore related products
Remove the Handle: Pry off handle cap, unscrew handle, and access cartridge
To begin the process of fixing a leaky Moen shower cartridge, you'll need to remove the handle, which involves several steps. Start by locating the handle cap, a small, often decorative cover in the center of the handle. Using a flathead screwdriver or a specialized handle puller, gently pry off the handle cap. Be careful not to damage the cap or the surrounding area, as you'll need to reattach it later. Once the cap is removed, you'll expose the handle screw, which secures the handle to the valve stem.
With the handle cap removed, proceed to unscrew the handle itself. Using a Phillips head screwdriver, turn the screw counterclockwise until it's completely removed. Keep track of the screw, as you'll need to reattach it later. After removing the screw, grasp the handle firmly and pull it away from the valve stem. If the handle is stuck, gently wiggle it back and forth while pulling to release any built-up mineral deposits or corrosion. In some cases, you may need to use a handle puller or a strap wrench to get a better grip and avoid damaging the handle.
As you pull the handle away, be cautious not to damage the O-ring or gasket that seals the handle to the valve stem. If the O-ring appears worn or damaged, make a note to replace it during reassembly. With the handle removed, you'll now have access to the cartridge, which is the component responsible for controlling water flow and temperature. Take a moment to inspect the cartridge and surrounding area for any signs of wear, corrosion, or mineral buildup.
Before proceeding to the next step, ensure that you've successfully removed the handle and have clear access to the cartridge. If the handle is still attached or the cartridge is obstructed, recheck your work and ensure that all screws and components have been properly removed. It's essential to have a clear and unobstructed path to the cartridge to avoid damaging surrounding components during the removal process. By taking your time and being meticulous during this step, you'll set yourself up for a successful cartridge replacement.
After removing the handle, take a moment to clean the area around the cartridge. Use a damp cloth to wipe away any dirt, debris, or mineral deposits that may have accumulated. This will not only make it easier to work on the cartridge but also help you identify any potential issues or areas of concern. With the handle removed and the area cleaned, you're now ready to proceed with removing the cartridge, which is the next critical step in fixing your leaky Moen shower. Remember to keep track of the order and orientation of removed components, as this will make reassembly much more manageable.
Fixing Shower Floor Slope: A Step-by-Step Guide to Proper Drainage
You may want to see also
Explore related products

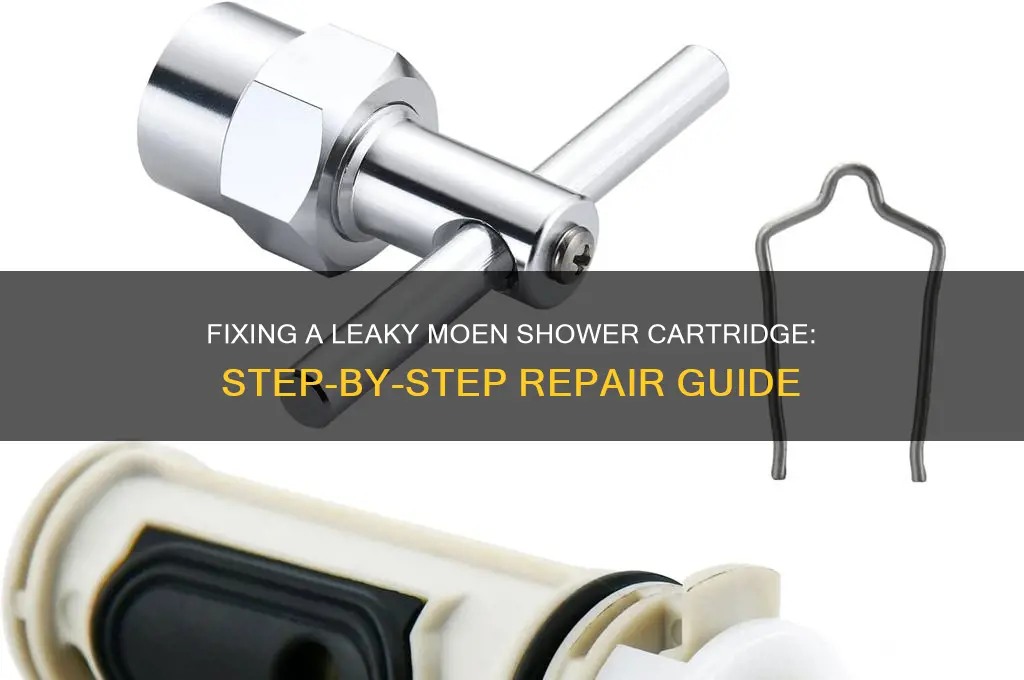

Extract Old Cartridge: Use cartridge puller tool to carefully remove the faulty cartridge
To extract the old cartridge from your Moen shower valve, you'll need a cartridge puller tool specifically designed for this task. This tool is essential because the cartridge is often stuck due to mineral deposits, corrosion, or years of use. Begin by ensuring the water supply to the shower is completely turned off to avoid any accidental spills or pressure issues. Once the water is off, remove the handle and escutcheon to expose the cartridge. You’ll typically see a retaining clip or screw holding the cartridge in place; remove this carefully using a screwdriver or needle-nose pliers.
With the retaining clip or screw removed, it’s time to attach the cartridge puller tool. Position the tool over the cartridge, ensuring it grips the cartridge firmly. The puller tool usually has a central screw that, when tightened, applies even pressure to extract the cartridge. Slowly turn the screw clockwise, applying steady pressure. Avoid forcing it, as excessive force can damage the valve body. If the cartridge doesn’t come out immediately, gently wiggle the puller tool back and forth while maintaining pressure to loosen any stubborn mineral deposits.
Patience is key during this step, as the cartridge may be deeply seated. If the cartridge still resists removal, consider applying a penetrating oil or lubricant around the edges of the cartridge and letting it sit for 10-15 minutes. This can help dissolve any built-up grime or corrosion. After allowing the lubricant to work, reattach the puller tool and try again. Gradually increase the pressure until the cartridge begins to move outward.
Once the cartridge starts to come out, continue pulling it steadily until it is fully removed from the valve. Inspect the valve cavity for any remaining debris or damage. If there are mineral deposits or old sealant, clean the area thoroughly using a brush or cloth to ensure a smooth installation of the new cartridge. Properly extracting the old cartridge is crucial for a successful repair, as it ensures the new cartridge fits correctly and functions without leaks.
Finally, double-check that the valve body is clean and free of obstructions before proceeding to install the new cartridge. If you encounter any unusual resistance or damage during the extraction process, it may be wise to consult a professional plumber to avoid further complications. With the old cartridge successfully removed, you’re now ready to install the replacement and restore your shower to proper working condition.
Easy DIY Guide to Repairing Your Shower Faucet Valve
You may want to see also
Explore related products
Install New Cartridge: Insert replacement cartridge, reattach handle, and test for leaks
Once you have successfully removed the old cartridge and prepared the valve body, it's time to install the new Moen shower cartridge. Start by taking the replacement cartridge and aligning it properly with the valve body. The cartridge should fit snugly into the slot, ensuring that the notches or tabs on the cartridge match the corresponding grooves in the valve. Gently but firmly push the cartridge into place, making sure it is seated evenly and completely. Avoid using excessive force, as this could damage the cartridge or the valve body. If the cartridge feels misaligned or doesn't fit smoothly, double-check its orientation and try again.
With the new cartridge securely in place, the next step is to reattach the handle. Begin by positioning the handle over the cartridge, ensuring that the handle's spline (the ridged or grooved part) aligns with the cartridge's spline. Once aligned, push the handle down onto the cartridge until it clicks into place. This click indicates that the handle is properly engaged with the cartridge. If your handle has a set screw, tighten it using a screwdriver to secure the handle firmly in place. Be careful not to overtighten, as this could strip the screw or damage the handle.
After reattaching the handle, it’s crucial to test the shower for leaks before fully reassembling the trim. Turn on the water supply valves, which are typically located in the basement or near the shower. Slowly open the shower handle to allow water to flow through the new cartridge. Observe the cartridge and handle area closely for any signs of leakage. If you notice dripping or water seepage, turn off the water supply immediately and check the cartridge’s alignment and the handle’s attachment. Minor adjustments may be needed to ensure a watertight seal.
Once you’ve confirmed that there are no leaks, proceed to reattach the escutcheon (the decorative plate) and any other trim pieces that were removed earlier. Secure these components with the appropriate screws, being careful not to overtighten, as this could crack the escutcheon or damage the surrounding wall. With all parts reassembled, perform a final test by running the shower through its full range of motion, checking both hot and cold settings to ensure smooth operation and no leaks.
Finally, take a moment to inspect your work. Wipe down the shower area to remove any fingerprints or residue from the repair process. Test the shower handle again to ensure it moves freely and controls the water flow and temperature accurately. If everything functions correctly and there are no leaks, you’ve successfully installed the new Moen shower cartridge. Regular maintenance, such as periodic cleaning and checking for wear, can help prevent future leaks and extend the life of your shower valve.
Revive Your Lush Shower Jelly: Simple Fixes for a Slippery Situation
You may want to see also
Frequently asked questions
Turn off the shower and observe if water continues to drip. If it does, the cartridge is likely the issue. Additionally, check for water around the handle or spout, which indicates a faulty cartridge.
You’ll need a Phillips screwdriver, an adjustable wrench or pliers, a cartridge puller (if the cartridge is stuck), and a replacement Moen cartridge (1224 or 1222 series, depending on your model).
Use a cartridge puller tool to grip and extract the cartridge. If you don’t have a puller, try tapping the tool gently with a mallet while pulling to loosen it. Ensure the water is turned off before attempting removal.
Moen cartridges are typically not repairable and should be replaced. Purchase a new cartridge specific to your Moen shower model (check the model number on the shower handle or escutcheon).
Insert the new cartridge into the valve body, ensuring it aligns properly. Reattach the handle and test the shower to confirm the leak is fixed. Tighten all connections securely but avoid over-tightening to prevent damage.
