Fixing an electric shower pull cord switch is a common DIY task that can save you time and money, especially if the switch has stopped working due to wear and tear or accidental damage. The pull cord switch is a vital component that controls the power supply to the shower, and when it malfunctions, it can leave you without hot water. Fortunately, repairing or replacing it is relatively straightforward and requires basic tools such as a screwdriver, wire strippers, and a new pull cord switch. Before starting, ensure the power is turned off at the mains to avoid any risk of electric shock. The process typically involves accessing the switch unit, disconnecting the old switch, connecting the new one, and reattaching the pull cord. With careful attention to detail and adherence to safety guidelines, you can restore your electric shower to full functionality in no time.
| Characteristics | Values |
|---|---|
| Common Issue | Pull cord switch not working or stuck |
| Tools Required | Screwdriver, multimeter, replacement pull cord switch (if necessary) |
| Steps to Fix | 1. Turn off power supply at the mains. |
| 2. Remove the shower cover to access the switch. | |
| 3. Inspect the pull cord for damage or tangling. | |
| 4. Check the switch mechanism for wear or misalignment. | |
| 5. Test the switch with a multimeter for continuity. | |
| 6. Replace the switch if faulty. | |
| Safety Precaution | Always turn off power before working on electrical components. |
| Possible Causes | Worn-out switch, tangled cord, internal mechanism failure, loose wiring |
| Replacement Cost | £5-£20 for a new pull cord switch (depending on brand and model) |
| DIY Difficulty | Moderate (basic electrical knowledge required) |
| Professional Help | Recommended if unsure about electrical repairs |
| Prevention Tips | Regularly check the cord for tangles and avoid pulling too hard. |
Explore related products
What You'll Learn
- Identify Faulty Switch: Check for visible damage, loose connections, or worn-out components in the pull cord switch
- Replace Pull Cord: Remove the old cord and install a new one, ensuring proper threading and tension
- Test Power Supply: Use a multimeter to confirm if power is reaching the switch
- Clean Contacts: Wipe switch contacts with isopropyl alcohol to remove dirt or corrosion
- Secure Wiring: Tighten loose wires and ensure connections are secure to restore functionality
Identify Faulty Switch: Check for visible damage, loose connections, or worn-out components in the pull cord switch
When identifying a faulty pull cord switch in an electric shower, the first step is to visually inspect the switch for any obvious signs of damage. Look for cracks, burns, or discoloration on the switch housing, as these can indicate overheating or physical stress. Additionally, check the pull cord itself for fraying, breakage, or signs of wear, as a damaged cord can prevent the switch from functioning properly. If the cord is stuck or doesn’t retract smoothly, this could also be a symptom of internal damage to the switch mechanism.
Next, examine the connections within the switch. Turn off the power supply to the shower at the mains to ensure safety before proceeding. Carefully open the switch cover, typically by unscrewing it, and inspect the wiring for loose connections. Loose wires can cause intermittent operation or complete failure of the switch. Ensure all wires are securely attached to their respective terminals and that there are no exposed or frayed wires that could lead to short circuits. If any connections appear corroded or damaged, they may need to be cleaned or replaced.
Inspect the internal components of the pull cord switch for wear and tear. Over time, the internal mechanism can become worn, causing the switch to fail. Look for broken springs, misaligned gears, or worn-out contacts inside the switch. These components are critical for the proper operation of the pull cord mechanism. If any parts appear damaged or out of place, they may need to be repaired or replaced. Some switches may have replaceable parts, while others may require the entire unit to be swapped out.
Another area to check is the switch’s mounting and alignment. Ensure the switch is securely mounted to the shower unit and that there is no movement or play in its housing. Misalignment can cause the internal mechanism to jam or fail to make proper contact. Gently test the pull cord’s movement while observing the switch’s alignment. If the switch feels loose or the cord doesn’t operate smoothly, the mounting screws or brackets may need tightening or adjustment.
Finally, test the switch for continuity using a multimeter if you’re comfortable with basic electrical testing. With the power still off, set the multimeter to the continuity setting and touch the probes to the switch terminals. Pull the cord to activate the switch and observe the multimeter reading. If there is no continuity when the switch is activated, this confirms a fault within the switch. This step can help pinpoint whether the issue lies with the switch itself or another part of the shower’s electrical system.
Easy DIY Guide to Repairing Cracks in Fiberglass Shower Pans
You may want to see also
Explore related products
Replace Pull Cord: Remove the old cord and install a new one, ensuring proper threading and tension
To replace the pull cord on your electric shower switch, begin by turning off the power to the shower unit at the main circuit breaker to ensure safety. Next, locate the pull cord switch, which is typically found on the front or side of the shower unit. Carefully inspect the switch to identify how the old cord is attached. Most pull cord switches have a small opening or mechanism where the cord is threaded and secured. Use a screwdriver or a similar tool to open the switch cover, exposing the internal components. Gently pull the old cord out, taking note of its routing and any knots or stops that keep it in place.
Once the old cord is removed, prepare the new pull cord by cutting it to the appropriate length, allowing for a bit of extra cord to ensure proper tension. Thread the new cord through the switch mechanism, following the same path as the old cord. Pay close attention to any grooves, holes, or guides within the switch that the cord must pass through. If the cord has a stopper or knot at the end, ensure it is securely in place to prevent the cord from pulling all the way through the switch. Test the cord by pulling it gently to confirm it moves freely without catching or sticking.
After threading the cord, reattach the switch cover, ensuring it is securely fastened. Pull the cord again to verify that it operates the switch correctly. If the cord feels too loose or too tight, adjust its length by rethreading it and trimming as necessary. Proper tension is crucial for smooth operation and longevity of the switch. Avoid over-tightening, as this can cause unnecessary strain on the switch mechanism.
Finally, restore power to the shower unit and test the pull cord switch to ensure it functions properly. If the switch does not operate as expected, double-check the cord’s threading and tension, and ensure the switch cover is correctly aligned and secured. Replacing the pull cord is a straightforward task that can significantly improve the functionality of your electric shower switch, provided it is done with care and attention to detail.
For added durability, consider using a high-quality replacement cord designed for pull switches. Some cords come with pre-attached stoppers or are made of materials resistant to wear and tear, which can extend the life of the switch. If you encounter any difficulties during the process, consult the shower unit’s manual or seek guidance from a professional to avoid damaging the switch or the shower unit. With the new cord properly installed, your electric shower should operate smoothly, providing reliable control over its functions.
Repairing Cracked Plastic Shower Walls: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Test Power Supply: Use a multimeter to confirm if power is reaching the switch
Before attempting any repairs on your electric shower pull cord switch, it's crucial to ensure that power is actually reaching the switch. A multimeter is an essential tool for this task, as it allows you to measure voltage, current, and resistance. To begin testing the power supply, set your multimeter to the AC voltage setting, typically denoted by a "V" with a wavy line. This setting will enable you to measure the voltage coming into the switch. Make sure the multimeter is properly calibrated and functioning correctly before proceeding.
Next, locate the power source for your electric shower pull cord switch. This is usually a junction box or a connection point where the power cables enter the switch assembly. Turn off the power to the shower at the main circuit breaker to ensure your safety during the testing process. Once the power is off, carefully remove the cover of the junction box or expose the connection point to access the wires. You should see at least two wires: a live wire (usually brown or red) and a neutral wire (usually blue). These wires supply power to the switch.
With the multimeter set to AC voltage, touch the probes to the corresponding wires. Place the black probe (negative) on the neutral wire and the red probe (positive) on the live wire. If power is reaching the switch, the multimeter should display a voltage reading close to the supply voltage, typically around 220-240 volts in the UK or 110-120 volts in the US. If the reading is significantly lower or zero, it indicates a potential issue with the power supply, such as a tripped breaker, a faulty fuse, or a problem with the wiring.
If the multimeter shows no voltage, double-check your connections and ensure the probes are securely touching the wires. If the issue persists, trace the wiring back to the main circuit breaker and inspect for any visible damage or loose connections. It's also a good idea to test the circuit breaker itself to ensure it’s functioning properly. Reset the breaker if it has tripped and retest the voltage at the switch. If the problem continues, consult a qualified electrician to diagnose and resolve the issue.
After confirming that power is indeed reaching the switch, you can proceed to inspect the pull cord switch itself for faults. However, if no power is detected, addressing the power supply issue is paramount before attempting any further repairs. Always prioritize safety and ensure the power remains off while working with electrical components. Testing the power supply with a multimeter is a fundamental step in troubleshooting your electric shower pull cord switch, providing clarity on whether the issue lies with the switch or the power delivery system.
Prevent Shower Tap Electric Shocks: Quick Fixes and Safety Tips
You may want to see also
Explore related products
Clean Contacts: Wipe switch contacts with isopropyl alcohol to remove dirt or corrosion
To effectively fix an electric shower pull cord switch, one of the most straightforward yet impactful steps is to clean the switch contacts. Over time, dirt, dust, or corrosion can accumulate on these contacts, leading to poor conductivity and a malfunctioning switch. The solution? Wipe the switch contacts with isopropyl alcohol, a highly effective cleaning agent that dissolves grime and leaves no residue. Start by turning off the power to the shower unit at the mains to ensure safety. Once the power is off, locate the pull cord switch and carefully open it by removing the cover, typically secured with screws. Inside, you’ll find the switch contacts—the metal parts that connect when the cord is pulled. These are the areas you’ll focus on cleaning.
Using a cotton swab or a small cloth dampened with isopropyl alcohol, gently wipe the switch contacts to remove any visible dirt or corrosion. Ensure the swab or cloth is not dripping wet, as excess liquid could seep into other parts of the switch. Pay close attention to the areas where the contacts meet, as these spots are most prone to buildup. Isopropyl alcohol evaporates quickly, so you won’t need to wait long for the contacts to dry. However, if you’re in a hurry, you can use a clean, dry cloth or a hairdryer on a low setting to speed up the drying process. This step is crucial because even a small amount of dirt or corrosion can disrupt the electrical connection, causing the switch to fail.
After cleaning, inspect the contacts to ensure they are free of debris and appear shiny. If corrosion is severe, you may need to use a fine-grit sandpaper or emery cloth to gently smooth the surfaces before wiping them with isopropyl alcohol. Be careful not to over-sand, as this could damage the contacts. Once the contacts are clean and dry, reassemble the switch by replacing the cover and securing it with the screws. Restore power to the shower unit and test the pull cord switch to see if it operates smoothly. Cleaning the contacts is often enough to resolve issues with a sticky or non-responsive switch, as it restores proper electrical flow.
It’s worth noting that isopropyl alcohol is preferred for this task because it is a non-conductive solvent that won’t leave behind any residue that could interfere with the switch’s operation. Avoid using water or household cleaners, as these can cause damage or leave behind substances that hinder conductivity. Additionally, regular maintenance, such as periodic cleaning of the switch contacts, can prevent future issues and extend the life of your electric shower pull cord switch. This simple yet effective method is a go-to solution for DIY enthusiasts looking to troubleshoot and fix common shower switch problems without the need for professional help.
Finally, while cleaning the contacts is often sufficient, if the switch continues to malfunction after this step, it may indicate a more serious issue, such as a broken internal mechanism or worn-out components. In such cases, replacing the switch entirely might be necessary. However, for many users, wiping the switch contacts with isopropyl alcohol is a quick, cost-effective, and successful fix that restores functionality to the electric shower pull cord switch. Always prioritize safety by ensuring the power is off before attempting any repairs, and if you’re unsure, consult a qualified electrician for assistance.
Quick Shower Drain Leak Fixes: DIY Solutions for a Watertight Bathroom
You may want to see also
Explore related products

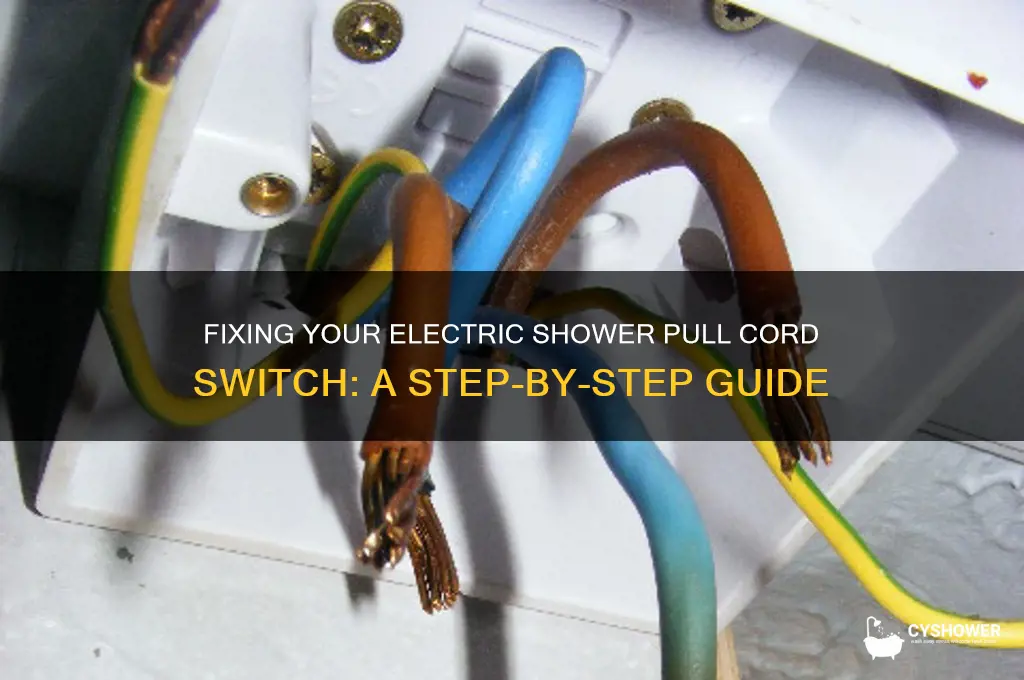

Secure Wiring: Tighten loose wires and ensure connections are secure to restore functionality
When addressing issues with an electric shower pull cord switch, one of the most common and straightforward fixes involves securing the wiring. Over time, wires can become loose due to regular use, vibrations, or environmental factors, leading to intermittent or complete loss of functionality. To restore the switch’s operation, start by turning off the power supply to the shower unit at the main circuit breaker to ensure safety. Once the power is off, locate the pull cord switch and carefully remove the cover plate to access the internal wiring. Inspect the wires connected to the switch terminals for any signs of looseness or disconnection.
Next, focus on tightening the loose wires. Using a screwdriver, gently loosen the terminal screws holding the wires in place. Carefully reposition the wires to ensure they are seated firmly in the terminals, stripping any frayed ends if necessary. Tighten the screws securely, but avoid over-tightening, as this can damage the wires or terminals. Ensure that each wire is clamped tightly enough to maintain a solid connection without causing strain on the wire itself. This step is crucial for restoring consistent electrical flow and preventing future issues.
After securing the wires, double-check all connections to ensure they are tight and properly aligned. Wiggle the wires slightly to confirm they do not move within the terminals, as any movement indicates an insecure connection. If the wires were previously damaged or corroded, consider replacing them with new ones to guarantee long-term reliability. Corroded connections can often mimic the symptoms of loose wiring, so cleaning the terminals with a small brush or isopropyl alcohol can also improve conductivity.
Once all wires are tightened and connections are secure, reattach the cover plate to the pull cord switch. Restore power to the shower unit and test the switch to ensure it operates smoothly. If the pull cord still fails to function, the issue may lie elsewhere, such as a faulty switch mechanism or internal damage. However, in most cases, securing the wiring resolves the problem by reestablishing a stable electrical connection.
Regular maintenance, such as periodically checking the wiring connections, can prevent future issues with the pull cord switch. By keeping the wires tight and connections secure, you not only restore functionality but also extend the lifespan of the switch. This simple yet effective fix is often overlooked but plays a vital role in maintaining the reliability of your electric shower system.
Revive Your Shower: Easy Fixes for Cracked, Moldy Grout
You may want to see also
Frequently asked questions
The pull cord switch may not be working due to a broken internal mechanism, loose wiring, or a faulty switch. Check for visible damage, ensure the wiring is securely connected, and replace the switch if necessary.
Turn off the power supply, remove the switch cover, disconnect the wires, replace the switch with a compatible one, reconnect the wires, and secure the cover back in place.
If the cord is frayed or broken, it’s best to replace the entire switch assembly, as repairing the cord alone may not ensure safety or reliability.
Sparking indicates a faulty switch or poor electrical connection. Turn off the power and replace the switch immediately to prevent further damage or safety risks.
Use a multimeter to check for continuity in the switch. If there’s no continuity when the switch is pulled, the switch is faulty and needs replacement.
