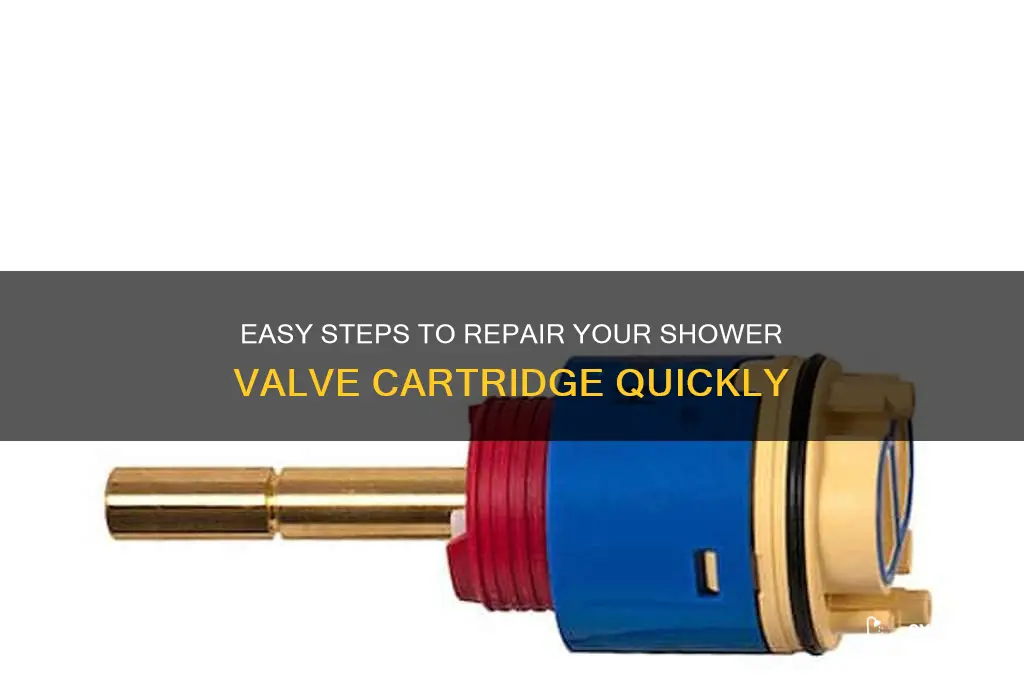

Fixing a shower valve cartridge is a common DIY task that can resolve issues like inconsistent water temperature, leaks, or difficulty turning the handle. The process typically involves shutting off the water supply, removing the shower handle and escutcheon plate to access the valve, and then carefully extracting the old cartridge. Depending on the type of valve, you may need specific tools like a cartridge puller or pliers. Once the old cartridge is removed, clean the valve housing, install the new cartridge, and reassemble the components. Testing the shower afterward ensures the repair was successful, restoring proper water flow and temperature control.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, Allen wrench, cartridge puller, replacement cartridge |
| Steps | 1. Turn off water supply 2. Remove handle and escutcheon 3. Extract old cartridge 4. Install new cartridge 5. Reassemble handle and escutcheon 6. Turn on water supply and test |
| Common Issues | Leaks, difficulty turning handle, inconsistent water temperature |
| Cartridge Types | Single-control, dual-control, pressure balance, thermostatic |
| Compatibility | Check manufacturer and model for correct replacement cartridge |
| Precautions | Ensure water is off before starting, avoid damaging valve body |
| Difficulty Level | Moderate (DIY-friendly with basic plumbing knowledge) |
| Time Required | 30 minutes to 1 hour |
| Cost | $10-$50 (depending on cartridge type and brand) |
| Maintenance Tips | Regularly clean cartridge and valve to prevent buildup |
| Safety Tips | Wear gloves, avoid forcing tools to prevent injury or damage |
Explore related products
What You'll Learn
Identify the correct cartridge type for your shower valve model
Identifying the correct cartridge type for your shower valve model is a crucial first step in fixing a malfunctioning shower valve. Start by locating the brand and model of your shower valve, as this information will guide you in finding the compatible cartridge. Most shower valves have a brand name or logo stamped on the valve body or trim plate. Common brands include Moen, Delta, Kohler, and American Standard. If the brand isn’t visible, check any documentation or manuals you have from the installation or purchase of the shower system. If you don’t have these, consider removing the shower handle and inspecting the valve itself for markings or model numbers.
Once you’ve identified the brand, research the specific model of your shower valve. This can often be done by searching online with the brand name and any model numbers or descriptions you’ve found. Many manufacturers provide detailed product guides or parts diagrams on their websites, which can help you pinpoint the exact cartridge type required. For example, Moen uses different cartridges for their Posi-Temp and Moentrol valves, while Delta has distinct cartridges for their Monitor and MultiChoice valves. Knowing the model ensures you don’t purchase an incompatible cartridge.
If you’re unable to find the model number or are unsure, consider removing the existing cartridge to inspect it directly. Turn off the water supply, remove the shower handle, and unscrew the escutcheon plate to access the cartridge. Take note of its shape, size, and any markings on it. Cartridges come in various types, such as single-control, dual-control, or pressure-balance, and they may have specific features like ceramic or plastic components. Take a photo or make detailed notes to compare with replacement options.
Another effective method is to take the old cartridge to a local hardware store or plumbing supply shop. Professionals there can often identify the cartridge type by sight or by cross-referencing it with their inventory. If you’re ordering online, use the brand, model, and cartridge details to search for the exact replacement part. Websites like manufacturer portals, Amazon, or specialty plumbing supply stores often have filters to narrow down options based on your specific needs.
Finally, double-check compatibility before purchasing. Some cartridges may look similar but have slight differences in design or functionality. Refer to the manufacturer’s website or contact their customer service for confirmation if you’re unsure. Ensuring you have the correct cartridge type will save time and prevent further issues during the repair process. With the right cartridge in hand, you can proceed confidently to the next steps of removing the old cartridge and installing the new one.
Easy DIY Guide: Fixing Glass on Your Shower Surround
You may want to see also
Explore related products
Turn off water supply before removing the old cartridge
Before you begin the process of replacing a shower valve cartridge, it is crucial to turn off the water supply to prevent any accidental spills or leaks. Start by locating the main water shut-off valve for your home, which is typically found in the basement, garage, or near the water heater. If you cannot find the main valve or prefer a more localized approach, look for individual shut-off valves specifically for the shower. These are often located near the shower itself, either in the bathroom or in an adjacent utility area. Turning off the water at the source ensures that no water flows through the pipes while you work on the cartridge, making the process safer and cleaner.
Once you’ve identified the correct shut-off valves, turn them clockwise to close them completely. For most valves, a 90-degree turn should suffice, but ensure they are fully closed to stop the water flow entirely. If your shower has separate hot and cold water valves, turn off both to avoid any residual pressure or dripping. After shutting off the valves, open the shower faucet to release any remaining water in the pipes. This step is essential to confirm that the water supply is indeed off and to relieve any built-up pressure, which could otherwise cause water to spray out when you remove the cartridge.
If you’re unsure whether the water supply is completely off, test the showerhead and tub spout to ensure no water is flowing. Sometimes, older valves may not fully shut off the water, or there could be a leak in the supply line. If you notice any water still flowing, double-check the shut-off valves or consider turning off the main water supply to the house. It’s better to take extra precautions than to deal with water damage or a messy work area.
In some cases, you may need to drain the water heater if the shower valve is connected to it. This is particularly important if you’re working on a single-control valve that mixes hot and cold water. To do this, turn off the water heater and open a hot water faucet elsewhere in the house to relieve pressure. Allow the water heater to cool down before proceeding, as working with hot water lines can be dangerous. Once the system is depressurized and cooled, you can safely proceed with removing the old cartridge.
Finally, before you start disassembling the shower valve, place a bucket or towel in the shower area to catch any small amounts of water that may remain in the pipes or valve. Even after draining, there might be residual water that could spill out. Taking this precaution keeps your workspace dry and prevents water from damaging surrounding surfaces. With the water supply securely turned off and the area prepared, you’re now ready to safely remove the old shower valve cartridge and proceed with the replacement.
Effective Solutions to Repair and Prevent Shower Wall Rot
You may want to see also
Explore related products
Use pliers to carefully extract the damaged cartridge
Before attempting to extract the damaged cartridge, ensure you have the right tools. Needle-nose pliers or adjustable pliers with a firm grip are ideal for this task. The cartridge is often located deep within the valve, and pliers will provide the necessary reach and control. Begin by positioning the pliers around the cartridge, taking care to grip it firmly but gently to avoid causing further damage. The cartridge may be stuck due to mineral deposits or corrosion, so a steady and controlled approach is essential.
Once the pliers are securely in place, apply gradual and even pressure to loosen the cartridge. Twist the pliers slightly back and forth while pulling outward to break the seal. Be patient, as forcing the cartridge out abruptly can damage the surrounding valve components. If the cartridge resists, inspect the area for any visible obstructions or debris that might be hindering its removal. Clearing these obstacles can make the extraction process smoother.
If the cartridge still won’t budge, consider using a cartridge puller tool specifically designed for this purpose. However, if you’re relying solely on pliers, ensure you maintain a firm grip and continue applying steady pressure. Sometimes, tapping the handle of the pliers gently with a mallet can help dislodge the cartridge, but be cautious not to strike the valve body or surrounding fixtures. Always prioritize precision over force to prevent unnecessary damage.
As the cartridge begins to move, keep a steady hand and continue pulling it out evenly. Inspect the cartridge as it emerges to ensure no pieces are left behind in the valve. Once fully extracted, examine the valve opening for any remaining debris or damage. Cleaning the valve thoroughly at this stage will prepare it for the installation of the new cartridge, ensuring a proper fit and long-term functionality.
Finally, take note of the cartridge’s orientation and any specific features before discarding it, as this information can be useful when installing the replacement. Using pliers to carefully extract the damaged cartridge requires patience and attention to detail, but it’s a crucial step in successfully repairing your shower valve. With the old cartridge removed, you’re now ready to proceed with the next steps of the repair process.
Quick Shower Pump Repair Guide: Troubleshooting and Fixing Common Issues
You may want to see also
Explore related products
Insert the new cartridge and ensure it’s aligned properly
Once you have the new cartridge ready, it’s time to insert it into the shower valve. Begin by carefully aligning the cartridge with the valve opening. Most cartridges have a notch or a specific orientation mark that must match the corresponding slot in the valve. Hold the cartridge steady and gently push it into the valve body. Avoid forcing it, as improper alignment can damage the cartridge or the valve. If the cartridge doesn’t slide in easily, double-check its orientation and ensure there are no obstructions in the valve cavity.
After inserting the cartridge, ensure it is seated properly. You should feel or hear a slight click or resistance when it is fully in place. If the cartridge doesn’t sit flush with the valve body, it may not function correctly. Use a flashlight to inspect the alignment and verify that the cartridge is positioned evenly. Some cartridges may require a gentle tap with a rubber mallet or the handle of a screwdriver to seat them fully, but be cautious not to apply excessive force.
Next, check the alignment of the cartridge in relation to the shower handle. Rotate the cartridge slightly by hand to ensure it moves freely and aligns with the handle’s movement range. If the cartridge feels stiff or misaligned, remove it and reinsert it, ensuring the orientation is correct. Proper alignment is crucial for smooth operation and to prevent leaks or premature wear.
Once the cartridge is inserted and aligned, reattach the handle mechanism. Place the handle over the cartridge spline or post, ensuring it fits securely. Secure the handle with the screw or retaining clip provided, tightening it just enough to hold the handle in place without over-tightening. Test the handle by turning it through its full range of motion to confirm the cartridge moves as expected.
Finally, turn the water supply back on and test the shower. Let the water run for a few minutes to check for leaks around the cartridge or handle. If there are no leaks and the water temperature adjusts smoothly, the cartridge is properly aligned and installed. If you notice any issues, such as stiffness or dripping, shut off the water again and recheck the cartridge’s alignment and seating before retesting. Proper insertion and alignment are key to a successful shower valve cartridge replacement.
Quick Fixes for a Non-Working Shower: Troubleshooting Guide
You may want to see also
Explore related products
Reassemble the handle and test for leaks after installation
Once you’ve successfully replaced the shower valve cartridge, the next critical step is to reassemble the handle and test for leaks to ensure everything is functioning correctly. Begin by carefully placing the handle back onto the valve stem, ensuring it aligns properly with the cartridge. Most handles have a set screw or a clip that secures them in place. Use a screwdriver to tighten the set screw or reattach the clip, being careful not to overtighten, as this can damage the handle or valve. Double-check that the handle moves smoothly and engages the cartridge fully, allowing you to control the water flow and temperature as intended.
With the handle reassembled, it’s time to reattach the escutcheon plate, which is the decorative cover that hides the valve assembly. Align the plate over the valve and secure it with the screws provided. Make sure the plate is flush against the wall and sits evenly around the handle. Once the escutcheon is in place, turn on the water supply at the shut-off valve or the main water supply line. Allow the water to flow through the shower to check for any immediate leaks around the handle, escutcheon, or valve.
After restoring the water supply, test the shower handle by turning it through its full range of motion. Verify that the water temperature adjusts correctly and that there is no excessive play or resistance in the handle. Pay close attention to the area where the handle meets the valve and around the escutcheon plate for any signs of dripping or seepage. If you notice any leaks, turn off the water supply again and inspect the connections. Loose screws, misaligned parts, or a faulty cartridge could be the cause, so address these issues before proceeding.
Once you’re confident there are no leaks, run the shower for a few minutes to ensure consistent performance. Check the handle’s operation again, ensuring it feels sturdy and responds accurately to your adjustments. If everything is working as expected, your shower valve cartridge replacement is complete. However, if leaks persist or the handle feels unstable, you may need to disassemble the handle again and recheck the cartridge installation or tighten any loose components.
Finally, take a moment to clean the area around the handle and escutcheon plate to remove any residue or debris from the repair process. This not only improves the appearance but also ensures no particles interfere with the handle’s operation. By carefully reassembling the handle and thoroughly testing for leaks, you can enjoy a fully functional shower with confidence in your repair work.
Repair Cracked Fiberglass Shower Floor Easily with JB Weld Guide
You may want to see also
Frequently asked questions
Signs of a faulty cartridge include inconsistent water temperature, difficulty turning the handle, or water leaks. If adjusting the handle doesn’t resolve the issue, inspect the cartridge for wear, cracks, or mineral buildup.
Common tools include a screwdriver, pliers, cartridge puller (if stuck), and a replacement cartridge. You may also need Teflon tape or pipe thread sealant for reassembly.
It’s highly recommended to turn off the water supply to avoid leaks and water damage during the repair. Locate the shut-off valve for the shower or turn off the main water supply if necessary.
Use a cartridge puller tool designed for this purpose. If the cartridge is still difficult to remove, apply penetrating oil and let it sit for 15–30 minutes before trying again. Avoid forcing it to prevent damage to the valve body.
