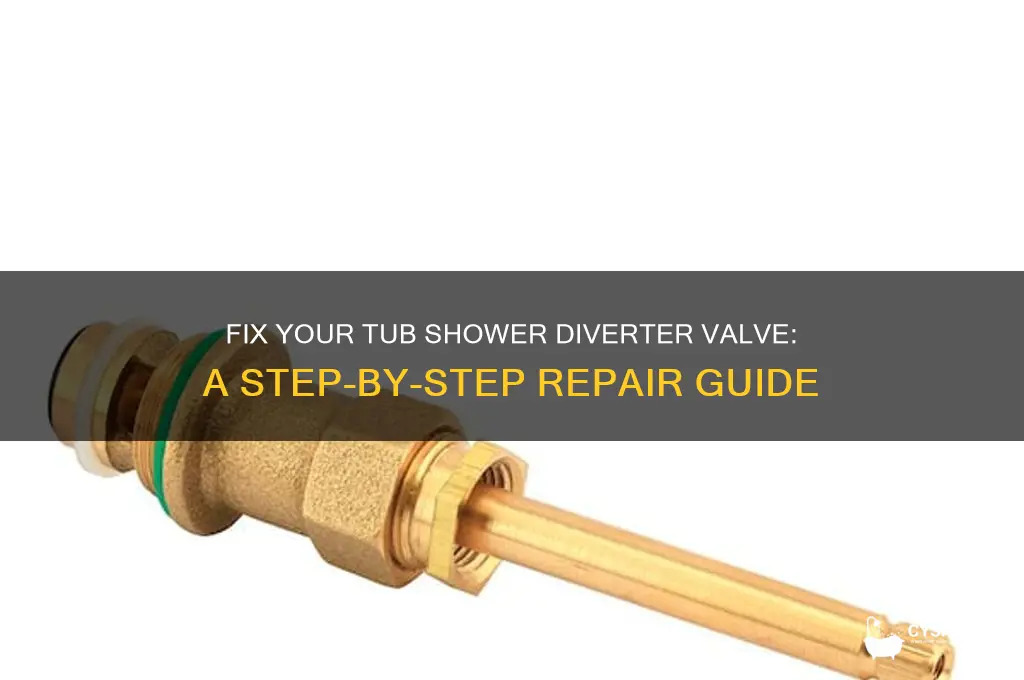

Fix Your Tub Shower Diverter Valve: A Step-By-Step Repair Guide

Fixing a tub shower diverter valve is a common DIY plumbing task that can save you from the frustration of a malfunctioning shower or tub. The diverter valve is responsible for directing water flow between the showerhead and the tub faucet, and when it fails, you may experience issues like low water pressure, water leaking from the tub spout during showers, or an inability to switch between the two. To repair it, start by identifying the type of diverter valve you have—whether it’s a screw-on, pull-up, or rotary style—as the repair process varies slightly for each. Typically, the fix involves turning off the water supply, disassembling the valve or handle, cleaning out any debris or buildup, replacing worn-out parts like O-rings or washers, and reassembling the components. With basic tools and a bit of patience, you can restore proper water flow and functionality to your shower and tub.

Identify Diverter Valve Type

Before attempting any repair on a tub shower diverter valve, it's crucial to identify the type of valve you're dealing with. Diverter valves come in various styles, each with unique mechanisms and repair processes. The first step is to locate the diverter valve. In most cases, it's situated behind the faucet handles or within the shower valve assembly. If your setup has a single-control handle that switches between the tub and shower, the diverter valve is likely integrated into the handle or valve cartridge. For systems with separate tub and shower controls, the diverter valve is often a small, independent component located near the spout or within the wall.

Once you’ve located the valve, examine its design and operation. There are three common types of diverter valves: three-valve diverters, pull-diverter tub spouts, and diverter valve cartridges. Three-valve diverters are typically found in older systems and use a separate lever or knob to redirect water flow. Pull-diverter tub spouts have a mechanism where you lift or pull the spout to activate the shower. Diverter valve cartridges, common in modern single-handle setups, are housed within the valve body and control both temperature and flow diversion. Understanding the design will help you determine the appropriate repair method.

Next, determine if the diverter valve is part of the faucet or a standalone component. In some setups, the diverter is integrated into the faucet cartridge, requiring you to replace the entire cartridge if it fails. In others, the diverter is a separate piece that can be repaired or replaced independently. To identify this, turn on the water and observe how the system operates. If adjusting the main handle switches the water flow, the diverter is likely part of the cartridge. If a separate control or action (like pulling the spout) diverts the water, it’s a standalone diverter.

Consult the manufacturer’s documentation if available, as it can provide specific details about your diverter valve type. Most plumbing fixtures come with model numbers or markings that can help you identify the exact part. If you don’t have access to the manual, search online using the brand and model of your faucet or shower system. Many manufacturers offer diagrams or videos that illustrate the diverter valve type and its location, making identification easier.

Finally, test the diverter valve’s functionality to confirm its type and condition. Turn on the tub faucet and observe if water flows from the showerhead when you engage the diverter. If the water flow is weak or non-existent, or if you hear leaking behind the wall, the diverter valve may be clogged, worn, or damaged. Testing the valve will not only help you identify its type but also pinpoint the specific issue that needs fixing. With this information, you can proceed to the appropriate repair or replacement steps.

Shut Off Water Supply

Before attempting any repair on your tub shower diverter valve, it's crucial to shut off the water supply to prevent accidental flooding or water damage. The process of shutting off the water supply involves locating the main shut-off valve or the individual shut-off valves for the bathroom. Start by identifying the main water shut-off valve, typically located near the water meter or where the main water line enters your home. This valve controls the water flow to the entire house. Turn the valve clockwise to shut off the water supply. If you're unsure about the location of the main valve, consult your home's plumbing diagram or contact a professional plumber for guidance.

In some cases, you may find individual shut-off valves specifically for the bathroom or the tub/shower unit. These valves are usually located under the sink, behind the toilet, or near the water heater. If your bathroom has a separate shut-off valve, turn it clockwise to stop the water flow to the tub and shower. This targeted approach allows you to work on the diverter valve without affecting the water supply to other parts of the house. Make sure to test the faucets and showerhead after shutting off the valves to confirm that the water supply has been successfully cut off.

If you cannot locate individual shut-off valves for the bathroom, you may need to rely on the main shut-off valve. Once the main valve is closed, open the tub and shower faucets to relieve any residual water pressure in the lines. This step is essential to avoid water spraying or leaking when you start disassembling the diverter valve. Allow the water to drain completely before proceeding with the repair. Keep a bucket or container nearby to catch any remaining water that may spill out during this process.

After shutting off the water supply, it's a good practice to double-check that the water is indeed turned off. Try turning on the tub and shower faucets to ensure no water flows out. If water still comes out, recheck the shut-off valves to ensure they are fully closed. In some older homes, valves may be stiff or difficult to turn, requiring additional force or the use of a wrench. Be cautious not to overtighten the valves, as this can cause damage or make them harder to operate in the future.

In situations where the shut-off valves are inaccessible or not functioning properly, consider contacting a professional plumber. Attempting to repair the diverter valve without properly shutting off the water supply can lead to complications and potential water damage. A plumber can safely shut off the water and assess the condition of the valves, ensuring a secure environment for the repair work. Always prioritize safety and accuracy when dealing with plumbing repairs to avoid unnecessary risks and expenses.

Remove Old Diverter Valve

Before removing the old diverter valve, ensure you have turned off the water supply to the shower and tub. This is crucial to avoid any accidental water spillage during the process. Locate the main water shut-off valve for your bathroom or the individual shut-off valves for the shower and tub, typically found near the fixture or in the basement. Once the water is off, open the shower valve to release any residual water pressure.

Start by removing the shower handle and escutcheon plate to access the diverter valve. The handle is usually secured with a screw, which can be found underneath a decorative cap or directly on the handle. Use a screwdriver to remove this screw and lift the handle off. The escutcheon plate, which covers the valve body, can then be unscrewed or pried off gently using a flathead screwdriver. Be cautious not to damage the surrounding tiles or wall finish during this step.

With the handle and escutcheon plate removed, you’ll expose the diverter valve mechanism. Depending on the type of valve, you may see a stem with a screw or a cartridge-style valve. If it’s a screw-type valve, use a screwdriver to remove the screw holding the diverter in place. For cartridge-style valves, you may need a special puller tool or pliers to carefully extract the cartridge without causing damage. Take note of how the parts are positioned for easier reassembly later.

Next, inspect the valve for any signs of corrosion, mineral deposits, or damage. If the valve is stuck due to mineral buildup, use a penetrating oil or vinegar solution to loosen it. Allow the solution to sit for 15-30 minutes before attempting to remove the valve again. Once the valve is free, carefully pull it out of the valve body, ensuring you don’t drop any small parts into the wall cavity.

Finally, clean the valve body and surrounding area to prepare for the installation of the new diverter valve. Use a brush or cloth to remove any debris, old plumber’s tape, or residue. If there are stubborn deposits, a mild abrasive cleaner can be used. Ensure the area is dry before proceeding to the next steps of installing the new valve. This thorough preparation will help ensure a secure and leak-free installation.

Install New Diverter Valve

Before installing a new diverter valve, ensure you have the correct replacement part. Diverter valves come in various types, including screw-on, pull-up, and rotary styles, so verify compatibility with your existing setup. Purchase a new valve from a hardware store or online retailer, ensuring it matches the make and model of your shower system. Once you have the replacement, gather the necessary tools: an adjustable wrench, pliers, Teflon tape, a screwdriver, and possibly a tub socket tool if your valve is difficult to access. Turn off the water supply to the shower to avoid leaks during the installation process.

Begin by removing the old diverter valve. Start by unscrewing the shower handle or cap covering the valve using a screwdriver. Once exposed, use an adjustable wrench or pliers to carefully remove the old valve. If it’s stuck, apply gentle force or use a tub socket tool to avoid damaging the surrounding pipes. Clean the threads on the pipe where the valve was installed to ensure a smooth fit for the new valve. If the old valve was sealed with caulk or plumber’s putty, scrape away any residue to create a clean surface.

Next, prepare the new diverter valve for installation. Wrap the threads of the new valve with Teflon tape in a clockwise direction to create a watertight seal. Alternatively, apply pipe thread sealant if preferred. Carefully screw the new valve onto the pipe by hand, ensuring it is aligned correctly. Once hand-tightened, use an adjustable wrench to secure it firmly, but avoid over-tightening to prevent damage to the valve or threads. Test the valve by turning the shower handle to ensure it moves smoothly between tub and shower settings.

Reattach the shower handle or cap to the new diverter valve. Secure it with the appropriate screws, ensuring it is tight enough to prevent wobbling but not so tight that it damages the handle. Turn the water supply back on and test the shower and tub functions to ensure the diverter valve is working correctly. Check for any leaks around the valve or handle, and tighten connections further if necessary. If leaks persist, reapply Teflon tape or thread sealant and recheck the installation.

Finally, restore the aesthetic finish by reinstalling any escutcheon plates or trim pieces that were removed during the process. Ensure all components are securely in place and aligned properly. Test the shower and tub one more time to confirm the diverter valve operates smoothly and without leaks. Proper installation of a new diverter valve not only restores functionality but also prevents future plumbing issues, ensuring a reliable shower system for years to come.

Test for Leaks and Functionality

After repairing or replacing your tub shower diverter valve, it’s crucial to test for leaks and ensure proper functionality before considering the job complete. Start by turning on the shower and allowing water to flow through the system. Observe the diverter valve closely to check for any visible leaks around the handle, spindle, or connections. Even small drips can indicate a faulty seal or improper installation, so address these issues immediately. If you’ve replaced the valve, ensure all new components are tightened securely but not over-tightened, as this can damage the threads or gaskets.

Next, test the diverter valve’s functionality by switching between the tub and shower settings. Turn the handle to direct water to the showerhead and verify that water flow is strong and consistent, with no water coming out of the tub spout. Then, switch the handle to the tub setting and confirm that water flows exclusively from the tub spout, with no water escaping from the showerhead. If water continues to flow from the showerhead when the tub is on, the diverter valve may not be sealing properly, requiring further adjustment or replacement.

To check for hidden leaks, dry all surfaces around the valve and fixtures, then run the water for a few minutes. Inspect the area beneath the tub and around the valve for any signs of moisture or dripping. If you notice wet spots, turn off the water and investigate the source of the leak. Common culprits include loose connections, damaged O-rings, or a misaligned valve cartridge. Address these issues by tightening connections, replacing worn parts, or reinstalling the valve correctly.

Finally, test the system under pressure by turning on both the hot and cold water fully and letting the shower run for several minutes. This simulates real-world usage and helps identify any leaks or performance issues that may not appear during a brief test. Pay attention to the diverter valve handle for any wobbling or resistance, as this could indicate a problem with the internal mechanism. If everything functions smoothly and no leaks are detected, the repair or replacement is likely successful. However, if issues persist, revisit the installation steps or consult a professional plumber for assistance.

For added assurance, consider performing a second test after 24 hours to ensure no delayed leaks develop. This is especially important if the valve was difficult to install or if you’re unsure about the tightness of connections. Testing thoroughly now will save you from potential water damage and the hassle of redoing the repair later. Always remember that a properly functioning diverter valve not only ensures a comfortable showering experience but also prevents water waste and maintains the integrity of your plumbing system.
