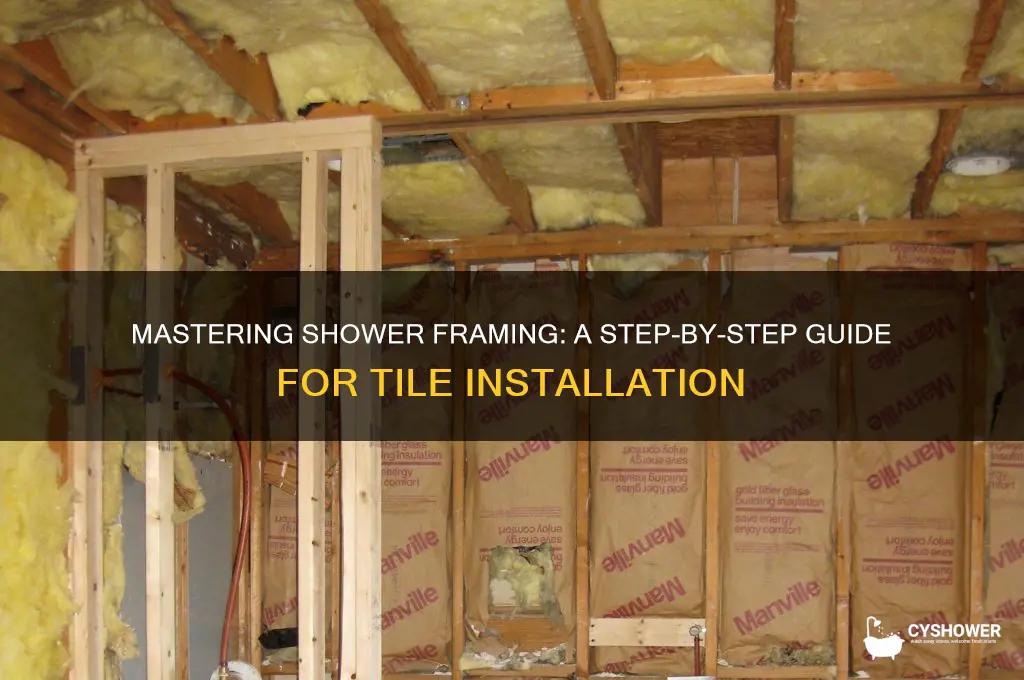

Framing a shower for tile installation is a critical step in creating a durable, water-resistant, and aesthetically pleasing shower space. Proper framing ensures the structural integrity of the shower, provides a solid base for waterproofing, and supports the weight of the tile and mortar. This process involves planning the layout, selecting appropriate materials such as pressure-treated lumber or metal studs, and constructing a sturdy frame that accounts for slope, drainage, and waterproofing membranes. Attention to detail during framing is essential to prevent leaks, mold, and structural issues, making it a foundational aspect of any successful tile shower project.
| Characteristics | Values |
|---|---|
| Framing Material | Pressure-treated lumber (e.g., 2x4s or 2x6s) for moisture resistance. |
| Waterproofing | Use waterproof membranes (e.g., cement board, Kerdi-Board) behind tile. |
| Shower Pan Construction | Pre-fabricated shower pan or custom mortar bed with slope to drain. |
| Wall Framing | Studs spaced 16" or 24" on-center, ensuring proper support for tile weight. |
| Drain Placement | Centered or positioned according to shower design, with proper slope. |
| Moisture Barrier | Apply liquid waterproofing or polyethylene sheeting behind walls. |
| Tile Backer Board | Cement board (e.g., HardieBacker) or foam boards (e.g., Kerdi-Board). |
| Expansion Joints | Include expansion joints in tile layout to prevent cracking. |
| Door Framing | Reinforce door openings with headers and double studs for stability. |
| Ventilation | Ensure proper ventilation to prevent mold and mildew. |
| Code Compliance | Follow local building codes for framing, waterproofing, and drainage. |
| Tile Layout Planning | Plan tile layout to minimize cuts and ensure proper alignment with framing. |
| Sealing Grout and Edges | Use waterproof grout and seal edges to prevent water penetration. |
| Shower Curb (if applicable) | Build a sloped curb with waterproofing to contain water within the shower. |
| Tools Required | Circular saw, drill, level, waterproofing membrane, cement board screws. |
| Drying Time | Allow waterproofing layers to cure fully before tiling (typically 24-48 hrs). |
| Professional Consultation | Recommended for complex designs or to ensure compliance with local codes. |
Explore related products
What You'll Learn
Plan Layout and Measurements
Accurate planning and precise measurements are the backbone of a successful shower framing project. Begin by assessing the available space and determining the shower’s dimensions. Standard shower sizes range from 36x36 inches for a compact stall to 60x42 inches for a luxurious walk-in, but custom layouts can vary. Sketch the layout on graph paper, accounting for the shower pan, curb (if applicable), and tile thickness. Remember, tiles typically add ¼ to ⅜ inch per layer, so factor this into your measurements to avoid cramped or uneven spaces.
Consider the shower’s orientation and how it interacts with surrounding fixtures. For example, a curb-less shower requires a slight slope toward the drain, while a curbed design needs a 2x4 frame to support the threshold. Use a level and chalk lines to mark the floor and walls, ensuring alignment with plumbing fixtures like the drain and supply lines. Double-check measurements against the manufacturer’s specifications for the shower pan or membrane to prevent costly mistakes during installation.
Instructive precision is key when framing for tile. Measure twice, cut once—this adage holds especially true here. Use a stud finder to locate wall studs and mark their positions, as these will anchor the frame. For walls, standard stud spacing is 16 or 24 inches on center, but verify this with your local building codes. If adding niches or benches, plan their placement early, ensuring they align with studs for structural integrity. Precut 2x4s to fit these dimensions, leaving room for cement board and tile.
Comparatively, DIYers often overlook the importance of waterproofing in the planning phase. Unlike drywall, showers require moisture-resistant materials like cement board or fiber cement panels. Plan to extend these materials at least 6 inches beyond the shower area to create a waterproof barrier. If using a liquid membrane, ensure it covers all seams and corners. This step, though not part of the frame itself, is critical to the longevity of your tile installation and must be integrated into your layout.
Finally, a persuasive argument for thorough planning is the avoidance of mid-project setbacks. A well-thought-out layout minimizes material waste, reduces labor time, and ensures compliance with building codes. For instance, if your shower requires a vapor barrier or additional insulation, incorporate these into your measurements from the start. By investing time upfront to plan and measure meticulously, you’ll create a sturdy, watertight foundation that simplifies the tiling process and guarantees a professional finish.
