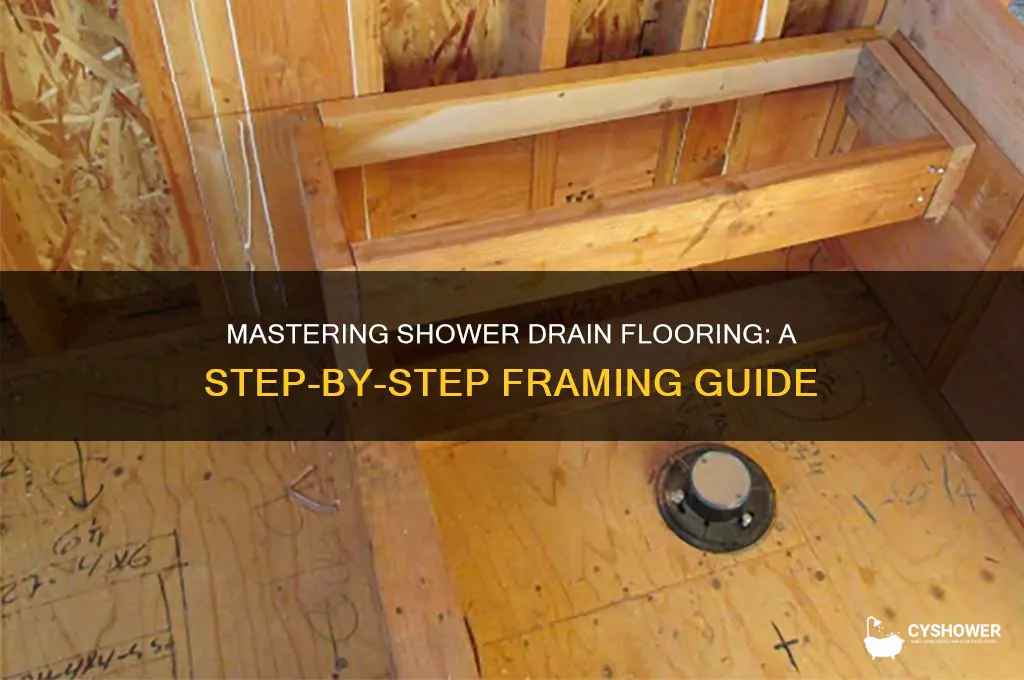

Framing a floor for a shower drain is a critical step in bathroom construction or renovation, ensuring proper drainage and structural integrity. This process involves precise planning and execution to create a sloped subfloor that directs water toward the drain while maintaining a level surface for the shower pan or tile installation. Key considerations include determining the correct slope (typically 1/4 inch per foot), selecting appropriate materials such as pressure-treated lumber or cement backer board, and ensuring the framing aligns with plumbing requirements. Properly framing the floor not only prevents water pooling and potential leaks but also lays the foundation for a durable and functional shower system. Attention to detail during this phase is essential to avoid common issues like improper drainage or structural weaknesses.
| Characteristics | Values |
|---|---|
| Framing Material | Pressure-treated lumber (2x4 or 2x6) resistant to moisture and rot |
| Subfloor Material | 3/4" marine-grade plywood or cement backer board |
| Drain Location | Centered in shower pan, following manufacturer's instructions |
| Slope (Pitch) | 1/4" per foot towards the drain (minimum) |
| Drain Flange Height | Adjusted to ensure proper slope and tile thickness |
| Shower Pan Liner | 6 mil polyethylene or PVC liner, extending up walls 6-8 inches |
| Waterproofing Membrane | Applied over subfloor and up walls before tiling |
| Support Structure | Double joists or additional blocking under drain for added strength |
| Ventilation | Ensure proper bathroom ventilation to prevent moisture buildup |
| Code Compliance | Follow local building codes for shower drain installation |
| Tools Required | Circular saw, drill, level, chalk line, utility knife, stapler/nail gun |
| Pre-slope Material | Mortar or foam board to create initial slope before waterproofing |
| Drain Assembly | Includes drain body, strainer, and clamping ring compatible with shower pan liner |
| Sealing | Use silicone sealant around drain and liner edges to prevent leaks |
| Testing | Flood test before tiling to ensure no leaks |
Explore related products
What You'll Learn
Plan Drain Location
When planning the drain location for a shower, the first step is to consult local building codes and regulations, as these will dictate specific requirements for drain placement, slope, and venting. Ensure that the drain is positioned in a way that complies with these standards to avoid any issues during inspections. Typically, the shower drain should be centered in the shower pan to facilitate proper water flow and prevent standing water, which can lead to mold and mildew.
Next, consider the overall layout of the shower and bathroom. The drain should be located in a spot that aligns with the shower’s design and functionality. For example, if the shower has a linear drain, it is often placed along one of the longer walls to create a sleek, modern look. For a traditional center drain, ensure it is positioned where it won’t interfere with fixtures like showerheads, benches, or niches. Measure the shower area carefully and mark the drain location on the floor to visualize its placement.
The slope of the shower floor is critical for proper drainage, and the drain location plays a central role in achieving this. The floor should slope toward the drain at a minimum gradient of 1/4 inch per foot. Plan the drain location so that it allows for this slope in all directions. Use a chalk line or laser level to map out the slope from the shower walls to the drain, ensuring water will flow efficiently without pooling.
If the shower is part of a bathroom renovation or new construction, coordinate the drain location with the plumbing layout. The drain must align with the existing or planned plumbing stack to minimize the need for extensive pipe rerouting, which can add to costs and complexity. Work with a plumber to determine the best position for the drain in relation to the waste lines and venting system.
Finally, consider accessibility and user experience when planning the drain location. For walk-in showers or barrier-free designs, the drain should be placed in a way that doesn’t create tripping hazards or obstruct the entry/exit path. Additionally, ensure the drain is easily accessible for cleaning and maintenance. Once the location is finalized, mark it clearly on the subfloor before framing to ensure accuracy during installation.
Effective DIY Methods to Unclog Your Basement Shower Drain Fast
You may want to see also
Explore related products
Install Drain Assembly
Before installing the drain assembly, ensure the shower floor is properly framed and sloped to direct water toward the drain. Begin by verifying that the subfloor is level and structurally sound. The framing should include a slope of approximately 1/4 inch per foot toward the drain location. This can be achieved by installing tapered sleepers or using a mortar bed, but for simplicity, many DIYers opt for a pre-sloped shower pan or a foam base. Once the slope is confirmed, mark the center point for the drain on the subfloor.
Next, prepare the drain assembly according to the manufacturer’s instructions. Typically, this involves attaching the drain body to the drain pipe, ensuring it is securely connected and properly aligned. The drain body should be threaded or solvent-welded to the pipe, depending on the type of plumbing system. Apply plumber’s tape or thread sealant to the threads to ensure a watertight seal. Position the drain body through the pre-cut hole in the subfloor, ensuring it sits flush with the surface. Secure it from below using the provided locking nut or screws, tightening it firmly to prevent movement.
With the drain body in place, install the drain flange or strainer on the top side of the subfloor. This component will hold the shower base or waterproofing membrane in place while allowing water to flow into the drain. Apply a bead of silicone caulk or waterproofing sealant around the underside of the flange to create a watertight barrier. Press the flange into position over the drain body, ensuring it is centered and level. Secure it using the provided screws, taking care not to overtighten, as this can damage the flange or compromise the seal.
After securing the drain flange, test the assembly for leaks by pouring water into the drain and checking for any signs of moisture below. If leaks are detected, disassemble the drain and reapply sealant or adjust the connections as needed. Once the drain is confirmed to be leak-free, proceed with installing the shower base or waterproofing membrane, ensuring it overlaps the drain flange properly. This step is critical to prevent water from seeping beneath the shower floor and causing damage to the subfloor or framing.
Finally, complete the installation by attaching the drain cover or grate to the flange. Ensure it fits snugly and aligns with the surrounding shower floor material. Test the drain one more time by running water through it to confirm proper flow and drainage. With the drain assembly installed correctly, you can proceed with tiling or finishing the shower floor, confident that the drainage system is functional and secure. Always follow local building codes and manufacturer guidelines for the best results.
Fixing RV Shower Drain Leaks: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Slope Subfloor for Drainage
When framing a floor for a shower drain, one of the most critical steps is ensuring the subfloor slopes correctly toward the drain to facilitate proper drainage. This slope, often referred to as a "pre-slope," is essential to prevent water from pooling and causing structural damage or mold growth. The goal is to create a gentle, consistent slope that directs water efficiently toward the drain. Start by planning the layout of your shower area, ensuring the drain is positioned at the lowest point. The subfloor should slope downward at a rate of approximately 1/4 inch per foot toward the drain. This gradient is steep enough to encourage water flow but not so steep that it becomes uncomfortable to stand on.
Before installing the subfloor, verify that the joists are level and structurally sound. Any unevenness in the joists can interfere with the slope, so shim or adjust them as needed. Once the joists are prepared, attach a layer of 3/4-inch exterior-grade plywood to create the subfloor. This plywood will serve as the base for the slope. To achieve the slope, you can use additional layers of plywood or a cementitious backer board. For example, cut strips of plywood or backer board to the desired thickness (based on the 1/4 inch per foot slope) and attach them to the subfloor, starting from the shower threshold and tapering down to the drain. Ensure these strips are securely fastened to provide a stable base for the waterproofing and tile layers.
After establishing the slope, it’s crucial to test the drainage before proceeding with waterproofing. Pour water onto the subfloor and observe how it flows toward the drain. Adjust the slope as needed to ensure there are no low spots where water might collect. Once the slope is confirmed, apply a waterproofing membrane over the sloped subfloor to protect it from moisture. This membrane should extend up the walls and over the curb to create a watertight barrier. Follow the manufacturer’s instructions for proper installation, ensuring all seams and corners are fully sealed.
Another method to create the slope is using a mortar bed, which provides a more traditional and durable solution. Mix a dry-pack mortar (a thick, dry mortar mix) and trowel it onto the subfloor, building up the slope from the threshold to the drain. This method allows for precise control over the gradient and provides a solid base for tile installation. However, it requires more skill and time compared to using layered plywood or backer board. Regardless of the method chosen, the key is to maintain consistency in the slope to ensure effective drainage.
Finally, after the sloped subfloor is in place and waterproofed, you can proceed with installing the shower pan liner and tile. Ensure the drain is properly installed and aligned with the slope to avoid any obstructions. The tile should follow the slope, maintaining the gradient without creating uneven surfaces. Properly sloping the subfloor for drainage is a foundational step in shower construction, ensuring longevity and functionality. Taking the time to get this step right will prevent costly repairs and water damage in the future.
Quick DIY Guide: Tightening a Loose Shower Panel Easily
You may want to see also
Explore related products
Waterproof Subfloor Area
When framing a floor for a shower drain, creating a waterproof subfloor area is crucial to prevent water damage and ensure the longevity of your bathroom structure. The process begins with selecting the right materials. Use a moisture-resistant subflooring material such as marine-grade plywood or cement backer board. These materials are designed to withstand the constant exposure to water and humidity typical in shower areas. Ensure the subfloor is clean, dry, and free of any debris before proceeding.
Next, prepare the area around the shower drain by cutting a hole in the subfloor that matches the size of your drain assembly. The hole should be precise to ensure a snug fit for the drain, minimizing the risk of leaks. Once the hole is cut, inspect the edges to ensure they are smooth and free of splinters or rough spots that could compromise the waterproofing. Apply a bead of silicone caulk or waterproof membrane around the edges of the hole to create a seal between the drain assembly and the subfloor.
After addressing the drain area, apply a waterproof membrane over the entire subfloor surface. Products like liquid waterproofing membranes or sheet membranes (e.g., PVC or rubber) are commonly used. For liquid membranes, follow the manufacturer’s instructions to apply an even coat using a roller or brush, ensuring complete coverage. For sheet membranes, cut the material to fit the subfloor, paying special attention to corners and edges, and secure it with approved adhesives or fasteners. Allow the membrane to cure or set according to the product guidelines.
In areas where the subfloor meets the walls, ensure the waterproofing extends up the walls by at least 6 inches to create a continuous barrier against water intrusion. This is especially important in shower installations where water can splash and run along the walls. Use waterproofing tape or fabric to reinforce seams and corners, ensuring no gaps are left exposed. Properly sealing these transitions is critical to preventing water from seeping into the subfloor or wall cavities.
Finally, test the waterproofing before proceeding with tiling or other finishes. One common method is to fill the shower area with water and let it sit for 24 hours, checking for any signs of leakage below the subfloor. If no leaks are detected, proceed with confidence, knowing your subfloor is adequately protected. A well-executed waterproof subfloor area not only safeguards your bathroom structure but also provides peace of mind for years to come.
Easy DIY Guide to Repairing Your Shower Drain Seal
You may want to see also
Explore related products
Secure Drain to Waste Pipe
Before securing the drain to the waste pipe, ensure the shower drain assembly is correctly positioned and aligned with the waste pipe. Start by placing the drain body into the pre-cut hole in the shower pan or floor. The drain body should sit flush with the surface, ensuring a watertight seal. Use a level to confirm that the drain is perfectly horizontal, as this will prevent water from pooling around the edges. Once aligned, secure the drain body temporarily with duct tape or adjustable clamps to hold it in place while you work on connecting it to the waste pipe.
Next, measure and mark the exact position where the waste pipe will connect to the drain body. The waste pipe should align precisely with the drain’s outlet to ensure a smooth flow of water. If the waste pipe needs to be cut to size, use a hacksaw or PVC cutter to achieve a clean, straight edge. Deburr the cut end of the pipe to ensure a smooth connection. Apply a generous amount of PVC primer to both the drain outlet and the waste pipe end, following the manufacturer’s instructions. This step is crucial for creating a strong, leak-free joint.
After priming, apply PVC cement to both surfaces, ensuring full coverage. Quickly insert the waste pipe into the drain outlet, twisting it slightly to spread the cement evenly. Hold the pipe firmly in place for about 30 seconds to allow the cement to set initially. Use a level again to confirm that the waste pipe remains aligned with the drain body. If necessary, adjust the position before the cement fully cures. Wipe away any excess cement with a clean cloth to maintain a neat appearance.
To further secure the connection, consider using stainless steel hose clamps or threaded adapters, depending on the type of drain assembly. Tighten the clamps or adapters securely, but avoid over-tightening, as this can damage the PVC components. Once the connection is secure, allow the cement to cure completely according to the manufacturer’s recommended time, typically at least 24 hours. This ensures the joint is fully hardened and ready for use.
Finally, test the connection for leaks by pouring water into the drain and observing the waste pipe. If no leaks are detected, proceed with the remaining steps of the shower installation. Properly securing the drain to the waste pipe is essential for preventing water damage and ensuring the longevity of your shower system. Always follow local plumbing codes and manufacturer guidelines for the best results.
Secure Your Shower: Easy Steps to Fix a Loose Grab Bar
You may want to see also
Frequently asked questions
The shower floor should slope at a minimum of 1/4 inch per foot toward the drain to ensure proper water drainage and prevent standing water.
Measure the shower base dimensions and mark the center point on the subfloor. Align the drain location with this center point, ensuring it’s directly below the shower base’s drain hole.
Use pressure-treated lumber or a moisture-resistant material like PVC for the framing under the shower drain to prevent rot and ensure long-term stability in a wet environment.
