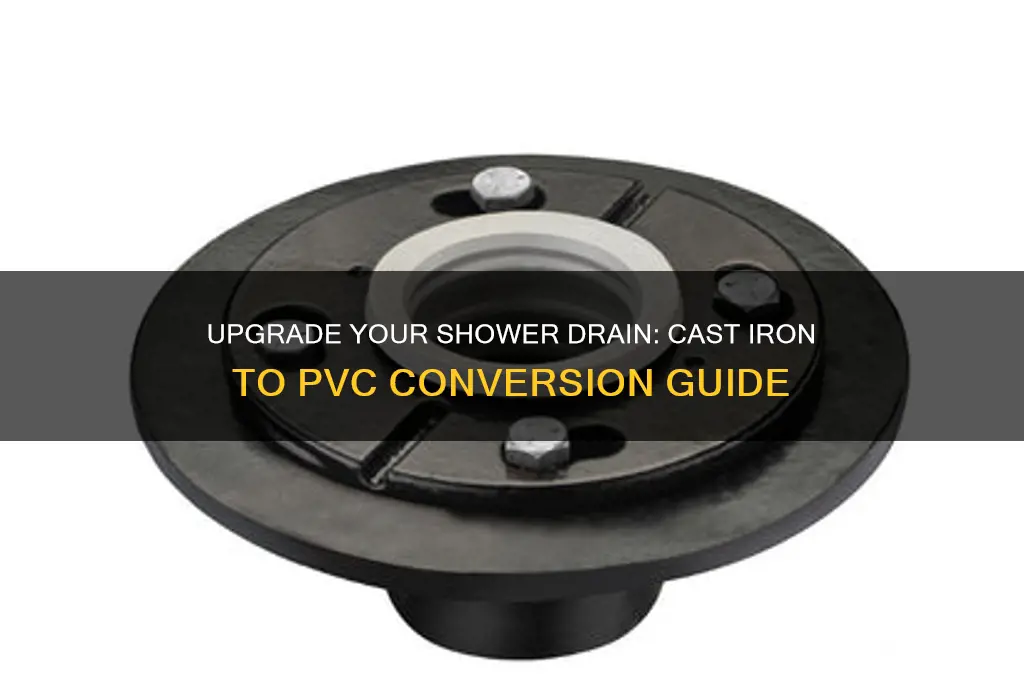

Upgrade Your Shower Drain: Cast Iron To Pvc Conversion Guide

Transitioning from a cast iron shower drain to PVC is a common plumbing upgrade that offers durability, ease of installation, and resistance to corrosion. Cast iron drains, while sturdy, are prone to rust and can be cumbersome to work with, especially during repairs or replacements. PVC, on the other hand, is lightweight, affordable, and compatible with modern plumbing systems. To make this switch, you’ll need to carefully remove the existing cast iron drain, ensure proper measurements for the new PVC components, and use appropriate adapters or couplings to connect the two materials. This process requires basic plumbing tools, such as a hacksaw, PVC cement, and a wrench, along with attention to detail to ensure a watertight seal. By following step-by-step instructions, homeowners can successfully complete this upgrade, improving their shower’s functionality and longevity.

Removing Old Cast Iron Drain: Safely disconnect and remove the existing cast iron shower drain assembly

Begin by turning off the water supply to the shower to prevent any accidental leaks or spills during the removal process. Next, use a screwdriver or utility knife to carefully remove any caulk or sealant around the drain cover and the surrounding tile or shower floor. This will allow you to access the drain assembly without damaging the surrounding materials. Once the area is clear, remove the drain cover by unscrewing it or prying it out gently, depending on its design. Be cautious not to force anything, as cast iron components can be brittle and prone to cracking.

With the drain cover removed, locate the screws or bolts securing the cast iron strainer to the drain body. Use the appropriate screwdriver or wrench to loosen and remove these fasteners. If the strainer is stubborn or rusted in place, apply a penetrating oil like WD-40 and allow it to sit for 15–30 minutes before attempting to remove it again. Once the strainer is free, lift it out of the drain opening. Take note of the condition of the drain body and surrounding pipe—if there is significant rust or damage, additional repairs may be necessary before installing the new PVC drain.

Now, focus on disconnecting the cast iron drain pipe from the trap or main drain line. Depending on your setup, this may involve unscrewing threaded connections or cutting through the pipe. If the pipe is threaded, use a pipe wrench to carefully unscrew it, taking care not to damage the threads on the adjacent PVC pipe. If the pipe is cemented or soldered, use a reciprocating saw or hacksaw to cut through the cast iron, ensuring you leave enough length for a proper connection to the new PVC drain. Always wear safety goggles and gloves during this step, as cutting cast iron can produce sharp debris and dust.

After the cast iron pipe is disconnected, remove the remaining drain body from the shower floor. This may require prying it out gently with a flathead screwdriver or chisel, but be cautious not to crack the surrounding tile or shower pan. If the drain body is stuck due to rust or mineral buildup, apply a rust dissolver or vinegar solution to loosen it before attempting removal. Once the drain body is free, clean the opening thoroughly to remove any debris, old putty, or residue, ensuring a smooth surface for the new PVC drain installation.

Finally, inspect the area where the cast iron drain was located to ensure there are no hidden issues, such as water damage or mold. If the subfloor or surrounding materials are compromised, address these issues before proceeding with the PVC installation. Properly disposing of the old cast iron components is also important, as they are heavy and may require special handling depending on your local waste disposal regulations. With the old drain assembly safely removed, you’re now ready to transition to the PVC drain installation phase.

Preparing PVC Connections: Ensure proper sizing and compatibility of PVC pipes and fittings for the replacement

When transitioning from a cast iron shower drain to PVC, ensuring proper sizing and compatibility of PVC pipes and fittings is crucial for a successful and leak-free installation. Begin by measuring the diameter of the existing cast iron drain pipe. Standard sizes for shower drains are typically 2 inches, but it’s essential to verify this with a tape measure or caliper to ensure accuracy. PVC pipes and fittings are available in nominal sizes, which correspond to the inner diameter of the pipe. Match the PVC pipe size to the cast iron drain’s diameter to maintain proper flow and compatibility.

Next, inspect the condition of the cast iron drain and determine the type of connection needed. If the cast iron pipe is in good condition and you’re only replacing the drain assembly, you may need a PVC adapter that transitions from cast iron to PVC. Common adapters include no-hub couplings or transition fittings designed to connect dissimilar materials. Ensure the adapter is compatible with both the cast iron and PVC systems, and verify that it meets local plumbing codes.

Before cutting or assembling PVC pipes, dry-fit the components to ensure proper alignment and sizing. Lay out the PVC pipe and fittings alongside the cast iron drain to visualize the connection points. Use a PVC primer and cement to create a secure, watertight seal once you’re confident in the fit. Remember that PVC cement sets quickly, so have all components ready before applying it. Additionally, check that the slope of the PVC pipe matches the existing drain’s gradient (typically 1/4 inch per foot) to ensure proper drainage.

When selecting PVC fittings, such as elbows, tees, or couplings, ensure they are the same size and schedule as the pipe. PVC pipes are available in different schedules (e.g., Schedule 40 or Schedule 80), with Schedule 40 being the most common for residential drain applications. Mismatched schedules can lead to leaks or improper fit, so double-check the specifications before purchasing. If in doubt, consult a plumbing professional or refer to manufacturer guidelines for compatibility.

Finally, consider the length and alignment of the PVC pipe in relation to the cast iron drain. Measure the distance between the existing drain and the new PVC connection point, and cut the PVC pipe to the appropriate length using a PVC cutter or hacksaw. Ensure the cut ends are clean and deburred to allow for smooth connections. Proper preparation of PVC connections not only ensures a secure fit but also simplifies the installation process, reducing the risk of future issues. By taking the time to verify sizing and compatibility, you’ll create a durable and efficient transition from cast iron to PVC.

Installing PVC Drain Assembly: Securely attach the new PVC drain components to the shower base

When transitioning from a cast iron shower drain to a PVC system, the first step in installing the PVC drain assembly is to ensure the shower base is clean and free of debris. Remove any remnants of the old cast iron drain, including putty, caulk, or old gaskets. Use a scraper or wire brush to clean the area thoroughly, ensuring a smooth and even surface for the new PVC components. This preparation is crucial for a secure and leak-free installation. Once the area is clean, inspect the shower base for any cracks or damage that could compromise the integrity of the new drain assembly.

Next, position the new PVC drain body into the shower base opening. Ensure it fits snugly and is aligned properly with the slope of the shower base to allow for adequate water drainage. Most PVC drain bodies come with adjustable height mechanisms, so adjust the drain body to the correct height, ensuring it sits flush with the shower base. Use a level to confirm that the drain is perfectly horizontal, as improper alignment can lead to standing water or drainage issues. Once aligned, temporarily secure the drain body in place using plumber’s putty or silicone caulk around the top edge to create a watertight seal.

With the drain body in position, attach the PVC drain tailpiece to the bottom of the drain body. Apply PVC primer to the mating surfaces of both the drain body and the tailpiece, followed by PVC cement to create a strong, solvent-welded joint. Hold the pieces together firmly for a few seconds to ensure proper bonding. Double-check that the tailpiece is aligned with the existing drain pipe below the shower base. If adjustments are needed, make them before the cement fully sets. This connection is critical for ensuring that water flows smoothly from the shower base into the drain system.

After securing the tailpiece, install the drain strainer or cover onto the top of the drain body. Apply a bead of silicone caulk around the underside of the strainer to create a watertight seal with the shower base. Press the strainer firmly into place, removing any excess caulk that squeezes out. Allow the caulk to cure according to the manufacturer’s instructions before using the shower. This step not only completes the aesthetic look of the drain but also prevents water from seeping between the strainer and the shower base.

Finally, test the new PVC drain assembly for leaks by running water into the shower and checking for any signs of moisture or dripping below the shower base. If leaks are detected, tighten connections or reapply caulk as needed. Once the system is confirmed to be leak-free, the installation is complete. This process ensures a secure and durable transition from a cast iron drain to a PVC assembly, providing efficient drainage and long-term reliability for your shower.

Sealing and Waterproofing: Apply plumber’s putty or silicone to prevent leaks at connection points

When transitioning from a cast iron shower drain to PVC, sealing and waterproofing the connection points is crucial to prevent leaks and ensure a durable installation. The primary materials for this task are plumbers putty and silicone sealant, each with its own advantages depending on the specific application. Plumbers putty is a pliable, non-hardening substance ideal for creating a watertight seal around drain flanges and slip joints, while silicone sealant offers a more permanent, flexible bond that can withstand movement and temperature fluctuations. Before applying either material, ensure the surfaces are clean, dry, and free of debris to maximize adhesion and sealing effectiveness.

To begin sealing the connection points, start by applying plumbers putty to the underside of the drain flange or adapter that connects the cast iron drain to the PVC pipe. Roll a small amount of putty into a snake-like shape and press it evenly around the flange, ensuring it forms a continuous bead. When installing the flange, press it firmly into place, allowing the excess putty to squeeze out around the edges. Wipe away the excess with a damp cloth, leaving a smooth, watertight seal. This method is particularly effective for securing the drain assembly to the shower pan or tub, as it prevents water from seeping beneath the flange.

For areas where movement or vibration may occur, such as the connection between cast iron and PVC pipes, silicone sealant is the preferred choice. Apply a high-quality, waterproof silicone sealant to the mating surfaces of the adapter or coupling, ensuring full coverage of the joint. Use a caulking gun for precision and smooth the sealant with a damp finger or tool to remove air pockets and create a uniform seal. Silicone’s flexibility allows it to accommodate minor shifts in the plumbing system without cracking or failing, making it ideal for long-term waterproofing.

When connecting threaded fittings, such as a cast iron drain body to a PVC tailpiece, consider using a combination of Teflon tape and silicone sealant for added protection. Wrap Teflon tape clockwise around the male threads to create a preliminary seal, then apply a thin layer of silicone to the threads before tightening the connection. This dual approach ensures a tight, leak-free joint that can withstand water pressure and temperature changes. Always follow manufacturer guidelines for curing times to allow the silicone to set properly before testing the system.

Finally, inspect all sealed areas after installation and perform a water test to verify there are no leaks. Run water through the drain and check beneath the shower or tub for any signs of moisture. If leaks are detected, remove the excess water, allow the area to dry, and reapply the sealant as needed. Proper sealing and waterproofing not only prevent water damage but also extend the lifespan of the plumbing system, making it a critical step in the transition from cast iron to PVC.

Testing for Leaks: Run water and check for leaks before fully securing the installation

Once you’ve completed the transition from a cast iron shower drain to PVC, it’s crucial to test for leaks before fully securing the installation. This step ensures that your work is watertight and prevents potential water damage down the line. Start by slowly running water into the shower drain, allowing it to flow steadily for several minutes. Observe the connection points between the cast iron and PVC components, including the adapter, couplings, and any seals or gaskets you’ve installed. Look for any signs of water seepage, no matter how minor, as even small leaks can escalate into larger problems.

Next, inspect the area beneath the shower drain, typically accessible through the floor or ceiling below, depending on your plumbing setup. Use a flashlight to carefully examine the underside of the drain assembly and the surrounding area. If you notice any moisture or dripping water, it’s a clear indication of a leak. Pay close attention to the joints where the cast iron meets the PVC adapter and where the PVC pipes connect to each other, as these are common areas for leaks to occur.

While the water is running, also check the shower pan or floor around the drain for any pooling water or dampness. Sometimes leaks can travel along surfaces before becoming visible, so a thorough inspection is essential. If you’re unsure whether moisture is from the test or pre-existing, dry the area beforehand and look for new wet spots during the test. Additionally, listen for any unusual sounds, such as dripping or gurgling, which could signal a hidden leak within the walls or floor.

If you identify a leak, shut off the water immediately and disassemble the problematic joint. Reapply plumber’s tape, sealant, or gasket material as needed, ensuring all surfaces are clean and dry before reassembling. Repeat the leak test after each adjustment until no leaks are detected. It’s better to address issues now rather than after fully securing the installation, as fixing leaks later can be more complicated and costly.

Finally, once you’re confident there are no leaks, proceed with fully securing the installation. Tighten all connections according to manufacturer instructions, but avoid over-tightening, as this can damage the PVC or gaskets. After securing everything, run water through the drain one more time as a final check. This meticulous approach to testing for leaks ensures a reliable and long-lasting transition from cast iron to PVC shower drain.
