Installing a ceramic tile shower is a rewarding DIY project that can enhance both the functionality and aesthetic appeal of your bathroom. The process involves several key steps, including proper planning, surface preparation, and precise execution. Begin by measuring the shower area and selecting the appropriate tiles, ensuring they are suitable for wet environments. Next, prepare the substrate by cleaning and waterproofing it, often using a cement backer board and a liquid membrane. Laying out the tiles in a dry run helps visualize the design and ensure proper alignment. Once ready, apply a suitable adhesive to the substrate and set the tiles, using spacers to maintain consistent gaps. After the adhesive cures, grout the joints, and finally, seal the tiles and grout to protect against moisture. With careful attention to detail and the right tools, you can achieve a professional-looking ceramic tile shower that stands the test of time.
| Characteristics | Values |
|---|---|
| Surface Preparation | Ensure surface is clean, dry, and level. Remove any debris or old material. |
| Waterproofing | Apply a waterproofing membrane (e.g., liquid waterproofing or sheet membrane) to prevent water damage. |
| Substrate Material | Use cement backer board or concrete board as the base for tiling. |
| Tile Layout Planning | Plan tile layout to minimize cuts and ensure symmetry. Use chalk lines or tile spacers. |
| Adhesive Type | Use a thinset mortar suitable for ceramic tiles and moisture-prone areas. |
| Tile Spacing | Maintain consistent grout lines (typically 1/16 to 1/8 inch) using spacers. |
| Tile Cutting | Use a wet saw or tile cutter for precise cuts around fixtures and edges. |
| Grout Application | Apply grout after tiles are set (typically 24-48 hours). Use unsanded grout for joints <1/8 inch. |
| Sealing | Seal grout lines and tiles with a penetrating sealer to prevent staining and moisture absorption. |
| Drain Installation | Ensure the shower drain is properly installed and aligned with the slope of the shower floor. |
| Slope and Drainage | Create a slope of 1/4 inch per foot toward the drain to ensure proper water drainage. |
| Curing Time | Allow thinset and grout to cure fully (follow manufacturer’s instructions, typically 24-72 hours). |
| Tools Required | Tile cutter, trowel, notched spreader, sponge, grout float, level, waterproofing brush, etc. |
| Safety Precautions | Wear gloves, safety glasses, and a dust mask when cutting tiles or mixing thinset. |
| Cost Estimate | Varies based on tile size, quality, and labor; typically $1,500-$5,000 for materials and installation. |
| Time Frame | 3-5 days for DIY installation, depending on experience and shower size. |
| Maintenance Tips | Regularly clean tiles and grout, reapply sealer every 1-2 years, and inspect for leaks. |
Explore related products
What You'll Learn
- Prepare the Shower Surface: Clean, dry, and ensure walls are smooth, level, and ready for tile installation
- Plan Tile Layout: Measure space, mark reference lines, and arrange tiles to minimize cuts and ensure alignment
- Apply Thinset Mortar: Spread adhesive evenly using a notched trowel, following manufacturer’s instructions for proper coverage
- Set Tiles: Press tiles firmly into thinset, using spacers for consistency, and adjust for level alignment
- Grout and Seal: Fill gaps with grout, wipe excess, and apply sealant to protect tiles and grout lines
Prepare the Shower Surface: Clean, dry, and ensure walls are smooth, level, and ready for tile installation
A poorly prepared shower surface can lead to tiles that crack, grout that crumbles, and water damage that festers behind the walls. Before you lay a single tile, the shower surface must be immaculate: clean, dry, and structurally sound. Start by removing all soap scum, mildew, and mineral deposits using a trisodium phosphate (TSP) solution (mix ½ cup TSP per gallon of warm water). Wear gloves and goggles, as TSP is caustic. Scrub vigorously with a stiff brush, rinse thoroughly, and allow the surface to dry completely for at least 24 hours. Moisture trapped beneath tiles is a recipe for mold and adhesion failure.
Uneven walls or surfaces with old adhesive residue will sabotage your tile installation. Inspect the walls for any protrusions, holes, or dents. Fill imperfections with a waterproof patching compound, such as a polymer-modified thinset mortar, and sand the area smooth once it cures. Use a 4-foot level to check for flatness; walls should deviate no more than 1/8 inch over 8 feet. If the surface is severely uneven, consider installing cement backer board as a substrate. This step is non-negotiable—tiles will crack or loosen if adhered to an uneven base.
Porous surfaces, like drywall, must be primed with a paintable waterproofing membrane (e.g., RedGard or AquaDefense) before tiling. Follow the manufacturer’s instructions for application, typically rolling or brushing on two coats, allowing each to dry completely. For cement board or concrete surfaces, a single coat of a latex-modified thinset mortar mixed with water (5:1 ratio by weight) can serve as both a primer and a bonding agent. Skip this step, and water will seep behind tiles, causing rot and mold.
Finally, plan for expansion and movement by ensuring the surface is free of obstructions and properly aligned. Mark the layout of tiles using a level and straightedge, accounting for the size of your tiles and grout lines. If installing a niche or bench, verify that the surrounding walls are plumb and the niche is securely anchored. A well-prepared surface is invisible in the final product but essential for longevity. Take the time to prepare it correctly—your tiles (and future self) will thank you.
Can You Tile Over Tile in Showers? Expert Tips and Guidelines
You may want to see also
Explore related products
Plan Tile Layout: Measure space, mark reference lines, and arrange tiles to minimize cuts and ensure alignment
Accurate planning of your tile layout is the linchpin of a successful ceramic tile shower installation. Begin by measuring the shower space meticulously, noting the dimensions of walls, niches, and any obstructions. Use a tape measure and record the length and height of each wall, ensuring precision to the nearest eighth of an inch. This foundational step prevents costly mistakes and material waste, as it informs the number of tiles needed and their arrangement.
Once measurements are finalized, mark reference lines to guide tile placement. Start by drawing a level horizontal line around the shower’s perimeter, typically at the midpoint of the wall height. This line serves as a baseline for aligning tiles vertically. Next, snap vertical chalk lines from this horizontal reference to ensure straight rows. For showers with multiple walls, extend these lines across adjacent surfaces to maintain continuity. A laser level can enhance accuracy, especially in larger spaces or where walls are uneven.
Arranging tiles strategically minimizes cuts and ensures a polished finish. Begin by dry-laying tiles on the floor, starting from the center of the wall and working outward. This approach ensures that any necessary cuts are relegated to less visible edges. For showers with a niche or bench, plan tile placement around these features first, as they often require more intricate cuts. Use spacers to simulate grout lines and adjust tile positions as needed. If using patterned or decorative tiles, plan their placement early to create a balanced design.
Caution must be exercised when dealing with irregular spaces or unconventional tile shapes. For example, hexagonal or herringbone patterns demand precise calculations to avoid awkward cuts. In such cases, consider using graph paper to sketch the layout, scaling each tile to match its actual size. Additionally, account for the thickness of the mortar bed or backer board when planning, as this affects tile alignment and overall dimensions.
In conclusion, planning your tile layout is a blend of precision and creativity. By measuring accurately, marking clear reference lines, and arranging tiles thoughtfully, you can achieve a seamless installation that maximizes material efficiency and aesthetic appeal. This step, though time-consuming, is indispensable for transforming your shower into a durable and visually stunning space.
Tearing Out Tile Shower: A Step-by-Step Guide for Plaster Walls
You may want to see also
Explore related products
Apply Thinset Mortar: Spread adhesive evenly using a notched trowel, following manufacturer’s instructions for proper coverage
The backbone of any successful ceramic tile shower installation lies in the proper application of thinset mortar. This adhesive, when used correctly, creates a strong, durable bond between the tile and the substrate, ensuring your shower walls remain watertight and beautiful for years to come.
Think of thinset as the unsung hero, the invisible force holding your shower masterpiece together.
Applying thinset mortar isn't simply slathering glue onto the wall. It's a precise process requiring the right tools and technique. Enter the notched trowel, your trusty sidekick in this endeavor. This specialized tool, with its notched edge, ensures you spread the thinset evenly and at the correct thickness. Manufacturers provide specific instructions regarding the notch size (typically 1/4" x 1/4" for most shower tiles) and the recommended coverage rate, usually measured in square feet per bag. Ignoring these guidelines can lead to weak adhesion, uneven tiles, and potential water infiltration.
Imagine a wobbly table leg – that's what happens when thinset is applied inconsistently.
The key to a flawless application lies in consistency. Hold the notched trowel at a 45-degree angle and apply firm, even pressure as you spread the thinset in a thin, ridged layer. These ridges are crucial, as they allow air to escape and promote maximum contact between the mortar and the tile back. Remember, you're aiming for a bed of thinset that's thick enough to provide a strong bond but not so thick that it oozes out the sides of the tiles.
Think of it as creating a textured canvas for your tiles to adhere to, ensuring a secure and level finish.
Don't be tempted to rush this step. Allow the thinset to "slake" for the time recommended by the manufacturer, usually around 10-15 minutes. This allows the moisture to be absorbed evenly, creating a more workable and adhesive surface. Once the slaking time has elapsed, you're ready to set your tiles, confident in the knowledge that your thinset mortar has been applied correctly, providing a solid foundation for your stunning new shower.
Mastering Shower Ceiling Tile Grouting: Step-by-Step Guide for a Seamless Finish
You may want to see also
Explore related products
Set Tiles: Press tiles firmly into thinset, using spacers for consistency, and adjust for level alignment
Pressing tiles firmly into thinset is a critical step in ensuring a durable and visually appealing ceramic tile shower. The thinset mortar acts as the adhesive that bonds the tiles to the substrate, providing both structural integrity and a level surface. To begin, spread the thinset evenly using a notched trowel, ensuring the notches create ridges that promote adhesion. The size of the trowel notch should correspond to the tile size—typically, a 1/4-inch notch works well for most ceramic tiles. Once the thinset is applied, press each tile firmly into place, starting from the bottom corner and working upward to manage water drainage and alignment.

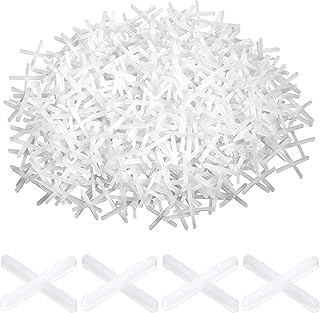

Using spacers is essential for maintaining consistent grout lines, which not only enhance the aesthetic but also ensure uniformity in tile placement. Place spacers at each corner of the tile before pressing it into the thinset. Common spacer sizes range from 1/16 to 1/8 inch, depending on the desired grout width and tile size. Spacers also help prevent tiles from shifting as the thinset cures. For showers, consider using cross-shaped spacers, which provide stability in both directions and are easier to remove once the tiles are set.
Level alignment is non-negotiable in a shower installation, as even minor deviations can lead to water pooling or an unprofessional finish. Use a level tool to check each tile immediately after placement, both horizontally and vertically. Adjust the tile by gently tapping it with a rubber mallet or lifting and repositioning it in the thinset. For larger tiles or walls, a laser level can provide precise alignment across multiple rows. Remember, correcting alignment is easier when the thinset is still pliable, so work in small sections to maintain control.
A practical tip for ensuring consistency is to lay out a few rows of tiles without thinset first to identify any alignment issues or pattern disruptions. This dry run allows you to make adjustments to the layout or cut tiles as needed before committing to the thinset. Additionally, periodically step back to view the installation from a distance, as this can reveal subtle misalignments that are harder to detect up close. By combining firm pressure, precise spacing, and meticulous leveling, you’ll achieve a professional-grade tile shower that stands the test of time.
Matching Bathroom and Shower Tiles: A Design Must or Creative Freedom?
You may want to see also
Explore related products
Grout and Seal: Fill gaps with grout, wipe excess, and apply sealant to protect tiles and grout lines
Grout is the unsung hero of any tile installation, binding the tiles together and preventing water from seeping beneath the surface. Choosing the right grout is crucial—epoxy grout, for instance, is highly durable and water-resistant, making it ideal for shower environments. Portland cement-based grout, while more common, requires sealing to achieve the same level of protection. Once you’ve selected your grout, mix it according to the manufacturer’s instructions, ensuring a smooth, lump-free consistency. Use a rubber float to press the grout into the gaps between tiles, working diagonally to avoid trapping air pockets. This step demands precision; uneven grout lines can detract from the overall aesthetic and compromise functionality.
Wiping excess grout is an art as much as a science. Allow the grout to set for 10–15 minutes, then use a damp sponge to gently remove the residue from the tile surfaces. Rinse the sponge frequently to avoid smearing grout back into the lines. Be cautious not to over-wipe, as this can pull grout from the joints, leaving them vulnerable to moisture. For textured or intricate tiles, a small brush can help remove grout from crevices without damaging the tile surface. Patience is key—rushing this step can lead to a messy finish or weakened grout lines.
Sealing grout is non-negotiable in a shower installation, as it protects against mold, mildew, and water damage. Most sealants require the grout to cure for at least 72 hours before application, though this varies by product. Apply the sealant using a small brush or roller, ensuring full coverage of the grout lines. Water-based sealants are low-odor and dry quickly, while solvent-based options offer deeper penetration but require better ventilation. Reapply sealant every 1–2 years, depending on usage and wear. Neglecting this step can lead to costly repairs, as unsealed grout will absorb water and degrade over time.
Comparing grout and sealant application to other tiling steps, it’s clear that this phase demands both technical skill and attention to detail. Unlike laying tiles, which focuses on alignment and spacing, grouting and sealing require a meticulous approach to ensure longevity and aesthetics. For example, while tile placement can be adjusted mid-installation, grout mistakes are harder to correct and often require complete removal. Similarly, sealant application is more forgiving than grouting but still requires careful execution to avoid streaks or missed spots. Mastery of these steps elevates a shower from functional to flawless.
In practice, consider these tips to streamline the process: use a grout release product on tiles before grouting to ease cleanup, especially with porous materials like natural stone. For vertical surfaces, work in small sections to prevent grout from drying too quickly. When sealing, test the product on a small area first to ensure compatibility with your tiles and grout. Finally, maintain consistent pressure and speed during application to achieve uniform results. By treating grout and sealant as critical components rather than afterthoughts, you ensure a shower that’s not only beautiful but built to last.
Effective Tips for Cleaning and Restoring Colored Shower Tiles
You may want to see also
Frequently asked questions
You’ll need a tile cutter or wet saw, trowel, notched spreader, tile spacers, grout float, sponge, level, measuring tape, mixing paddle, thin-set mortar, grout, silicone caulk, and safety gear like gloves and goggles.
Clean the walls thoroughly, ensure they are dry and smooth, and install a waterproof membrane or backer board (like cement board) to create a stable and moisture-resistant surface for the tiles.
Use a notched trowel to spread thin-set evenly on the wall, creating ridges that ensure proper adhesion. Work in small sections to prevent the mortar from drying out before tiling.
Use tile spacers to maintain consistent gaps between tiles and a level to check alignment. Start tiling from the center of the wall or a focal point to ensure symmetry and adjust as needed.
After tiles are set and mortar is cured, apply grout using a grout float, pressing it into the joints. Wipe away excess grout with a damp sponge, then allow it to dry. Finally, apply silicone caulk to corners and edges, and seal the grout lines with a grout sealer to prevent moisture penetration.
