Liam Brooks

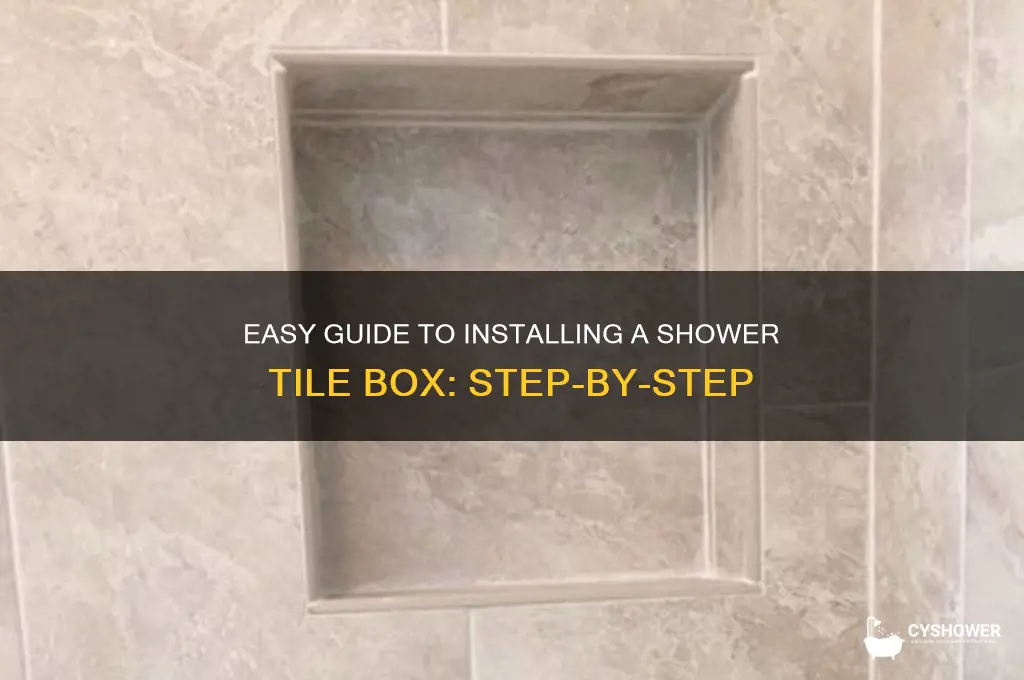

Installing a shower tile box is a crucial step in creating a waterproof and durable shower system. This component, also known as a shower niche or shower shelf, provides a recessed area for storing shampoo, soap, and other essentials while maintaining a sleek, integrated look. The process involves careful planning, precise measurements, and adherence to waterproofing techniques to prevent leaks and water damage. By following a systematic approach, including preparing the wall, framing the box, applying waterproofing membranes, and tiling the niche, you can achieve a professional finish that enhances both functionality and aesthetics in your shower space.
Explore related products
What You'll Learn
- Prepare the Area: Remove old tiles, clean surface, ensure wall is dry and level for installation
- Measure and Mark: Determine tile box placement, mark dimensions, and outline the area accurately
- Install Waterproofing: Apply waterproof membrane to walls and floor to prevent moisture damage
- Set the Tile Box: Secure the tile box frame using screws and check for level alignment
- Tile and Grout: Lay tiles, apply grout, and seal edges for a finished, waterproof shower
Prepare the Area: Remove old tiles, clean surface, ensure wall is dry and level for installation
Before laying a single tile, the existing surface must be stripped of all impediments. Start by removing old tiles using a hammer and chisel, working carefully to avoid damaging the underlying wall structure. For stubborn tiles, a power grinder with a diamond blade can expedite the process, but exercise caution to prevent excessive dust and debris. Once the tiles are removed, assess the wall for any remaining adhesive or grout. A putty knife or scraper can be used to dislodge these remnants, ensuring a clean slate for the new installation. This step is critical, as residual materials can compromise the adhesion of the new tile box.
Cleaning the surface is not merely about aesthetics; it’s about creating a bond-friendly environment. Use a mixture of trisodium phosphate (TSP) and water (1/2 cup TSP per gallon of water) to scrub the wall, removing soap scum, mildew, and grease. Rinse thoroughly with clean water and allow the area to dry completely. For stubborn stains or mold, consider a bleach solution (1 part bleach to 3 parts water), but ensure proper ventilation during application. A clean surface ensures that the mortar or adhesive will adhere properly, preventing tiles from loosening over time.
Moisture is the enemy of tile installations, particularly in shower areas. After cleaning, allow the wall to dry for at least 24–48 hours, depending on humidity levels. Use a moisture meter to confirm that the wall’s moisture content is below 15%—the threshold for safe tile installation. If the wall remains damp, employ a dehumidifier or fan to accelerate drying. Ignoring this step can lead to mold growth, tile detachment, or even structural damage over time.
A level wall is the foundation of a seamless tile box installation. Use a long straightedge or level to identify any uneven areas, such as dips or bulges. Minor imperfections can be corrected with a thin layer of mortar or drywall compound, applied with a trowel and smoothed to match the surrounding surface. For more significant discrepancies, consider re-plastering or installing a cement backer board to create a uniform base. Ensuring the wall is level not only enhances the visual appeal but also prevents water pooling, which can undermine the integrity of the tile box.
By meticulously preparing the area—removing old tiles, cleaning the surface, ensuring dryness, and leveling the wall—you set the stage for a durable and visually striking shower tile box. Skipping these steps may save time initially but often leads to costly repairs or replacements down the line. Think of this phase as the unsung hero of the installation process, where attention to detail now pays dividends in longevity and aesthetics later.
Cutting a Tile Shelf in Your Shower: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Measure and Mark: Determine tile box placement, mark dimensions, and outline the area accurately
Accurate measurement and marking are the cornerstones of a successful shower tile box installation. A misaligned or poorly placed box can lead to water leakage, structural damage, and costly repairs. Begin by identifying the optimal location for your tile box, considering both functionality and aesthetics. The box should be easily accessible yet discreetly integrated into the shower design. Use a level to ensure the area is plumb and true, as even minor deviations can compromise the installation.
Once the placement is determined, measure the dimensions of the tile box and transfer these measurements onto the wall. Start by marking the height and width of the box, ensuring the lines are straight and square. A laser level or T-square can be invaluable tools for achieving precision. Double-check your measurements against the manufacturer’s specifications to avoid errors. For recessed boxes, mark the depth required, taking into account the thickness of the backer board and tile.
Outlining the area accurately is the next critical step. Use a straightedge to connect your marks, creating a clear boundary for the tile box installation. If the box is centered between studs, ensure the outline aligns with the framing for structural support. For curved or irregular shower designs, consider using a flexible ruler or template to maintain consistency. Always verify the outline’s accuracy by measuring diagonally from corner to corner; equal measurements confirm a square layout.
Practical tips can streamline this process. For instance, use painter’s tape to mark lines temporarily, allowing for adjustments without damaging the wall. If working with large-format tiles, account for grout lines in your measurements to ensure a seamless fit. Additionally, mark reference points outside the outline to guide tile placement later in the installation. By approaching this phase methodically, you lay the groundwork for a durable and visually appealing shower tile box.
Mastering Prefab Shower Pan Installation: A Step-by-Step Tiling Guide
You may want to see also
Explore related products
Install Waterproofing: Apply waterproof membrane to walls and floor to prevent moisture damage
Water intrusion is the silent enemy of any shower installation, capable of causing mold, structural decay, and costly repairs. Before laying a single tile, safeguarding the substrate with a waterproof membrane is non-negotiable. This barrier acts as the primary defense against moisture migration, ensuring longevity and hygiene in wet environments. Skipping this step risks turning your dream shower into a breeding ground for problems.
The process begins with surface preparation. Walls and floors must be clean, dry, and free of debris. For cement board or concrete substrates, lightly sand any smooth areas to promote adhesion. Liquid membranes, such as REDGUARD or Hydro Barrier, are applied with a roller or brush in thin, even coats, allowing each layer to dry before adding the next. Sheet membranes, like Kerdi or Wedi, require precise cutting and adherence with thinset mortar, ensuring seams overlap by at least 2 inches and are sealed with waterproofing tape.
While both liquid and sheet membranes are effective, their application differs significantly. Liquid membranes are ideal for complex geometries and DIYers due to their ease of use and ability to conform to curves. Sheet membranes, however, offer superior puncture resistance and are often preferred for commercial or high-traffic installations. Regardless of type, all membranes must extend beyond the shower area, typically 6–12 inches up adjacent walls and onto the floor, creating a continuous barrier.
A common mistake is inadequate drying time between coats or improper seam sealing, which compromises the membrane’s integrity. Always follow manufacturer guidelines for curing times, which can range from 2 to 24 hours depending on humidity and temperature. Testing the membrane by flooding the area with water for 24 hours before tiling is a prudent step, though often overlooked. This ensures no leaks exist before proceeding, saving potential headaches later.
Finally, waterproofing is not just about the membrane itself but also about integrating it with other components. Ensure drains, corners, and niches are properly sealed, using compatible sealants or pre-formed components designed for waterproofing systems. While the membrane does the heavy lifting, these details ensure a seamless defense against moisture. Done correctly, this step transforms a vulnerable shell into a fortress, ready to withstand decades of daily showers.
Shower Tile Rubber Underlayment: What's It Called and Why It's Essential
You may want to see also
Explore related products
Set the Tile Box: Secure the tile box frame using screws and check for level alignment
Securing the tile box frame is a pivotal step in shower installation, blending structural integrity with aesthetic precision. Begin by positioning the frame against the wall, ensuring it aligns with your shower’s layout. Use a level to verify both horizontal and vertical alignment—even a slight tilt can compromise water drainage and tile adhesion. Once aligned, mark the screw holes through the frame onto the wall studs or backing material. This step is non-negotiable; skipping it risks misalignment and rework. Pro tip: If your studs aren’t perfectly aligned with the frame, use shims behind the frame to adjust positioning before securing.
The act of fastening the frame demands both accuracy and foresight. Drive screws through the pre-drilled holes in the frame into the studs, using a drill with a torque-limiting setting to avoid over-tightening, which can warp the frame. Stainless steel screws are recommended for their corrosion resistance in wet environments. For added stability, consider using construction adhesive along the back of the frame before screwing it in place. This dual approach ensures the frame remains steadfast under the weight of tiles and grout. Caution: Avoid overloading the frame with excessive force during this stage, as it can distort the alignment you’ve worked to achieve.
A comparative analysis reveals that while some installers rely solely on screws, others swear by the combination of screws and adhesive for maximum hold. The latter method, though slightly more time-consuming, provides a fail-safe against shifting over time. Additionally, if your shower wall is made of cement board or waterproof drywall, ensure the screws are compatible with the material to prevent degradation. For instance, cement board requires specialized screws with coarse threads to grip effectively.
Finally, recheck the frame’s level after securing it—movement during fastening is common. Adjust as needed by loosening screws, realigning, and retightening. This iterative process ensures the frame is perfectly level, setting the stage for seamless tile installation. Takeaway: Precision at this stage pays dividends later, preventing uneven tile surfaces and water pooling. Treat this step as the foundation of your shower’s longevity, where attention to detail now avoids costly repairs later.
Effective Cleaning Tips for Tile Showers with Colored Grout
You may want to see also
Explore related products
Tile and Grout: Lay tiles, apply grout, and seal edges for a finished, waterproof shower
Tiles and grout are the backbone of a waterproof shower, but their installation demands precision and care. Begin by laying tiles on a flat, prepared surface, ensuring each tile is level and aligned with the next. Use a notched trowel to apply a consistent layer of thin-set mortar, pressing tiles firmly into place. Allow for uniform spacing with plastic tile spacers, typically 1/16 to 1/8 inch wide, to accommodate grout lines. Work in small sections to avoid uneven drying, and periodically check with a level to maintain flatness. This foundational step sets the stage for a durable, watertight finish.
Once tiles are set and cured (usually 24–48 hours), apply grout to fill the gaps and lock tiles in place. Mix grout according to manufacturer instructions, aiming for a thick, paste-like consistency. Use a rubber grout float to press grout diagonally across the tiles, ensuring it fully fills the joints. Avoid overloading grout lines, as excess material can weaken the bond. After 10–15 minutes, wipe away surface grout with a damp sponge, taking care not to pull grout from the joints. This step requires patience—rushing can lead to uneven or incomplete grout coverage.
Sealing edges is the final, critical step to ensure a waterproof shower. Apply a high-quality silicone caulk or waterproof sealant along all corners, seams, and edges where tiles meet walls, floors, or fixtures. Use a caulking gun for precision and smooth the sealant with a damp finger or tool for a clean finish. Allow the sealant to cure fully, typically 24 hours, before exposing it to water. Proper sealing prevents moisture from seeping behind tiles, which can cause mold, mildew, or structural damage over time.
A common mistake is neglecting to seal grout lines after installation. Grout is porous and absorbs water, so apply a grout sealer 72 hours after grouting to protect against stains and moisture penetration. Spray or brush the sealer onto clean, dry grout lines, wiping away excess immediately. Reapply sealer annually or as needed to maintain protection. This extra step ensures longevity and preserves the shower’s aesthetic appeal.
In summary, laying tiles, applying grout, and sealing edges are interconnected steps that collectively create a waterproof shower. Each phase requires attention to detail and adherence to best practices. By following these guidelines, you’ll achieve a functional, durable, and visually appealing shower that stands the test of time.
Effective Tips for Cleaning and Restoring Shower Wall Tile Joints
You may want to see also
Frequently asked questions
A shower tile box, also known as a shower niche or shower shelf, is a recessed compartment built into the shower wall to hold toiletries like shampoo, soap, and conditioner. It eliminates the need for hanging caddies and provides a sleek, integrated storage solution.
You’ll need a shower tile box kit, waterproof membrane, thin-set mortar, tile spacers, a notched trowel, a utility knife, a level, and tile adhesive. Additionally, tools like a drill, screwdriver, and silicone caulk are required for securing and waterproofing the box.
Apply a waterproof membrane to the back and sides of the shower tile box before installation. After securing the box, seal all edges and joints with silicone caulk to prevent water infiltration and ensure long-term durability.
Installing a shower tile box in an existing tiled shower is possible but requires removing tiles and cutting into the wall. It’s easier to install during new construction or a full shower remodel. Always ensure proper waterproofing and structural support when retrofitting.
