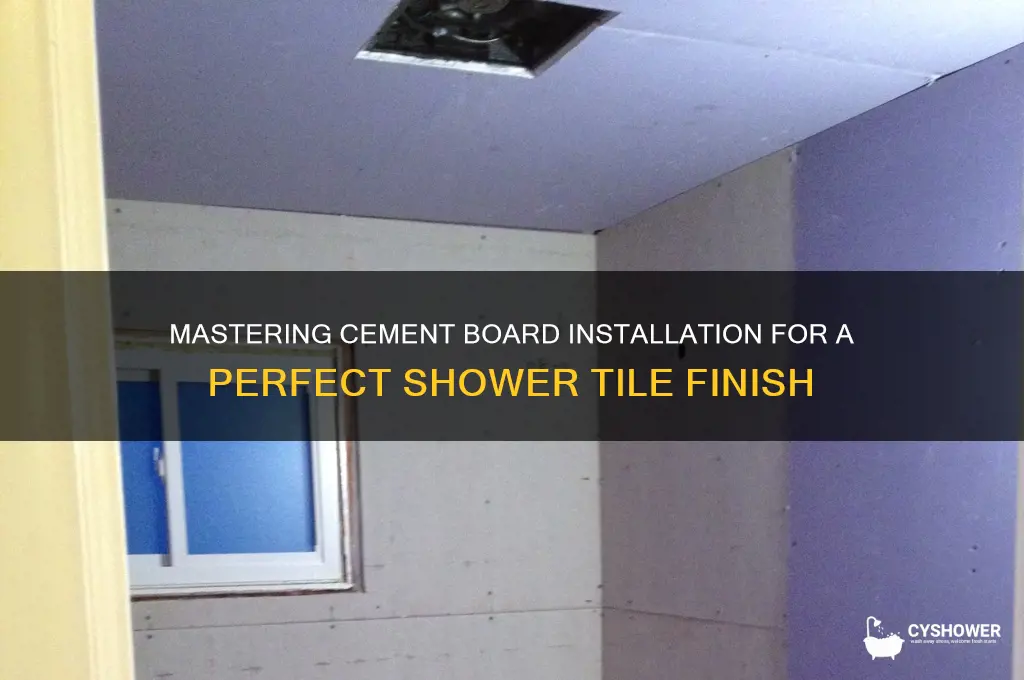

Installing cement board for shower tile is a crucial step in creating a waterproof and durable shower system. Cement board, also known as backer board, provides a stable and moisture-resistant base for tile installation, preventing water damage and ensuring the longevity of your shower. To begin, ensure the area is prepared by removing any existing materials and verifying that the wall studs are clean and dry. Measure and cut the cement board to fit the shower area, using a carbide-tipped scoring knife or a circular saw with a diamond blade. Secure the boards to the studs using corrosion-resistant screws and specially designed cement board screws, maintaining proper spacing and alignment. Apply a waterproof membrane over the seams and corners to further protect against moisture infiltration. Once the cement board is installed and sealed, the surface is ready for tile adhesive and your chosen shower tiles, creating a professional and long-lasting finish.
| Characteristics | Values |
|---|---|
| Surface Preparation | Ensure walls are clean, dry, and free of debris. Remove old drywall if necessary. |
| Materials Needed | Cement board, corrosion-resistant screws, cement board tape, thin-set mortar, notched trowel, utility knife, drill, screwdriver, waterproof membrane. |
| Cement Board Size | Typically 3' x 5' or 4' x 8' sheets, 1/2" thickness recommended for showers. |
| Installation Orientation | Install cement board vertically with the rough side facing out. |
| Seam Treatment | Stagger seams between sheets. Use cement board tape and thin-set mortar to cover seams. |
| Fastening Method | Use corrosion-resistant screws (1 1/4" to 1 1/2") every 8" along studs. Avoid over-tightening. |
| Waterproofing | Apply a waterproof membrane (e.g., liquid waterproofing or membrane sheets) over the cement board before tiling. |
| Edge Treatment | Leave a 1/8" gap between cement board and adjacent surfaces. Fill gaps with silicone caulk after tiling. |
| Cutting Cement Board | Score the board with a utility knife and snap it. Use a carbide-tipped blade for curved cuts. |
| Tile Installation | Install tiles directly onto the cement board using thin-set mortar. Follow manufacturer's guidelines for tile spacing and adhesive. |
| Grout and Sealing | After tiling, grout the joints and seal the grout lines to prevent water penetration. |
| Compliance with Codes | Ensure installation meets local building codes and manufacturer's instructions for warranty purposes. |
| Drying Time | Allow thin-set and waterproofing layers to dry completely before proceeding to the next step. |
| Safety Precautions | Wear safety goggles, gloves, and a dust mask when cutting cement board to avoid silica dust inhalation. |
Explore related products
What You'll Learn
- Prepare the shower area: Remove old materials, ensure a clean, dry, and flat surface for installation
- Measure and cut cement board: Use a carbide blade to cut boards to fit shower dimensions
- Apply waterproof membrane: Install a moisture barrier behind the cement board to prevent water damage
- Secure cement board: Use corrosion-resistant screws and backer board tape for seams and corners
- Finish and seal edges: Apply fiberglass mesh tape and thin-set mortar to seal all edges
Prepare the shower area: Remove old materials, ensure a clean, dry, and flat surface for installation
Before you can begin the satisfying task of installing cement board for your shower tile, a crucial first step demands your attention: preparing the shower area. Think of it as laying the foundation for a masterpiece. A poorly prepared surface will lead to cracks, uneven tiles, and potential water damage down the line.
Imagine trying to build a house on quicksand – that's the shower tile equivalent of working on a dirty, uneven, or damp surface.
The first order of business is demolition. Remove all existing shower materials – tiles, drywall, backer board, and any remnants of old waterproofing. Be thorough; even small pieces left behind can create bumps and imperfections. Use a pry bar and hammer for careful removal, protecting surrounding fixtures if necessary. Once cleared, assess the studs. Ensure they are structurally sound and plumb. Any warped or damaged studs need to be replaced or repaired before proceeding.
Remember, a level and sturdy framework is essential for a successful cement board installation.
With the area cleared, it's time to address the subfloor. Ideally, you'll have a concrete slab or a sturdy plywood subfloor. If plywood, ensure it's exterior-grade and at least 3/4 inch thick. Any existing vinyl flooring or other unsuitable materials must be removed. Thoroughly clean the surface, removing all debris, dust, and grease. A clean surface ensures proper adhesion of the cement board and waterproofing materials.
Allow the area to dry completely before proceeding. Moisture trapped beneath the cement board can lead to mold and mildew growth.
Now, let's talk about flatness. A level surface is paramount for a professional-looking tile job. Use a long straightedge (a level or a straight piece of lumber) to check for dips or humps. Minor imperfections can be addressed with a thin layer of thinset mortar, applied and smoothed with a trowel. For larger discrepancies, consider using a self-leveling compound, following the manufacturer's instructions carefully. Remember, taking the time to achieve a perfectly flat surface now will save you countless headaches during tile installation.
Mastering Arch Shower Tiling: Step-by-Step Guide for a Perfect Finish
You may want to see also
Explore related products
Measure and cut cement board: Use a carbide blade to cut boards to fit shower dimensions
Accurate measurement and precise cutting of cement board are critical to achieving a seamless and waterproof shower tile installation. Begin by measuring the shower walls from floor to ceiling and side to side, accounting for any alcoves or niches. Transfer these dimensions to the cement board, marking cut lines with a straightedge and pencil. Remember, cement board is unforgiving—measure twice, cut once.
The choice of blade is non-negotiable: use a carbide-tipped blade designed for cutting cement board. Standard blades will dull quickly and produce jagged edges. Set your circular saw or grinder to a cutting depth just through the board, avoiding damage to the surface beneath. For straight cuts, clamp a guide board to the cement board along the marked line to ensure precision.
Cutting cement board generates hazardous silica dust, so wear a respirator rated for particulate matter and work in a well-ventilated area. Score the face of the board first, then flip it over to complete the cut through the back. This minimizes chipping on the finished side, which will face outward during installation.
When fitting boards around corners or obstacles, use a jigsaw with a carbide blade for curved or intricate cuts. For small adjustments, a utility knife and straightedge can score and snap the board, though this method is less precise. Always test fit each piece before securing it to the wall, ensuring tight seams and proper alignment with adjacent boards.
Finally, plan for minimal waste by nesting cuts whenever possible. For example, cut smaller pieces from the center of a sheet, leaving larger, unbroken sections for full-height walls. This approach not only conserves material but also reduces the number of seams, enhancing the shower’s structural integrity and waterproofing. Precision in this step lays the foundation for a durable and professional tile finish.
Drywall Behind Shower Tile: What's Really Behind Your Bathroom Walls?
You may want to see also
Explore related products
Apply waterproof membrane: Install a moisture barrier behind the cement board to prevent water damage
Water intrusion in shower walls can lead to mold, rot, and structural damage, making a waterproof membrane essential behind cement board. This layer acts as a secondary defense, ensuring that any water penetrating grout or tile seams doesn’t reach the wall cavity. While cement board is water-resistant, it’s not waterproof, and relying solely on it in wet areas is a recipe for disaster. A membrane bridges this gap, providing a critical safeguard for long-term durability.
Applying a waterproof membrane involves selecting the right product for your needs. Liquid-applied membranes, such as RED GUARD or Hydro Barrier, are popular due to their ease of use and ability to conform to uneven surfaces. Sheet membranes, like Kerdi or NobleSeal, offer robust protection but require precise installation to avoid gaps or wrinkles. For DIYers, liquid membranes are often more forgiving, while professionals may prefer the reliability of sheet systems. Always follow manufacturer instructions, as application methods and drying times vary.
Before applying the membrane, ensure the cement board is securely fastened and all seams are taped and thinset. Clean the surface of dust and debris to promote adhesion. For liquid membranes, use a roller or brush to apply a thin, even coat, ensuring complete coverage. Pay special attention to corners, seams, and areas around fixtures, as these are common entry points for water. Allow the membrane to cure fully—typically 24 to 48 hours—before proceeding with tile installation.
A common mistake is neglecting to extend the membrane beyond the shower area. Water can travel along walls and floors, so the membrane should overlap onto adjacent surfaces by at least 6 inches. Additionally, integrate the membrane with other waterproofing elements, such as a shower pan liner or curb flashing, to create a seamless barrier. Properly installed, this system ensures that water is directed where it belongs—down the drain, not into your walls.
While the upfront cost and time investment may seem significant, the expense of repairing water damage far outweighs the effort of installing a membrane correctly. Think of it as insurance for your shower, protecting both the structure and your investment. By prioritizing this step, you’ll enjoy a leak-free, long-lasting tile installation that stands the test of time and daily use.
Choosing the Right Shower Tile Size: What’s Trending in 2023?
You may want to see also
Explore related products
Secure cement board: Use corrosion-resistant screws and backer board tape for seams and corners
Cement board is the backbone of a durable shower tile installation, but its strength relies on proper securing. Corrosion-resistant screws and backer board tape are the unsung heroes of this process, ensuring a watertight and long-lasting foundation. Standard screws will rust over time, compromising the integrity of the installation, especially in the moisture-rich environment of a shower. Opt for hot-dipped galvanized or stainless steel screws, which resist corrosion and provide a secure hold. These screws should be spaced approximately 8 inches apart along the studs and 3 inches from the edges of the board for maximum stability.
Backer board tape is equally critical, particularly at seams and corners where water infiltration is most likely. This alkali-resistant fiberglass mesh tape creates a smooth, reinforced surface that prevents cracks and water penetration. Apply the tape over all joints and corners, embedding it firmly into a thin layer of thinset mortar. Allow the thinset to dry completely before proceeding with tiling. This step is often overlooked but is essential for maintaining the structural integrity of the cement board over time.
Consider the installation process as a layered defense against moisture. Start by aligning the cement board sheets vertically, staggering the seams to avoid weak points. Secure the boards with screws, ensuring they are flush with the surface but not overtightened, as this can crack the board. Once the screws are in place, apply the tape and thinset, smoothing out any bubbles or wrinkles. This meticulous approach ensures that the seams and corners, which are the most vulnerable areas, are fortified against water damage.
A common mistake is underestimating the importance of using the right materials. While it may be tempting to cut costs by using standard screws or skipping the tape, the long-term consequences can be costly. Water intrusion can lead to mold, mildew, and structural damage, requiring extensive repairs. Investing in corrosion-resistant screws and quality backer board tape is a small price to pay for the peace of mind that comes with a watertight shower installation.
Finally, take the time to inspect your work before tiling. Check that all screws are secure and that the tape is fully adhered and smooth. A well-secured cement board not only provides a stable base for tiles but also contributes to the overall longevity of the shower. By prioritizing these details, you’re not just installing cement board—you’re building a foundation that will withstand years of daily use.
Tiling a Shower Over Drywall: Step-by-Step Guide for a Waterproof Finish
You may want to see also
Explore related products
Finish and seal edges: Apply fiberglass mesh tape and thin-set mortar to seal all edges
Sealing the edges of cement board is a critical step in shower tile installation, often overlooked but essential for preventing water intrusion and ensuring long-term durability. The junction where cement boards meet is inherently vulnerable, as gaps or cracks can allow moisture to seep behind the tile, leading to mold, rot, or structural damage. Fiberglass mesh tape and thin-set mortar form a robust barrier, bridging these seams and creating a waterproof seal that integrates seamlessly with the tile system.
To execute this step effectively, begin by applying a thin layer of thin-set mortar along the edge of the cement board using a notched trowel. The mortar should be spread evenly, ensuring full coverage but avoiding excess that could create lumps under the tape. Next, press the fiberglass mesh tape firmly into the wet mortar, centering it over the seam. The tape’s open weave allows the mortar to penetrate and bond, forming a flexible yet strong reinforcement. Smooth the tape with a putty knife or trowel to remove air bubbles and ensure it lies flat against the surface.
A common mistake is using paper tape or drywall compound instead of fiberglass mesh tape and thin-set mortar. Paper tape dissolves when exposed to moisture, while drywall compound lacks the adhesive strength and water resistance required for wet environments. Fiberglass mesh tape, on the other hand, is designed to withstand constant moisture, making it the industry standard for shower installations. Thin-set mortar, with its superior bonding properties and water resistance, further enhances the tape’s effectiveness.
Once the tape is embedded, apply a second layer of thin-set mortar over the entire seam, feathering the edges to blend with the surrounding surface. This topcoat not only secures the tape but also creates a smooth, uniform base for tile installation. Allow the mortar to dry completely before proceeding, typically 24 hours, depending on humidity and temperature. Properly sealed edges not only protect the substrate but also ensure that the tile adheres evenly, preventing cracks or gaps in the finished surface.
In summary, sealing cement board edges with fiberglass mesh tape and thin-set mortar is a straightforward yet indispensable process. By following these steps meticulously, you eliminate weak points in the shower assembly, safeguarding against water damage and extending the life of the installation. This small investment of time and effort yields significant returns in terms of structural integrity and peace of mind.
Steel Wool on Shower Tile: Safe Cleaning or Risky Damage?
You may want to see also
Frequently asked questions
You will need a utility knife, straightedge, drill with masonry bits, screws (cement board or galvanized), screwdriver or drill with driver bit, tape measure, pencil, cement board shears or circular saw with carbide blade, and waterproof membrane (if required).
Score the cement board using a utility knife and straightedge, then snap it along the scored line. For curved or detailed cuts, use cement board shears or a circular saw with a carbide blade. Always wear safety gear when cutting.
Yes, cement board is not waterproof. Apply a waterproof membrane or liquid waterproofing product over the cement board, especially in wet areas like showers, to prevent water damage and mold growth. Follow the manufacturer’s instructions for proper application.
