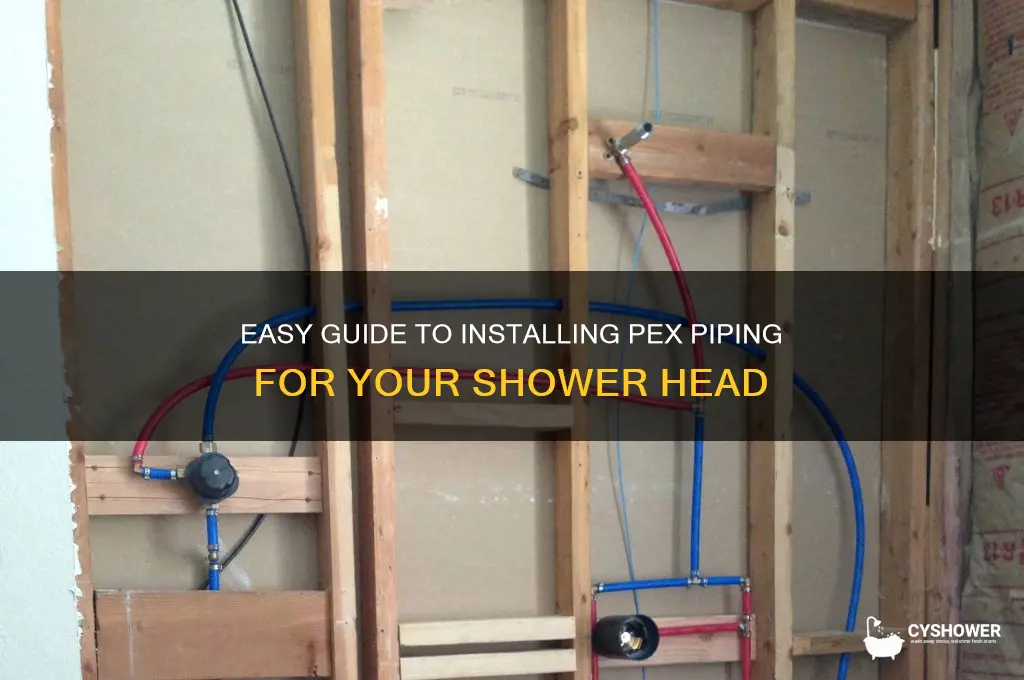

Installing PEX piping for a shower head is a practical and efficient plumbing solution that offers durability, flexibility, and ease of installation. PEX (cross-linked polyethylene) piping is resistant to corrosion, freezing, and scaling, making it ideal for residential plumbing applications. To begin, gather the necessary tools and materials, including PEX tubing, fittings, a PEX crimping tool, a tubing cutter, and a manifold if using a home run system. Start by planning the layout, ensuring the PEX lines run directly from the water source to the shower head for optimal flow. Use a tubing cutter to measure and cut the PEX to the desired lengths, and then attach fittings securely using the crimping tool. Connect the PEX lines to the shower valve and shower head, ensuring all connections are tight and leak-free. Finally, test the system by turning on the water supply and checking for any leaks. Proper installation ensures a reliable and long-lasting shower system with minimal maintenance.
Explore related products
What You'll Learn
- Gather Tools & Materials: PEX pipe, fittings, cutter, crimping tool, manifold, shut-off valves, measuring tape
- Plan Layout: Measure shower location, determine pipe routes, ensure access to water supply lines
- Cut & Connect PEX: Measure and cut PEX, use crimp rings and fittings to connect securely
- Install Shut-Off Valves: Attach valves to supply lines for easy maintenance and control
- Test for Leaks: Turn on water, check connections, inspect for leaks, tighten fittings if needed
Gather Tools & Materials: PEX pipe, fittings, cutter, crimping tool, manifold, shut-off valves, measuring tape
Before embarking on your PEX piping installation for a shower head, it's essential to gather the necessary tools and materials to ensure a smooth and efficient process. The key components you'll need include PEX pipe, fittings, a cutter, crimping tool, manifold, shut-off valves, and measuring tape. Each of these items plays a critical role in the installation, and having them readily available will save you time and frustration.
From an analytical perspective, the choice of PEX pipe is crucial. PEX (cross-linked polyethylene) pipe is available in different sizes, typically ranging from 1/4 inch to 1 inch in diameter. For a shower head installation, 1/2 inch PEX pipe is commonly used due to its balance between water flow and ease of installation. Additionally, consider the length of pipe needed, which can be determined by measuring the distance from the water source to the shower head location, adding extra for bends and connections.
Instructively, the fittings and crimping tool are indispensable for creating secure connections. PEX fittings come in various types, such as elbows, tees, and couplings, each serving a specific purpose in the plumbing layout. The crimping tool is used to attach these fittings to the PEX pipe by compressing a metal crimp ring around the pipe and fitting. It’s vital to follow the manufacturer’s instructions for the crimping tool to ensure a leak-free connection. For instance, apply firm, even pressure when crimping and inspect each connection for proper alignment.
Comparatively, the manifold and shut-off valves offer both functionality and convenience. A PEX manifold acts as a central distribution point for the plumbing system, allowing for easy control and maintenance. Shut-off valves, on the other hand, provide the ability to isolate water flow to the shower head for repairs or replacements without affecting the entire system. While manifolds are more common in larger installations, they can still be beneficial in smaller projects for their organizational advantages.
Descriptively, the cutter and measuring tape are simple yet essential tools. A PEX cutter is designed to make clean, precise cuts through the pipe without crushing or damaging it. Look for a cutter with a sharp blade and ergonomic handles for comfort during repetitive cuts. The measuring tape ensures accuracy in determining pipe lengths and spacing between fittings. Opt for a tape measure with clear markings and a locking mechanism to hold measurements in place while cutting or marking the pipe.
In conclusion, gathering the right tools and materials is the foundation of a successful PEX piping installation for a shower head. By carefully selecting the appropriate PEX pipe size, fittings, and tools like the crimping tool, manifold, shut-off valves, cutter, and measuring tape, you can streamline the installation process and achieve a reliable, long-lasting plumbing system. Attention to detail in this preparatory phase will pay dividends in the overall quality and efficiency of your project.
Easy Ecolux Shower Head Installation Guide: Step-by-Step Instructions
You may want to see also
Explore related products
Plan Layout: Measure shower location, determine pipe routes, ensure access to water supply lines
Before cutting any PEX tubing or drilling holes, precision in planning your shower’s layout is non-negotiable. Start by measuring the exact location of your shower head, valve, and controls relative to the nearest water supply lines. Use a tape measure to record distances from walls, floors, and ceilings, ensuring accuracy within 1/8 inch. Mark these points directly on the walls or floor with a pencil or masking tape to visualize the setup. This step prevents costly mistakes like misaligned pipes or inaccessible valves, which can double your rework time and material costs.
Once measurements are confirmed, determine the most efficient pipe routes from the water supply to the shower components. PEX tubing is flexible but not infinitely so—avoid sharp bends or kinks by planning gradual curves with a minimum bend radius of 6 times the pipe diameter. For example, ½-inch PEX should curve no tighter than a 3-inch radius. Sketch the route on graph paper or use a digital tool like SketchUp to simulate the path, considering obstacles like studs, electrical wires, or existing plumbing. Prioritize routes that minimize exposure of pipes to high-traffic areas or temperature extremes, which can degrade PEX over time.
Access to water supply lines is often the most overlooked aspect of layout planning. Ensure the supply lines are within 5–10 feet of the shower location to reduce material waste and pressure drop. If existing lines are farther away, calculate the additional tubing length needed, adding 10–15% extra for bends and connections. Verify that the supply lines are compatible with PEX (typically copper or PVC) and that shut-off valves are functional. If access is obstructed by walls or flooring, plan to create a removable panel or access point—a 12x12-inch opening is standard—to facilitate future repairs without demolition.
Finally, cross-reference your layout with local building codes and manufacturer guidelines. Some jurisdictions require specific pipe slopes (e.g., ¼ inch per foot for drainage) or dictate minimum distances between pipes and electrical lines (typically 2 inches). Use a level to ensure vertical pipes are plumb and horizontal runs are aligned, as deviations can cause water pooling or pressure imbalances. By treating this phase as a blueprint rather than an afterthought, you’ll save hours of troubleshooting and ensure a system that functions as seamlessly as it’s installed.
Accurate Shower Door Height Measurement: A Step-by-Step Guide
You may want to see also
Explore related products
Cut & Connect PEX: Measure and cut PEX, use crimp rings and fittings to connect securely
Accurate measurement is the cornerstone of a successful PEX installation. Before making any cuts, ensure you have the correct length by measuring the distance from the water supply line to the shower head location. Account for any bends or angles in the pipe run, adding extra length to accommodate these turns. Mark the measurement clearly on the PEX tubing using a permanent marker or masking tape, ensuring the line is straight and visible. A common mistake is to underestimate the required length, leading to unnecessary joints and potential weak points in the system.
Cutting PEX tubing requires a dedicated tool, such as a PEX cutter or a fine-toothed hacksaw. The goal is to achieve a clean, square cut without burrs or deformities that could compromise the connection. When using a PEX cutter, simply position the tubing in the tool, ensuring the marked line aligns with the cutting blade, and squeeze the handles until the tube is severed. For a hacksaw, use a gentle, steady stroke, following the marked line precisely. Inspect the cut end; if it's not perfectly flat, use a fine-grit sandpaper or a deburring tool to smooth any rough edges.
The art of connecting PEX lies in the proper use of crimp rings and fittings. Start by inserting the cut end of the PEX tubing into the fitting, ensuring it reaches the depth mark indicated on the fitting. Slide the crimp ring over the tubing, positioning it against the fitting's shoulder. Using a PEX crimp tool, compress the ring until it's securely fastened. The tool should be calibrated to the size of the ring and tubing to ensure a tight seal. Over-crimping can damage the tube, while under-crimping may result in leaks. Practice on a scrap piece of PEX to get a feel for the correct pressure.
A persuasive argument for the crimp method is its reliability and ease of use. Unlike soldering, which requires an open flame and can be time-consuming, crimping is a quick, flame-free process. It's particularly advantageous in tight spaces, such as behind walls or under sinks, where maneuvering a torch would be challenging. Additionally, the crimp method allows for easy disassembly and modification, making future repairs or adjustments more accessible. This flexibility is a significant advantage over traditional copper piping, where modifications often require cutting out and replacing entire sections.
In conclusion, the cut and connect process is a critical phase in PEX shower head installation, demanding precision and attention to detail. By mastering the art of measurement, cutting, and crimping, you ensure a secure, leak-free connection. This method's simplicity and reliability make it an attractive choice for both DIY enthusiasts and professional plumbers, offering a durable solution for modern plumbing needs. Remember, practice makes perfect, especially when it comes to achieving the right crimp pressure, so don't hesitate to refine your technique on spare materials before tackling the actual installation.
Effective Sealing Techniques for Your Sliding Glass Shower Door Sill
You may want to see also
Explore related products
Install Shut-Off Valves: Attach valves to supply lines for easy maintenance and control
Shut-off valves are the unsung heroes of plumbing, offering a simple yet effective way to control water flow to your shower head. By attaching these valves to your PEX supply lines, you can isolate the water supply during maintenance or repairs, preventing unnecessary flooding or waste. This small addition can save you from the hassle of shutting off the main water supply to your entire home, making it a practical and time-saving solution for homeowners.
When installing shut-off valves, it's essential to choose the right type for your PEX piping system. Ball valves, with their quarter-turn operation, are a popular choice due to their ease of use and reliability. Gate valves, on the other hand, are less common in residential settings but can be suitable for specific applications. Ensure the valves are rated for the same pressure and temperature as your PEX pipes, typically 160-200 PSI and 200°F, to maintain system integrity.
The installation process is straightforward but requires attention to detail. Begin by cutting the PEX pipe to the desired length, ensuring a clean, square cut. Use a PEX crimp tool or clamp tool to secure the shut-off valve to the pipe, following the manufacturer's instructions for the correct crimp or clamp ring size. For example, if using 1/2-inch PEX tubing, you'll need a 1/2-inch crimp ring and the corresponding tool setting. Apply thread seal tape to the valve threads before attaching the supply line to prevent leaks.
One practical tip is to install the shut-off valves in an accessible location, such as near the shower valve or in a nearby utility closet. This placement allows for quick and easy access when needed, reducing the time and effort required for maintenance. Additionally, consider installing a pressure-reducing valve in conjunction with the shut-off valves if your water pressure exceeds the recommended range, typically 50-70 PSI for residential systems.
In comparison to other plumbing systems, PEX piping with shut-off valves offers a unique advantage in terms of flexibility and ease of installation. Unlike rigid copper pipes, PEX can be bent around obstacles, reducing the need for additional fittings. This flexibility, combined with the control provided by shut-off valves, makes PEX an attractive option for both new construction and retrofit projects. By incorporating these valves into your shower head installation, you'll not only simplify future maintenance but also enhance the overall functionality and longevity of your plumbing system.
Effective Shower Door Sealing: Prevent Leaks and Water Damage Easily
You may want to see also
Explore related products
Test for Leaks: Turn on water, check connections, inspect for leaks, tighten fittings if needed
Once the PEX piping is installed and secured, the integrity of your shower head system hinges on a meticulous leak test. Begin by slowly turning on the water supply to allow gradual pressure buildup, minimizing the risk of sudden bursts at weak points. This controlled approach not only prevents damage but also makes it easier to pinpoint leaks as they emerge. Observe the connections at the shower valve, elbow fittings, and shower head arm, as these are common trouble spots where even minor misalignments can lead to drips or sprays.
A systematic inspection follows, combining visual and tactile methods. Run your fingers along each joint, feeling for moisture that might escape detection by sight alone. Pay special attention to areas where PEX meets brass or copper fittings, as material differences can sometimes create microscopic gaps. Use a flashlight to illuminate dark corners, and consider placing a dry paper towel beneath each connection for 15 minutes—any dampness will reveal even the smallest leak. This dual approach ensures no issue goes unnoticed.
If leaks are detected, resist the urge to overtighten fittings, as this can deform the PEX or damage threads. Instead, use a wrench to incrementally tighten the connection, testing after each adjustment. For stubborn leaks, apply thread seal tape or a PEX-compatible sealant, but sparingly—overapplication can obstruct water flow or create new weak points. Remember, the goal is to achieve a watertight seal without compromising the system’s structural integrity.
Finally, after confirming all connections are secure and leak-free, let the water run for 2-3 minutes to flush out debris or air pockets that could affect performance. This step not only ensures clean water delivery but also provides a final opportunity to observe the system under full pressure. By treating this test as a critical checkpoint rather than a formality, you safeguard against future issues, ensuring your shower head installation remains reliable for years to come.
Why RV Shower Doors Shatter: Common Causes and Prevention Tips
You may want to see also
Frequently asked questions
You will need a PEX tubing cutter or scissors, PEX crimp or clamp rings, a crimping or clamping tool, a deburring tool, a wrench or pliers, and a measuring tape. Additionally, ensure you have the appropriate PEX fittings (e.g., elbows, tees, and couplings) and a PEX manifold if using a home run plumbing system.
First, measure and cut the PEX tubing to the desired length. Deburr the edges of the cut tubing. Attach the appropriate PEX fitting (e.g., a 90-degree elbow) to the shower valve using a crimp or clamp ring and the corresponding tool. Connect the other end of the PEX tubing to the shower arm (the pipe extending from the wall to the shower head) using another fitting. Ensure all connections are secure and leak-free.
Installing PEX piping for a shower head is a DIY-friendly project if you have basic plumbing knowledge and the right tools. However, if you’re unsure about local plumbing codes, working with water supply lines, or dealing with complex configurations, it’s best to hire a licensed plumber to ensure the installation is safe and compliant.
