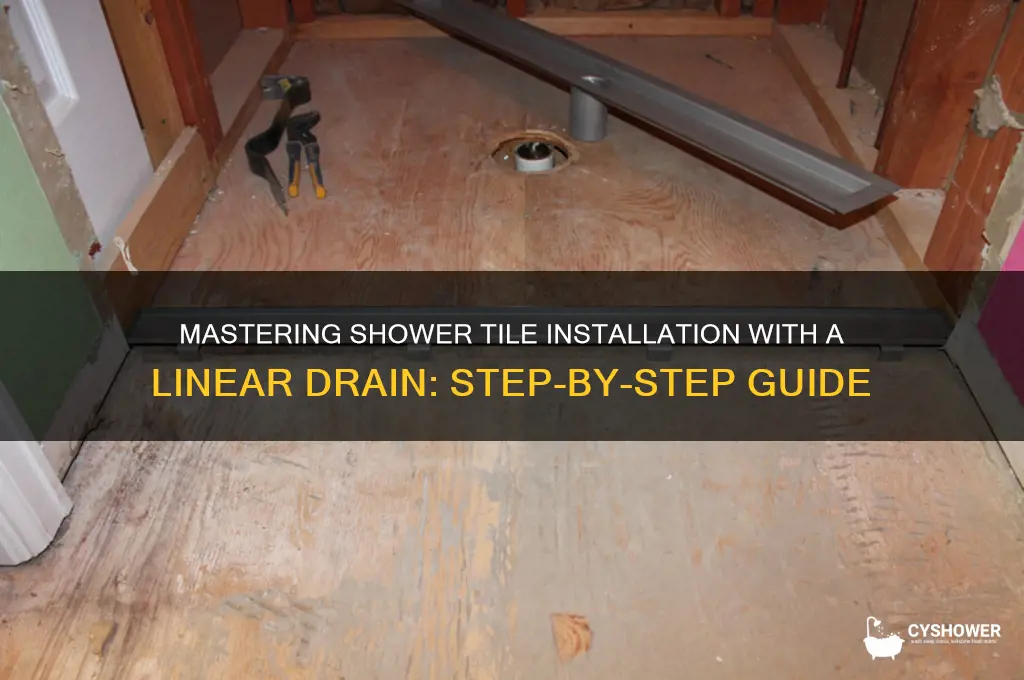

Installing tile in a shower with a linear drain is a popular and modern approach that combines functionality with aesthetic appeal. This method involves creating a sleek, low-profile drain system that runs along one edge of the shower, allowing for a seamless and minimalist design. To begin, proper planning is essential, including selecting the right materials, such as waterproof membranes, thinset mortar, and high-quality tiles. The process starts with preparing the shower base, ensuring it slopes toward the linear drain to facilitate proper water drainage. Next, the linear drain is installed and leveled, followed by applying a waterproof membrane to prevent moisture penetration. Once the substrate is ready, tiles are laid out and installed, starting from the drain and working outward to ensure alignment and precision. Grouting and sealing complete the project, ensuring durability and a polished finish. This step-by-step approach ensures a professional result that enhances both the functionality and visual appeal of the shower.
Explore related products
What You'll Learn
- Prepare Shower Pan: Ensure proper slope, waterproofing, and substrate readiness for tile installation
- Install Linear Drain: Position and secure the drain assembly according to manufacturer instructions
- Waterproof Walls/Floor: Apply waterproofing membrane to prevent moisture penetration behind tiles
- Set Tile Layout: Plan tile pattern, cut tiles, and dry-fit for accurate alignment
- Grout and Seal: Apply grout, clean tiles, and seal grout lines for durability
Prepare Shower Pan: Ensure proper slope, waterproofing, and substrate readiness for tile installation
A shower pan with improper slope is a recipe for standing water, mold, and structural damage. To avoid this, ensure a consistent gradient of 1/4 inch per foot toward the linear drain. This slope is critical for efficient water evacuation and can be achieved using a pre-sloped shower pan or by building a custom slope with mortar. Use a level and straightedge to verify the gradient, making adjustments as needed before proceeding. A well-sloped pan is the foundation of a functional and durable shower.
Waterproofing is non-negotiable in shower installations. After establishing the slope, apply a liquid waterproofing membrane to the entire shower pan, including walls and corners. Products like Laticrete Hydro Ban or Schluter Kerdi offer seamless protection against moisture penetration. Follow manufacturer guidelines for application—typically, two coats are required, with the second applied perpendicular to the first. Allow adequate drying time, usually 24 hours, before proceeding. Proper waterproofing prevents leaks and extends the life of your tile installation.
The substrate beneath your shower pan must be stable, flat, and free of debris to ensure tile adhesion. For concrete substrates, grind down high spots and fill low areas with a polymer-modified thinset. On wooden subfloors, install a cement backer board, securing it with corrosion-resistant screws spaced 6–8 inches apart. Ensure all seams are staggered and covered with fiberglass mesh tape, then apply a layer of thinset over the entire surface. A well-prepared substrate eliminates cracks and ensures a smooth, even tile surface.
Integrating the linear drain into the shower pan requires precision. Position the drain assembly at the lowest point of the slope, ensuring it aligns with the plumbing waste line. Use a drain kit designed for tile installations, such as those from Quick Drain USA or ACO, which include adjustable components for height and slope. Test the drain by pouring water into the pan to confirm proper flow. Proper drain installation not only enhances functionality but also contributes to the overall aesthetic of the tiled shower.
Grout or Caulk First? Shower Tile Installation Dilemma Explained
You may want to see also
Explore related products
Install Linear Drain: Position and secure the drain assembly according to manufacturer instructions
Positioning and securing the linear drain assembly is a critical step in shower tiling, as it ensures proper water flow and prevents leaks. Begin by carefully reading the manufacturer’s instructions, as each drain system may have unique requirements. Typically, the drain should be centered along the shower’s width or placed where water naturally slopes, often at the shower’s threshold. Use a level to ensure the drain is perfectly horizontal, as even a slight tilt can disrupt drainage. Mark the position with a pencil or masking tape to avoid errors during installation.
Once positioned, secure the drain assembly according to the manufacturer’s guidelines. This often involves attaching the drain body to the shower’s subfloor using screws or brackets provided in the kit. Ensure the waterproofing membrane (e.g., PVC or chlorine-tolerant materials) is properly integrated with the drain’s clamping ring to create a watertight seal. Failure to do so can lead to water seepage, causing mold or structural damage over time. Double-check that all components are tightly fastened before proceeding to the next step.
A practical tip is to test the drain’s alignment before finalizing its position. Pour a small amount of water near the drain to observe its flow. Adjust the slope or positioning if water pools or drains slowly. This simple test can save significant rework later. Additionally, consider using a drain with a removable grate for easier cleaning and maintenance, especially in high-traffic showers.
Comparing linear drains to traditional center drains highlights their advantages, such as improved aesthetics and flexibility in tile layout. However, their installation demands precision. Unlike center drains, linear drains require a consistent slope across a larger area, typically 1/4 inch per foot. This makes the initial positioning and securing of the assembly even more crucial. Skipping this step or rushing through it can compromise the entire shower’s functionality.
In conclusion, securing the linear drain assembly is a foundational step that blends technical precision with practical foresight. By following manufacturer instructions, testing alignment, and ensuring a watertight seal, you set the stage for a durable and efficient shower system. This attention to detail not only enhances the shower’s performance but also contributes to its long-term reliability.
Waterproof Your Shower Over Tiles: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Waterproof Walls/Floor: Apply waterproofing membrane to prevent moisture penetration behind tiles
Moisture is the silent enemy of any tiled shower, capable of causing mold, mildew, and structural damage over time. To combat this, applying a waterproofing membrane to walls and floors is non-negotiable. This barrier acts as a shield, preventing water from seeping behind tiles and into the substrate. Without it, even the most meticulously laid tiles will fail to protect your shower’s integrity.
The process begins with surface preparation. Ensure walls and floors are clean, smooth, and free of debris. For best results, use a notched trowel to apply a thin, even layer of waterproofing membrane, such as liquid-applied products like RedGuard or sheet membranes like Kerdi. Pay special attention to corners, seams, and areas around the linear drain, as these are common entry points for moisture. Allow the membrane to cure fully—typically 24 to 48 hours—before proceeding with tile installation.
Not all waterproofing membranes are created equal. Liquid membranes are ideal for curved or irregular surfaces, as they conform easily and provide seamless coverage. Sheet membranes, on the other hand, offer robust protection but require precise cutting and fitting. For showers with linear drains, ensure the membrane extends into the drain assembly, creating a continuous waterproof seal. Follow manufacturer guidelines for application thickness—usually 1/8 to 1/4 inch—to guarantee effectiveness.
A common mistake is neglecting to waterproof the entire wet area. Extend the membrane at least 6 inches beyond the shower perimeter on walls and ensure it overlaps with the floor membrane. For added protection, consider applying a second coat in high-moisture zones. This extra step may seem tedious but is far less costly than repairing water damage later.
In conclusion, waterproofing is the backbone of a durable tiled shower with a linear drain. By selecting the right membrane, applying it meticulously, and ensuring full coverage, you create a barrier that safeguards your investment. Skipping this step is a gamble with long-term consequences, making it a critical phase in any shower installation.
Creative Shower Tile Coverings: Stylish and Practical Solutions to Refresh Your Bathroom
You may want to see also
Explore related products
Set Tile Layout: Plan tile pattern, cut tiles, and dry-fit for accurate alignment
Before you lay a single tile, envision the finished shower. A linear drain introduces both design opportunity and layout challenge. Unlike a centered drain, it demands a deliberate slope towards one edge, influencing tile orientation and pattern flow.
Start with the End in Mind: Hold a tile vertically against the wall where the drain will sit. Does the pattern naturally lead the eye towards the drain, or does it create an awkward break? Experiment with different orientations – horizontal, vertical, herringbone – to find a layout that complements the drain's linearity. Consider using smaller tiles or mosaics near the drain to create a subtle gradient effect, drawing attention away from the functional element.
The Dry-Fit Dance: Think of this step as a rehearsal before the adhesive goes on. Lay out your tiles on the floor, following your chosen pattern and slope. Use spacers to ensure consistent grout lines. This dry-fit allows you to identify potential issues: uneven cuts, misaligned patterns, or tiles that don't quite fit near the drain. It's far easier to adjust a dry layout than to pry up glued tiles.
Cutting with Precision: A linear drain often requires precise cuts, especially near the edges. Invest in a good tile cutter or wet saw for clean, accurate cuts. For intricate patterns or curves, consider using a tile nipper for finer adjustments. Remember, it's better to cut a tile slightly too large and make a second cut than to end up with a gap.
The Slope Imperative: The success of your linear drain hinges on a proper slope. Aim for a gradient of 1/4 inch per foot towards the drain. Use a level and shims to ensure each tile is slightly lower than the one before it, creating a subtle but crucial incline. This slope prevents water pooling and ensures efficient drainage.
Patience is Key: Dry-fitting and cutting tiles can be time-consuming, but it's an investment in a professional-looking result. Rushing this stage will lead to visible mistakes and frustration later. Take your time, double-check your measurements, and don't be afraid to adjust your layout until it's perfect. Remember, a well-planned tile layout is the foundation for a stunning shower with a linear drain that's both functional and aesthetically pleasing.
Finding the Perfect Shower Tile Price: A Comprehensive Guide
You may want to see also
Explore related products
Grout and Seal: Apply grout, clean tiles, and seal grout lines for durability
Grout is the unsung hero of any tiled shower, binding tiles together and preventing water from seeping beneath the surface. However, its effectiveness hinges on proper application and maintenance. Begin by selecting a high-quality, water-resistant grout specifically designed for wet areas like showers. Epoxy grout is ideal due to its durability and resistance to mold and mildew, though it requires more skill to work with than traditional cementitious grout. Mix the grout according to the manufacturer’s instructions, ensuring a smooth, lump-free consistency. Apply it diagonally across the tiles using a rubber float, pressing firmly to fill the gaps completely. Work in small sections to avoid drying before you can clean the excess.
Cleaning tiles immediately after grouting is critical to achieving a professional finish. Once the grout sets slightly but is still pliable (typically after 15–20 minutes), use a damp sponge to wipe away excess grout from the tile surfaces. Rinse the sponge frequently to avoid smearing grout back onto the tiles. Be gentle to avoid pulling grout from the joints. After the initial cleaning, allow the grout to cure for 24–48 hours. Follow up with a final cleaning using a mild acid-based grout haze remover to dissolve any remaining residue, leaving the tiles pristine and ready for sealing.
Sealing grout lines is a non-negotiable step for long-term durability in a shower environment. Unsealed grout absorbs moisture, leading to cracks, discoloration, and mold growth. Choose a penetrating grout sealer that forms a barrier without altering the grout’s appearance. Apply the sealer using a small brush or applicator bottle, ensuring full saturation of the grout lines. Wipe away any excess sealer from the tiles immediately to prevent staining. Reapply the sealer annually or as recommended by the manufacturer to maintain protection. This simple step can double the lifespan of your grout, preserving both function and aesthetics.
A common mistake is rushing the grouting and sealing process, which can compromise the entire installation. Patience is key—allow adequate drying and curing times between steps. For example, sealing grout too soon can trap moisture beneath the surface, leading to efflorescence or mold. Similarly, skipping the final grout cleaning step will leave a hazy film on the tiles, detracting from the shower’s appearance. By investing time and attention to detail in this phase, you ensure a waterproof, resilient, and visually appealing shower that stands the test of time.
Revive Your Shower: Expert Tips to Restore Itchy Marble Tile
You may want to see also
Frequently asked questions
A linear drain is a long, narrow drain typically installed along one side or the center of a shower floor. It is popular because it offers a sleek, modern look, allows for larger-format tiles, and provides better water drainage compared to traditional center drains.
You’ll need tiles, thin-set mortar, grout, a linear drain kit, a waterproof membrane (like Schluter-Kerdi or Wedi), a notched trowel, a tile cutter or wet saw, a level, a sponge, and a utility knife. Additionally, tools like a drill, screwdriver, and silicone caulk are essential for finishing touches.
The shower floor should slope toward the linear drain at a gradient of 1/4 inch per foot. Use a pre-sloped shower pan or build the slope with mortar or a dry-pack method. Test the slope with water before tiling to ensure proper drainage.
Apply a waterproof membrane to the shower walls and floor, ensuring all seams and corners are sealed. Follow the manufacturer’s instructions for the specific membrane used. Pay special attention to the area around the linear drain, ensuring it is fully integrated into the waterproofing system.
Yes, large-format tiles work well with linear drains and enhance the modern aesthetic. However, ensure the tiles are cut precisely to fit around the drain. Use a tile saw for clean cuts and plan the layout carefully to minimize grout lines and ensure a seamless look.
