Installing tile around a shower drain requires careful planning and precision to ensure a watertight and aesthetically pleasing finish. Begin by preparing the surface, ensuring it is clean, dry, and level. Next, mark the center of the drain and use a hole saw to cut a precise opening in the tile that fits snugly around the drain assembly. Apply a waterproof membrane to the floor and walls to prevent moisture penetration. Mix and apply a thin-set mortar to the substrate, then carefully set the tiles, starting from the drain and working outward to maintain alignment. Use spacers to ensure consistent grout lines and allow the mortar to cure according to the manufacturer’s instructions. Finally, grout the tiles, seal the grout lines, and caulk around the drain to create a seamless and durable installation.
| Characteristics | Values |
|---|---|
| Surface Preparation | Ensure the shower floor is clean, dry, and level. Remove any debris or old adhesive. |
| Drain Assembly | Use a waterproof drain assembly compatible with tile installation. Ensure it is securely installed and level with the shower floor. |
| Waterproofing | Apply a waterproofing membrane (e.g., liquid waterproofing or waterproof membrane sheets) to the shower floor and walls, extending at least 6 inches above the shower curb. |
| Slope | Create a proper slope (minimum 1/4 inch per foot) toward the drain to ensure water drains efficiently. |
| Thinset Mortar | Use a polymer-modified thinset mortar for tile adhesion, following manufacturer instructions for mixing and application. |
| Tile Layout | Plan the tile layout to ensure the drain is centered and tiles are evenly spaced. Use spacers for consistency. |
| Tile Cutting | Cut tiles as needed to fit around the drain using a wet saw or tile cutter. Ensure precise cuts for a professional finish. |
| Grout Lines | Maintain consistent grout lines (typically 1/16 to 1/8 inch) around the drain and throughout the shower floor. |
| Sealing | Apply a penetrating sealer to the grout lines and tiles after installation to prevent water absorption and staining. |
| Curing Time | Allow the thinset and grout to cure fully (typically 24-48 hours) before using the shower. |
| Tools Required | Wet saw, trowel, notched trowel, tile spacers, level, waterproofing brush, grout float, sponge, and safety gear. |
| Safety Precautions | Wear gloves, safety glasses, and a dust mask during cutting and installation. Ensure proper ventilation. |
| Professional Advice | Consult a professional if unsure about any step, especially waterproofing and slope creation. |
Explore related products
What You'll Learn
Prepare the shower floor surface for tile installation
A smooth, level, and clean shower floor is the unsung hero of a successful tile installation. Any imperfections—cracks, debris, or uneven spots—will telegraph through the tile, ruining the final look and potentially compromising the integrity of the installation. Before you even think about laying tile, the floor must be prepared with precision.
Steps to Prepare the Shower Floor Surface
Begin by removing any existing flooring material, such as old tile or mortar, using a chisel and hammer or a power grinder. Sweep away debris and vacuum thoroughly to eliminate dust. Next, inspect the substrate for damage. If it’s concrete, fill cracks or holes with a concrete patching compound, following the manufacturer’s instructions for mixing and curing time (typically 24 hours). For a wooden subfloor, ensure it’s covered with a waterproof membrane like cement backer board, secured with corrosion-resistant screws spaced 6–8 inches apart.
Cautions and Considerations
Moisture is the enemy of tile adhesion. Test the substrate for moisture by taping a plastic sheet to the floor for 24 hours; if condensation forms underneath, the surface is too damp for tiling. In such cases, use a moisture barrier or allow the area to dry completely. Additionally, ensure the floor is level. Use a straightedge or level to identify low spots, then apply a thin-set mortar or self-leveling compound to even them out. Avoid over-applying, as excess material can create new high spots.
Practical Tips for Success
Before applying any mortar or adhesive, clean the substrate with a degreaser to remove soap scum, oils, or residues. Rinse thoroughly and allow it to dry. If using a waterproof membrane, follow the manufacturer’s guidelines for installation, ensuring seams are sealed with waterproofing tape. For added protection, consider applying a liquid waterproofing membrane over the entire floor and up the walls by 6–8 inches. This step, though optional, provides an extra layer of defense against water intrusion.
Preparing the shower floor surface is a meticulous process that demands attention to detail. By addressing cracks, ensuring a level surface, and managing moisture, you create a stable foundation for tile installation. Skipping these steps may save time initially but will lead to costly repairs or unsightly results down the line. Invest the effort upfront, and your tile installation will not only look professional but also stand the test of time.
Choosing the Perfect Tile Strip Width for Your Shower Design
You may want to see also
Explore related products

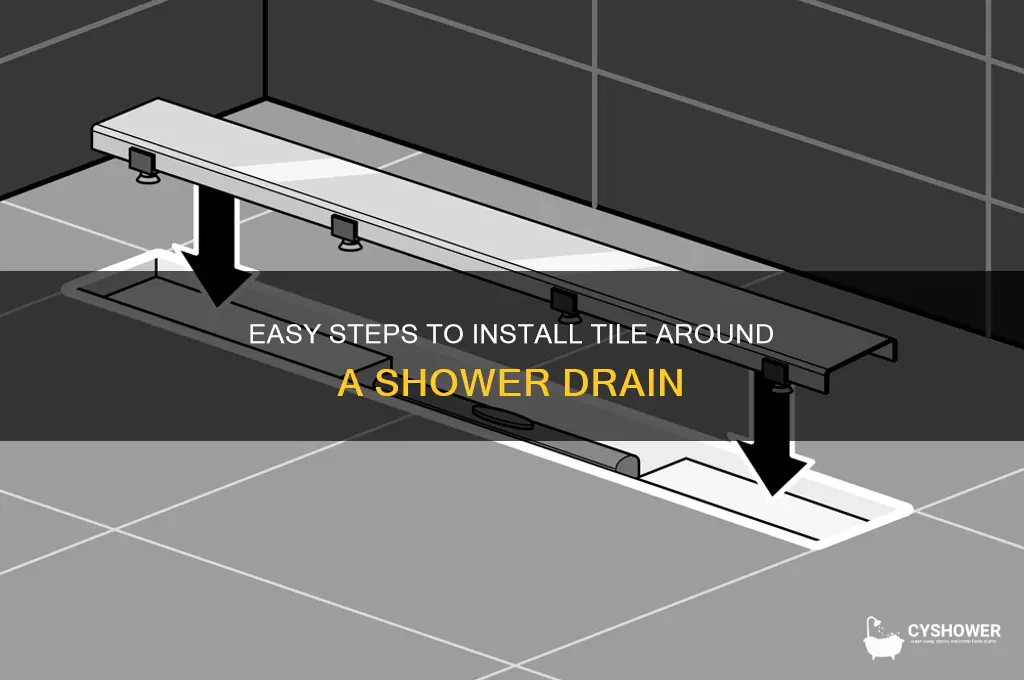

Choose the right drain assembly for tile compatibility
Selecting a drain assembly that complements your tile installation is crucial for both functionality and aesthetics. The wrong choice can lead to water pooling, grout damage, or an unsightly gap between the drain and tile. Start by assessing the tile thickness and shower pan slope. A drain assembly with an adjustable height mechanism accommodates varying tile depths, ensuring a flush finish. For instance, a drain with a threaded collar allows you to fine-tune its height during installation, preventing the drain from sitting too high or low. This small detail can save hours of rework and ensure a professional look.
Material compatibility is another critical factor. Brass or stainless steel drains are durable and resistant to corrosion, making them ideal for wet environments. However, consider the finish—matte, brushed, or polished—to match your tile’s aesthetic. For example, a brushed nickel drain pairs well with cool-toned tiles, while oil-rubbed bronze complements warmer, earthy tones. Avoid plastic drains unless they’re specifically designed for heavy use, as they can crack or discolor over time. Additionally, ensure the drain’s flange is wide enough to overlap the tile edges, providing a secure base for waterproofing membranes.
The drain’s design should also align with your tile layout. Square or rectangular drains offer a modern, seamless look when paired with large-format tiles, as they can be positioned to align with grout lines. In contrast, round drains work well with mosaic or subway tiles, creating a classic, centered focal point. Some drains come with removable tops, allowing you to swap designs later without replacing the entire assembly. This flexibility is particularly useful if you plan to update your shower’s look down the line.
Finally, consider the drain’s functionality beyond its appearance. A drain with a removable strainer simplifies cleaning and prevents clogs from hair and soap scum. If you’re installing a curbless or linear drain, ensure the assembly includes a built-in slope to direct water efficiently. For example, a linear drain with a pre-sloped channel integrates seamlessly with large tiles, providing both style and performance. Always check local building codes for minimum drain size and flow rate requirements to avoid compliance issues. By prioritizing compatibility, you’ll achieve a durable, visually appealing shower drain that enhances your tile installation.
Revamp Your Tiled Shower: Easy Steps for a Modern Update
You may want to see also
Explore related products
Cut and fit tiles around the drain
The drain assembly is the linchpin of your shower tile installation, demanding precision in tile cutting and fitting. Unlike standard field tiles, those surrounding the drain require meticulous adjustments to accommodate the drain’s diameter, flange height, and slope requirements. A single miscalculation can disrupt water flow or create uneven surfaces, making this step both critical and unforgiving.
Begin by dry-fitting tiles around the drain to visualize the necessary cuts. Use a tile spacer to maintain consistent grout lines, ensuring the drain remains centered within the tile grid. Mark the tiles directly with a pencil or felt-tip pen, tracing the drain’s shape onto the tile surface. For circular drains, a compass or flexible measuring tape can help transfer the exact radius onto the tile. Rectangular or square drains may require multiple measurements to account for corners and edges.
Cutting tiles to fit around the drain demands the right tools and technique. A snap cutter works for straight cuts, but a wet saw or angle grinder with a diamond blade is essential for curved or intricate shapes. When cutting curves, make incremental cuts along the marked line, removing small sections at a time to avoid chipping. For precision, hold the tile firmly against the saw’s fence, moving steadily to maintain control. Always wear safety goggles and gloves, as tile shards can be sharp and unpredictable.
Fitting the cut tiles around the drain requires attention to both alignment and adhesion. Apply a thin, even layer of thinset mortar to the substrate, using a notched trowel to create grooves that enhance bonding. Press the tile firmly into place, using a level to ensure it sits flush with adjacent tiles. If the drain flange is adjustable, lower it slightly before tiling to allow for the mortar thickness, then raise it to the correct height after the tiles are set. Allow the mortar to cure fully before grouting, typically 24 hours, to prevent shifting.
The final fit should not only be functional but also aesthetically pleasing. Grout lines should align seamlessly, and the drain should sit level with the tile surface. If gaps or imperfections appear, remove the tile, adjust the cut, and reapply. While this step is time-consuming, it ensures a professional finish that prevents water pooling and extends the life of the installation. Patience and precision here pay dividends in both appearance and performance.
Understanding the Purpose and Name of the Tile Behind Your Shower
You may want to see also
Explore related products
Apply waterproof membrane to protect against leaks
Water intrusion is the silent saboteur of shower installations, capable of undermining even the most meticulous tile work. Applying a waterproof membrane is not just a precautionary step—it’s a non-negotiable defense against leaks that can lead to mold, structural damage, and costly repairs. Think of it as the invisible shield that safeguards your investment, ensuring longevity and peace of mind. Without it, water seeps through grout lines and tile edges, pooling beneath the surface and wreaking havoc over time. This layer acts as a barrier, redirecting moisture back into the drain system and away from vulnerable substrates like drywall or plywood.
The process begins with surface preparation, a step often overlooked but critical to adhesion. Ensure the area around the drain is clean, dry, and free of debris. Roughen smooth surfaces lightly with sandpaper to create a mechanical bond, but avoid damaging the substrate. For cement board or concrete, a primer may be necessary to enhance adhesion. Follow the manufacturer’s instructions for application, typically using a paintbrush or roller to apply a thin, even coat. Allow it to dry completely before proceeding—rushing this step compromises the membrane’s effectiveness.
Membrane application requires precision, especially around the drain assembly. Cut the material to fit snugly, ensuring no gaps or overlaps that could trap moisture. Use a utility knife to trim the membrane, leaving a 2-inch overhang around the drain. Press it firmly into place, smoothing out air bubbles or wrinkles. For corners and curves, make relief cuts to allow the membrane to conform without tearing. Around the drain, carefully seal the edges with waterproof tape or sealant, creating a watertight seal. This attention to detail is what separates a professional installation from an amateur one.
Not all waterproof membranes are created equal, and selecting the right product is crucial. Liquid-applied membranes, such as those from brands like RedGuard or Hydro Barrier, are popular for their ease of use and flexibility. Sheet membranes, like Kerdi or NobleSeal, offer durability and are ideal for larger areas. Consider the specific demands of your project—high moisture environments may require thicker or more robust options. Always check compatibility with your tile adhesive and follow manufacturer guidelines for curing times and application techniques.
Finally, test the membrane’s integrity before tiling. Fill the shower pan with water and let it sit for 24 hours, monitoring for leaks. If the membrane holds, proceed with confidence. If not, identify and repair any weak points before moving forward. This extra step may seem tedious, but it’s far less inconvenient than tearing out tiles to fix a leak later. A properly installed waterproof membrane is the unsung hero of a successful shower installation, ensuring your tile work remains beautiful and functional for years to come.
Is Installing Large Format Tile Showers Easy? A Comprehensive Guide
You may want to see also
Explore related products
Grout and seal tiles for a finished look
Grout lines are the unsung heroes of a tiled shower, providing both structural integrity and aesthetic appeal. Choosing the right grout color can either make your tiles pop or create a seamless, monochromatic look. For shower drains, where water exposure is constant, opt for a high-quality, waterproof grout. Epoxy grout, for instance, is highly resistant to moisture and stains, making it ideal for wet areas. Contrastingly, cementitious grout, while more affordable, requires sealing to prevent water damage. The key is to select a grout that not only complements your tile design but also withstands the demands of a shower environment.
Once the grout is applied and cured, sealing becomes the critical next step to ensure longevity. Sealers act as a protective barrier, preventing water, soap scum, and mildew from penetrating the grout lines. For best results, use a penetrating grout sealer, which soaks into the grout to repel moisture without altering its appearance. Apply the sealer with a small brush, ensuring full saturation, and allow it to dry according to the manufacturer’s instructions—typically 24 to 48 hours. Reapply the sealer annually or as needed, especially in high-moisture areas like shower drains, to maintain its protective properties.
A common mistake in grouting around shower drains is neglecting the expansion joints. Tiles expand and contract with temperature changes, and without proper spacing, this movement can cause cracking. Incorporate expansion joints every 12 to 15 feet or at natural breaks in the layout. Use a flexible caulk that matches your grout color to fill these joints, ensuring they blend seamlessly. This not only preserves the structural integrity of the tile work but also enhances the overall finished look by maintaining clean, uninterrupted lines.
Finally, the devil is in the details when it comes to achieving a polished appearance. After grouting and sealing, meticulously clean the tile surface to remove any haze or residue. Use a damp sponge to wipe the tiles diagonally, avoiding direct pressure on the grout lines. For stubborn residue, a grout haze remover can be applied, followed by a thorough rinse. The result is a pristine, professional finish that elevates the entire shower installation. Attention to these small steps ensures that the area around the shower drain not only functions flawlessly but also looks impeccable.
Exploring Shower Tile Materials: Composition, Durability, and Design Options
You may want to see also
Frequently asked questions
Use water-resistant tiles like ceramic, porcelain, or natural stone. Ensure the tiles are suitable for wet areas and consider smaller tiles or mosaics for easier cutting and fitting around the drain.
Clean the area thoroughly, ensure the drain is level with the subfloor, and apply a waterproof membrane to the floor and walls. Use a mortar bed or cement board to create a stable surface for tiling.
Measure and mark the tile to fit around the drain, then use a tile cutter or wet saw for straight cuts. For curved cuts, use a tile nipper or grinder. Dry-fit the tiles before applying adhesive to ensure a proper fit.
