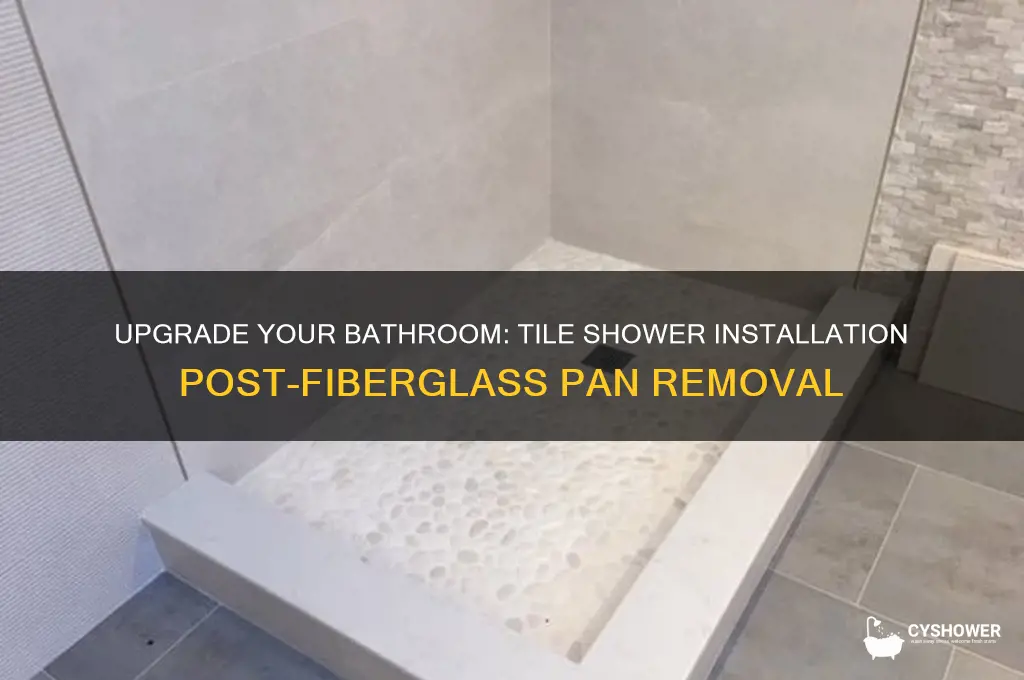

Installing a tile shower after removing a fiberglass pan is a transformative project that can elevate both the functionality and aesthetic appeal of your bathroom. The process begins with thoroughly removing the old fiberglass pan, ensuring the underlying substrate is clean, level, and structurally sound. Next, a waterproof membrane, such as a liquid waterproofing or a sheet membrane, is applied to protect against moisture infiltration. A mortar bed or cement board is then installed to create a stable base for the tiles. Once the substrate is prepared, tiles are laid starting from the bottom and working upward, using a high-quality tile adhesive and spacers for consistency. Grout is applied after the adhesive cures, followed by sealing the grout and tiles to prevent water damage. Proper planning, attention to detail, and adherence to waterproofing best practices are essential to ensure a durable and visually stunning tile shower.
Explore related products
What You'll Learn
Prepare shower base surface
After removing a fiberglass shower pan, the exposed surface often reveals a rough, uneven substrate that’s ill-suited for tile installation. This base must be transformed into a flat, stable, and waterproof foundation. The first step is to inspect the surface for structural integrity. Look for signs of water damage, rot, or compromised subflooring. If the underlying structure is plywood, ensure it’s marine-grade or treated for moisture resistance. For concrete bases, check for cracks or unevenness that could telegraph through the tile. Address these issues before proceeding—replace damaged materials, patch cracks with hydraulic cement, and reinforce weak areas with additional support.
Once the surface is structurally sound, focus on creating a smooth, level plane. For plywood bases, apply a cement backer board using thin-set mortar and corrosion-resistant screws. This provides a stable, waterproof layer that’s ideal for tile adhesion. For concrete bases, grind down high spots and fill low areas with a self-leveling underlayment. Follow the manufacturer’s instructions for mixing ratios—typically 5 to 6 quarts of water per 50-pound bag—and pour the mixture evenly across the surface. Allow it to cure fully, which usually takes 24 hours, before proceeding.
Waterproofing is non-negotiable in shower installations. Apply a liquid waterproofing membrane, such as RedGuard or Hydro Barrier, to the entire base and up the walls at least 6 inches. Use a roller or brush to ensure even coverage, and apply a second coat after the first dries (typically 2–4 hours). Pay special attention to corners, seams, and penetrations, as these are common leak points. For added protection, install a waterproof membrane like Schluter-Kerdi over the base and walls, following the manufacturer’s guidelines for overlap and adhesion.
Finally, prepare the surface for tile adhesion by cleaning it thoroughly. Remove dust, debris, and any residual waterproofing membrane with a damp cloth or vacuum. If using a cement backer board, score the surface lightly with a utility knife to improve mortar grip. For concrete bases, ensure the surface is free of curing agents or sealers that could inhibit bonding. A well-prepared base is the cornerstone of a durable, long-lasting tile shower—skimping on this step risks cracks, leaks, or tile failure down the line.
Should Shower Tile Extend Past the Tub? Pros, Cons, and Tips
You may want to see also
Explore related products
Apply waterproof membrane correctly
Applying a waterproof membrane is a critical step in transforming your shower from a potential leak hazard into a durable, long-lasting sanctuary. This barrier prevents water from seeping through grout lines and tile, protecting the subfloor and surrounding walls from costly water damage. Think of it as an insurance policy for your newly tiled shower.
Without a proper membrane, even the most meticulously laid tile can succumb to moisture infiltration, leading to mold, mildew, and structural issues.
Choosing the Right Membrane:
Not all waterproof membranes are created equal. For shower applications, opt for a liquid-applied membrane specifically designed for wet areas. These typically come in two main types: polymer-modified cementitious coatings and liquid waterproofing membranes. Cementitious coatings are trowel-applied and offer excellent adhesion, while liquid membranes are brush or roller-applied, providing flexibility and ease of use around corners and curves. Consider factors like drying time, coverage area, and compatibility with your chosen tile adhesive when making your selection.
Pro Tip: Look for membranes with a minimum thickness of 1.5mm when cured for optimal protection.
Preparation is Key: Before applying the membrane, ensure your substrate is clean, dry, and free of debris. Any imperfections or loose material can compromise the membrane's adhesion. For concrete substrates, lightly roughen the surface with a wire brush or sandpaper to promote better bonding. If you're working with a cement board backer, ensure all seams are taped and sealed according to the manufacturer's instructions.
Caution: Avoid applying the membrane over existing waterproofing layers unless explicitly stated as compatible by the manufacturer.
Application Techniques: Follow the manufacturer's instructions meticulously for mixing ratios, application methods, and drying times. Generally, liquid membranes are applied in thin, even coats using a brush, roller, or trowel. Pay close attention to corners, seams, and penetrations (like drains and pipe fittings), ensuring complete coverage without gaps or bubbles. Multiple coats are often required, allowing each layer to dry thoroughly before applying the next.
Remember: A properly applied waterproof membrane should form a seamless, continuous barrier over the entire shower area, extending up walls to the desired height (typically 6-8 inches above the showerhead).
The Final Layer: Once the membrane is fully cured, you're ready to proceed with tile installation. The membrane provides a stable, waterproof base for your tile adhesive, ensuring a secure bond and long-lasting results. Remember, a well-applied waterproof membrane is an investment in the longevity and integrity of your new tile shower. Don't cut corners – the peace of mind it provides is priceless.
Smart Shower Storage: Best Spots for Wet Washcloths in Tile Showers
You may want to see also
Explore related products
Set tile mortar and layout
Before setting tile in your shower, proper mortar application and layout planning are critical to achieving a durable, professional finish. Start by selecting a thinset mortar suitable for wet areas, such as a polymer-modified variety, which offers superior adhesion and water resistance. Follow the manufacturer’s instructions for mixing, typically combining one 50-pound bag of thinset with 6 to 7 pints of water until achieving a smooth, peanut butter-like consistency. Allow the mortar to slake for 10 minutes, then remix before application to ensure even hydration.
The layout phase demands precision to avoid uneven grout lines and awkward tile cuts. Begin by dry-laying tiles on the floor and walls to determine the most aesthetically pleasing pattern and to identify potential issues, such as small slivers of tile at corners or edges. Use a centerline method by snapping chalk lines down the center of the shower floor and walls, ensuring the intersection creates a balanced grid. Adjust the layout to prioritize full tiles in high-visibility areas, pushing partial tiles to less noticeable spots like the back corners.
Applying the mortar requires both technique and timing. Use a 1/4-inch square-notch trowel to spread the thinset evenly across the substrate, holding the trowel at a 45-degree angle to create ridges that enhance adhesion. Work in small sections, no larger than what can be tiled in 15 to 20 minutes, to prevent the mortar from drying prematurely. Press tiles firmly into the mortar, using a slight twisting motion to embed them fully and ensure complete contact. Spacers are essential for maintaining consistent grout lines, typically 1/16 to 1/8 inch wide for shower installations.
One common mistake is overloading the trowel or applying mortar too thickly, which can lead to uneven tiles and voids beneath the surface. Conversely, too thin a layer compromises adhesion. Regularly check the first few tiles with a level to ensure they are flush with adjacent surfaces, making adjustments as needed. For vertical surfaces, start tiling from the bottom up to prevent sagging and use a larger-notch trowel if necessary to accommodate the weight of the tiles.
Finally, consider the long-term implications of your mortar and layout choices. Properly applied thinset not only secures the tiles but also acts as a secondary waterproofing layer, especially when paired with a waterproof membrane. A well-planned layout minimizes grout lines, reducing areas prone to mold and mildew. While time-consuming, meticulous attention to these steps ensures a shower that is both functional and visually appealing, standing the test of time and daily use.
Shower Base vs. Tiles: Which Bathroom Option Reigns Supreme?
You may want to see also
Explore related products
Grout and seal tiles properly
Grout lines are more than just the spaces between tiles—they’re the unsung heroes of a shower’s longevity. Properly applied grout prevents water infiltration, mold growth, and tile displacement. Choose a sanded grout for joints wider than 1/8 inch; its coarse texture enhances durability in high-moisture areas. Unsanded grout works for narrower gaps but lacks the strength needed for shower floors. Mix grout according to the manufacturer’s instructions, typically a 7:1 ratio of powder to water, and apply it diagonally across tiles using a rubber float. Press firmly to ensure full penetration, then remove excess with the float’s edge before it hardens.
Sealing grout is non-negotiable in a shower environment. Unsealed grout absorbs moisture, leading to cracks, discoloration, and mildew. Apply a penetrating grout sealer 72 hours after grouting to allow proper curing. Use a small brush or applicator bottle to saturate the grout lines, wiping excess from tile surfaces immediately. Reapply sealer annually or as needed; test absorption by dripping water on grout—if it darkens, it’s time to reseal. Avoid walking on sealed grout for 24 hours to prevent footprints or damage.
A common mistake is rushing the grouting process, leading to weak bonds or uneven lines. Work in small sections, completing one area before moving to the next. After grouting, wait 10–15 minutes before cleaning excess with a damp sponge—rinsing frequently to avoid smearing. For textured tiles, use a detail brush to remove grout from crevices. Once cured, polish tiles with a clean cloth to restore their sheen. Patience during this stage ensures a professional finish and minimizes future repairs.
Comparing grout types reveals trade-offs. Epoxy grout, though pricier, offers superior stain and water resistance, making it ideal for showers. Cementitious grout is budget-friendly but requires diligent sealing. For a seamless look, match grout color to tiles; contrasting hues emphasize patterns but highlight imperfections. Regardless of type, consistent maintenance—such as avoiding harsh cleaners and promptly addressing cracks—extends grout life. Think of grout as the mortar in a brick wall: invisible yet indispensable.
In practice, consider this scenario: a homeowner skips sealing grout to save time. Within months, mold creeps along the shower floor, and tiles loosen. The fix? Regrouting and sealing—a costly, avoidable hassle. By investing a few hours in proper grouting and sealing, you safeguard your shower’s integrity. Treat grout as the foundation of your tile installation, and it will repay you with years of watertight performance.
Why Shower Tile Grout Turns Orange: Causes and Solutions
You may want to see also
Explore related products
Install shower drain and fixtures
Installing the shower drain is a critical step that bridges functionality and aesthetics in your tile shower project. Begin by selecting a drain assembly compatible with your tile thickness and shower layout. Standard drains are 2 inches in diameter, but ensure the flange is wide enough to accommodate your tile pattern without disrupting the design. Position the drain directly in the lowest point of the shower floor to facilitate proper water flow. Use a waterproof membrane beneath the drain to prevent leaks, securing it with a bead of silicone sealant. This foundational step sets the stage for a watertight and visually cohesive shower.
Once the drain is installed, turning your attention to fixtures transforms the shower from utilitarian to luxurious. Start with the shower valve, which controls water temperature and flow. Install it at a height of 48 to 52 inches from the floor for ergonomic access. Use a pressure-balanced valve to prevent scalding, especially in households with children or elderly individuals. Follow manufacturer instructions for soldering or using shark bite fittings, ensuring all connections are leak-free. Test the valve by running water through it before proceeding to avoid costly repairs later.
Selecting and installing the showerhead and handheld fixtures is where personal preference meets practicality. Opt for a showerhead with adjustable settings, such as rainfall or massage modes, to cater to different users. Position the showerhead 72 to 78 inches above the floor for optimal coverage. For handheld fixtures, install the diverter valve near the shower valve and route the hose through a discreet opening in the tile. Use a soap dish or niche to keep essentials within reach, ensuring these additions complement the tile layout rather than cluttering it.
Finally, the finishing touches—like trim plates and escutcheons—elevate the overall appearance while concealing installation imperfections. Choose finishes that match your drain and fixtures, such as brushed nickel or matte black, for a cohesive look. Secure trim plates with silicone sealant to prevent water infiltration behind the walls. Step back and assess the alignment of all fixtures, making adjustments as needed. This meticulous attention to detail ensures your shower not only functions flawlessly but also stands as a testament to your craftsmanship.
Tiling Around Acrylic Shower Pans: A Step-by-Step DIY Guide
You may want to see also
Frequently asked questions
Essential tools include a tile cutter, trowel, notched spreader, level, rubber float, grout sponge, tile adhesive, thin-set mortar, waterproof membrane, silicone caulk, and a utility knife.
Clean the area thoroughly, repair any damage to the substrate, ensure the surface is level, and install a waterproof membrane to prevent water damage.
Use a high-quality, waterproof thin-set mortar specifically designed for wet areas to ensure proper adhesion and durability.
Yes, a waterproof membrane or liner is crucial to prevent water from seeping behind the tiles and causing structural damage.
Slope the shower floor slightly toward the drain (about 1/4 inch per foot) during the mortar bed installation to ensure water flows correctly.
