Creating a bench in a tile shower not only enhances functionality but also adds a touch of luxury to your bathroom. To achieve this, start by planning the bench’s size and location, ensuring it fits seamlessly within the shower space and aligns with the overall design. Use waterproof materials such as cement board for the bench’s structure to prevent water damage, and reinforce it with a sturdy frame for added support. Tile the bench to match the shower walls, using a slope for proper drainage and applying a waterproof membrane underneath to protect against leaks. Finally, grout the tiles carefully and seal the entire surface to maintain durability and ease of cleaning, resulting in a stylish and practical shower bench.
| Characteristics | Values |
|---|---|
| Bench Material | Waterproof materials like tile, stone, or sealed wood; commonly matches shower tile for consistency |
| Structural Support | Requires a sturdy base, often framed with pressure-treated wood, cement board, or metal studs |
| Waterproofing | Use waterproof membrane (e.g., Schluter Kerdi) under tile to prevent water damage |
| Bench Height | Typically 17-19 inches (43-48 cm) for comfortable seating |
| Bench Depth | 15-18 inches (38-46 cm) for ample seating space |
| Bench Length | Varies based on shower size; commonly spans the width of the shower |
| Tile Layout | Tiles should slope slightly (1/4 inch per foot) toward the shower drain to prevent water pooling |
| Grout | Use epoxy or waterproof grout to resist mold and mildew |
| Sealing | Seal grout and tile edges with a waterproof sealant |
| Drainage | Ensure bench design allows water to drain freely; avoid flat surfaces that trap water |
| Safety | Incorporate non-slip tiles or texture for safe seating |
| Aesthetics | Match bench tile to shower walls or use contrasting tiles for a design accent |
| Installation | Requires precise measurements, waterproofing, and tiling skills; often a professional job |
| Cost | Varies based on materials and labor; typically $500-$2,000+ for professional installation |
| Maintenance | Regular cleaning and resealing of grout and tiles to maintain waterproofing |
Explore related products
What You'll Learn
- Planning and Design: Measure space, choose bench size, select tile style, ensure proper slope for drainage
- Framing the Bench: Build a waterproof frame using PVC or pressure-treated wood, secure to walls
- Waterproofing: Apply waterproofing membrane to frame, corners, and seams to prevent leaks
- Tile Installation: Lay tiles on bench surface and front, use spacers, cut tiles to fit
- Grouting and Sealing: Fill tile gaps with grout, seal bench and edges to protect from moisture
Planning and Design: Measure space, choose bench size, select tile style, ensure proper slope for drainage
Before you lay a single tile, precision in planning is paramount. Start by measuring the shower space meticulously. Use a tape measure to determine the available width, depth, and height where the bench will sit. Consider the shower’s overall dimensions and how the bench will integrate without obstructing movement or compromising functionality. For instance, a standard shower bench is typically 15–18 inches deep and 17–19 inches high, but these dimensions should be tailored to the user’s comfort and the space constraints. Sketching a rough layout on graph paper can help visualize the bench’s placement and ensure it aligns with the shower’s design flow.
Choosing the bench size isn’t just about aesthetics; it’s about practicality. A bench that’s too small becomes useless, while one that’s too large can dominate the shower space. For a single user, a width of 18–24 inches is often sufficient, but if the bench is intended for shared use or as a decorative element, consider extending it to 36 inches or more. Think about the bench’s purpose: will it primarily serve as seating, a ledge for toiletries, or both? For example, a narrower bench (12–15 inches) works well as a shaving ledge, while a deeper one provides ample seating. Always factor in the tile thickness and mortar bed when finalizing dimensions.
Tile selection is where design meets durability. Opt for slip-resistant tiles with a matte or textured finish to ensure safety in a wet environment. Consider the overall shower aesthetic—matching the bench tiles to the shower walls creates a cohesive look, while contrasting tiles can make the bench a focal point. Mosaic tiles are popular for benches due to their flexibility and ability to conform to curved edges. However, larger format tiles can provide a sleek, modern appearance if the bench’s shape allows. Don’t overlook grout color; it should complement both the tiles and the surrounding shower design while being resistant to mold and mildew.
Proper slope is the unsung hero of a functional shower bench. Without it, water pools, leading to mold, mildew, and structural damage. Aim for a slope of 1/4 inch per foot away from the bench surface to ensure water drains efficiently. This slope should be integrated into the mortar bed beneath the tiles, not the tiles themselves. Use a level and straightedge to verify the slope during installation. For added drainage, consider incorporating a slight gap between the bench and the back wall or installing a linear drain along the bench’s edge. This attention to detail ensures the bench remains both beautiful and practical for years to come.
Floor vs. Shower Tile on Curb: Which is the Better Choice?
You may want to see also
Explore related products

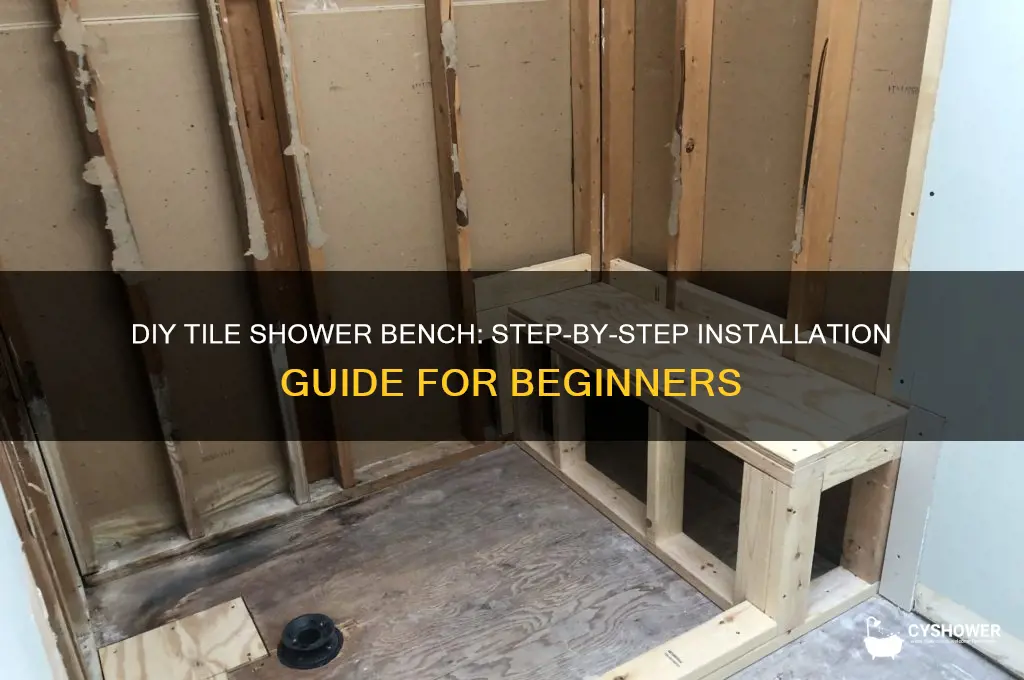

Framing the Bench: Build a waterproof frame using PVC or pressure-treated wood, secure to walls
A sturdy, waterproof frame is the backbone of any shower bench, ensuring longevity and safety. PVC and pressure-treated wood are the two primary materials for this task, each with distinct advantages. PVC is lightweight, resistant to moisture, and easy to cut, making it ideal for DIY enthusiasts. Pressure-treated wood, while heavier, offers a more traditional aesthetic and robust structural integrity. Both materials require precise measurements and secure anchoring to the shower walls to prevent shifting or water infiltration.
To begin framing, measure the bench dimensions based on your shower space and intended use. A standard depth of 15–18 inches and height of 18–20 inches from the shower floor works well for most users. Cut the PVC or wood to size, ensuring all pieces are level and plumb. For PVC, use PVC cement and fittings to join the frame securely. With pressure-treated wood, pre-drill holes to prevent splitting and fasten with galvanized screws or brackets. Both materials should be anchored to the shower walls using waterproof anchors or brackets, ensuring the frame is firmly attached to studs for maximum stability.
Waterproofing is critical at this stage. If using pressure-treated wood, apply a marine-grade sealant to all surfaces, paying extra attention to joints and screw holes. For PVC, while inherently water-resistant, sealing any drilled holes or joints with silicone caulk adds an extra layer of protection. Ensure the frame sits slightly above the shower floor to avoid standing water, which can compromise the structure over time.
A common mistake is underestimating the weight the bench will bear. Test the frame’s strength before tiling by applying pressure or adding temporary supports. If the frame flexes or shifts, reinforce it with additional bracing or re-evaluate the anchoring. Proper framing not only supports the bench but also distributes weight evenly, preventing tile cracking or grout failure once the bench is in use.
Finally, consider the bench’s integration with the shower’s slope. The frame should align with the shower’s drainage system, ensuring water flows away from the bench. This step is often overlooked but is essential for maintaining a dry, mold-free surface. With a well-built, waterproof frame, you’re ready to proceed with tiling, confident that your shower bench will stand the test of time.
Mastering Shower Tiling: A Step-by-Step Guide to Using Oblong Tiles
You may want to see also
Explore related products
Waterproofing: Apply waterproofing membrane to frame, corners, and seams to prevent leaks
Waterproofing is the unsung hero of any tile shower bench project, the invisible shield that guards against the silent menace of water damage. Without it, even the most beautifully crafted bench can become a breeding ground for mold, mildew, and structural decay. The key to success lies in meticulous application of a waterproofing membrane to the frame, corners, and seams—areas most vulnerable to leaks. Think of it as sealing the fate of your bench, but in a good way.
Begin by selecting a waterproofing membrane suited to wet environments, such as liquid-applied or sheet membranes. Liquid membranes, like those from brands such as RedGuard or Hydro Barrier, are ideal for their ability to conform to irregular surfaces and self-seal around fasteners. Apply the first coat with a roller or brush, ensuring full coverage on the bench frame, corners, and seams. Allow it to cure according to the manufacturer’s instructions—typically 24 to 48 hours—before applying a second coat for added protection. Sheet membranes, like Kerdi or NobleSeal, offer a peel-and-stick solution, which is particularly useful for DIYers seeking a straightforward application. Whichever you choose, the goal is to create a seamless barrier that water cannot penetrate.
Corners and seams demand extra attention due to their propensity for gaps and weak points. Use fabric or mesh reinforcements, often included with waterproofing systems, to bridge these areas. For inside corners, fold the membrane into a 90-degree angle, ensuring no creases or voids remain. Outside corners should be wrapped with a single piece of membrane, overlapping the adjacent surfaces by at least 2 inches. Seams between membrane sheets must be carefully sealed with compatible tape or adhesive to maintain integrity. This precision is non-negotiable—a single missed spot can compromise the entire system.
A common mistake is rushing the waterproofing process, especially when eager to move on to tiling. Resist this urge. Test the membrane’s effectiveness by filling the shower pan with water for 24 hours before proceeding. If no leaks appear, you’re ready for the next step. If water seeps through, reapply the membrane to the affected area and retest. This extra step, though time-consuming, is far less costly than repairing water damage later.
In the grand scheme of shower bench construction, waterproofing is the quiet guardian that ensures longevity and peace of mind. It’s not glamorous, but it’s indispensable. By treating the frame, corners, and seams with the care they deserve, you’re not just building a bench—you’re safeguarding your investment against the relentless forces of moisture.
Revitalize Your Shower: Easy Steps to Stain Tile Grout
You may want to see also
Explore related products
Tile Installation: Lay tiles on bench surface and front, use spacers, cut tiles to fit
The bench surface and front are the most visible parts of your tile shower bench, so precision in tile installation is critical. Begin by laying out the tiles dry to ensure proper alignment and spacing. Use 1/16-inch spacers between tiles for consistency, but consider narrower spacers (1/32-inch) for a more modern, seamless look. If your bench has curves or irregular shapes, dry-fit the tiles first to identify where cuts will be needed. Always start laying tiles from the center outward to maintain symmetry, especially if using larger format tiles (12x24 inches or greater).
Cutting tiles to fit the bench’s edges and corners requires patience and the right tools. A wet saw with a diamond blade is ideal for straight cuts, while a tile nipper or grinder can handle curves or small adjustments. When cutting tiles for the bench front, measure twice and cut once—errors here are highly visible. For a polished look, use bullnose or pencil tiles along the bench edge to create a smooth, finished appearance. If your tiles have a directional pattern or texture, ensure all pieces align consistently to avoid visual disruption.
The bench front is particularly challenging due to its vertical orientation and exposure to water. Apply a generous amount of thinset mortar using a 1/4-inch notched trowel, ensuring full coverage to prevent tiles from slipping. Press tiles firmly into place, using a rubber mallet or grout float to level them. Check for plumb and level frequently, as gravity can cause tiles to shift before the thinset sets. Allow the thinset to cure for at least 24 hours before grouting to avoid cracking or displacement.
Spacers are your best friend for maintaining uniformity, but they’re only as effective as your attention to detail. Remove spacers carefully after setting tiles to avoid disturbing their alignment. For benches with integrated niches or storage, ensure tiles around these features are flush and evenly spaced. If using contrasting grout colors, double-check that spacers are consistent to avoid uneven grout lines. Remember, the goal is not just functionality but also aesthetic appeal—a well-tiled bench elevates the entire shower design.
Finally, consider the long-term durability of your installation. Use a waterproof membrane beneath the tiles, especially on the bench front, to prevent water infiltration. Apply grout sealer after installation to protect against mold and mildew, reapplying annually in high-moisture areas. While tile installation on a bench is more labor-intensive than walls or floors, the result—a custom, built-in feature that enhances both form and function—is well worth the effort. With careful planning and execution, your tiled shower bench will be a standout element of your bathroom for years to come.
Step-by-Step Guide to Removing a Shower Enclosure and Tiles
You may want to see also
Explore related products
Grouting and Sealing: Fill tile gaps with grout, seal bench and edges to protect from moisture
Grout is the unsung hero of any tiled surface, and in a shower bench, it plays a critical role in both aesthetics and functionality. After setting your tiles, the gaps between them must be filled with grout to prevent water infiltration, which can lead to mold, mildew, or structural damage. Choose a grout type suited for wet environments—epoxy or cementitious grout with a waterproof additive are ideal. Apply the grout using a rubber float, pressing it diagonally into the joints to ensure full coverage. Wipe away excess grout with a damp sponge, but avoid over-cleaning, as this can pull grout from the joints. Allow the grout to cure for at least 24 hours before proceeding to the next step.
Sealing is the final, non-negotiable step in protecting your shower bench from moisture damage. Even water-resistant grout can degrade over time when exposed to constant moisture, so sealing both the grout and the tiles themselves is essential. Use a penetrating sealer designed for wet areas, applying it evenly with a small brush or roller. Pay special attention to the bench edges and corners, as these areas are most vulnerable to water pooling. Follow the manufacturer’s instructions for application and drying times, typically allowing 2–4 hours between coats. Reapply the sealer annually or as recommended to maintain its protective barrier.
A common mistake in grouting and sealing is rushing the process. Grout needs adequate time to cure before sealing, or the sealer may trap moisture beneath the surface, leading to efflorescence or mold. Similarly, applying sealer to damp grout or tiles can result in an uneven finish or reduced adhesion. To avoid these issues, test the grout’s readiness by sprinkling a few drops of water on its surface—if the water beads up, it’s ready for sealing. If it absorbs, wait longer. Patience here ensures longevity and performance.
For a professional finish, consider using a grout colorant or enhancer to match or contrast with your tiles. This not only improves the bench’s appearance but also adds an extra layer of protection. Additionally, install edge trim or bullnose tiles along the bench’s perimeter to create a smooth, water-resistant transition. These small details elevate the bench’s durability and aesthetic appeal, turning a functional element into a design feature. With proper grouting and sealing, your shower bench will withstand daily use and maintain its integrity for years to come.
Top Shower Tile Choices for Walls and Ceilings: A Complete Guide
You may want to see also
Frequently asked questions
You will need waterproof materials such as cement board or concrete backer board for the bench structure, waterproof membrane (like liquid waterproofing or sheet membranes), tile for the bench surface, thinset mortar, grout, and silicone caulk. Ensure all materials are suitable for wet environments.
Build the bench frame using cement board or concrete backer board, ensuring it’s sloped slightly forward for water runoff. Apply a waterproof membrane over the entire bench structure, including seams and corners. Use thinset mortar to adhere tiles and grout with a waterproof additive. Seal all edges and corners with silicone caulk to prevent water infiltration.
Choose tiles that are slip-resistant, durable, and suitable for wet areas, such as porcelain, ceramic, or natural stone tiles. Install tiles using thinset mortar, ensuring proper spacing with tile spacers. Grout the tiles with a waterproof grout and seal the entire surface, including grout lines, with a penetrating sealer to prevent water absorption.
