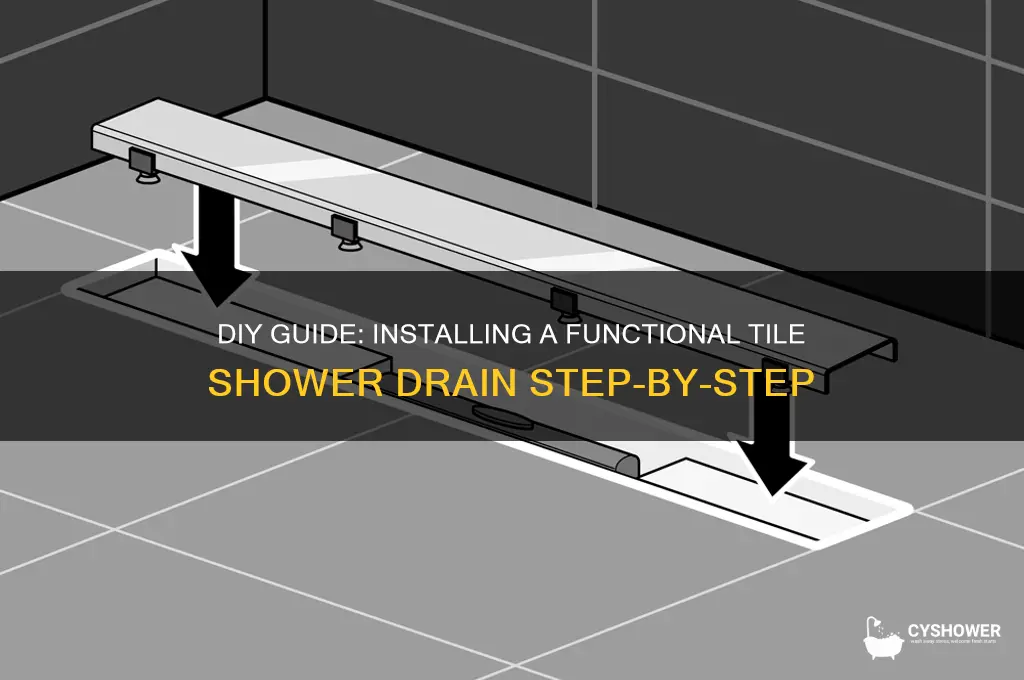

Installing a tile shower drain is a crucial step in creating a functional and aesthetically pleasing shower. The process involves careful planning, precise measurements, and attention to detail to ensure proper drainage and waterproofing. Begin by selecting a high-quality drain that complements your tile design and meets your shower’s needs, such as a linear or center drain. Next, prepare the shower base by creating a slope toward the drain to facilitate water flow, typically at a gradient of 1/4 inch per foot. Apply a waterproof membrane to the shower floor and walls to prevent leaks, ensuring all seams and corners are fully sealed. Once the membrane is dry, set the drain assembly in place, securing it according to the manufacturer’s instructions. Finally, lay the tiles around the drain, using a tile saw to cut pieces as needed for a seamless fit. Grout the tiles and allow them to cure before testing the drain for proper functionality. With patience and precision, a well-installed tile shower drain will enhance both the durability and beauty of your shower.
Explore related products
What You'll Learn
Planning Drain Location
The shower drain's location isn't just a plumbing detail; it's the linchpin of your shower's functionality and aesthetics. A poorly placed drain can lead to standing water, uneven tile slopes, and a visually unbalanced space. Imagine stepping into a shower where water pools around your ankles because the drain is too far from the showerhead, or a sleek, modern design marred by a drain awkwardly centered in a sea of tiles. To avoid these pitfalls, start by considering the natural slope of your bathroom floor and the layout of your shower area.
Analyzing your shower's dimensions and intended use is the first step in drain placement. For a standard 3’ x 3’ shower, the drain should be positioned near the center to ensure efficient water flow. However, larger walk-in showers or those with multiple showerheads may require a drain closer to the primary water source or even dual drains to prevent flooding. For example, a 5’ x 3’ shower with a rainfall showerhead at one end benefits from a drain placed 12–18 inches from the showerhead to minimize water runoff distance. Always ensure the drain aligns with the shower’s slope, typically a 1/4-inch per foot gradient toward the drain.
While functionality is paramount, the drain’s location also impacts the tile layout. A drain placed too close to a wall can disrupt the tile pattern, forcing you to cut tiles into awkward shapes. Conversely, a drain centered in a large shower may require intricate tile cuts to maintain symmetry. To avoid this, plan the tile layout before finalizing the drain position. Use a grid system or digital tool to visualize how tiles will align with the drain. For instance, if using 12” x 24” tiles, position the drain so it falls along a grout line, ensuring a seamless look without excessive cutting.
Persuasive as it may be to prioritize aesthetics, safety should never be compromised. A drain placed too far from the shower entrance can create a slippery slope, increasing the risk of falls. Similarly, a drain too close to the shower door may lead to water spilling into the bathroom. Strike a balance by placing the drain 2–3 feet from the shower entrance, ensuring water flows away from the door while maintaining a safe, gradual slope. For added safety, incorporate a linear drain along the shower threshold if your design permits.
In conclusion, planning the drain location requires a blend of practicality, aesthetics, and safety. Measure twice, consider tile patterns, and prioritize water flow efficiency. Whether you’re working with a compact stall or a luxurious walk-in shower, a well-placed drain ensures both functionality and visual harmony. Remember, the drain isn’t just a hole in the floor—it’s the cornerstone of your shower’s design and performance.
Glass Tile in Showers: Pros, Cons, and Durability Explained
You may want to see also
Explore related products
Choosing Drain Materials
The material you choose for your shower drain isn't just about aesthetics; it directly impacts durability, maintenance, and even water flow. Stainless steel is a popular choice due to its corrosion resistance and modern look. However, for a more luxurious feel, consider brass or copper, which develop a unique patina over time. If budget is a concern, PVC drains offer affordability but may lack the longevity of metal options.
Effective Tips to Remove Soap Scum from Tile Shower Walls and Tub
You may want to see also
Explore related products
Installing Drain Base
The drain base is the unsung hero of a tile shower, ensuring water flows efficiently and preventing costly leaks. Its installation demands precision, as even a slight misalignment can lead to standing water or structural damage. Begin by selecting a drain base compatible with your shower’s slope and tile thickness. Most bases are made of PVC or ABS plastic, offering durability and resistance to corrosion. Measure the shower floor’s center point and mark it, ensuring the drain aligns with the planned slope, typically 1/4 inch per foot. This alignment is critical for proper drainage and avoids water pooling, which can compromise the tile installation.
Installing the drain base involves more than just placing it in the hole. First, cut the hole in the subfloor using the drain base’s template as a guide. Ensure the hole is slightly smaller than the base’s flange to create a snug fit. Apply a bead of silicone caulk or plumber’s putty around the underside of the flange to create a watertight seal. Insert the drain base into the hole, pressing firmly to secure it. Use screws provided by the manufacturer to fasten the base to the subfloor, ensuring it remains level. Double-check the alignment with a level tool, as even a minor tilt can disrupt water flow.
One common mistake is neglecting to test the drain before proceeding with the shower pan or tile installation. Pour water into the drain to ensure it flows freely and doesn’t back up. If issues arise, adjust the base’s position or slope before finalizing the installation. Additionally, consider using a drain membrane or waterproofing material around the base to add an extra layer of protection against leaks. This step, though optional, can save significant time and money in the long run by preventing water damage.
Comparing drain bases, you’ll find options with integrated weep holes or adjustable heights. Weep holes allow moisture to escape, reducing the risk of mold or mildew beneath the tiles. Adjustable bases are ideal for uneven subfloors or custom slopes, offering flexibility during installation. While these features may increase the cost slightly, they provide added functionality and peace of mind. Ultimately, the right drain base not only ensures efficient water drainage but also lays the foundation for a long-lasting, leak-free shower.
Tiling a Triangle Shower Bench: Step-by-Step Guide for a Perfect Finish
You may want to see also
Explore related products
Waterproofing Shower Pan
A shower pan's primary role is to direct water toward the drain, but without proper waterproofing, it becomes a liability. Moisture seeping through grout or tile seams can lead to mold, rot, and structural damage. Waterproofing the shower pan is not just a step—it’s the foundation of a durable, leak-free shower. Skip this process, and you risk costly repairs down the line.
Materials and Preparation: Begin with a clean, dry substrate. Common waterproofing membranes include liquid-applied coatings (like RedGard or Hydro Barrier) and sheet membranes (such as Kerdi or PVC liners). Liquid membranes are ideal for curved or irregular surfaces, while sheet membranes offer robust protection but require precise installation. Ensure the shower pan slope is correct (1/4 inch per foot toward the drain) before applying any waterproofing layer.
Application Techniques: For liquid membranes, use a roller or brush to apply a thin, even coat, following the manufacturer’s instructions. Typically, two coats are required, with drying times of 2–4 hours between applications. Sheet membranes involve cutting the material to fit the pan, adhering it with thin-set mortar, and sealing seams with waterproofing tape. Press firmly to eliminate air bubbles, which can compromise the barrier.
Critical Areas to Address: Pay special attention to corners, seams, and the drain assembly. Use fabric or mesh reinforcements in corners to prevent cracking. Around the drain, ensure the waterproofing membrane extends at least 2 inches up the walls and is properly integrated with the drain flange. Failure to seal these areas is a common cause of leaks.
Testing and Final Steps: After waterproofing, perform a flood test by filling the pan with water for 24 hours. Inspect for leaks beneath the shower or in adjacent rooms. If no leaks are detected, proceed with tile installation. Remember, waterproofing is invisible once complete, but its impact on longevity is undeniable. Invest time here, and your shower will remain watertight for decades.
Mastering AcrylPro: A Guide to Shower Wall Tile Installation
You may want to see also
Explore related products
Connecting Drain to Pipes
The shower drain assembly is the linchpin of your tile shower's functionality, and connecting it to the existing plumbing is a critical step that demands precision. Begin by identifying the type of drain assembly you have—whether it's a standard strainer, a trench drain, or a linear drain—as this will dictate the connection method. For instance, a linear drain often requires a specific alignment with the slope of the shower floor, while a standard strainer may offer more flexibility. Ensure the drain body is compatible with your pipe size, typically 2 inches for residential showers, to avoid future leaks or blockages.
Connecting the drain to the pipes involves more than just threading fittings together. Start by dry-fitting the drain body to the pipe to ensure proper alignment and depth. Use a coupling or adapter if the drain outlet doesn’t match the pipe size. Apply plumber’s tape or pipe compound to the threads to create a watertight seal, but avoid over-tightening, as this can damage the threads or crack the drain body. For PVC or ABS pipes, use primer and solvent cement to create a permanent, leak-proof joint. Follow the manufacturer’s instructions for drying times, typically 15–30 minutes for solvent cement, before proceeding with the next steps.
One common mistake is neglecting the trap arm, the horizontal pipe that connects the drain to the vented waste stack. The trap arm must maintain a specific slope—typically 1/4 inch per foot—to ensure proper drainage and prevent clogs. Use a level to verify the slope during installation. If the existing plumbing doesn’t align, consider using a flexible coupling or adjusting the drain height with extensions. Remember, improper trap arm installation can lead to slow drainage or sewer gases entering the shower area.
Finally, test the connection before tiling over the drain. Pour several gallons of water into the drain to check for leaks at the pipe joints and around the drain body. If leaks occur, disassemble the connection, reapply sealant or solvent cement, and retest. Once confirmed watertight, secure the drain body to the shower base with screws or adhesive, ensuring it remains level and flush with the surrounding tile. This meticulous approach ensures a functional, long-lasting shower drain that integrates seamlessly with your plumbing system.
Choosing the Right Size Spacers for Shower Tile Installation
You may want to see also
Frequently asked questions
You will need a shower drain kit, waterproof membrane, thin-set mortar, tile adhesive, tiles, grout, a trowel, a level, a utility knife, and silicone caulk.
Use a pre-sloped shower pan or create a slope by applying a layer of thin-set mortar, ensuring it angles toward the drain at a minimum of 1/4 inch per foot.
While DIY installation is possible with proper research and tools, hiring a professional is recommended for complex waterproofing and ensuring long-term functionality.
