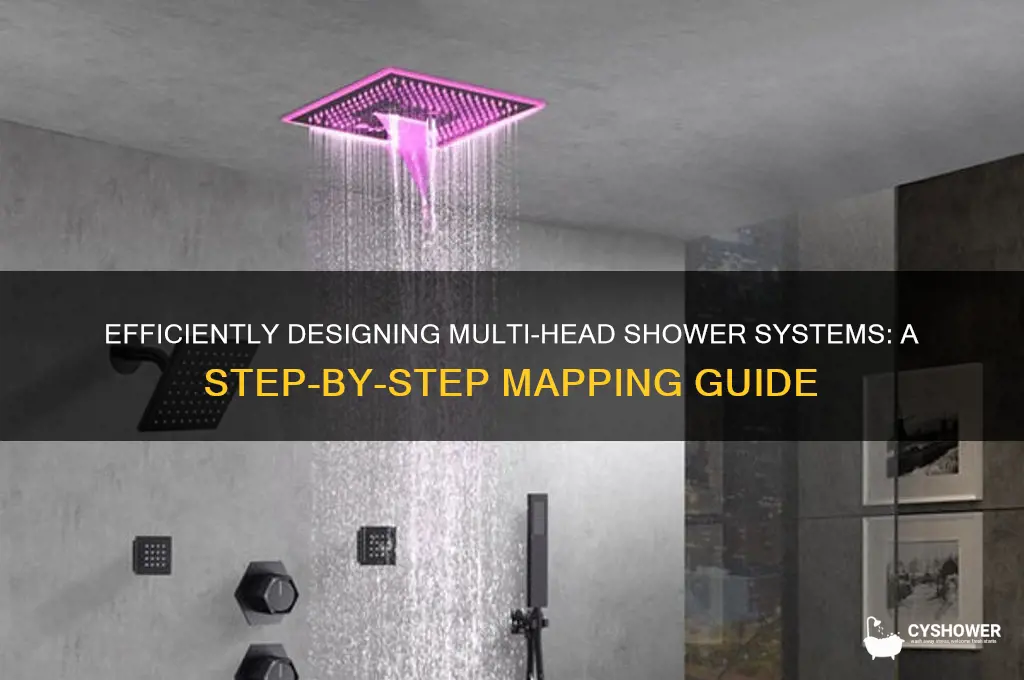

Mapping out multiple shower heads in a bathroom requires careful planning to ensure optimal functionality, aesthetics, and water efficiency. Begin by assessing the available space, considering factors like ceiling height, wall dimensions, and plumbing layout. Determine the desired number of shower heads, their types (e.g., rain shower, handheld, or body jets), and their placement to create a balanced and practical design. Consult with a plumber to ensure the water pressure and supply lines can support multiple fixtures, and sketch a detailed layout to visualize the arrangement. Incorporate waterproofing and drainage solutions to prevent leaks and water damage, and choose high-quality materials that complement the bathroom’s style. Finally, adhere to local building codes and regulations to guarantee safety and compliance.
| Characteristics | Values |
|---|---|
| Number of Shower Heads | 2-6 (common range, can be more) |
| Layout Types | - Linear (side-by-side) - Corner (L-shaped) - Square/Rectangular (grouped) - Custom (based on space and preference) |
| Spacing Between Heads | 12-18 inches (30-45 cm) for optimal coverage and comfort |
| Height Placement | 72-78 inches (183-198 cm) from the floor to the shower head (adjustable for user height) |
| Water Pressure Requirements | 40-60 PSI (pounds per square inch) per shower head |
| Pipe Material | Copper, PEX, or CPVC (based on local plumbing codes) |
| Valve Type | Pressure balance or thermostatic valves for temperature control |
| Drainage System | Central drain with slope (1/4 inch per foot) to prevent water pooling |
| Waterproofing | Waterproof membranes and tiles to prevent leaks |
| Electrical Considerations | GFCI outlets and waterproof lighting (if adding features like steam or lighting) |
| Accessibility Features | Handheld shower heads, grab bars, and non-slip flooring for safety |
| Maintenance Access | Accessible panels or removable tiles for easy repairs |
| Cost Range | $1,500 - $5,000+ (depending on materials, complexity, and labor) |
| Installation Time | 2-5 days (professional installation recommended) |
| Energy Efficiency | Low-flow shower heads (1.5-2.0 GPM) to reduce water usage |
| Design Software | CAD or 3D modeling tools for precise planning (optional) |
Explore related products
What You'll Learn
Shower Head Placement
Strategic shower head placement transforms a basic shower into a spa-like experience. Start by identifying the shower's purpose: is it for relaxation, efficiency, or accessibility? For a dual-head setup, position one head at standard height (7.5 to 8 feet) for full-body coverage and a second at a lower angle (6 to 7 feet) for targeted rinsing or seated use. This configuration caters to both standing and seated showering, making it ideal for multi-generational households.
Consider the shower's geometry when mapping multiple heads. In rectangular spaces, place heads at opposite ends to maximize coverage and minimize overlap. For corner showers, angle heads diagonally to create a cross-spray effect, ensuring water reaches all areas without creating dead zones. Use adjustable arms or swivel heads to fine-tune angles post-installation, allowing for personalized spray direction.
Water pressure is critical when planning placement. If installing three or more heads, ensure your plumbing system can handle the flow. A pressure balance valve is essential to prevent fluctuations when multiple heads operate simultaneously. For high-efficiency setups, pair low-flow heads (1.8–2.0 gpm) with strategic placement to maintain performance while conserving water.
Finally, incorporate lighting and aesthetics into your placement plan. Position heads away from direct light sources to avoid glare, and align them with tile patterns or architectural features for visual harmony. For a luxurious touch, install a rainfall head directly overhead (8.5–9 feet) and complement it with side-mounted body sprays at 4–5 feet intervals, creating a surround-sound effect with water.
By blending functionality, ergonomics, and design, thoughtful shower head placement elevates daily routines into immersive experiences. Whether prioritizing practicality or indulgence, a well-mapped layout ensures every shower feels tailored to the user's needs.
How Shower Doors Attach: A Comprehensive Guide to Installation Methods
You may want to see also
Explore related products
Water Pressure Requirements
Water pressure is the backbone of any multi-showerhead system, dictating not just performance but also user satisfaction. Each showerhead requires a minimum of 45 psi (pounds per square inch) to function optimally, though luxury models with advanced features like rainfall or massage settings may demand up to 60 psi. Before mapping out your setup, measure your home’s current pressure using a gauge attached to an outdoor spigot. If it falls below 45 psi, consider installing a booster pump to ensure consistent flow across all heads.
Balancing pressure across multiple showerheads is a delicate science. When two or more heads operate simultaneously, the total flow rate can strain your plumbing system, leading to uneven distribution. To mitigate this, calculate the cumulative flow rate of your showerheads—most standard models range from 1.5 to 2.5 gallons per minute (gpm). If the total exceeds your system’s capacity, install a pressure-balancing valve to regulate flow and prevent one head from dominating.
Low water pressure isn’t just an inconvenience; it’s a deal-breaker for multi-showerhead systems. If your home’s pressure hovers around 30 psi, even the most efficient showerheads will underperform. In such cases, upgrading your plumbing infrastructure may be necessary. Consult a licensed plumber to assess pipe diameter, material, and layout—older homes with galvanized pipes often restrict flow, while newer PEX or copper systems allow for better circulation.
For those seeking a spa-like experience with high-pressure showerheads, consider the trade-offs. While models rated at 80 psi deliver powerful streams, they can increase water consumption by up to 30%. To strike a balance, pair high-pressure heads with low-flow aerators or opt for adjustable settings that let users toggle between gentle and intense modes. Always check local water conservation codes, as some regions restrict showerhead flow rates to 2.0 gpm or less.
Finally, maintenance is key to preserving water pressure in multi-showerhead setups. Mineral buildup from hard water can clog nozzles, reducing flow over time. Install a whole-house water softener to prevent scaling, and flush showerheads quarterly with vinegar to remove deposits. Regularly inspect pipes for leaks or corrosion, as even small issues can compromise pressure. With proactive care, your system will deliver a consistent, invigorating experience for years to come.
Easy DIY Guide: Replacing Delta Shower Head and Knob Step-by-Step
You may want to see also
Explore related products
Pipe Layout Design
Effective pipe layout design is the backbone of a multi-shower head system, ensuring balanced water pressure, efficient drainage, and minimal noise. Begin by sketching a top-down view of your shower area, marking the positions of each shower head. Consider the water source: a single manifold system, where all heads branch from one central pipe, simplifies installation but requires precise pressure regulation. Alternatively, a multi-feed system, with separate lines for each head, offers better control but demands more complex routing. Use ½-inch pipes for runs under 10 feet and ¾-inch for longer distances to maintain optimal flow rates, typically 2.5 GPM per head.
Material selection is critical. PEX tubing is flexible, resistant to corrosion, and ideal for retrofits, while copper offers durability but requires soldering skills. Avoid 90-degree bends, which restrict flow; opt for gradual elbows or sweep fittings instead. Slope drain lines at a ¼-inch per foot gradient to prevent water pooling. For wall-mounted pipes, use stud cavities to conceal lines, but ensure accessibility for future maintenance. If running pipes overhead, secure them with hangers every 3 feet to prevent sagging.
Pressure balancing is non-negotiable. Install a pressure regulator at the manifold to maintain consistent output across all heads, especially if your system exceeds three fixtures. Add shut-off valves for each head to isolate issues during repairs. For luxury setups with rainfall or body spray heads, incorporate a recirculating pump to ensure instant hot water without waste. Test the layout with a mock-up before finalizing to identify potential obstructions or inefficiencies.
Compare your design to industry standards, such as the International Plumbing Code, which mandates minimum pipe diameters and venting requirements. For instance, a 2-inch drain pipe is recommended for showers with multiple heads to handle high flow rates. If retrofitting, assess existing plumbing for compatibility; older galvanized pipes may need replacement to avoid corrosion-induced clogs. Finally, consult a licensed plumber to review your layout, ensuring compliance and functionality before installation. A well-planned pipe layout not only enhances performance but also extends the lifespan of your multi-shower head system.
Choosing the Perfect Glass Shower Door: A Comprehensive Guide
You may want to see also
Explore related products
Material Selection Guide
Selecting the right materials for multiple shower heads is crucial for durability, aesthetics, and functionality. Stainless steel and brass are top contenders due to their corrosion resistance and longevity. Stainless steel, particularly grade 304, offers a sleek, modern look and is ideal for humid environments. Brass, on the other hand, provides a classic, luxurious feel and is highly malleable, making it easier to craft intricate designs. Both materials are compatible with various finishes, such as chrome, matte black, or brushed nickel, allowing for customization to match your bathroom’s style. However, brass is heavier and may require sturdier mounting systems, while stainless steel is lighter and easier to install.
When considering material thickness, aim for a minimum of 18-gauge stainless steel or 1/8-inch brass to ensure structural integrity. Thinner materials may warp under pressure or temperature changes, compromising the shower head’s performance. For high-traffic bathrooms or commercial settings, opt for thicker gauges to withstand frequent use. Additionally, check for lead-free certifications, especially with brass, to ensure compliance with health and safety standards. Materials like plastic or low-grade metals should be avoided, as they lack durability and may degrade quickly in wet environments.
The choice of material also impacts maintenance requirements. Stainless steel is low-maintenance, resisting water spots and stains with minimal cleaning. Brass, while durable, may develop a patina over time, which some find appealing but others may want to polish regularly. If you prefer a maintenance-free option, consider PVD (Physical Vapor Deposition) coated materials, which provide superior scratch and corrosion resistance. For eco-conscious homeowners, recycled stainless steel or brass is an excellent choice, offering the same benefits with a reduced environmental footprint.
Cost is another factor in material selection. Stainless steel is generally more affordable than brass, making it a budget-friendly option without sacrificing quality. Brass, while pricier, adds a premium touch and can increase the overall value of your bathroom. If you’re working with a tight budget but still want a high-end look, consider stainless steel with a brushed gold or rose gold finish, which mimics the appearance of brass at a fraction of the cost. Always balance your budget with long-term durability to avoid frequent replacements.
Finally, consider the water pressure and flow rate compatibility of your chosen material. Stainless steel and brass both handle high-pressure systems well, but the internal components, such as nozzles and filters, should also be made of durable materials like silicone or rubber to prevent clogging. For multi-shower head setups, ensure the material can withstand the combined pressure without leaking or cracking. Consulting a plumber or manufacturer specifications can help you make an informed decision tailored to your specific needs. By prioritizing material quality, you’ll create a shower system that’s both functional and visually stunning.
Ultimate Guide to Installing Multiple Shower Heads for a Luxurious Experience
You may want to see also
Explore related products
Installation Steps Overview
Mapping out multiple shower heads requires precision and planning to ensure optimal water flow, coverage, and aesthetics. Begin by measuring the shower area’s dimensions and identifying the water supply’s location. Use a level and stud finder to mark wall studs, as these will anchor the shower heads securely. Sketch a rough layout, considering both functionality and visual balance—for instance, placing overhead rain shower heads at least 7 feet above the floor for full-body coverage, while handheld or body sprayers should be positioned 3.5 to 4.5 feet high for ergonomic use.
Next, determine the plumbing requirements. Multiple shower heads demand adequate water pressure, typically 40–60 PSI, and flow rate, which should align with local building codes. Install a pressure balance valve to prevent fluctuations when multiple heads operate simultaneously. If your system lacks sufficient pressure, consider adding a booster pump. Use T-fittings and diverter valves to connect the heads to the main water supply, ensuring each fixture has its own shut-off valve for maintenance ease.
Material selection is critical for longevity and style. Opt for brass or stainless steel fixtures to resist corrosion, especially in humid environments. Waterproof the walls with cement board and tile backer, then apply a moisture-resistant sealant around the shower heads to prevent leaks. For a cohesive look, match the finish of the shower heads (e.g., matte black, chrome, or brushed nickel) with other bathroom fixtures. If using LED shower heads, ensure the electrical wiring complies with safety standards and is installed by a licensed electrician.
Finally, test the system thoroughly before sealing the walls. Run each shower head individually and in combination to check for leaks, uneven pressure, or temperature inconsistencies. Adjust the angle of adjustable heads to avoid overlapping spray patterns, ensuring full coverage without wasting water. Once satisfied, secure the escutcheon plates and tighten all connections. Regular maintenance, such as cleaning mineral deposits and checking for loose fittings, will extend the lifespan of your multi-head shower system.
Sliding Shower Doors: Common Drawbacks and Maintenance Challenges Explained
You may want to see also
Frequently asked questions
Measure your shower space and decide on the desired placement of each shower head (e.g., overhead, handheld, body sprays). Ensure they are evenly spaced and aligned with plumbing lines for efficient installation.
Ensure your water supply can handle the flow rate of multiple shower heads simultaneously. Install a pressure balance valve to regulate water pressure and temperature, and use proper piping to avoid leaks.
Yes, but it depends on your current plumbing setup. Consult a plumber to assess if your existing pipes and water pressure can support additional shower heads, and plan for minimal wall or tile modifications if necessary.
