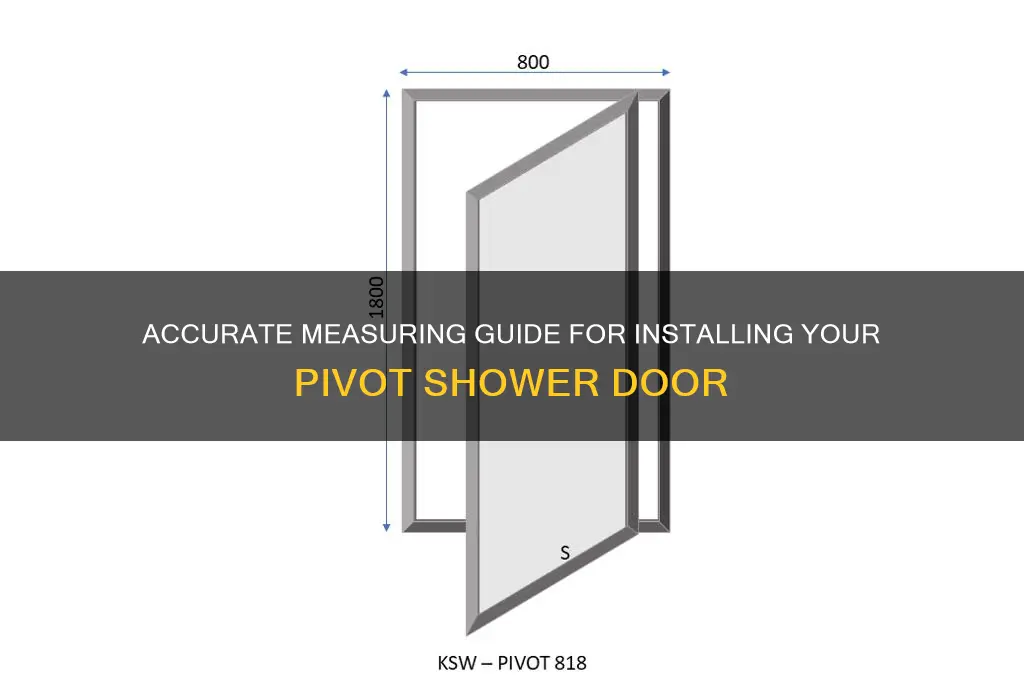

Measuring for a pivot shower door is a crucial step to ensure a perfect fit and seamless installation. Before starting, gather a tape measure, pencil, and paper to record dimensions accurately. Begin by measuring the width of the shower opening at both the top and bottom, as well as the height from the threshold to the top of the opening, ensuring the surface is level. Account for any obstructions like fixtures or tiles, and double-check all measurements for accuracy. Additionally, consider the door’s swing direction and clearance space to avoid interference with other bathroom elements. Proper measurements will not only guarantee a functional and aesthetically pleasing result but also prevent costly mistakes during installation.
| Characteristics | Values |
|---|---|
| Shower Opening Width | Measure the width of the shower opening at both the top and bottom. Ensure they are the same. Standard sizes range from 22" to 36". |
| Shower Opening Height | Measure the height from the top of the threshold (or shower pan) to the ceiling or where the door will stop. Standard heights range from 72" to 78". |
| Threshold or Shower Pan Depth | Measure the depth of the threshold or shower pan to ensure the door fits properly. Typically, 1" to 2" is required for proper installation. |
| Wall-to-Wall Clearance | Ensure there is enough clearance between walls for the door to swing open without obstruction. Minimum clearance is usually 24" to 30". |
| Door Swing Direction | Determine if the door will swing inward or outward based on bathroom layout and space availability. |
| Pivot Hinge Placement | Measure the distance from the pivot hinge to the edge of the door. This ensures proper alignment and functionality. |
| Door Material and Weight | Consider the material (glass, acrylic, etc.) and weight of the door, as it affects hinge selection and installation requirements. |
| Adjustability | Check if the pivot hinges are adjustable to accommodate slight variations in measurements. |
| Water Tightness | Ensure the door seals properly to prevent water leakage. Measure the gap where the seal will be placed. |
| Hardware Compatibility | Verify that the pivot hinges and hardware are compatible with the door size and weight. |
| Level and Plumb | Ensure the walls and threshold are level and plumb to guarantee proper door installation and operation. |
Explore related products
$18.99
What You'll Learn
- Measure Shower Opening: Width, height, and depth of the shower opening
- Check Wall Plumbness: Ensure walls are plumb for proper door alignment
- Determine Door Type: Choose pivot, sliding, or hinged door style
- Account for Adjustments: Note adjustable ranges for hardware installation
- Verify Clearance Space: Measure space outside shower for door swing
Measure Shower Opening: Width, height, and depth of the shower opening
Accurate measurements are the cornerstone of a successful pivot shower door installation. Begin by measuring the width of your shower opening. Use a sturdy tape measure and record the distance between the finished walls at the top, middle, and bottom of the opening. Note the smallest measurement to ensure the door fits snugly without gaps. Precision here prevents water leaks and ensures smooth operation.
Next, determine the height of the shower opening. Measure from the top of the threshold or curb to the underside of the overhead structure, such as a soffit or ceiling. If your shower has a sloped ceiling, measure to the lowest point. Add 1/8 inch to this measurement to allow for slight adjustments during installation. This ensures the door aligns perfectly with the shower’s architecture.
The depth of the shower opening is often overlooked but equally critical. Measure the distance from the front of the threshold to the back wall of the shower. This dimension affects the door’s swing arc and clearance. For pivot doors, ensure there’s enough space for the door to open without hitting fixtures or walls. A minimum depth of 32 inches is recommended for comfortable movement, though larger showers may require more.
When measuring, always use a metal tape measure for accuracy and avoid fabric or flexible tapes that can stretch. Take measurements at least twice to confirm consistency. If your shower walls are uneven or out of plumb, note these irregularities as they may require additional adjustments during installation. Properly documenting these details ensures a seamless fit and avoids costly mistakes.
Finally, consider the threshold type when measuring depth. A flat threshold requires precise alignment, while a curbed threshold may offer more flexibility. If your shower has a built-in seat or niche, account for these features in your measurements. By meticulously measuring width, height, and depth, you lay the foundation for a pivot shower door that not only fits but enhances your bathroom’s functionality and aesthetics.
Top-Rated 60-Inch Shower Door Brands: A Comprehensive Comparison Guide
You may want to see also
Explore related products
Check Wall Plumbness: Ensure walls are plumb for proper door alignment
Before installing a pivot shower door, verifying the plumbness of your walls is crucial. Even a slight deviation can lead to misalignment, causing the door to drag, leak, or even shatter under stress. Use a long, straight level (at least 48 inches) to check both vertically and horizontally. Hold the level against the wall, ensuring the bubble rests perfectly between the lines. Repeat this process at multiple heights and along the entire length of the wall to identify any inconsistencies.
Imagine your shower door as a finely tuned instrument—its performance relies on precise calibration. Walls that aren’t plumb act like a warped stage, throwing off the entire mechanism. A pivot hinge, unlike sliding doors, pivots on a single point, amplifying any wall imperfections. Even a 1/8-inch deviation over a 72-inch wall can create a noticeable gap or bind. Addressing this issue before installation saves time, money, and frustration.
If you discover your walls aren’t plumb, don’t panic. Minor discrepancies (up to 1/16 inch) can often be compensated for with adjustable pivot hinges or shims. For larger deviations, consider using a waterproof shim material, such as silicone or epoxy, to create a straight mounting surface. Alternatively, consult a professional to assess whether the wall itself needs adjustment. Remember, the goal isn’t perfection but achieving a tolerance that ensures smooth door operation.
Finally, treat wall plumbness as a non-negotiable step in your measurement process. Skipping this check might seem like a shortcut, but it’s a gamble with costly consequences. A properly aligned pivot door not only functions seamlessly but also enhances the aesthetic appeal of your shower space. Take the time to measure twice, ensuring your walls are as true as your commitment to a flawless installation.
Revive Your Frameless Shower Door: Quick Fixes for Sagging Issues
You may want to see also
Explore related products
Determine Door Type: Choose pivot, sliding, or hinged door style
Before measuring for a pivot shower door, it’s crucial to determine the door type that best suits your space. The choice between pivot, sliding, or hinged doors hinges on factors like bathroom layout, available clearance, and aesthetic preferences. Pivot doors swing outward, requiring ample room for operation, while sliding doors conserve space by gliding along a track. Hinged doors, often seen in alcove showers, open outward but may limit accessibility if space is tight. Understanding these differences ensures your measurements align with the door’s functional and stylistic demands.
Analyzing your bathroom’s layout is the first step in this decision-making process. Measure the width of the shower opening and assess the surrounding area. For pivot doors, ensure there’s at least 24 inches of clearance in front of the shower to allow the door to swing open fully. Sliding doors, on the other hand, require no additional space outside the shower but need a straight, unobstructed wall for the track. Hinged doors typically need 18–24 inches of clearance, depending on the door size. If your bathroom is compact, sliding or hinged doors may be more practical than a pivot design.
From a stylistic perspective, pivot doors offer a sleek, modern look and are often preferred for walk-in showers. They create a seamless, frameless appearance that enhances the overall aesthetic. Sliding doors are versatile and can fit both contemporary and traditional designs, though their tracks may be more visible. Hinged doors are classic and work well in alcove showers but can feel bulkier compared to pivot or sliding options. Consider the visual impact of each type and how it complements your bathroom’s design.
Practicality should also guide your choice. Pivot doors are ideal for larger bathrooms where space isn’t a constraint, but they can be challenging to install due to their weight and need for precise alignment. Sliding doors are easier to install and maintain, making them a popular choice for DIY projects. Hinged doors are straightforward but may require additional waterproofing measures at the hinge points. Factor in installation complexity and long-term maintenance when deciding.
Ultimately, the door type you choose will dictate how you measure and install your shower door. For pivot doors, focus on the swing radius and ensure the floor is level to prevent dragging. Sliding doors require precise track measurements to ensure smooth operation. Hinged doors need careful alignment to avoid leaks. By selecting the right door type upfront, you’ll streamline the measurement process and ensure a functional, stylish result.
Smooth Sliding: Easy Fixes for Effortless Glass Shower Door Movement
You may want to see also
Explore related products
Account for Adjustments: Note adjustable ranges for hardware installation
Pivot shower doors often come with adjustable hardware to accommodate variations in wall and floor alignments, ensuring a seamless fit. Understanding these adjustable ranges is crucial because even the most precise measurements can’t account for minor construction irregularities. For instance, pivot hinges typically allow for lateral adjustments of 3/8 to 1 inch, while vertical adjustments range from 1/4 to 1/2 inch. These tolerances enable the door to align perfectly with the threshold and adjacent walls, preventing leaks and ensuring smooth operation. Always consult the manufacturer’s specifications to confirm the exact adjustable range for your specific hardware.
When measuring for a pivot shower door, it’s not enough to focus solely on the opening dimensions. You must also account for how the adjustable hardware will interact with those dimensions. For example, if your opening is 36 inches wide but the hinge allows for a 1-inch adjustment, your effective range becomes 35 to 37 inches. This flexibility is particularly useful in older homes where walls may not be perfectly plumb or floors level. To maximize this benefit, measure the opening at both the top and bottom, noting any discrepancies. This ensures the adjustable hardware can compensate for any misalignment during installation.
A common mistake is assuming that adjustable hardware can fix significant measurement errors. While it provides flexibility, it’s not a substitute for accurate measurements. For instance, if your opening is 1/2 inch wider than the door at the top and 1/2 inch narrower at the bottom, the hinge’s lateral adjustment may not be sufficient to bridge the gap. In such cases, consider using shims or adjusting the wall framing to create a more uniform opening. Always measure twice and verify the compatibility of your door’s adjustable range with the space’s irregularities.
Finally, consider the practical implications of adjustable hardware during installation. For example, if the hinge allows for vertical adjustment, ensure the door’s bottom sweep or seal will still make proper contact with the threshold after adjustments are made. Similarly, if the door has a magnetic closure, verify that the adjustable range allows for proper alignment with the strike plate. These small details can make the difference between a functional, leak-free shower door and one that requires constant maintenance. By accounting for these factors upfront, you’ll save time and avoid costly rework later.
Master Shower Stall Door Caulking: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Verify Clearance Space: Measure space outside shower for door swing
Imagine stepping out of your shower, only to be greeted by a door that slams into the toilet or blocks the bathroom entrance. This frustrating scenario is easily avoided by verifying the clearance space for your pivot shower door’s swing. Before you commit to measurements, visualize the door’s arc as it opens outward. Will it collide with fixtures, walls, or high-traffic areas? This step is as critical as measuring the shower opening itself, ensuring functionality and safety in your bathroom layout.
To begin, stand outside the shower area and mark the pivot point where the door hinges will attach. Use a tape measure to determine the door’s width and the radius of its swing when fully opened. For example, a 30-inch wide door typically requires at least 32 inches of clearance to swing freely without obstruction. Measure from the pivot point to the nearest obstacle—be it a sink, toilet, or wall—and ensure this distance exceeds the door’s swing radius. If space is tight, consider a sliding or bi-fold door as an alternative.
A common oversight is neglecting to account for towel bars, toilet paper holders, or other wall-mounted accessories. These items may seem insignificant, but they can impede the door’s movement or cause damage over time. To avoid this, measure not just the floor clearance but also the vertical space at various points along the door’s swing path. A good rule of thumb is to allow an additional 2–3 inches of buffer space around all potential obstructions.
For a practical tip, simulate the door’s swing using a cardboard cutout or a long, straight object like a broomstick. Hold one end at the pivot point and swing the other end outward, observing any collisions. This hands-on approach provides a tangible understanding of the space requirements and helps identify issues that measurements alone might miss. If you’re working with an existing shower, temporarily remove any removable fixtures to ensure accuracy.
In conclusion, verifying clearance space is a step that demands precision and foresight. It’s not just about measuring distances but anticipating how the door will interact with its surroundings in real-world use. By taking the time to assess both horizontal and vertical clearance, you’ll ensure your pivot shower door operates smoothly and enhances, rather than hinders, your bathroom’s functionality.
Should Shower Glass Height Match Door Height? Design Tips Revealed
You may want to see also
Frequently asked questions
You will need a tape measure, a pencil, and paper to record measurements. A level and a helper can also be useful for accuracy.
Measure the width of the shower opening at both the top and bottom, as well as in the middle. Use the smallest measurement to ensure the door fits properly.
Measure the height from the top of the threshold or curb to the bottom of the header or ceiling where the door will pivot. Ensure the measurement is taken vertically and is consistent across the opening.
