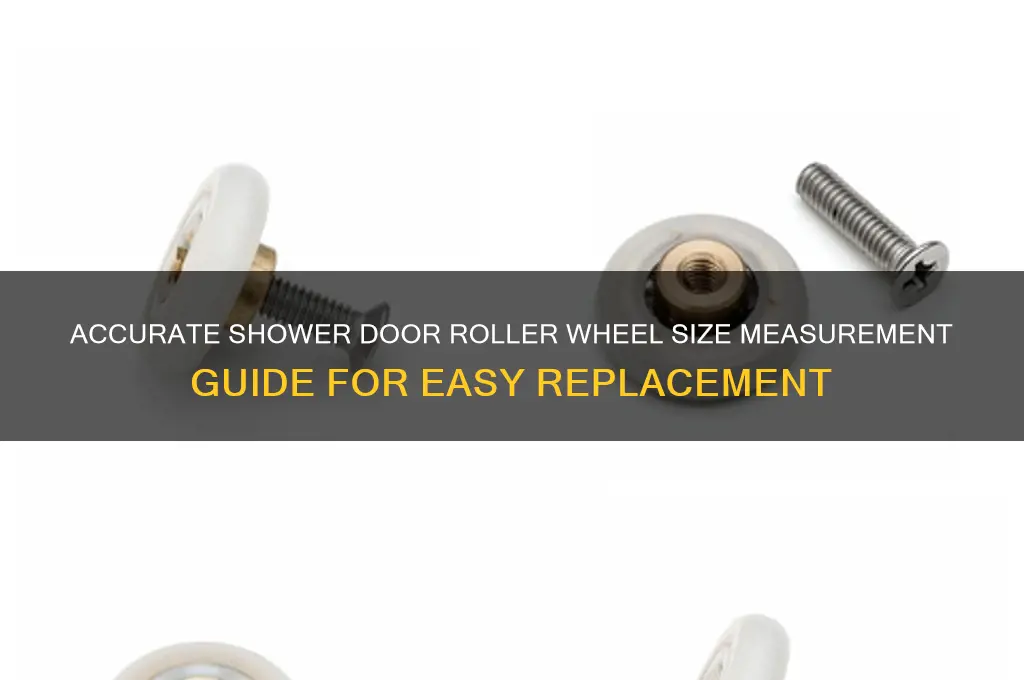

Measuring shower door roller wheel size is essential for ensuring a proper fit and smooth operation of your shower door. To begin, you’ll need to remove the roller wheel from the door by unscrewing or detaching it from its housing. Once removed, use a caliper or ruler to measure the diameter of the wheel, typically ranging from 1 to 2 inches. Next, measure the width of the wheel, which usually falls between 1/4 to 1/2 inch. Additionally, note the axle or pin size, as it must match the new roller’s specifications. Accurate measurements will help you select the correct replacement roller, preventing issues like misalignment or excessive wear. Always consult the manufacturer’s guidelines or a professional if unsure.
| Characteristics | Values |
|---|---|
| Measurement Tools | Caliper, ruler, tape measure |
| Wheel Diameter | Measure across the center of the wheel (most common sizes: 1-1/4", 1-1/2", 2") |
| Wheel Width | Measure the thickness of the wheel (common sizes: 3/16", 1/4", 5/16") |
| Axle Diameter | Measure the diameter of the axle (common sizes: 1/4", 5/16", 3/8") |
| Axle Length | Measure the length of the axle (varies depending on the roller assembly) |
| Material | Plastic, nylon, stainless steel, brass |
| Bearing Type | Ball bearings, plain bearings |
| Weight Capacity | Varies depending on material and design (typically 50-150 lbs per wheel) |
| Compatibility | Specific to shower door brands and models |
| Measurement Accuracy | Ensure precise measurements to within 1/16" for proper fit |
| Replacement Parts | Available at hardware stores, online retailers, or directly from manufacturers |
| Common Issues | Worn-out wheels, broken axles, misaligned rollers |
| Maintenance Tips | Regular cleaning, lubrication, and inspection for wear |
Explore related products
What You'll Learn
- Identify Roller Type: Determine if the roller is inline, dual, or single wheel for accurate measurement
- Measure Wheel Diameter: Use calipers to measure the width of the roller wheel precisely
- Check Wheel Thickness: Measure the depth of the wheel from front to back for compatibility
- Assess Axle Size: Verify the diameter and length of the roller’s axle for proper fit
- Evaluate Housing Dimensions: Measure the outer casing width and height to ensure correct replacement
Identify Roller Type: Determine if the roller is inline, dual, or single wheel for accurate measurement
Before measuring your shower door roller wheel size, you must first identify the roller type. This crucial step ensures accuracy and prevents costly mistakes when ordering replacements. Shower door rollers come in three primary configurations: inline, dual, and single wheel. Each type has distinct characteristics that influence measurement techniques and compatibility with your shower enclosure.
Inline rollers feature two or more wheels mounted on a single axle, typically spaced evenly apart. This design provides stability and smooth operation, making it a popular choice for heavier shower doors. To identify an inline roller, look for multiple wheels aligned in a straight line, often with a metal or plastic housing surrounding the axle. When measuring inline rollers, focus on the diameter of the individual wheels and the overall width of the roller assembly, as these dimensions will impact the fit and functionality of the replacement part.
In contrast, dual rollers consist of two wheels mounted on separate axles, often with a slight offset or angle between them. This configuration allows for greater flexibility and adjustability, making it suitable for doors with uneven or sloping surfaces. Dual rollers may have wheels of different sizes or materials, so it's essential to measure each wheel individually and note any variations. Additionally, consider the distance between the axles and the overall height of the roller assembly when taking measurements.
Single-wheel rollers, as the name suggests, feature a solitary wheel mounted on an axle. This simple design is often found on lighter shower doors or those with minimal weight-bearing requirements. When identifying a single-wheel roller, look for a compact, streamlined profile with a single point of contact between the wheel and the track. Measuring a single-wheel roller is relatively straightforward, focusing on the wheel's diameter, width, and axle size. However, be mindful of any unique features, such as bearings or seals, which may impact the replacement part's compatibility.
To accurately measure your shower door roller wheel size, follow these practical tips: first, remove the roller from the door and clean it thoroughly to ensure precise measurements. Use a caliper or micrometer for accurate diameter and width measurements, and record the values in millimeters or inches. Take multiple measurements to account for any manufacturing tolerances or wear. Finally, consult the manufacturer's specifications or a replacement parts guide to ensure compatibility with your shower enclosure. By correctly identifying the roller type and taking accurate measurements, you'll be well on your way to finding the perfect replacement part for your shower door.
Shower Door Frame Materials: A Comprehensive Guide to Construction
You may want to see also
Explore related products
Measure Wheel Diameter: Use calipers to measure the width of the roller wheel precisely
Calipers are the go-to tool for precision measurements, and when it comes to determining the diameter of a shower door roller wheel, they are indispensable. Unlike rulers or tape measures, calipers provide an exact reading by directly measuring the distance across the wheel’s widest point. This accuracy is critical because even a millimeter of difference can affect the fit and functionality of the roller in the shower door track. Digital calipers, in particular, offer readability down to 0.01 millimeters, ensuring you capture the exact dimensions needed for a replacement or repair.
To measure the wheel diameter with calipers, start by ensuring the roller wheel is clean and free of debris that could skew the measurement. Position the caliper’s jaws directly across the wheel’s widest point, typically the center. Apply gentle pressure until the caliper arms are flush against the wheel’s surface. For consistency, take multiple measurements at different angles to account for any irregularities in the wheel’s shape. Record the largest value, as this represents the true diameter. If using analog calipers, read the measurement at eye level to avoid parallax errors.
One common mistake when using calipers is misaligning the jaws, which can lead to an inaccurate reading. To avoid this, ensure the caliper arms are perpendicular to the wheel’s surface. Additionally, if the wheel is still attached to the shower door, stabilize the door to prevent movement during measurement. For wheels with a grooved or textured surface, measure at the widest part of the groove to ensure compatibility with the track. Always double-check the measurement against the manufacturer’s specifications or a known standard to confirm accuracy.
While calipers are highly effective, they require careful handling to yield precise results. For those unfamiliar with the tool, practice on a flat surface before measuring the roller wheel. If digital calipers are unavailable, analog calipers with a vernier scale can still provide accurate measurements, though they demand more attention to detail. Remember, the goal is not just to measure the wheel but to ensure the replacement part fits seamlessly, preventing future issues like jamming or misalignment. Precision here saves time and frustration down the line.
Utah's Shower Door Explosions: Uncovering the Mysterious Safety Hazard
You may want to see also
Explore related products
Check Wheel Thickness: Measure the depth of the wheel from front to back for compatibility
The thickness of your shower door roller wheel is a critical dimension often overlooked. A wheel too thick can bind in the track, causing resistance or even preventing the door from closing. Conversely, a wheel too thin may wobble, leading to premature wear and an unstable door. Measuring this dimension accurately ensures a seamless fit and smooth operation.
To measure wheel thickness, start by removing the roller assembly from the door. This usually involves unscrewing a retaining screw or clip. Once removed, place the wheel on a flat surface with the front facing up. Use a caliper or a ruler with millimeter markings to measure the depth from the front edge of the wheel to the back. Record this measurement in millimeters, as most replacement wheels are sized in this unit. For example, a common thickness is 6mm, but sizes can range from 4mm to 8mm depending on the door model.
Consider the material of the wheel when assessing thickness. Nylon wheels, for instance, may compress slightly over time, so a snug fit is ideal. Stainless steel or brass wheels, being harder, require a more precise match to avoid binding. If your measurement falls between standard sizes, opt for the slightly thinner wheel and use a spacer if necessary.
A practical tip: if you’re unsure about the exact thickness, bring the old wheel to a hardware store for comparison. Many stores have sample wheels or can order the correct size based on your measurement. Alternatively, consult the door manufacturer’s specifications, often found on a label near the hinge or in the installation manual. Accurate thickness measurement is a small step that prevents big headaches down the line.
Understanding the Materials Behind Plastic Shower Doors: A Comprehensive Guide
You may want to see also
Explore related products
Assess Axle Size: Verify the diameter and length of the roller’s axle for proper fit
The axle is the unsung hero of your shower door roller wheel, quietly bearing the weight and movement of the door. Its size—both diameter and length—is critical for a seamless fit and smooth operation. A mismatch here can lead to wobbling, misalignment, or even complete failure of the roller mechanism. To avoid these issues, precise measurement is key.
Begin by removing the roller wheel from the shower door. This typically involves unscrewing or sliding the assembly out of its housing. Once detached, isolate the axle itself. Use digital calipers for accuracy, measuring the diameter to the nearest millimeter. Common diameters range from 4mm to 8mm, but variations exist, so don’t assume a standard size. Next, measure the axle’s length from end to end, ensuring it matches the width of the roller housing. If the axle is threaded or has end caps, note these details, as they affect compatibility with replacement parts.
Consider the material of the axle as well. Stainless steel axles offer durability and rust resistance, ideal for humid environments like showers. Plastic or aluminum axles may be lighter but less robust. If your current axle shows signs of corrosion or wear, upgrading to a higher-quality material could extend the lifespan of your roller system.
A practical tip: if you’re unsure about measurements, take the axle to a hardware store for comparison. Many stores stock universal axles or can order custom sizes. Alternatively, consult the manufacturer’s specifications for your shower door model, though these details are often buried in manuals or online databases.
In conclusion, assessing axle size isn’t just about numbers—it’s about ensuring longevity and functionality. A properly fitted axle eliminates friction, reduces noise, and prevents premature wear on both the roller and door tracks. Invest time in this step, and you’ll save yourself from future headaches and costly repairs.
Shower Door Drooping Post-Adjustment: Causes and Quick Fixes Explained
You may want to see also
Explore related products
Evaluate Housing Dimensions: Measure the outer casing width and height to ensure correct replacement
The outer casing of your shower door roller wheel is more than just a protective shell—it’s a critical component that determines compatibility with your shower door system. Before ordering a replacement, measure the width and height of this housing to avoid costly mistakes. Use a digital caliper for precision, as even a millimeter discrepancy can render the new wheel unusable. Record both dimensions in millimeters or inches, depending on your region’s standard, and cross-reference them with the manufacturer’s specifications or a parts diagram.
Consider the material of the housing as well, as it can influence durability and fit. Plastic casings may warp over time, while metal ones offer longevity but require rust-resistant coatings in humid environments. If your current housing shows signs of wear, such as cracks or corrosion, opt for an upgrade rather than a like-for-like replacement. This proactive approach not only ensures a snug fit but also extends the lifespan of your shower door mechanism.
A common oversight is neglecting to account for the housing’s depth, which can affect how the roller wheel sits within the track. While width and height are primary concerns, a shallow or overly deep casing may cause misalignment, leading to noisy operation or premature wear. If your measurements fall between standard sizes, consult a hardware specialist to determine if slight adjustments (e.g., using spacers) are feasible or if a custom solution is necessary.
For DIY enthusiasts, here’s a practical tip: trace the outline of the housing on a piece of paper and label the dimensions directly on the sketch. This visual reference simplifies comparisons when shopping for replacements, especially if you’re navigating online catalogs without physical samples. Pair this method with a photo of the disassembled roller assembly for added clarity, ensuring you don’t overlook any unique features of the casing.
Finally, remember that precision trumps haste. Rushing measurements or eyeballing dimensions can lead to frustration and wasted resources. Take your time, double-check your numbers, and when in doubt, measure again. This meticulous approach not only guarantees a seamless replacement but also fosters a deeper understanding of your shower door’s mechanics, empowering you to tackle future maintenance with confidence.
Essential Wall Requirements for Installing a Frameless Shower Door
You may want to see also
Frequently asked questions
Use a caliper or a ruler to measure the widest point of the roller wheel, ensuring it’s perpendicular to the axle for an accurate diameter reading.
The axle size ensures compatibility with the roller wheel and the shower door frame. Measure the diameter of the axle with a caliper or ruler for a precise fit.
Place the roller wheel flat on a surface and measure the distance from one side to the other using a ruler or caliper to determine its width.
Standard sizes vary, but common diameters are 1-1/4", 1-1/2", and 2". Measure your existing roller wheel and consult the manufacturer’s specifications or a hardware specialist for the correct size.
