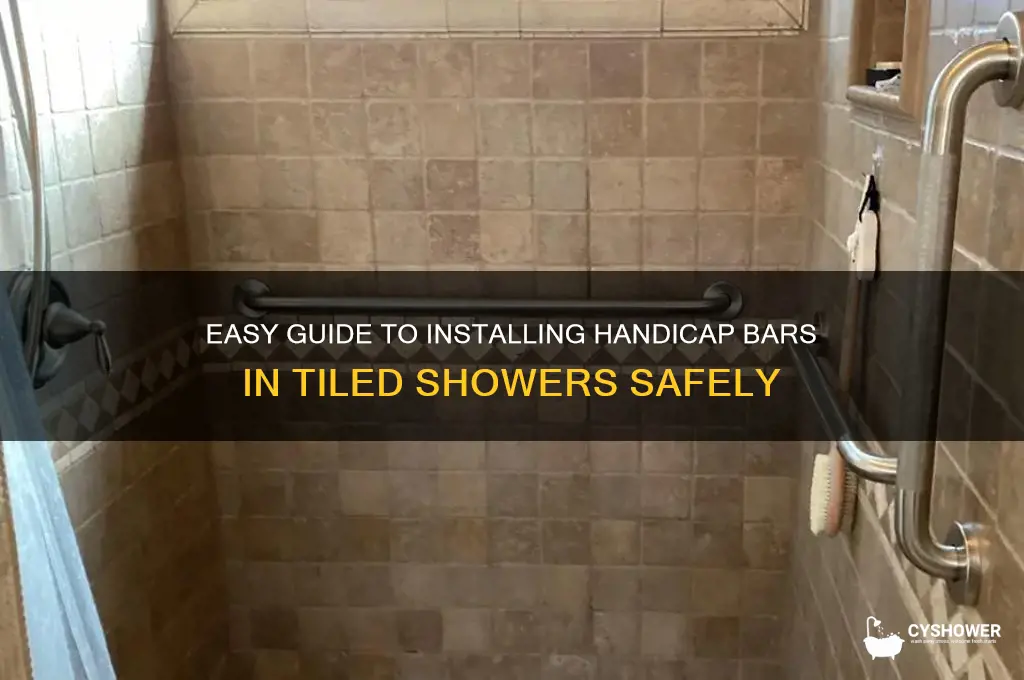

Mounting handicap bars in a tile shower is a crucial step in enhancing bathroom safety and accessibility, especially for individuals with mobility challenges. This process requires careful planning and execution to ensure the bars are securely installed and can withstand the weight and pressure they are intended to support. Key considerations include selecting the right type of grab bars, using appropriate anchors and screws designed for tile and moisture-prone environments, and accurately marking the mounting locations to align with wall studs or suitable backing materials. Proper installation not only ensures functionality but also prevents damage to the tiles and underlying structure, making it a task that often benefits from professional expertise or thorough research.
| Characteristics | Values |
|---|---|
| Tools Required | Drill, masonry bit, stud finder, screwdriver, measuring tape, level |
| Materials Needed | Handicap grab bars, stainless steel screws, wall anchors, silicone caulk |
| Wall Surface | Tile shower walls |
| Mounting Height | 33-36 inches above the shower floor (ADA recommendation) |
| Mounting Location | Studs (preferred) or using wall anchors for tile |
| Drill Bit Size | 1/4 inch masonry bit for tile and 3/16 inch for screws |
| Anchor Type | Plastic or stainless steel wall anchors for tile |
| Waterproofing | Apply silicone caulk around screws and anchors to prevent water seepage |
| Weight Capacity | Varies by grab bar model (typically 250-500 lbs) |
| Installation Time | 30-60 minutes per bar |
| Compliance | ADA compliant if installed at recommended height and supports weight |
| Maintenance | Regularly check screws for tightness and reapply caulk if needed |
| Safety Tip | Ensure bars are securely mounted and tested before use |
Explore related products
What You'll Learn
- Tools Needed: Gather drill, masonry bits, anchors, screws, handicap bars, measuring tape, pencil, level
- Measure Placement: Mark bar height (28-34 inches) and ensure proper reach for user safety
- Drill Holes: Use masonry bit to drill pilot holes through tile and into wall studs
- Install Anchors: Insert wall anchors into holes if studs are not accessible for secure mounting
- Attach Bars: Secure bars with screws, check stability, and test weight-bearing capacity before use
Tools Needed: Gather drill, masonry bits, anchors, screws, handicap bars, measuring tape, pencil, level
Mounting handicap bars in a tile shower requires precision and the right tools to ensure safety and durability. The first step is to gather your arsenal: a drill, masonry bits, anchors, screws, the handicap bars themselves, measuring tape, a pencil, and a level. Each tool plays a critical role, from creating secure holes in the tile to ensuring the bars are perfectly aligned. Skipping any of these items could compromise the installation, so double-check your inventory before you begin.
The drill and masonry bits are your heavy hitters in this process. Tile and the underlying material (often concrete or cement board) demand specialized bits to avoid cracking or damaging the surface. Opt for carbide-tipped masonry bits, which are designed to handle hard materials. When drilling, apply steady pressure and let the bit do the work—rushing can lead to mistakes. Keep the drill perpendicular to the surface to ensure straight holes, which are essential for anchor stability.
Anchors and screws are the unsung heroes of this project, providing the strength needed to support the handicap bars. Choose anchors rated for the weight capacity of the bars and the specific material of your shower walls. For tile over concrete, wedge anchors or sleeve anchors are reliable choices. For hollow walls or thinner materials, toggle bolts may be necessary. Always follow the manufacturer’s guidelines for anchor depth and screw length to maximize holding power.
Measuring tape, a pencil, and a level are your precision tools, ensuring the bars are placed correctly and safely. Measure twice to determine the exact height and position of the bars, typically 33 to 36 inches above the floor for optimal support. Use the pencil to mark these spots lightly, avoiding heavy marks that could damage the tile. The level is your final check—place it on the bars after installation to confirm they’re perfectly horizontal or vertical, depending on their orientation. This step is non-negotiable, as improperly aligned bars can be unsafe.
In summary, the tools you gather are more than just items on a checklist—they’re the foundation of a secure and functional installation. Each tool has a specific purpose, from the drill’s power to the level’s precision. By understanding their roles and using them correctly, you’ll ensure the handicap bars provide the support and safety they’re designed for. Take your time, follow these guidelines, and the result will be a sturdy, reliable addition to your shower.
Mastering Shower Wall Tiling: Step-by-Step Guide for Side Walls
You may want to see also
Explore related products
Measure Placement: Mark bar height (28-34 inches) and ensure proper reach for user safety
The height of handicap grab bars in a tile shower isn’t arbitrary—it’s a critical safety measure. The ADA recommends a height range of 28 to 34 inches from the shower floor to the top of the bar. This range accommodates most users, ensuring the bar is within easy reach without requiring strain. Before drilling into your tile, measure the user’s height and arm length to refine placement within this range. A bar too high or too low defeats its purpose, turning a safety feature into a hazard.
To mark the correct height, use a tape measure and a level. Start by having the user stand outside the shower and simulate reaching for the bar. Adjust the height based on their comfort. Once finalized, mark the spot with a pencil or painter’s tape. Double-check the measurement by aligning it with the ADA guidelines. If multiple users will rely on the bar, prioritize the height that serves the most vulnerable or frequent user. Precision at this stage prevents costly mistakes and ensures long-term usability.
Proper reach extends beyond height—it’s about positioning the bar where it’s most functional. For side walls, place the bar perpendicular to the showerhead, allowing users to stabilize themselves while entering or exiting. For back walls, angle the bar slightly outward to provide leverage when standing from a seated position. Avoid placing bars too close to the showerhead or controls, as this can create awkward or unsafe reaching distances. Always consider the user’s natural movement patterns to maximize effectiveness.
A common mistake is neglecting the user’s grip strength and range of motion. If the bar is too far forward or backward, it may be difficult to grasp securely. Test the placement by having the user mimic grabbing the bar from various positions within the shower. Ensure their elbow bends naturally, and their hand wraps fully around the bar. This step is particularly crucial for elderly users or those with arthritis, as improper placement can exacerbate discomfort or risk of falls.
Finally, verify the marked placement by holding a straight bar or ruler at the designated height. Step into the shower area and assess visibility and accessibility. If the bar obstructs the shower’s functionality or feels out of place, adjust accordingly. Remember, the goal is to create a seamless integration of safety and convenience. Once satisfied, proceed with confidence, knowing the bar will serve its purpose effectively.
Best Backing Materials for Tiling Shower Walls: A Comprehensive Guide
You may want to see also
Explore related products
Drill Holes: Use masonry bit to drill pilot holes through tile and into wall studs
Drilling into tile requires precision and the right tools to avoid cracking or damaging the surface. A masonry bit is essential for this task, as it’s designed to penetrate hard materials like ceramic or porcelain tile without shattering them. Start by marking the exact spots where the handicap bars will be mounted, ensuring they align with wall studs for maximum stability. Use a carbide-tipped masonry bit, which is durable enough to handle the hardness of tile while maintaining control during drilling. Always wear safety goggles and a dust mask, as drilling tile creates sharp debris and fine particles.
The process begins with pilot holes, which are smaller in diameter than the final screws or anchors. Pilot holes reduce the risk of tile cracking by gradually easing the bit through the surface. For standard handicap bars, a ¼-inch masonry bit is typically sufficient for the pilot hole. Drill at a slow, steady pace, applying moderate pressure but avoiding excessive force, which can cause the bit to slip or the tile to crack. Once through the tile, switch to a wood bit if necessary to continue drilling into the wall stud, ensuring the hole is deep enough to secure the anchor or screw firmly.
One critical step often overlooked is locating the wall studs behind the tile. Use a stud finder to identify these structural supports, as mounting handicap bars directly into studs provides the strongest hold. If studs aren’t aligned with your desired bar placement, consider using specialized anchors rated for tile and heavy loads, such as toggle bolts or masonry anchors. However, stud mounting is always preferable for safety-critical installations like handicap bars, which must support significant weight and force.
After drilling the pilot holes, clean the area thoroughly to remove dust and debris, which can interfere with anchor installation or adhesive bonding. Vacuum the holes and wipe the tile surface with a damp cloth. If using anchors, insert them into the pilot holes and tap them gently with a hammer until they’re flush with the tile surface. Follow the manufacturer’s instructions for screw placement and tightening, ensuring the bar is securely fastened without overtightening, which can strip the anchor or damage the tile.
In summary, drilling pilot holes with a masonry bit is a meticulous but necessary step in mounting handicap bars in a tile shower. It combines technical precision with practical safety considerations, ensuring the bars are both secure and durable. By taking the time to locate studs, use the right tools, and follow proper techniques, you can create a reliable installation that meets accessibility needs without compromising the integrity of the tile or wall structure.
Tiling a Shower: Cost-Effective or Budget-Buster? Find Out Here
You may want to see also
Explore related products
Install Anchors: Insert wall anchors into holes if studs are not accessible for secure mounting
In the absence of accessible studs, wall anchors become the linchpin for securely mounting handicap bars in a tile shower. These small yet mighty devices distribute weight across a larger surface area, compensating for the lack of structural support. Selecting the right anchor type—such as toggle bolts, plastic anchors, or adhesive anchors—depends on the wall material and the expected load. For instance, toggle bolts are ideal for hollow walls, while adhesive anchors excel in tile applications due to their strong bonding properties.
The installation process begins with drilling holes at the marked locations, ensuring precision to avoid damaging surrounding tiles. For tile surfaces, use a carbide-tipped masonry bit to penetrate the glaze without cracking it. Once the holes are drilled, clean out any debris to ensure a snug fit for the anchors. Insert the anchors firmly but carefully; over-tightening can cause the tile to crack or the anchor to fail. A handheld screwdriver or drill with torque control can help maintain the appropriate force.
A critical consideration is the weight capacity of the chosen anchors. Handicap bars must support up to 250 pounds of force, as per ADA guidelines. Verify the anchor’s load rating and ensure it exceeds this requirement. For added safety, use multiple anchors per bar, spacing them according to the manufacturer’s instructions. This redundancy ensures stability, even if one anchor fails.
Comparatively, while stud mounting remains the gold standard for strength, wall anchors offer a viable alternative in stud-less scenarios. However, they require meticulous planning and execution. Unlike studs, anchors rely on the integrity of the surrounding material, making proper installation paramount. For tile showers, combining anchors with waterproof adhesive can enhance durability, preventing water infiltration that could weaken the bond over time.
In conclusion, installing wall anchors is a technical yet achievable task when studs are inaccessible. By selecting the appropriate anchor type, following precise installation steps, and adhering to safety guidelines, you can ensure a secure and reliable mounting for handicap bars in a tile shower. This approach not only meets functional requirements but also preserves the aesthetic integrity of the space.
Mastering Waterproofing: A Step-by-Step Guide for Tiled Shower Floors
You may want to see also
Explore related products
Attach Bars: Secure bars with screws, check stability, and test weight-bearing capacity before use
Securing handicap bars in a tile shower is a task that demands precision and care, as these bars are critical for safety and accessibility. The process begins with selecting the right screws—stainless steel or corrosion-resistant options are ideal to withstand the humid environment of a shower. Use a masonry bit to drill pilot holes into the tile and grout, ensuring the bit size matches the screw diameter. Once the holes are drilled, insert wall anchors designed for tile and masonry to provide a stable base for the screws. Tighten the screws firmly, but avoid over-tightening, as this can crack the tile or strip the anchors.
After installation, stability is non-negotiable. Wiggle the bars gently to check for any movement; a secure bar should remain firmly in place. If there’s play, recheck the screws and anchors, ensuring they’re seated correctly. For added assurance, apply a bead of silicone caulk around the base of the bar to seal gaps and prevent water infiltration, which can weaken the installation over time. This step not only enhances stability but also protects the surrounding tile from moisture damage.
Testing the weight-bearing capacity is the final—and most critical—step before use. Apply gradual pressure to the bar, starting with light force and increasing to simulate real-world usage. For example, an adult might exert up to 250 pounds of force, so ensure the bar can withstand this without bending or pulling away from the wall. If the bar holds firm, it’s ready for daily use. If not, reassess the installation, focusing on anchor depth and screw tightness, and consider consulting a professional if issues persist.
Practical tips can streamline this process. Always measure twice to ensure the bar’s placement aligns with the user’s height and reach needs, typically between 33 and 36 inches from the shower floor. Use a level to ensure the bar is straight, as even minor misalignment can affect stability. Finally, allow the silicone caulk to cure fully—usually 24 hours—before testing or using the bar. By following these steps, you ensure a safe, reliable installation that meets both functional and safety standards.
Is Cement Behind Shower Tile Code Compliant in Indiana?
You may want to see also
Frequently asked questions
You will need a drill, masonry bit, stud finder, level, screwdriver, and the appropriate mounting hardware (screws, anchors, and brackets) designed for tile and shower use.
Use tile anchors or wall anchors specifically designed for tile and shower environments. Drill pilot holes carefully to avoid cracking the tile, and ensure the bars are anchored into studs or solid backing for maximum stability.
Yes, by using a carbide-tipped masonry bit and drilling slowly to avoid heat buildup, which can crack the tile. Always measure and mark the drilling spots precisely to minimize the risk of damage.
Use a stud finder designed for tile surfaces to locate studs. If studs are not accessible, use heavy-duty wall anchors rated for the weight of the grab bars and ensure they are installed into solid backing material.
