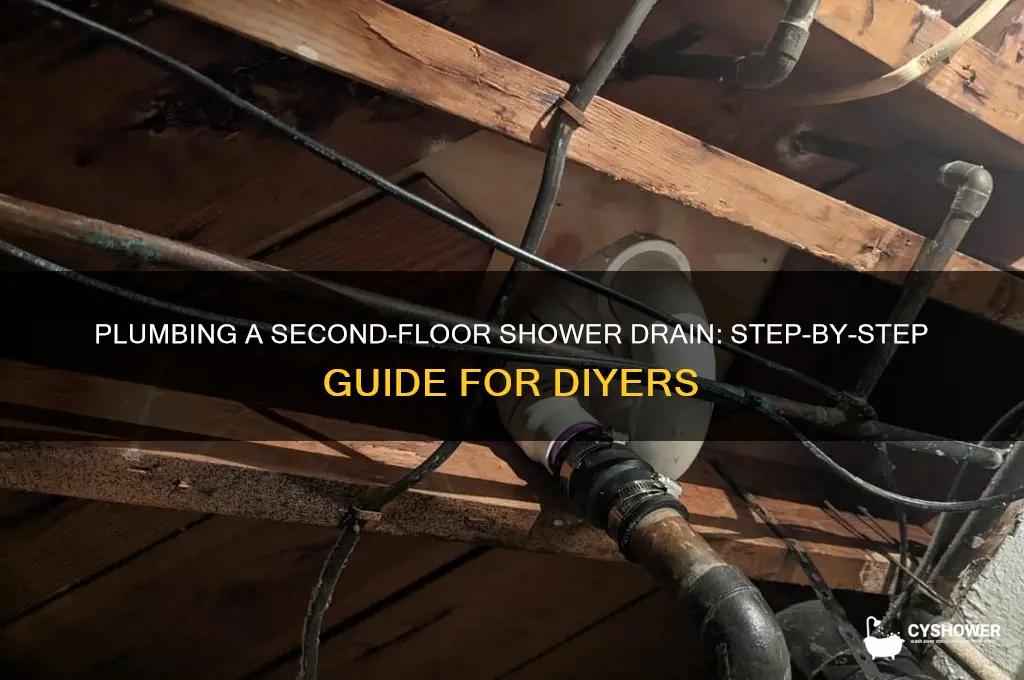

Plumbing a shower drain on a second floor requires careful planning and execution to ensure proper drainage and prevent leaks. Unlike ground-floor installations, second-floor drains must account for gravity flow, venting, and structural considerations. The process involves cutting into the subfloor to create space for the drain pipe, selecting the appropriate drain assembly, and connecting it to the existing plumbing stack. Proper slope (typically 1/4 inch per foot) is critical to avoid clogs, and venting is essential to maintain air pressure in the system. Additionally, waterproofing the area around the drain and securing the pipe to joists or studs ensures longevity and prevents damage to the floor below. Following local building codes and using the right materials are key to a successful and leak-free installation.
Explore related products
What You'll Learn
- Plan Drain Layout: Measure shower location, determine vent stack access, and map drain pipe route to main stack
- Cut Floor Opening: Use hole saw or reciprocating saw to create drain hole in subfloor
- Install Drain Assembly: Secure shower drain body, connect to ABS/PVC pipe, and ensure proper slope
- Vent the Drain: Tie into existing vent stack or install new vent pipe to meet code
- Test for Leaks: Fill drain with water, check for leaks, and seal connections with solvent cement
Plan Drain Layout: Measure shower location, determine vent stack access, and map drain pipe route to main stack
When planning the drain layout for a second-floor shower, the first step is to measure the shower location precisely. Use a tape measure to determine the exact position of the shower stall or base within the bathroom. Mark the center point of the drain on the floor, as this will be the starting reference for your plumbing layout. Ensure the measurements are accurate, as even small errors can lead to misalignment with the main drain stack or vent system. Record these dimensions for future reference during installation.
Next, determine vent stack access by locating the existing vent stack in your home. The vent stack is typically a vertical pipe that runs from the main drain line through the roof, allowing air to escape and maintain proper drainage. If the vent stack is accessible from the second floor, you can tie into it directly. If not, you may need to extend the vent stack or install a new one, which requires careful planning to comply with local plumbing codes. Use a stud finder or consult your home’s blueprints to identify the vent stack’s location relative to the shower.
Once the shower location and vent stack access are confirmed, map the drain pipe route to the main stack. Start by drawing a rough sketch of the floor plan, including the shower, vent stack, and main drain line. Plan the most direct route for the drain pipe, minimizing bends and turns to ensure efficient water flow. Keep in mind that drain pipes must slope downward at a rate of 1/4 inch per foot to prevent clogs. Use a level to verify the slope as you plan the route. If the path involves walls or floors, consider structural elements like studs, joists, and existing plumbing to avoid conflicts.
When mapping the route, also consider the size and type of piping required. Shower drains typically use 2-inch pipes, but local codes may dictate specific requirements. Ensure the drain pipe connects to the main stack below the flood level of the fixtures it serves to prevent backflow. If the route requires passing through walls or floors, plan for access points or chaseways to accommodate the pipes. Coordinate with other trades, such as electricians or HVAC technicians, to avoid overlapping utilities.
Finally, verify that your planned layout complies with local building codes and regulations. Check requirements for venting, pipe sizing, and slope to ensure your installation is legal and functional. If you’re unsure about any aspect of the layout, consult a professional plumber or your local building department for guidance. Proper planning at this stage will save time and prevent costly mistakes during installation, ensuring a reliable and efficient shower drain system for your second-floor bathroom.
