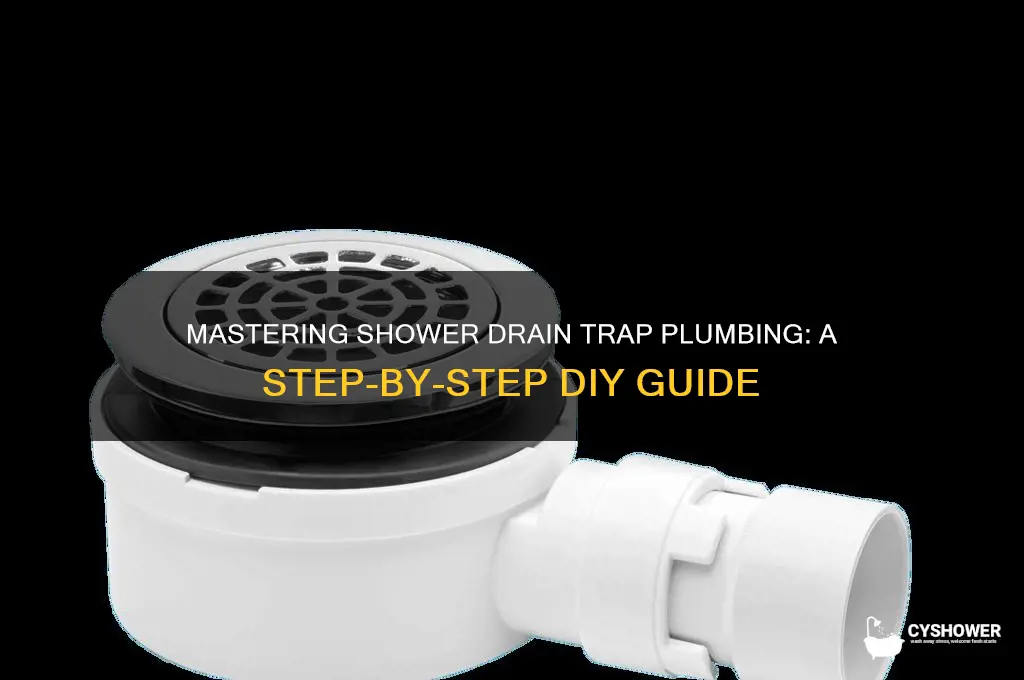

Plumbing a shower drain trap is a crucial step in ensuring proper water flow and preventing sewer gases from entering your home. The trap, typically a P-trap or similar design, acts as a barrier by holding a small amount of water, which blocks gases while allowing wastewater to pass through. To install it, you’ll need to connect the trap to the shower drain outlet and the main drainpipe, ensuring all joints are securely sealed with plumber’s tape or putty to avoid leaks. Proper alignment and slope are essential for efficient drainage, with a recommended gradient of 1/4 inch per foot. Additionally, check local plumbing codes for specific requirements, as they may dictate the trap’s size or type. With careful planning and attention to detail, you can successfully plumb a shower drain trap, ensuring a functional and odor-free shower system.
| Characteristics | Values |
|---|---|
| Purpose | To prevent sewer gases from entering the shower and to provide a water seal. |
| Trap Type | P-trap (most common), S-trap (less common due to potential siphoning issues). |
| Material | PVC (most common), ABS, or cast iron. |
| Size | 2-inch diameter (standard for shower drains). |
| Ventilation | Must be properly vented to prevent siphoning and ensure proper drainage. |
| Slope | 1/4 inch per foot (minimum) toward the drain to ensure proper flow. |
| Height | Typically installed 6-12 inches below the shower floor for optimal water seal. |
| Cleanout Access | Include a cleanout plug or access point for maintenance and debris removal. |
| Water Seal Depth | Minimum 2 inches of water in the trap to maintain the seal. |
| Code Compliance | Must adhere to local plumbing codes (e.g., IPC, UPC) for trap installation and venting. |
| Tools Required | Hacksaw, PVC primer/cement, wrenches, level, measuring tape, and plumber’s tape. |
| Installation Steps | 1. Measure and cut pipes to fit. 2. Assemble trap with proper slope. 3. Secure connections with primer and cement. 4. Ensure venting is connected. 5. Test for leaks and proper drainage. |
| Common Mistakes | Incorrect slope, inadequate venting, and using wrong trap type. |
| Maintenance | Regularly check for clogs and ensure the trap remains filled with water. |
Explore related products
What You'll Learn
Measure and Plan Layout
Before you begin installing a shower drain trap, accurate measurement and planning are crucial to ensure proper drainage and compliance with plumbing codes. Start by determining the location of the shower drain in relation to the shower base or tile layout. Measure the distance from the center of the drain to the nearest wall or fixture to ensure it aligns with the shower design. Use a tape measure and mark the spot on the floor where the drain will be installed. This precision will prevent misalignment and ensure the drain cover fits seamlessly into the finished shower floor.
Next, plan the layout of the drain pipe and trap assembly. Measure the vertical distance from the shower drain to the main drain line or vent stack, as this will dictate the slope of the drain pipe. Plumbing codes typically require a slope of 1/4 inch per foot to ensure proper water flow. Use a level and straightedge to mark the path of the drain pipe, ensuring it maintains the correct slope throughout its run. This step is essential to avoid water pooling or slow drainage, which can lead to clogs and odors.
Consider the space available for the P-trap, which is a critical component of the drain system. The P-trap must be installed below the drain outlet and should have enough clearance to fit without obstruction. Measure the height and width of the area where the trap will be installed, ensuring it does not interfere with other plumbing lines or structural elements. If space is limited, you may need to adjust the layout or use a different trap configuration, such as a compact or offset trap.
Incorporate venting into your layout plan, as proper venting is essential for efficient drainage and to prevent siphoning of the trap seal. Measure the distance from the drain to the nearest vent stack and ensure the vent pipe is installed according to code requirements. If a vent stack is not accessible, you may need to install an air admittance valve (AAV) as an alternative. Plan the route of the vent pipe, ensuring it ties into the existing venting system without creating sharp bends or obstructions.
Finally, double-check all measurements and ensure they comply with local plumbing codes and manufacturer specifications. Use graph paper or a digital tool to sketch the layout, including the drain location, pipe slope, trap assembly, and venting. This visual representation will serve as a guide during installation and help you identify any potential issues before cutting into walls or floors. Proper planning at this stage will save time, reduce errors, and ensure a functional and code-compliant shower drain trap installation.
Quick DIY Guide: Repairing a Hole in Your Shower Hose Easily
You may want to see also
Explore related products
Cut and Assemble Drain Pipes
To begin cutting and assembling drain pipes for your shower drain trap, you'll need to gather the necessary materials, including PVC or ABS pipes, a hacksaw or PVC cutter, primer, cement, and a measuring tape. Start by measuring the distance from the shower drain to the main drain line, ensuring you account for any bends or angles in the pipe run. Transfer these measurements to the pipes, marking the points where cuts need to be made. Use a straight edge to draw a line around the pipe at each mark to ensure a clean, straight cut.
Next, cut the pipes to the required lengths using a hacksaw or PVC cutter. When using a hacksaw, secure the pipe in a vise to keep it steady and cut along the marked lines, applying gentle pressure to avoid cracking the pipe. For PVC cutters, simply align the blade with the mark and squeeze the handles to make a clean cut. Ensure all cuts are square and free from burrs, as uneven edges can lead to leaks or improper fitting. After cutting, dry-fit the pipes to verify the lengths and angles are correct before proceeding.
Once the pipes are cut and dry-fitted, disassemble them and prepare for permanent installation. Start by cleaning the ends of the pipes and the inside of the fittings with a clean cloth to remove any debris or dust. Apply a thin, even coat of primer to both the pipe ends and the fittings, following the manufacturer’s instructions. The primer will soften the surfaces, ensuring a strong bond. Allow the primer to dry for a few seconds until it becomes slightly tacky.
After priming, apply PVC or ABS cement to the primed areas, using a brush provided with the cement or a small disposable brush. Quickly insert the pipe into the fitting, twisting it slightly to spread the cement evenly. Hold the joint firmly for about 30 seconds to ensure it sets properly. Wipe away any excess cement with a rag before it hardens. Repeat this process for all joints, working methodically to avoid mistakes. Allow the cement to cure fully according to the manufacturer’s guidelines before testing the system.
Finally, reassemble the drain pipes, ensuring all connections are secure and aligned properly. Double-check that the trap is installed at the correct angle (typically 1/4 inch per foot of slope) to allow proper drainage. Once assembled, inspect the entire setup for any signs of misalignment or gaps. If everything is in order, you can proceed to connect the shower drain to the trap and the main drain line, completing the plumbing for your shower drain trap. Always follow local building codes and consult a professional if you’re unsure about any step.
Quick Fixes for Leaking Frameless Shower Doors: A Step-by-Step Guide
You may want to see also
Explore related products
Install the P-Trap Properly
Installing the P-trap properly is a critical step in plumbing a shower drain, as it ensures proper drainage and prevents sewer gases from entering your home. Begin by measuring and cutting the drainpipe to the appropriate length, ensuring it aligns with the shower drain outlet and the main drain line. The P-trap should be positioned directly below the drain outlet, typically at a height that allows for a slight downward slope toward the main drain. This slope, usually about 1/4 inch per foot, is essential for efficient water flow.
Next, assemble the P-trap components, which typically include the trap itself, two slip nuts, and two washers. Slide a washer onto the drainpipe coming from the shower, followed by a slip nut, ensuring the threaded side faces outward. Insert the drainpipe into the P-trap inlet, then secure it by tightening the slip nut with a wrench. Be careful not to overtighten, as this can damage the pipes or create leaks. Repeat this process for the outlet side of the P-trap, connecting it to the horizontal drainpipe leading to the main drain line.
Once the P-trap is securely connected, check the alignment and ensure all joints are tight and properly sealed. Use plumber’s tape or pipe joint compound on the threads to create a watertight seal and prevent leaks. If your setup includes a vent pipe, ensure it is properly connected to the P-trap to allow air to flow freely, aiding in drainage and preventing suction issues. Double-check that the P-trap is level and maintains the required slope to avoid standing water, which can lead to clogs and odors.
After installation, test the P-trap by running water through the shower drain to ensure it flows smoothly and does not leak at any joints. Inspect the connections for any signs of moisture or dripping, and tighten or reseal as necessary. Properly installing the P-trap not only ensures efficient drainage but also maintains the integrity of your plumbing system, preventing potential issues down the line.
Finally, insulate the P-trap and surrounding pipes if they are exposed to cold temperatures to prevent freezing. This is especially important in basements or exterior walls. Once everything is secure and functioning correctly, you can proceed with finishing the shower installation, confident that your drain system is properly plumbed and ready for use.
Easy Steps to Adjust Your Shower Drain Position Slightly
You may want to see also
Explore related products
Secure and Seal Connections
When securing and sealing connections for a shower drain trap, precision and attention to detail are crucial to prevent leaks and ensure long-term functionality. Begin by ensuring all pipe ends are clean, free of debris, and smooth. Use a fine-grit sandpaper or a deburring tool to remove any sharp edges or burrs that could interfere with a tight seal. Once the pipes are prepared, apply a generous but even coat of plumber’s tape (PTFE tape) or pipe dope to the male threads of the fittings. Wrap the tape in the direction of the threads to ensure it doesn’t unravel during assembly. For threaded connections, tighten the fittings by hand first, then use a wrench or pliers to secure them firmly, but avoid over-tightening, as this can damage the threads or fittings.
For solvent-welded PVC connections, which are common in shower drain traps, clean the pipe ends and fitting sockets thoroughly with a clean cloth and a suitable primer. Apply PVC primer to both the pipe and the fitting, ensuring full coverage. Follow this immediately with an even coat of PVC cement, then quickly insert the pipe into the fitting and hold it in place for at least 30 seconds to allow the cement to set. Wipe away any excess cement with a rag to maintain a neat appearance and prevent debris from entering the drain system. Allow the cemented joints to cure for the recommended time before testing or applying pressure.
In areas where flexible connections are necessary, such as between the drain body and the trap, use a high-quality rubber or PVC coupling with stainless steel clamps. Slide the clamps onto the pipes, then position the coupling over the joint, ensuring it is centered and aligned. Tighten the clamps evenly with a screwdriver to create a watertight seal. Avoid over-tightening, as this can deform the coupling or damage the pipes. Double-check all flexible connections for proper alignment and adjust as needed to ensure smooth water flow.
Sealing the drain body to the shower pan or floor requires a reliable waterproof seal. Apply a bead of silicone caulk or plumber’s putty around the underside of the drain body, ensuring it makes full contact with the shower pan surface. Insert the drain body into the hole and press it firmly into place, allowing the excess sealant to squeeze out around the edges. Wipe away the excess with a damp cloth, leaving a clean, professional finish. Allow the sealant to cure fully before using the shower to prevent leaks.
Finally, test all connections for leaks by running water through the drain and inspecting each joint for moisture. If any leaks are detected, tighten fittings slightly or reapply sealant as needed. For threaded connections, consider adding an extra wrap of PTFE tape or a thin layer of pipe dope to enhance the seal. Once all connections are secure and leak-free, insulate exposed pipes to prevent condensation and protect against temperature fluctuations, ensuring the longevity of your shower drain trap installation.
Quick and Easy Steps to Unclog Your Shower Drain Fast
You may want to see also
Explore related products
Test for Leaks and Functionality
Once you’ve installed the shower drain trap, the next critical step is to test for leaks and functionality to ensure everything works correctly and prevents future plumbing issues. Start by dry fitting all components before applying any glue or sealing materials. Assemble the trap, tailpiece, and drainpipe to ensure proper alignment and fit. Check that the trap is level and the connections are secure, as even minor misalignments can lead to leaks or drainage problems. Once satisfied, disassemble and proceed with permanent installation.
After securing the trap and connections with glue or solvent weld, allow ample time for the adhesive to cure as per the manufacturer’s instructions. Once cured, fill the shower pan or drain area with water to test the trap’s functionality. The water should drain smoothly without pooling or backing up, indicating the trap is properly installed and the P-trap is holding water, which is essential for preventing sewer gases from entering the bathroom. If the water drains slowly or not at all, check for clogs or incorrect pipe angles.
Next, conduct a leak test by running water through the shower drain while inspecting all joints and connections for leaks. Pay close attention to the trap’s slip joints, threaded connections, and the interface between the trap and the drainpipe. Even a small drip can lead to water damage over time, so use a flashlight if necessary to spot leaks in tight spaces. If leaks are detected, tighten connections or reapply sealant as needed, ensuring not to overtighten plastic components to avoid cracking.
To further ensure functionality, simulate regular shower usage by running water at full flow for several minutes. Observe the drain’s performance, checking for gurgling sounds, slow drainage, or overflow, which could indicate blockages or improper venting. Proper venting is crucial for maintaining optimal drainage, so if issues arise, inspect the vent system for obstructions or incorrect installation. Additionally, test the trap’s ability to retain water by leaving it idle for a few hours; the water in the P-trap should remain, confirming it’s functioning as intended.
Finally, inspect the area beneath the shower (if accessible) for any signs of moisture or water accumulation after testing. Use a towel or absorbent cloth to check for dampness around the trap and pipes. If moisture is present, trace the source and address it immediately. Once all tests are passed, and no leaks or functional issues are detected, the shower drain trap is ready for regular use. Regular maintenance, such as periodic cleaning to prevent clogs, will ensure long-term reliability.
Can a Toilet Drain Hole Function as a Shower Drain Alternative?
You may want to see also
Frequently asked questions
A shower drain trap is a U-shaped pipe located beneath the shower drain that holds water, preventing sewer gases from entering the bathroom. It is crucial for maintaining indoor air quality and ensuring proper drainage.
The size of the shower drain trap should match the diameter of your shower drain pipe, typically 2 inches for residential showers. Always check local plumbing codes for specific requirements.
The shower drain trap should have a slope of 1/4 inch per foot toward the drain to ensure proper water flow and prevent standing water, which can lead to clogs or odors.
While DIY installation is possible if you have basic plumbing skills, hiring a professional plumber is recommended to ensure compliance with local codes and to avoid potential issues like leaks or improper venting.
