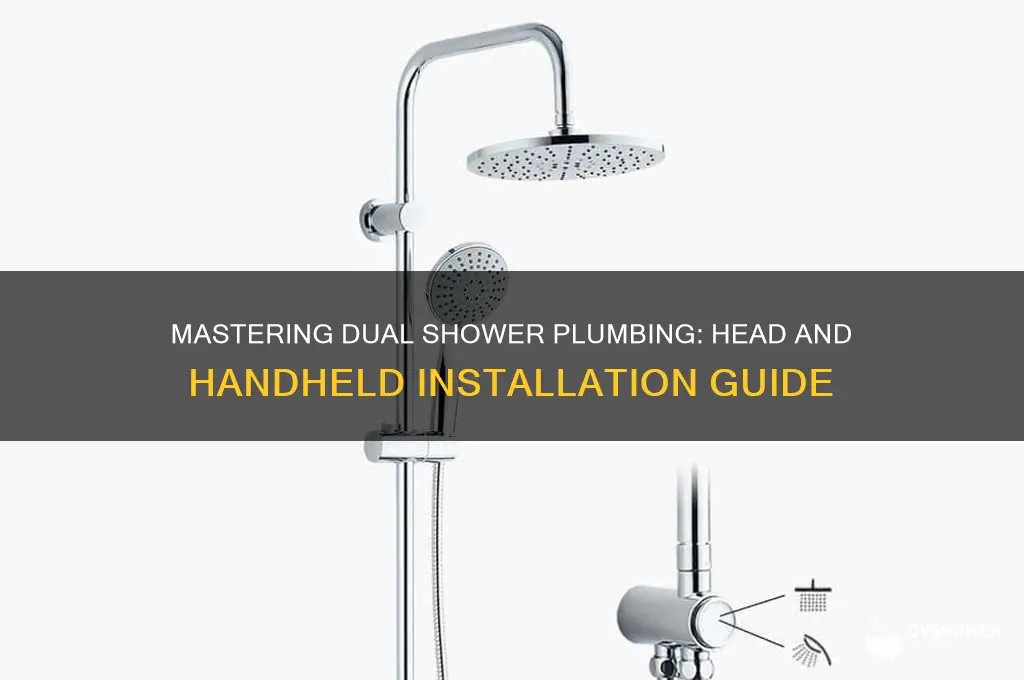

Installing a shower system with both a fixed shower head and a handheld sprayer can significantly enhance your showering experience by offering versatility and convenience. This setup requires careful planning and precise plumbing to ensure both components function seamlessly. The process involves selecting compatible fixtures, determining the correct placement for the shower head and handheld, and connecting the plumbing lines to a diverter valve that allows water to flow to either or both outlets. Proper waterproofing and adherence to local building codes are essential to prevent leaks and ensure long-term reliability. With the right tools, materials, and step-by-step guidance, you can successfully plumb a shower with both a head and handheld, creating a functional and luxurious bathing space.
| Characteristics | Values |
|---|---|
| Shower Valve Type | Pressure Balance or Thermostatic Valve (ensures consistent water temperature) |
| Rough-In Valve | Requires a rough-in valve with two outlets (one for fixed head, one for handheld) |
| Supply Lines | 1/2" copper or PEX tubing (check local codes) |
| Shower Head Height | Standard: 78-84 inches from floor to shower head |
| Handheld Shower Height | Adjustable slide bar allows for customization (typically 60-72 inches from floor) |
| Diverter Valve | 3-way diverter valve to switch between fixed head, handheld, or both |
| Shower Arm | Standard 1/2" NPT threaded arm for fixed shower head |
| Handheld Shower Hose | Stainless steel or durable plastic hose (5-7 feet length) |
| Wall Elbow | Connects handheld hose to water supply |
| Escutcheon Plate | Covers rough-in valve and provides a finished look |
| Water Pressure | Minimum 45 PSI recommended for optimal performance |
| Building Codes | Check local plumbing codes for specific requirements (e.g., pipe sizing, venting) |
| Tools Required | Pipe wrench, adjustable wrench, Teflon tape, pipe cutter, screwdriver, level |
| Skill Level | Intermediate to Advanced DIY or Professional Plumber |
Explore related products
What You'll Learn
- Supply Line Installation: Run hot/cold supply lines to shower valve, ensuring proper sizing and secure connections
- Shower Valve Setup: Install mixing valve, following manufacturer instructions for temperature control and safety
- Head Mounting: Secure fixed shower head to wall, using waterproof sealant and proper threading
- Handheld Assembly: Attach handheld bracket, hose, and diverter valve to existing plumbing for dual functionality
- Waterproofing & Testing: Apply waterproofing to walls, test for leaks, and ensure proper drainage
Supply Line Installation: Run hot/cold supply lines to shower valve, ensuring proper sizing and secure connections
Running hot and cold supply lines to your shower valve is a critical step in ensuring a seamless and efficient shower experience, especially when installing both a fixed shower head and a handheld unit. Proper sizing and secure connections are non-negotiable, as they directly impact water pressure, temperature consistency, and long-term reliability. Start by selecting supply lines that match the diameter of your plumbing system, typically ½-inch for residential applications. Copper, PEX, or braided stainless steel are popular choices, each with its own advantages: copper for durability, PEX for flexibility, and stainless steel for corrosion resistance. Measure the distance from your water source to the valve location, adding extra length for bends and connections to avoid tension on the lines.
Before installation, shut off the main water supply and drain the lines to prevent leaks and spills. Use a tubing cutter for clean, precise cuts on copper or PEX lines, and ensure threads are intact if using threaded connections. For PEX, a crimp or clamp ring tool is essential for secure fittings. When connecting to the shower valve, align the hot and cold lines correctly—typically marked with red and blue or labeled "H" and "C"—to avoid temperature mix-ups. Apply Teflon tape or pipe dope to threaded connections, wrapping the tape clockwise in the direction of tightening to prevent unraveling. Tighten fittings hand-tight, then use a wrench to secure, being careful not to overtighten, which can damage the fittings or cause leaks.
A common mistake is underestimating the importance of securing the supply lines to prevent movement and stress. Use pipe straps or clamps to anchor the lines to wall studs or joists every 3 to 4 feet. This not only stabilizes the lines but also reduces the risk of vibration or strain on the fittings. If your shower valve is recessed, ensure the supply lines are routed through the wall cavity without sharp bends, which can restrict water flow. Test the connections by turning on the water supply and checking for leaks at each joint. Even a small drip can lead to significant water damage over time, so address any issues immediately.
For added peace of mind, consider installing a pressure-reducing valve if your home’s water pressure exceeds 80 psi, as excessive pressure can strain the supply lines and shower valve. Additionally, insulate the supply lines in unheated areas to prevent freezing in colder climates. While this step may seem optional, it’s a small investment that can save you from costly repairs down the line. Finally, document the layout of your supply lines for future reference, especially if you plan to add features like a thermostatic valve or body sprays later. Properly installed supply lines are the backbone of your shower system, ensuring that both your fixed and handheld shower heads deliver a consistent, enjoyable experience for years to come.
