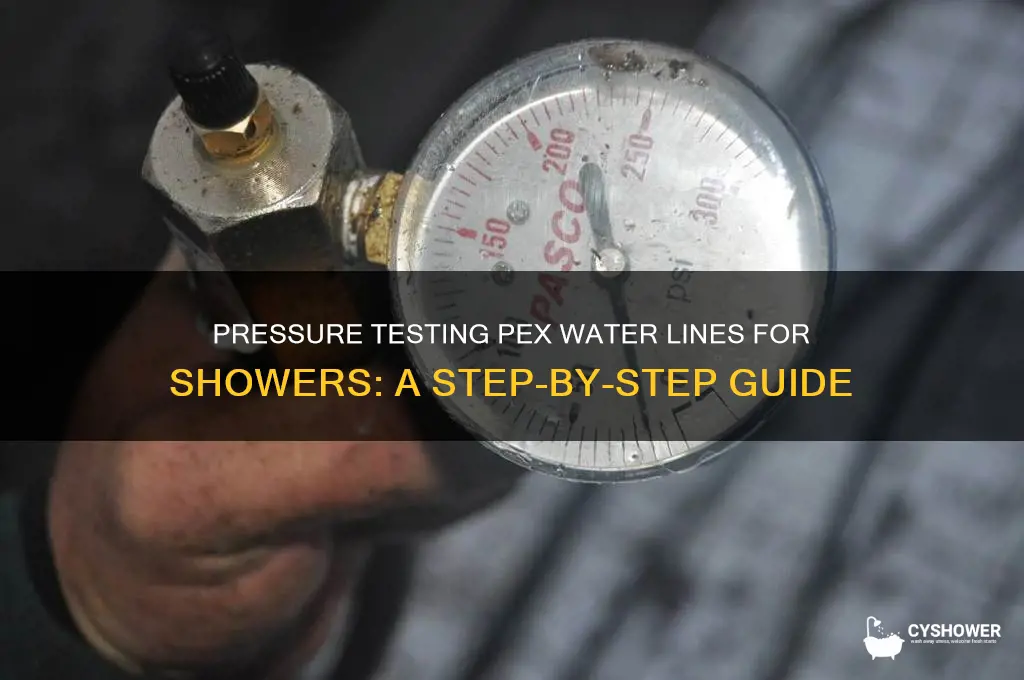

Pressure testing PEX water lines for a shower is a critical step to ensure the plumbing system is leak-free and operates efficiently before finalizing the installation. This process involves isolating the PEX lines, attaching a pressure gauge, and filling the system with water or air to a specified pressure, typically 80-100 psi, to check for any weaknesses, cracks, or faulty connections. By holding this pressure for a set period, often 15 minutes or more, you can identify leaks or drops in pressure, which indicate potential issues that need addressing. Properly executed, this test guarantees the longevity and reliability of your shower’s water supply system, preventing costly repairs and water damage down the line.
| Characteristics | Values |
|---|---|
| Purpose | To ensure PEX water lines for showers are leak-free and can handle system pressure. |
| Required Pressure | Typically 80-100 PSI (pounds per square inch), but check local codes or manufacturer guidelines. |
| Test Duration | Minimum 30 minutes to 1 hour, or as specified by local regulations. |
| Tools Needed | Pressure gauge, air compressor or hand pump, PEX fittings, and pipe sealant. |
| Pre-Test Preparation | Cap all open ends of PEX lines, ensure all connections are secure. |
| Pressure Source | Compressed air or water (air is more common for PEX testing). |
| Safety Precautions | Wear safety goggles, ensure area is clear of obstructions. |
| Pressure Release | Slowly release pressure after testing to avoid damage to lines. |
| Pass/Fail Criteria | No pressure drop or visible leaks during the test period. |
| Post-Test Inspection | Check all connections and fittings for leaks or damage. |
| Frequency | Test after installation and before drywall or final fixtures are installed. |
| Compliance | Must meet local plumbing codes and standards. |
| Common Issues | Leaks at fittings, improper capping, or incorrect pressure settings. |
| Alternative Methods | Hydrostatic testing (using water) for higher accuracy but more complex setup. |
| Cost | Minimal (tools may need to be rented or purchased). |
| Time Required | 1-2 hours including setup, testing, and teardown. |
Explore related products
What You'll Learn
Required Tools and Materials
To effectively pressure test PEX water lines for a shower, you’ll need a specific set of tools and materials to ensure accuracy and safety. The first essential item is a pressure gauge, which must be compatible with the pressure range you expect in your plumbing system. Typically, a gauge rated for 0-200 PSI (pounds per square inch) is sufficient for residential applications. Ensure the gauge has a durable connection fitting, such as a ¼-inch NPT (National Pipe Thread), to securely attach it to the test setup.
Next, you’ll require a test pump capable of pressurizing the PEX lines to the desired test pressure, usually 80-100 PSI for residential systems. Hand-operated or air-powered test pumps are common choices, but ensure the pump’s output matches the pressure gauge’s range. Additionally, a hose or adapter is needed to connect the test pump to the PEX lines. This may involve using a PEX fitting or a threaded adapter, depending on your system’s configuration.
A PEX crimp tool or clamp tool is crucial if you need to install or modify fittings during the test. This tool ensures secure connections between PEX pipes and fittings, preventing leaks during the pressure test. If you’re using crimp rings, ensure you have the correct size for your PEX tubing. Alternatively, if you’re using clamp (sleeve) connections, a clamp cinch tool is necessary.
To isolate the shower’s PEX lines from the rest of the plumbing system, ball valves or caps are required. These will allow you to seal off the test section and prevent water from entering other parts of the system. Ensure the valves or caps are compatible with your PEX fittings and can withstand the test pressure.
Finally, you’ll need thread seal tape (Teflon tape) or pipe thread compound to ensure all threaded connections are airtight and watertight. This prevents pressure loss during the test. Additionally, a bucket and towels are practical to have on hand for cleanup in case of minor leaks or spills. Gathering these tools and materials beforehand ensures a smooth and efficient pressure testing process.
Prevent Shower Seam Leaks: Easy Fixes to Stop Water Running
You may want to see also
Explore related products
Preparing the PEX System for Testing
Before initiating the pressure test on your PEX water lines for the shower, it is crucial to prepare the system thoroughly to ensure accurate results and prevent potential damage. Start by shutting off the main water supply to the PEX system. This step is essential to isolate the lines and prevent water from flowing during the test. Locate the main shut-off valve and turn it off completely. If your system has a pressure regulator, ensure it is also turned off to avoid interference with the testing process.
Next, drain the water from the PEX lines to create a dry environment for testing. Open all faucets, shower valves, and drain valves connected to the PEX system to allow the water to flow out. Pay special attention to the highest points in the system, as air pockets may accumulate there. Use a compressor or shop vacuum to assist in removing any remaining water, especially in long or complex runs of PEX tubing. Ensure all lines are completely dry, as residual water can skew pressure test results.
Once the system is drained, disconnect the PEX lines from the water heater or any other appliances that could be damaged by high pressure. Cap or plug these connections securely to prevent air or water from escaping during the test. If your system includes a pressure relief valve, remove or disable it temporarily, as it could open during the test and release pressure prematurely. Label each disconnected line to avoid confusion during reinstallation.
Inspect the PEX lines and fittings for any signs of damage, cracks, or loose connections before proceeding. Even minor defects can compromise the integrity of the test or lead to failures under pressure. Tighten fittings as needed, but avoid over-tightening, as this can damage the PEX material. If any issues are found, repair or replace the affected components before continuing with the preparation.
Finally, install a pressure test gauge at a convenient location within the PEX system. This can be done by attaching the gauge to a hose bib, test port, or temporary adapter fitted to the PEX line. Ensure the connection is secure and airtight to prevent leaks during the test. Double-check that all other openings in the system are properly capped or plugged, as any unsealed points can invalidate the test results. With these preparations complete, the PEX system is ready for pressure testing.
Top Shower Water Purifiers: Clean, Safe, and Refreshing Bathing Solutions
You may want to see also
Explore related products
Connecting the Pressure Test Gauge
To begin connecting the pressure test gauge for testing PEX water lines in a shower, ensure all water supply valves are securely shut off to prevent any water flow during the testing process. Start by locating the appropriate test port or adapter where the gauge will be attached. Typically, this involves using a compatible fitting that matches the size and type of your PEX lines, often a ½-inch or ¾-inch connection. If your system doesn’t have a dedicated test port, you may need to install a temporary adapter or use a PEX fitting with a threaded outlet designed for gauge attachment. Ensure the fitting is tightly secured to the PEX line using a wrench or PEX tool to prevent leaks during testing.
Next, prepare the pressure test gauge by attaching it to the test port or adapter. Most gauges come with a hose or direct-connect fitting that screws onto the threaded outlet. Use Teflon tape or pipe dope on the threads to create a watertight seal, as even small leaks can compromise the accuracy of the pressure test. Tighten the gauge connection by hand and then use a wrench to give it a final snug, being careful not to overtighten, as this could damage the threads or the gauge itself. Double-check that all connections are secure before proceeding to avoid any issues during the test.
Once the gauge is connected, open the supply valve slowly to allow water to enter the PEX lines and pressurize the system. Watch the gauge closely to ensure it registers the pressure accurately. If the gauge shows a drop in pressure immediately, there may be a leak in the connection, and you’ll need to recheck the fittings and tighten them as necessary. It’s crucial to ensure the gauge is stable and reading correctly before proceeding to the next steps of the pressure test.
During the test, monitor the gauge for any fluctuations or drops in pressure, which could indicate a leak in the PEX lines. The gauge should remain steady at the desired test pressure, typically 80-100 psi for residential systems, for a minimum of 15 minutes. If the pressure holds, the system is likely leak-free. However, if the pressure drops, you’ll need to inspect the lines for leaks and address any issues before retesting.
After completing the pressure test, carefully close the supply valve and disconnect the gauge. Release any remaining pressure in the system by opening a faucet or valve downstream from the test port. Remove the gauge by unscrewing it from the adapter, ensuring no water spills or leaks occur during this process. If you installed a temporary adapter, remove it and reinstall the original fitting or cap to restore the system to its normal configuration. Properly disconnecting and securing the system ensures it remains safe and functional for regular use.
Why Bathtub Water Clogs Showers: Causes and Solutions Explained
You may want to see also
Explore related products
Applying and Monitoring Pressure Levels
To begin the pressure testing process for PEX water lines in a shower, you'll need to ensure the system is completely assembled, including all fittings, valves, and connections. Start by closing all valves and ensuring the shower system is isolated from the main water supply. Attach a pressure gauge to the highest point in the system, typically near the showerhead or at the end of the PEX line. This gauge will serve as your primary tool for monitoring pressure levels during the test. Next, connect an air compressor or a hand pump to the lowest point of the system, ensuring a secure connection to prevent air leaks. Gradually apply air pressure to the system, starting at a low level, such as 20-30 psi, to avoid sudden stress on the PEX lines and fittings.
As you apply pressure, keep a close eye on the gauge to ensure it rises steadily and does not exceed the maximum pressure rating for your PEX tubing, typically around 80-100 psi for most residential applications. The goal is to reach a pressure level that is 1.5 to 2 times the normal operating pressure of your plumbing system, but not to exceed the PEX material's limits. Once the desired pressure is achieved, allow the system to stabilize for a few minutes. During this time, carefully inspect all connections, fittings, and joints for any signs of air leaks, which may indicate potential weak points in the system. Use a soapy water solution to help detect leaks more easily, as bubbles will form at the site of any escaping air.
Monitoring the pressure level is crucial during the testing period, which should last for at least 15-30 minutes. Observe the gauge to ensure the pressure remains constant, indicating that the system is holding pressure effectively. If the pressure drops, it may suggest a leak or an issue with the system's integrity. Make a note of the pressure reading at the start and end of the test to determine if there has been any significant loss. A minor drop in pressure (1-2 psi) might be acceptable due to temperature changes or minor air absorption, but a substantial decrease could warrant further investigation.
After the initial test, it is recommended to increase the pressure in increments of 10-15 psi, up to the maximum desired test pressure, and repeat the monitoring process. This step-by-step approach helps identify any potential issues at different pressure levels. Between each increment, inspect the system for leaks and ensure the pressure stabilizes before proceeding. This methodical process ensures a thorough evaluation of the PEX water lines' ability to withstand various pressure conditions.
Throughout the pressure testing, maintain a log of pressure readings, noting the time, initial pressure, and any observations of leaks or system behavior. This documentation is valuable for future reference and can assist in identifying trends or potential problem areas. If at any point the pressure drops significantly or leaks are detected, release the pressure, repair the issue, and repeat the testing process until the system holds pressure consistently. Properly applying and monitoring pressure levels is essential to ensure the safety and reliability of the shower's water supply system.
Shower Water Irritation: Understanding Why It Hurts Your Skin
You may want to see also
Explore related products
Inspecting for Leaks and Ensuring Safety
When inspecting for leaks and ensuring safety during a pressure test of PEX water lines for a shower, start by verifying that all connections, fittings, and valves are securely tightened. Use a wrench or pliers to ensure each joint is snug, but avoid over-tightening to prevent damaging the PEX material. Once the system is assembled, attach a pressure gauge to the highest point in the line, typically near the showerhead. This setup allows you to monitor pressure accurately and detect any drops that may indicate a leak. Before proceeding, ensure all fixtures and valves are closed to create a sealed system, as this is critical for an effective test.
Next, pressurize the PEX lines using a hand pump or compressor, following the manufacturer’s guidelines for the maximum pressure rating of the PEX tubing. Gradually increase the pressure to the recommended level, usually 80–100 psi for residential systems, and hold it for at least 15 minutes. During this time, carefully inspect all joints, fittings, and connections for signs of moisture or dripping. Pay close attention to areas where PEX meets valves, elbows, or tees, as these are common leak points. If any leaks are detected, release the pressure, repair the issue, and repeat the test.
While the system is under pressure, listen for hissing sounds or unusual noises that could indicate a hidden leak. Use a soapy water solution applied to connections with a brush or spray bottle to help identify leaks more easily. If bubbles form, it confirms the presence of a leak. Additionally, inspect the pressure gauge periodically to ensure it remains stable; any drop in pressure without visible leaks may suggest a small, concealed issue that requires further investigation.
Safety is paramount during this process. Always wear protective gear, such as gloves and safety goggles, to guard against potential injuries from high-pressure water or tools. Ensure the area is well-ventilated and free of hazards. If using a compressor, be cautious of over-pressurizing the system, as exceeding the PEX tubing’s rating can cause it to burst, leading to water damage or injury. Regularly check the pressure gauge to avoid surpassing safe limits.
Finally, after completing the pressure test and confirming no leaks, release the pressure slowly and systematically. Open a valve at the lowest point in the system to allow water to drain safely. Double-check all connections once more to ensure they remain secure and intact. Properly document the test results for future reference, especially if the system is part of a larger plumbing project. By following these steps, you can ensure the PEX water lines for your shower are leak-free and safe for long-term use.
Is Standing Water in Your Shower Drain Normal? Find Out!
You may want to see also
Frequently asked questions
The recommended pressure for testing PEX water lines is typically 80-100 psi (pounds per square inch), but always refer to local plumbing codes or manufacturer guidelines for specific requirements.
PEX water lines should be pressure tested for at least 15 minutes, but some codes or manufacturers may require testing for up to 1 hour to ensure there are no leaks.
You’ll need a pressure gauge, a pump (if the system doesn’t have sufficient pressure), a hose or adapter to connect to the PEX line, and clamps or fittings to secure the test setup. Ensure all connections are tight to prevent leaks during testing.
