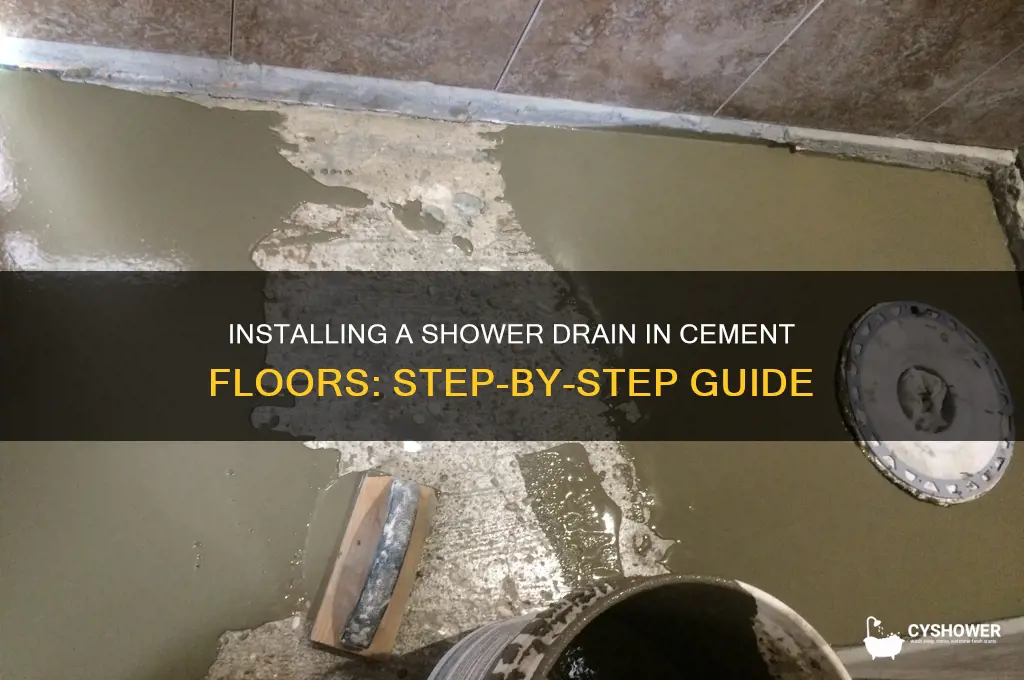

Installing a shower drain in a cement floor requires careful planning and execution to ensure proper drainage and waterproofing. Begin by marking the exact location of the drain, ensuring it aligns with the shower’s slope for efficient water flow. Use a concrete saw or rotary hammer to cut a hole in the cement floor, following the drain’s specifications. Next, prepare the area by cleaning debris and applying a waterproofing membrane around the opening to prevent leaks. Install the drain assembly according to the manufacturer’s instructions, securing it firmly in place with screws or adhesive. Finally, connect the drain to the plumbing system, test for leaks, and finish by applying a layer of mortar or cement to slope the floor toward the drain, ensuring water drains effectively. This process demands precision and attention to detail to avoid future plumbing issues.
| Characteristics | Values |
|---|---|
| Floor Preparation | Ensure the cement floor is clean, level, and free of debris. Mark the drain location according to plumbing code and shower layout. |
| Drain Size | Standard shower drains are 2 inches in diameter. Choose a drain body compatible with your plumbing system. |
| Hole Cutting | Use a rotary hammer with a masonry bit to cut a hole in the cement floor. The hole should be slightly larger than the drain body flange. |
| Drain Assembly | Assemble the drain body according to manufacturer's instructions. This typically involves attaching the strainer, grate, and any sealing components. |
| Waterproofing | Apply a waterproofing membrane around the drain opening and extending onto the surrounding floor. This prevents water leakage into the subfloor. |
| Sloping the Floor | The shower floor must slope towards the drain at a minimum gradient of 1/4 inch per foot to ensure proper drainage. |
| Setting the Drain | Position the drain body in the hole, ensuring the flange is level and flush with the finished floor height. Secure it with appropriate fasteners. |
| Concrete Pour | Pour a layer of self-leveling concrete or mortar around the drain, maintaining the slope towards the drain. |
| Tile Installation | Once the concrete is cured, install shower tiles, ensuring they slope towards the drain and meet the drain grate seamlessly. |
| Grouting and Sealing | Grout the tiles and seal the grout lines and drain edges to prevent water penetration. |
| Final Testing | Test the drain for proper flow and ensure there are no leaks. |
Explore related products
What You'll Learn
- Pre-Installation Preparation: Gather tools, materials, and plan drain location for accurate and efficient installation
- Cutting the Hole: Use a concrete saw to create a precise hole for the drain
- Installing the Drain Base: Secure the drain base with mortar or adhesive for stability
- Waterproofing the Area: Apply waterproofing membrane to prevent moisture damage under the floor
- Pouring and Finishing Concrete: Fill around the drain with concrete, level, and smooth the surface
Pre-Installation Preparation: Gather tools, materials, and plan drain location for accurate and efficient installation
Before embarking on the installation of a shower drain in a cement floor, thorough pre-installation preparation is crucial for a seamless and efficient process. The first step involves gathering all the necessary tools and materials to ensure you have everything at hand, minimizing interruptions during the installation. Essential tools include a concrete saw or rotary hammer with a masonry bit for cutting the hole in the cement floor, a drill with various bits for pilot holes and securing fasteners, a trowel for mixing and applying mortar or concrete patch, a level to ensure proper alignment, and safety equipment such as gloves, goggles, and a dust mask. Additionally, you’ll need a shower drain assembly, PVC pipes for plumbing connections, a hacksaw or PVC cutter, primer and solvent cement for PVC joints, and a concrete patch or mortar mix to repair the floor around the drain. Having all these items organized and within reach will streamline the installation process.
Next, planning the drain location is a critical step that requires precision and foresight. Start by determining the exact position of the shower drain in relation to the shower area, ensuring it is centrally located to allow for proper water drainage. Measure the dimensions of the shower space and mark the center point where the drain will be installed. Verify that the drain location aligns with the existing plumbing layout or plan for new plumbing connections if necessary. Use a straight edge or chalk line to ensure the mark is accurate and visible. Double-check local building codes or regulations regarding shower drain placement, as there may be specific requirements for slope or positioning. Proper planning at this stage will prevent costly mistakes and ensure the drain functions effectively.
Once the location is marked, assess the thickness of the cement floor and the depth required for the shower drain assembly. Measure the height of the drain body and ensure there is enough space below the floor for the plumbing connections. If the cement floor is too thick, you may need to cut a deeper hole or adjust the plumbing layout. It’s also important to consider the slope of the shower floor toward the drain, typically 1/4 inch per foot, to facilitate proper water flow. Use a level or laser level to plan the slope and ensure the drain is at the lowest point. This step is essential for preventing water pooling and ensuring efficient drainage.
Finally, prepare the workspace to create a safe and efficient environment for installation. Clear the area around the marked drain location, removing any debris or obstructions. If the cement floor is in a finished space, protect surrounding surfaces with drop cloths or plastic sheeting to contain dust and debris. Ensure proper ventilation if cutting concrete indoors, as the process generates significant dust. Lay out all tools and materials in an organized manner, keeping frequently used items within easy reach. By preparing the workspace thoughtfully, you’ll reduce the risk of accidents and maintain focus on the task at hand, setting the stage for a successful and accurate installation.
Quick DIY Guide: Repairing a Fallen Shower Rod Easily
You may want to see also
Explore related products
Cutting the Hole: Use a concrete saw to create a precise hole for the drain
When cutting the hole for a shower drain in a cement floor, precision is key to ensuring a proper fit and avoiding costly mistakes. Begin by marking the exact location of the drain on the floor using a pencil or chalk. Measure carefully, ensuring the drain aligns with the shower’s slope and plumbing layout. Double-check the measurements to avoid errors, as cutting concrete is irreversible. Once marked, use a straight edge or ruler to draw a clear, straight line around the perimeter of the drain’s dimensions, typically a circle or square, depending on the drain type.
Next, prepare the area for cutting by putting on appropriate safety gear, including eye protection, ear protection, a dust mask, and gloves. Concrete cutting generates significant dust and noise, so ensure the workspace is well-ventilated or use a dust extraction system if available. Secure the concrete saw with a diamond blade designed for cutting cement, as this type of blade provides the durability and sharpness needed for the task. Ensure the saw is firmly attached and functioning properly before proceeding.
Start the cutting process by aligning the saw’s blade with the marked line. Begin cutting slowly and steadily, allowing the blade to do the work without forcing it. Apply consistent pressure and maintain a steady hand to achieve a clean, straight cut. For circular cuts, pivot the saw around the center point of the drain mark, keeping the blade perpendicular to the floor. For square cuts, make straight, controlled passes along each side of the marked square. Take breaks as needed to cool the blade and prevent overheating, especially when cutting thick concrete.
As you near the end of the cut, exercise caution to avoid chipping or cracking the edges. Once the cut is complete, remove the saw and inspect the hole for accuracy. Use a chisel and hammer to carefully break away any remaining concrete or rough edges, ensuring the hole is clean and smooth. Vacuum or brush away debris to prepare the area for the next steps, such as installing the drain assembly. Properly cutting the hole with a concrete saw sets the foundation for a secure and functional shower drain installation.
Quick Guide to Repairing Your Kohler Single Handle Shower Faucet
You may want to see also
Explore related products
Installing the Drain Base: Secure the drain base with mortar or adhesive for stability
When installing a shower drain in a cement floor, securing the drain base is a critical step to ensure stability and prevent leaks. Begin by preparing the area around the drain hole. Clean the cement surface thoroughly, removing any debris, dust, or loose particles. This ensures that the mortar or adhesive bonds effectively to the floor. If there are any irregularities or rough spots, smooth them out using a trowel or grinder to create a flat, even surface for the drain base.
Next, select the appropriate material to secure the drain base. Mortar is a common choice for cement floors due to its strength and durability. Mix the mortar according to the manufacturer’s instructions, ensuring it reaches a thick, paste-like consistency. Alternatively, a high-quality construction adhesive can be used, especially if you prefer a quicker application. Apply the mortar or adhesive evenly to the underside of the drain base, ensuring full coverage. Press the drain base firmly into place over the hole, making sure it sits level with the surrounding floor.
To ensure the drain base is perfectly aligned, use a level to check both the top of the drain and the surrounding area. Adjust as needed by adding or removing mortar beneath the base. Once aligned, allow the mortar or adhesive to cure according to the product’s recommended drying time. Avoid applying pressure or disturbing the drain during this period to maintain proper positioning.
For added stability, consider using a drain assembly with a flange or collar that extends onto the cement floor. This provides additional surface area for the mortar or adhesive to bond, enhancing the overall strength of the installation. If using mortar, lightly pack it around the edges of the drain base to create a watertight seal and further secure the assembly.
Finally, inspect the drain base after the mortar or adhesive has fully cured. Ensure it remains level and securely attached to the cement floor. Test the drain by pouring water into it to confirm proper flow and check for any signs of leakage around the base. Properly securing the drain base with mortar or adhesive is essential for a long-lasting and leak-free shower installation.
Quick DIY Guide: Unclogging Your Shower Drain Pipe Easily
You may want to see also
Explore related products
Waterproofing the Area: Apply waterproofing membrane to prevent moisture damage under the floor
Waterproofing the area beneath a shower drain in a cement floor is a critical step to prevent moisture damage, mold growth, and structural issues. Begin by thoroughly cleaning the cement floor where the shower drain will be installed. Remove any debris, dust, or loose particles using a broom, vacuum, or brush. Ensure the surface is completely dry before proceeding, as moisture can compromise the adhesion of the waterproofing membrane. If there are any cracks or imperfections in the cement, repair them using a suitable concrete patching compound and allow it to cure fully according to the manufacturer’s instructions.
Once the surface is prepared, select a high-quality waterproofing membrane designed for wet areas, such as liquid waterproofing coatings or sheet membranes. Liquid membranes, like those based on polymer-modified cement or synthetic resins, are applied directly to the cement floor using a roller, brush, or sprayer. Ensure the product is applied evenly and in the recommended thickness, typically in multiple coats, allowing each layer to dry before applying the next. Pay special attention to corners, edges, and areas around the drain, as these are common entry points for water.
If using a sheet membrane, such as PVC or rubberized asphalt, cut the material to fit the area, ensuring it extends beyond the shower perimeter by at least 6–8 inches. Secure the membrane to the cement floor using a compatible adhesive or mechanical fasteners, following the manufacturer’s guidelines. Overlap seams by the recommended amount (usually 3–4 inches) and seal them with a compatible seam tape or adhesive to create a continuous waterproof barrier. Press the membrane firmly into place, especially around the drain opening, to eliminate air pockets and ensure proper adhesion.
After applying the waterproofing membrane, allow it to cure or set completely before proceeding with the installation of the shower drain. Test the membrane for leaks by flooding the area with water and letting it sit for 24 hours. Inspect for any signs of seepage or moisture penetration beneath the membrane. If issues are detected, address them by reinforcing the membrane or reapplying it in the affected areas. Properly installed, the waterproofing membrane will create a robust barrier that protects the cement floor and underlying structure from water damage.
Finally, ensure the shower drain assembly is installed correctly to maintain the integrity of the waterproofing system. The drain body should be positioned so that its flange sits directly on top of the waterproofing membrane, creating a seal between the drain and the membrane. Use a waterproof sealant around the drain flange to further prevent water from seeping beneath it. Once the drain is installed, proceed with the shower pan or floor installation, ensuring all materials are compatible with the waterproofing membrane to avoid compromising its effectiveness.
Quick Guide: Repairing Your Apartment Shower in Minimal Time
You may want to see also
Explore related products
Pouring and Finishing Concrete: Fill around the drain with concrete, level, and smooth the surface
Pouring and finishing concrete around a shower drain in a cement floor requires careful preparation and execution to ensure a level, smooth, and watertight surface. Begin by ensuring the area around the drain is clean and free of debris. Mix the concrete according to the manufacturer’s instructions, aiming for a consistency that is workable yet firm enough to hold its shape. Use a wheelbarrow or mixing tray for small batches, and have all tools ready, including a trowel, float, and edging tools. Before pouring, verify that the drain is securely installed and properly aligned with the slope of the floor to ensure water flows correctly.
Once the concrete is mixed, start pouring it around the drain, working in small sections to maintain control. Begin by filling the area closest to the drain, ensuring the concrete is packed tightly around the drain body to prevent voids or gaps. Use a shovel or trowel to distribute the concrete evenly, taking care not to disturb the drain’s position. Gradually build up the concrete to match the height of the drain flange, ensuring the surface is slightly higher than the surrounding floor to allow for proper leveling and finishing.
After the area around the drain is filled, use a straightedge or screed board to level the concrete. Drag the tool across the surface in a back-and-forth motion, striking off excess material and creating a flat plane. Pay close attention to the area immediately surrounding the drain, ensuring it is level with the rest of the floor. This step is critical for achieving a smooth finish and proper water drainage. If the drain has a slope, ensure the concrete follows this gradient to direct water toward the drain effectively.
Once the concrete is leveled, begin the finishing process by smoothing the surface with a float. Start by using a bull float for larger areas, moving it in sweeping motions to fill in low spots and remove imperfections. For the area directly around the drain, switch to a hand float to achieve greater precision. Work the float in circular or arcing motions, ensuring the surface is uniformly smooth and free of trowel marks. Avoid overworking the concrete, as this can cause water to bleed to the surface and weaken the finish.
Finally, after the concrete has begun to set but is still workable, use an edging tool to create a clean edge around the drain. This step helps define the drain’s perimeter and ensures a professional appearance. Allow the concrete to cure according to the recommended time, typically 24 to 48 hours, before applying any sealants or waterproofing membranes. Proper curing is essential to achieve maximum strength and durability. With careful pouring, leveling, and finishing, the concrete around the shower drain will be both functional and aesthetically pleasing.
Wide Fixed Frameless Glass Shower Panels: Sizing Guide & Installation Tips
You may want to see also
Frequently asked questions
You will need a rotary hammer with a masonry bit, a chisel, a reciprocating saw or angle grinder, a trowel, a level, a tape measure, a utility knife, and safety gear (gloves, goggles, dust mask).
Use a level to check the height of the drain assembly before securing it. Adjust the position by adding or removing thin-set mortar or sand beneath the drain flange until it is perfectly level with the surrounding floor.
You can install a shower drain in an existing cement floor, but it requires cutting into the concrete. Use a rotary hammer and masonry bit to create the hole for the drain, ensuring it’s the correct size and depth for the drain assembly.
