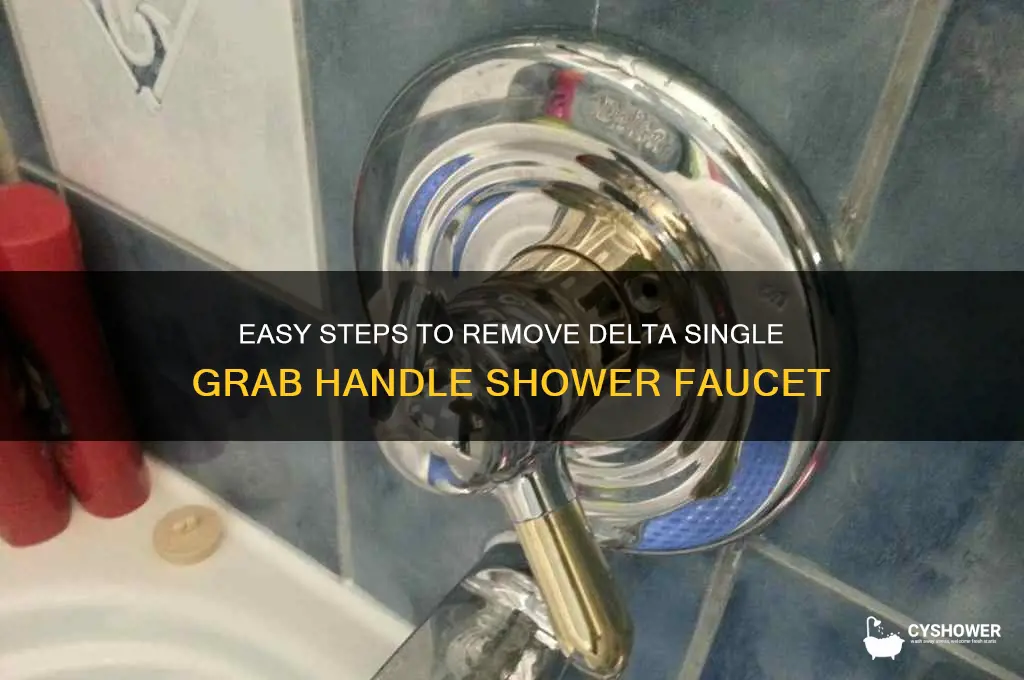

Removing a Delta single grab handle shower faucet is a straightforward DIY task that can be accomplished with basic tools and a bit of patience. The process typically involves turning off the water supply, removing the handle and escutcheon, and then unscrewing the retaining nut to access the cartridge or valve. It’s important to have a replacement cartridge or repair kit on hand if needed, as wear and tear on the internal components is often the reason for removal. Following Delta’s specific instructions or a detailed guide ensures you avoid damaging the faucet or plumbing system during the process. With careful steps, you can successfully remove the faucet for repair or replacement.
| Characteristics | Values |
|---|---|
| Tools Required | Phillips screwdriver, flathead screwdriver, Allen wrench, pliers |
| Steps to Remove Handle | 1. Remove handle screw (if visible), 2. Pry off handle cap, 3. Pull handle off, 4. Remove temperature limit stop (if applicable) |
| Handle Types | Single grab handle (may have a set screw or hidden screw) |
| Common Issues | Corroded screws, stuck handle, hidden screw mechanism |
| Delta Model Compatibility | Monitor series, Classic series, and other single-handle models |
| Replacement Parts | Handle adapter, cartridge, screws |
| Safety Precautions | Turn off water supply before starting |
| Difficulty Level | Moderate (may require patience for stubborn parts) |
| Estimated Time | 15-30 minutes |
| Additional Tips | Use penetrating oil for rusted screws, check for warranty coverage |
Explore related products
What You'll Learn
Gather Tools and Materials
Before tackling the removal of a Delta single-handle shower faucet, it's crucial to assemble the right tools and materials to ensure a smooth and efficient process. The task requires a combination of common household tools and specialized items, each playing a unique role in the disassembly. A Phillips-head screwdriver, for instance, is essential for removing the screws that secure the handle, while a flat-head screwdriver can be used to pry off the decorative cap covering the screw. Additionally, an adjustable wrench or a pair of pliers will be necessary to loosen the retaining nut that holds the cartridge in place.
Consider the condition of your faucet and the surrounding area when gathering materials. If the faucet is old or corroded, penetrating oil or a lubricant like WD-40 can be applied to stubborn screws or nuts to ease their removal. It’s also wise to have a clean cloth or towel on hand to wipe away any excess lubricant or debris. For those working in a tight space, a flashlight or headlamp can illuminate hard-to-see areas, ensuring no small parts are overlooked. A small container or tray to hold screws and other components as they are removed can prevent loss and streamline reassembly.
The choice of tools can significantly impact the ease of the task. For example, using a screwdriver with a magnetic tip can help retrieve screws from deep recesses, while a long-handled wrench provides better leverage for tight spaces. If the faucet handle is particularly stubborn, a handle puller tool may be necessary to avoid damaging the fixture. It’s also important to verify compatibility with Delta-specific parts, as some generic tools may not fit properly. Investing in high-quality tools not only makes the job easier but also reduces the risk of stripping screws or damaging the faucet.
Finally, safety and organization should not be overlooked. Wearing safety goggles protects your eyes from any debris that may dislodge during removal, while work gloves provide a better grip and prevent injuries. Laying out all tools and materials in a systematic order before beginning ensures everything is within reach, minimizing interruptions. By thoughtfully gathering these tools and materials, you set the stage for a successful and frustration-free removal process, turning a potentially daunting task into a manageable DIY project.
Easy Steps to Remove a Bathtub Shower Faucet Cartridge
You may want to see also
Explore related products
Shut Off Water Supply
Before dismantling your Delta single-handle shower faucet, safeguarding your bathroom from accidental flooding is paramount. Shutting off the water supply is a critical first step, often overlooked by DIY enthusiasts in their eagerness to begin repairs. Failure to do so can result in water damage, unnecessary cleanup, and potential delays in your project. This step is not just precautionary—it’s foundational to a smooth and stress-free repair process.
To locate the shut-off valves, start by identifying the water supply lines connected to your shower faucet. In most homes, these valves are situated in the basement, crawl space, or utility closet, often near the bathroom. If your home lacks individual shut-off valves for the shower, you’ll need to turn off the main water supply, typically found near the water meter. While this disrupts water access to the entire house, it’s a necessary measure to prevent water flow during repairs.
Once you’ve located the appropriate valves, turn them clockwise to shut off the water supply. For older valves, use a pair of adjustable pliers if they’re difficult to turn by hand. After closing the valves, open the shower faucet to release any residual water in the pipes. This ensures no water remains under pressure, minimizing the risk of leaks or spills during the removal process.
A common mistake is assuming the water is completely off without testing. Always verify by attempting to run the shower after closing the valves. If water continues to flow, double-check the valve positions or consider consulting a professional. Properly shutting off the water supply not only protects your workspace but also ensures a safer, more efficient repair experience.
In summary, shutting off the water supply is a straightforward yet indispensable step in removing a Delta single-handle shower faucet. By locating the correct valves, testing their effectiveness, and preparing for potential challenges, you set the stage for a successful DIY project. This small but significant action can save you from avoidable complications, turning a potentially messy task into a manageable one.
Easy Steps to Remove RV Shower Drain Cover: A Quick Guide
You may want to see also
Explore related products
Remove Handle and Escutcheon
The handle and escutcheon of a Delta single-handle shower faucet are often the first components to show wear or require replacement. Removing them is a straightforward process, but it requires precision to avoid damaging the faucet’s finish or internal mechanisms. Begin by identifying the type of handle you’re dealing with—Delta handles typically secure with either a screw or a set screw hidden beneath a cap. For screw-mounted handles, locate the Phillips or Allen screw on the handle’s underside or side. For set screw handles, pry off the decorative cap gently using a flathead screwdriver or your fingernail to reveal the set screw.
Once the screw type is identified, use the appropriate tool to remove it. For Allen screws, a 1/8-inch hex key is usually sufficient. Turn the screw counterclockwise until it’s fully removed, but avoid over-tightening the tool to prevent stripping. If the screw is corroded or stuck, apply a small amount of penetrating oil (e.g., WD-40) and let it sit for 10–15 minutes before attempting again. With the screw removed, the handle should lift off easily. If it’s stubborn, gently wiggle it side to side while pulling upward to dislodge it from the valve stem.
The escutcheon, the decorative plate surrounding the handle, is typically held in place by either screws or adhesive. If screws are present, remove them using a Phillips screwdriver. For adhesive-mounted escutcheons, carefully pry the edges with a putty knife or thin tool, working your way around the plate to break the seal. Be cautious not to scratch the surrounding wall or tile. Once removed, inspect the area for any residue or damage, as this may affect the installation of a new escutcheon.
A critical step often overlooked is protecting the valve cartridge during removal. After the handle is off, cover the exposed valve with a cloth or tape to prevent debris from entering the system. This small precaution can save you from costly repairs down the line. Additionally, take note of the handle’s orientation before removal—some Delta models have specific alignment requirements for proper function. Marking the handle’s position with a piece of tape can simplify reinstallation or replacement.
In summary, removing the handle and escutcheon involves identifying the correct screw type, using the right tools, and working methodically to avoid damage. Patience is key, especially when dealing with corroded components or adhesive-mounted parts. By following these steps and taking precautions to protect the valve, you can efficiently complete this task and proceed with repairs or upgrades to your Delta shower faucet.
Easy Steps to Remove Neo Angle Shower Doors Safely and Efficiently
You may want to see also
Explore related products
Replace Cartridge or Valve
A worn-out cartridge or valve is often the culprit behind a leaky Delta single-handle shower faucet. Before diving into replacement, assess the damage. Disassemble the handle and inspect the cartridge for cracks, mineral buildup, or worn seals. If the valve body itself is corroded or damaged, a full valve replacement is necessary. However, in most cases, a cartridge swap will suffice. Delta cartridges are typically color-coded for easy identification, with common models including the RP19804 (clear) and RP46074 (gray).
Replacing a Delta cartridge requires precision and the right tools. Gather a Phillips screwdriver, pliers, and a cartridge puller (if the old cartridge is stubborn). Shut off the water supply to the shower before beginning. Remove the handle screw and lift off the handle assembly. Use the pliers to grip and rotate the retaining clip counterclockwise, then pull out the old cartridge. Apply silicone grease to the new cartridge’s O-rings to ensure a watertight seal, then insert it into the valve body, aligning the notch with the valve’s keyway. Reassemble the handle and test for leaks.
While cartridge replacement is straightforward, avoid common pitfalls. Over-tightening the retaining clip can strip its threads, rendering it unusable. If the old cartridge is stuck, resist the urge to force it out with excessive leverage, as this can damage the valve body. Instead, use a cartridge puller or soak the cartridge in vinegar to dissolve mineral deposits. Always verify compatibility by cross-referencing the cartridge model with your faucet’s specifications, as using the wrong part can exacerbate issues.
For those considering a valve replacement, the process is more involved but not insurmountable. Turn off the water supply and remove the escutcheon plate to access the valve. Use a tub socket wrench to unscrew the valve body, taking care not to damage surrounding tiles. Install the new valve, ensuring it’s aligned with the shower wall and secured tightly. Reattach the escutcheon and handle assembly, then test the faucet for proper function. While valve replacement is more costly and time-consuming, it’s a long-term solution for severely damaged or outdated systems.
In conclusion, replacing a Delta shower faucet cartridge or valve is a task that balances DIY accessibility with the need for careful execution. By diagnosing the issue accurately, using the right tools, and following precise steps, homeowners can restore their shower’s functionality without professional help. Whether opting for a cartridge swap or a full valve replacement, attention to detail ensures a leak-free, durable repair.
Effective Ways to Remove Cement Glaze from Your Bathroom Shower
You may want to see also
Explore related products
Reassemble and Test Faucet
Once the Delta single-handle shower faucet is disassembled, cleaned, and repaired, reassembly requires precision to ensure functionality and longevity. Begin by reinserting the cartridge into the valve body, aligning the tabs with the slots and pushing firmly until it seats properly. Follow this by reattaching the handle adapter, ensuring the set screw is tightened securely but not overtightened to avoid stripping. Replace the handle by aligning it with the adapter and securing it with the screw provided, taking care not to cross-thread. Finally, reattach the escutcheon plate and any decorative trim, ensuring all components are flush and aligned. Each step should be executed methodically to avoid damaging parts or compromising the seal.
Testing the faucet post-reassembly is critical to confirm success. Turn on the water supply slowly to check for leaks at the handle, cartridge, or escutcheon. Gradually increase water pressure while observing for drips or unusual resistance in the handle movement. If leaks occur, disassemble the faucet again to recheck seals and connections, particularly the O-rings and cartridge alignment. A common oversight is neglecting to lubricate the cartridge with silicone grease, which can cause stiffness or leaks. Proper testing not only verifies repairs but also prevents water damage and the need for immediate re-repairs.
Comparatively, reassembling a Delta single-handle shower faucet is simpler than other brands due to its modular design, but it still demands attention to detail. Unlike Moen or Kohler faucets, Delta’s cartridge system often requires fewer tools and less force to reassemble, making it more DIY-friendly. However, the handle mechanism’s reliance on precise alignment can be more finicky than competitors. For instance, while a Moen faucet might forgive slight misalignment, Delta’s handle may bind or leak if not perfectly seated. This highlights the importance of following manufacturer guidelines and using genuine replacement parts.
Practically, reassembly should take no more than 15–20 minutes if done correctly, but rushing can lead to errors. A useful tip is to lay out parts in the order of reassembly before starting, reducing the risk of skipping steps. Additionally, testing the faucet without the escutcheon plate initially can simplify leak detection. If the handle feels stiff after reassembly, apply a small amount of silicone-based lubricant to the cartridge interface, avoiding petroleum-based products that can degrade seals. By combining careful reassembly with thorough testing, you ensure the faucet operates smoothly and efficiently, extending its lifespan and maintaining water efficiency.
Easy DIY Guide: Removing a Delta Shower Spout Step-by-Step
You may want to see also
Frequently asked questions
Begin by turning off the water supply to the shower. Then, remove the screw cover or button on the faucet handle and unscrew the handle using a screwdriver.
You’ll typically need a screwdriver (Phillips or flathead, depending on the screw type), an adjustable wrench or pliers, and possibly a cartridge puller if the cartridge is stuck.
After removing the handle, use a wrench or pliers to loosen the retaining nut. Then, pull out the cartridge by hand or use a cartridge puller if it’s difficult to remove.
Apply penetrating oil (like WD-40) to the retaining nut and let it sit for 10-15 minutes. Use an adjustable wrench or pliers with a cloth to protect the finish, and gently turn counterclockwise to loosen it.
