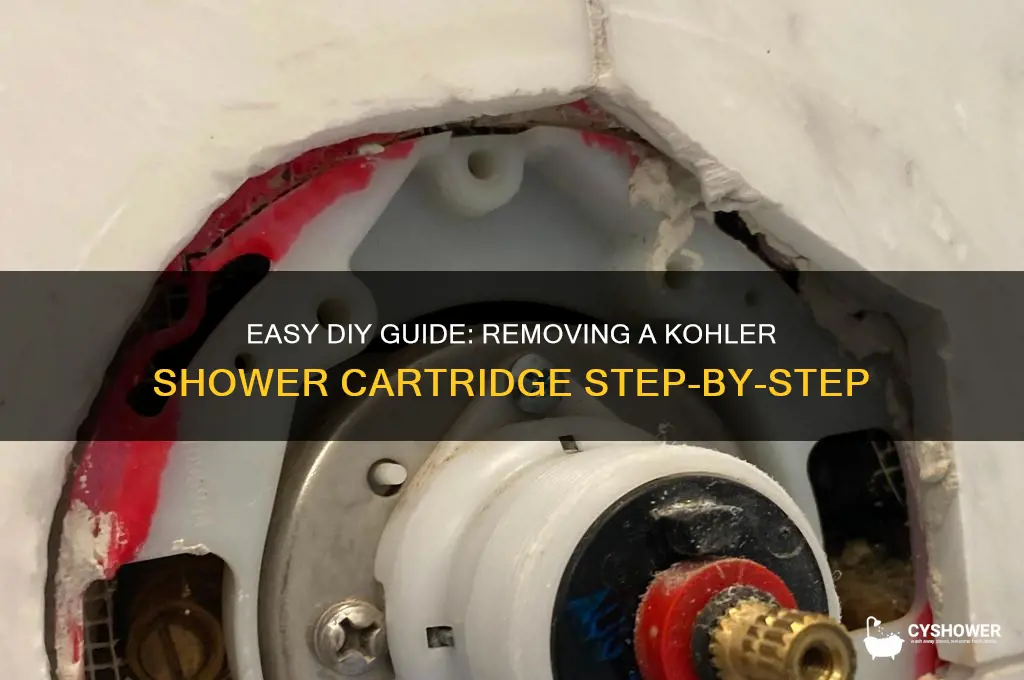

Removing a Kohler shower cartridge can seem daunting, but with the right tools and a step-by-step approach, it’s a manageable DIY task. The process typically involves turning off the water supply, disassembling the shower handle and escutcheon, and carefully extracting the cartridge using a puller tool or pliers. Kohler cartridges are designed for durability, but wear and tear over time can lead to leaks or reduced water flow, making replacement necessary. Understanding the specific model of your Kohler shower valve is crucial, as different cartridges may require slightly varied techniques. By following a systematic guide, homeowners can save on plumbing costs and restore their shower’s functionality efficiently.
| Characteristics | Values |
|---|---|
| Tools Required | Phillips screwdriver, flathead screwdriver, pliers, cartridge puller, penetrating oil (WD-40) |
| Steps | 1. Turn off water supply. 2. Remove handle screw and handle. 3. Extract trim plate. 4. Apply penetrating oil to cartridge. 5. Use cartridge puller or pliers to grip and pull cartridge straight out. |
| Cartridge Type | Kohler single-control or dual-control shower cartridge (e.g., GP1083167, GP50585) |
| Common Issues | Stuck cartridge due to mineral buildup, corrosion, or age |
| Precautions | Avoid forcing the cartridge to prevent damage to the valve body |
| Replacement Parts | New Kohler cartridge, O-rings, and lubricant (if needed) |
| Time Required | 30 minutes to 1 hour (depending on cartridge condition) |
| Difficulty Level | Moderate |
| Additional Tips | Use a hairdryer to heat the cartridge for easier removal if stuck |
| Safety Measures | Wear safety goggles and gloves to protect against sharp edges and debris |
Explore related products
What You'll Learn
Gather Tools and Supplies
Before attempting to remove a Kohler shower cartridge, it's essential to gather the necessary tools and supplies to ensure a smooth and efficient process. A well-prepared toolkit can save you time, effort, and potential frustration. Start by assembling the basic tools required for this task, which typically include a Phillips head screwdriver, a flathead screwdriver, and an adjustable wrench or pliers. These tools will enable you to remove screws, pry open components, and grip stubborn parts with ease.
Consider the specific Kohler shower model you're working with, as some cartridges may require additional tools or specialized equipment. For instance, certain models might necessitate a cartridge puller or a socket set to access hard-to-reach areas. Research your shower's manual or consult online resources to identify any unique tools needed for your particular Kohler model. Being aware of these requirements beforehand will prevent unnecessary delays and ensure you have everything on hand.
In addition to tools, having the right supplies is crucial for a successful cartridge removal. Prepare a clean workspace and lay out a soft cloth or towel to place the removed parts on, preventing damage or misplacement. You may also need a mild cleaning solution and a brush to remove any built-up mineral deposits or grime from the cartridge and surrounding areas. For more stubborn stains or corrosion, consider using a descaling agent specifically designed for bathroom fixtures, following the manufacturer's instructions for application and safety precautions.
As you gather your tools and supplies, take a moment to inspect and organize them. Ensure that your screwdrivers have the appropriate tip sizes and are in good condition, as worn-out tools can strip screws and complicate the removal process. Check that your wrenches or pliers are adjusted to the correct size and have a firm grip to avoid slipping. By taking the time to prepare and inspect your toolkit, you'll be better equipped to tackle the task of removing the Kohler shower cartridge with confidence and precision.
When assembling your toolkit, think about the sequence of steps involved in removing the cartridge. Lay out your tools in the order you'll need them, creating a logical workflow. This simple act of organization can streamline the process, making it more efficient and reducing the likelihood of forgetting a crucial step or tool. With a well-prepared and thoughtfully organized set of tools and supplies, you'll be ready to tackle the challenge of removing the Kohler shower cartridge, ensuring a successful and stress-free experience.
Effective Steps to Remove Old Fiberglass Shower Patch Easily
You may want to see also
Explore related products
Shut Off Water Supply
Before attempting to remove a Kohler shower cartridge, it's crucial to shut off the water supply to prevent flooding and water damage. This step is often overlooked, but it's a critical safety measure that can save you from a messy and costly situation. The process of shutting off the water supply varies depending on your plumbing setup, but generally, you'll need to locate the shut-off valves for your shower. In most cases, these valves are located in the basement, crawl space, or utility closet, near the main water supply line.
In an analytical perspective, the shut-off valves act as a control mechanism, allowing you to isolate the water supply to your shower. By turning off these valves, you're effectively cutting off the flow of water to the shower cartridge, making it safe to remove without the risk of water spraying everywhere. It's essential to identify the correct valves, as some homes may have separate hot and cold water shut-offs, while others may have a single valve that controls both. If you're unsure which valves to turn off, consult your home's plumbing diagram or contact a professional plumber for guidance.
To shut off the water supply, follow these instructive steps: first, locate the shut-off valves and ensure they're in the "on" position. Then, turn the valves clockwise until they're fully closed. You may need to use a pair of pliers or a wrench to grip the valves firmly, especially if they're stiff or difficult to turn. Once the valves are closed, test the shower to ensure the water supply has been completely shut off. Turn on the shower and check if any water is flowing; if not, you're ready to proceed with removing the cartridge.
A comparative analysis reveals that some homeowners may opt to shut off the main water supply to the entire house, rather than just the shower. While this approach guarantees a complete shut-off, it's often unnecessary and can be inconvenient, as it affects all water sources in the home. By contrast, shutting off the water supply specifically to the shower is a more targeted and efficient method, allowing you to maintain water access to other areas of the house while working on the shower cartridge.
In a descriptive scenario, imagine you're standing in your basement, surrounded by a maze of pipes and valves. You've located the shut-off valves for your shower, and they're clearly labeled "hot" and "cold." As you turn the valves clockwise, you feel a sense of control and confidence, knowing that you're taking a crucial step to prevent water damage. The valves emit a soft creaking sound as they close, and you can almost hear the water flow slowing to a stop. With the water supply shut off, you're now ready to tackle the task of removing the Kohler shower cartridge, armed with the knowledge that you've taken the necessary precautions to ensure a safe and successful repair.
Effective Ways to Remove Stubborn Scum from Your Shower Door
You may want to see also
Explore related products
Remove Shower Handle
Removing the shower handle is the critical first step in accessing and replacing a Kohler shower cartridge. Most Kohler shower handles are secured by a small screw or set screw, often hidden beneath a decorative cap. To begin, locate this cap—usually at the base of the handle or on its underside—and pry it off gently with a flathead screwdriver. Be cautious not to scratch the finish. Once the cap is removed, you’ll expose the screw holding the handle in place. Use the appropriate screwdriver (typically Phillips or Allen) to loosen and remove it. If the screw is stripped or difficult to turn, apply a small amount of penetrating oil and allow it to sit for 10–15 minutes before retrying.
After removing the screw, grip the handle firmly and pull it straight outward. Some handles may require a slight wiggle or twist to dislodge, especially if they’ve been in place for years. If the handle resists, avoid excessive force, as this could damage the valve or trim. Instead, inspect for any additional retaining clips or screws that might still be securing it. Kohler models like the Coralais or Devonshire often have straightforward handle designs, but newer or high-end models may include hidden mechanisms. Refer to your specific model’s manual or Kohler’s online resources if you encounter unexpected resistance.
For handles with no visible screws, the mechanism is likely pressure-fit or secured by a set screw on the side. In such cases, examine the handle’s perimeter for a small indentation or slot. Insert a hex key or Allen wrench into this slot and turn counterclockwise to release the set screw. Once loosened, the handle should pull free easily. If the handle still doesn’t budge, apply heat with a hairdryer for 30–60 seconds to expand the metal, making it easier to remove. Always test the temperature of the handle before pulling to avoid burns.
Once the handle is off, take a moment to clean the exposed area. Mineral deposits or grime can interfere with the cartridge’s removal or reinstallation. Use a damp cloth and mild detergent to wipe down the surface, avoiding harsh chemicals that could damage the finish. With the handle successfully removed, you’ve cleared the way to access the cartridge, bringing you one step closer to completing the repair. This process, though seemingly simple, is foundational to the entire task and warrants careful attention to detail.
Step-by-Step Guide to Removing a Concealed Shower Valve Easily
You may want to see also
Explore related products
Extract Retaining Clip
The retaining clip is a small but crucial component in the Kohler shower cartridge assembly, often the key to a successful removal process. This unassuming metal clip secures the cartridge in place, and its extraction requires precision and the right tools. A common mistake is underestimating the clip's role, leading to frustration when the cartridge seems stubbornly stuck. Understanding its function is the first step to mastering the art of cartridge removal.
A Delicate Operation: Extracting the retaining clip demands a gentle touch. Using a flathead screwdriver, carefully pry the clip out of its groove. The goal is to apply just enough force to dislodge it without damaging the surrounding components. This step is akin to a surgical procedure, where precision is paramount. A steady hand and a keen eye are essential to avoid slipping and causing unintended harm to the shower valve.
In the world of DIY plumbing, the retaining clip extraction is a rite of passage. It separates the novice from the experienced. The process is a test of patience and dexterity, often requiring multiple attempts to perfect. A useful tip is to use a flashlight to illuminate the work area, ensuring you can see the clip's exact position. This simple trick can significantly improve your accuracy and reduce the risk of errors.
Tools of the Trade: For this task, a specialized tool like a cartridge puller or a pair of needle-nose pliers can be invaluable. These tools provide the necessary grip and leverage to extract the clip without causing damage. It's a classic case of using the right tool for the job, making the process more efficient and less frustrating. With the correct equipment, what seems like a daunting task becomes a manageable DIY project.
Mastering the retaining clip extraction is a skill that pays dividends in the long run. It empowers homeowners to tackle shower cartridge replacements with confidence. By understanding the intricacies of this small component, one can avoid common pitfalls and ensure a smooth removal process. This knowledge is a powerful asset, transforming a potentially daunting task into a straightforward DIY endeavor.
Easy Steps to Remove and Replace Your Old Shower Drain Cover
You may want to see also
Explore related products
Pull Out Cartridge
Removing a Kohler shower cartridge often involves a "pull-out" mechanism, a design feature that simplifies the process compared to traditional fixed cartridges. This method is particularly useful for models like the Kohler Coralais or Devonshire, where accessibility is prioritized. To begin, ensure the water supply is turned off to prevent accidental spills. Next, remove the handle by prying off the decorative cap and unscrewing the handle screw. This exposes the cartridge retainer, typically a metal or plastic clip holding the cartridge in place.
The key to the pull-out cartridge lies in its retainer system. Unlike cartridges that require specialized tools for extraction, this design often features a retainer clip that can be released with a flathead screwdriver or a cartridge puller tool. Insert the tool into the retainer clip slot and gently pry outward to disengage it. Once the clip is removed, the cartridge should be free to slide out with minimal effort. If resistance is encountered, avoid forcing it; instead, inspect for any remaining debris or mineral buildup that might be causing friction.
A critical aspect of this process is understanding the cartridge’s orientation. Kohler pull-out cartridges are often marked with a notch or groove indicating the correct alignment. Misalignment during reinstallation can lead to leaks or improper temperature control. Before removing the cartridge, take note of its position or snap a quick photo for reference. This small step can save significant troubleshooting time later.
For those dealing with stubborn cartridges, a practical tip is to apply a lubricant like silicone-based grease or penetrating oil around the cartridge edges. Allow it to sit for 10–15 minutes to loosen any mineral deposits. Additionally, using a cartridge puller tool with a grip designed for Kohler models can provide better leverage than improvised tools, reducing the risk of damaging the valve body. Always handle the cartridge carefully, as cracks or chips can render it unusable.
In conclusion, the pull-out cartridge system in Kohler showers is engineered for user-friendly maintenance. By focusing on the retainer clip mechanism and taking precautions to avoid misalignment, homeowners can efficiently remove and replace the cartridge without professional assistance. This approach not only saves time but also ensures the longevity of the shower system when done correctly.
Effective Ways to Remove Mildew from Showers Without Bleach
You may want to see also
Frequently asked questions
Signs include inconsistent water temperature, difficulty turning the handle, leaks around the showerhead, or reduced water flow. If these issues persist after cleaning, replacement is likely needed.
You’ll need a Phillips screwdriver, flathead screwdriver, pliers, cartridge puller (if stuck), and possibly a socket wrench or adjustable wrench for stubborn screws or nuts.
First, turn off the water supply. Remove the handle by prying off the cap and unscrewing the handle screw. Then, remove the escutcheon plate and any retaining nuts or screws to expose the cartridge.
Apply penetrating oil (e.g., WD-40) and let it sit for 15–30 minutes. Use a cartridge puller tool or gently tap the cartridge with a mallet and screwdriver to loosen it before pulling it out.
Ensure the new cartridge is aligned correctly with the notches facing the right direction. Apply plumber’s grease to the O-rings and seals, and test the handle movement before reinstalling the escutcheon and handle.
