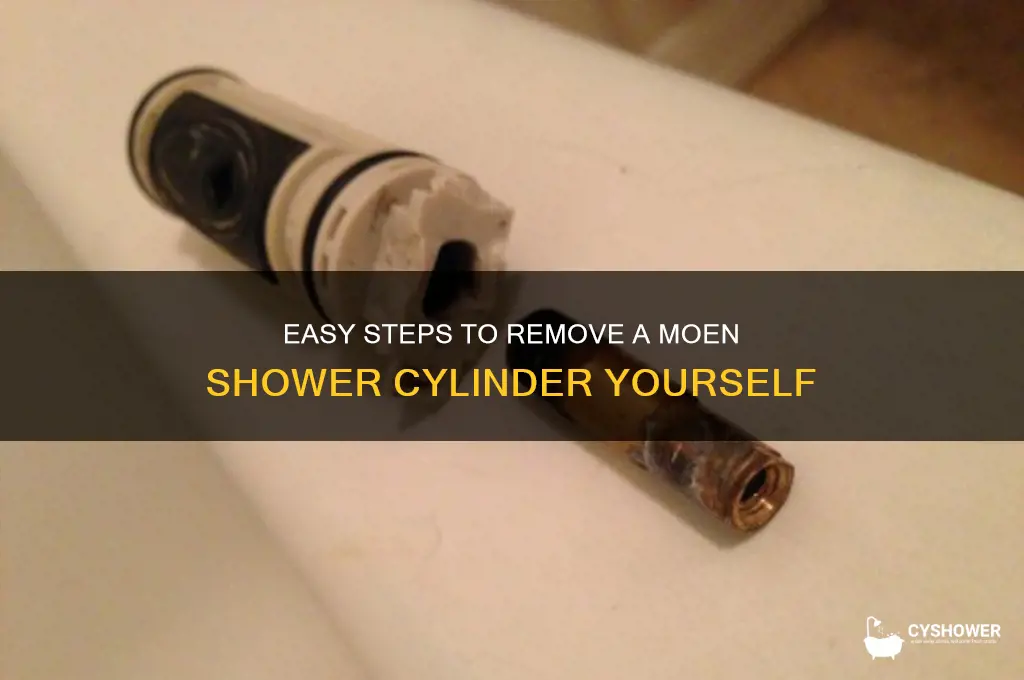

Removing a Moen shower cylinder can seem daunting, but with the right tools and a step-by-step approach, it’s a manageable DIY task. The process typically involves shutting off the water supply, disassembling the shower handle and escutcheon, and carefully extracting the cylinder cartridge. Common tools needed include a screwdriver, pliers, and possibly a cartridge puller if the cylinder is stuck. Understanding the specific Moen model you’re working with is crucial, as designs can vary slightly. Following manufacturer guidelines or a detailed tutorial ensures you avoid damaging the fixture while successfully replacing or repairing the cylinder.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, adjustable wrench, penetrating oil (e.g., WD-40) |
| Steps to Remove | 1. Turn off water supply. 2. Remove handle screw and handle. 3. Extract cartridge retaining clip. 4. Pull out the cylinder/cartridge. |
| Common Issues | Stuck or corroded cylinder due to mineral buildup or age. |
| Solutions for Stuck Cylinder | Apply penetrating oil, use cartridge puller tool, or gently tap with mallet and wood block. |
| Replacement Parts | Moen replacement cartridge (e.g., 1222 or 1222B), retaining clip, handle screw. |
| Safety Precautions | Ensure water is off to avoid flooding; wear safety goggles. |
| Compatibility | Specific to Moen single-handle shower valves (models vary). |
| Difficulty Level | Moderate (requires basic plumbing skills). |
| Time Required | 15-30 minutes (varies based on cylinder condition). |
| Additional Tips | Check for O-ring damage during removal; replace if necessary. |
Explore related products
What You'll Learn
Shutting Off Water Supply
Before attempting to remove a Moen shower cylinder, shutting off the water supply is a critical step that prevents accidental flooding and ensures a dry, safe workspace. Most residential plumbing systems have a dedicated shut-off valve for the shower, typically located in the bathroom or an adjacent utility closet. If your home lacks this feature, you’ll need to turn off the main water supply, usually found near the water meter or where the main line enters the house. This small precaution saves time, minimizes mess, and avoids potential water damage to walls, floors, or ceilings.
Analyzing the process reveals two primary methods for shutting off water: using a local shut-off valve or the main supply. Local valves are often hidden behind decorative plates or access panels near the shower. If the valve is difficult to turn due to age or mineral buildup, apply penetrating oil and use a valve wrench for leverage. For homes without local valves, turning off the main supply is straightforward but requires locating the valve first. In colder climates, this valve is often in a heated area to prevent freezing. Always test the shower after shutting off the water to confirm no water flows before proceeding with the cylinder removal.
Persuasively, shutting off the water supply isn’t just a step—it’s a safeguard. Skipping this step risks water spraying unexpectedly, complicating the repair and potentially causing costly damage. Even if you’re confident in your DIY skills, water pressure can be unpredictable, especially in older plumbing systems. Taking this precaution ensures you’re prepared for any scenario, from a simple cylinder replacement to uncovering hidden issues like corroded pipes or faulty seals. It’s a small effort with a significant payoff in peace of mind.
Comparatively, shutting off the water supply for shower repairs differs from other plumbing tasks. Unlike sink repairs, where a bucket and towel might suffice for minor leaks, showers operate under higher pressure and are often embedded in walls. This makes containment nearly impossible without proper shut-off. Additionally, while turning off the main supply works universally, it’s less efficient than using a local valve, as it cuts water to the entire house. Understanding these nuances helps you choose the best method for your situation, balancing convenience with necessity.
Descriptively, the act of shutting off the water supply is a tactile, methodical process. Start by locating the valve—a small, round or oval handle often labeled "hot" or "cold." Turn it clockwise to close it, feeling the resistance as the mechanism engages. For main shut-off valves, you may need to use a wrench or key, depending on the design. Once closed, the sound of running water should cease, and the showerhead will deliver only residual drips. This moment of silence marks the transition from preparation to action, a quiet assurance that you’re ready to tackle the Moen shower cylinder removal with confidence.
Easy DIY Guide: Removing Your Shower Tap in Simple Steps
You may want to see also
Explore related products
Removing Shower Handle
The shower handle is often the gateway to accessing the Moen shower cylinder, making its removal a critical first step in any repair or replacement process. Before diving into the cylinder itself, understanding the handle’s mechanism is essential. Most Moen shower handles are secured by a small screw or set screw, often hidden beneath a decorative cap. Locating this screw is the first challenge, as it requires careful inspection and sometimes a flashlight to spot. Once identified, removing the screw typically requires a hex key or Phillips screwdriver, depending on the model. This step is straightforward but demands precision to avoid damaging the handle or surrounding trim.
Analyzing the handle’s design reveals why this step is both simple and crucial. Moen handles are engineered for durability and ease of use, but their sleek appearance often conceals the fastening mechanism. For instance, some handles feature a concealed set screw accessible only after prying off the decorative cap with a flathead screwdriver. Others may have a visible screw but require a specific tool size, such as a 3/32-inch hex key. Understanding these variations ensures you’re prepared with the right tools, preventing unnecessary frustration or delays.
A persuasive argument for taking your time during this step is the potential for long-term savings. Rushing to remove the handle without proper care can lead to stripped screws, cracked handles, or scratched finishes, all of which increase repair costs. By investing a few extra minutes to inspect the handle and use the correct tools, you preserve the integrity of the fixture and avoid unnecessary expenses. This approach aligns with Moen’s emphasis on quality and longevity, ensuring your shower remains functional and aesthetically pleasing.
Comparatively, removing a Moen shower handle differs from other brands due to its focus on minimalist design. Unlike handles with exposed screws or obvious release buttons, Moen prioritizes a clean, uncluttered look. This design choice, while visually appealing, requires a more methodical approach. For example, while a Delta handle might have a visible screw, a Moen handle often hides its fastener, demanding a closer look. This distinction highlights the importance of familiarity with Moen’s specific design principles when tackling this task.
In practice, removing the shower handle involves a few key steps. First, locate the hidden screw or set screw by examining the handle’s base. If a decorative cap is present, gently pry it off with a flathead screwdriver. Next, use the appropriate tool—a hex key or screwdriver—to loosen and remove the screw. Once the screw is out, the handle should lift off easily, exposing the cylinder beneath. A practical tip is to place a cloth or towel in the shower basin to catch any small parts, such as screws or caps, preventing them from falling down the drain. This simple precaution saves time and avoids potential plumbing issues.
Easy Steps to Remove the Handle on Kohler Taboret Shower
You may want to see also
Explore related products
Accessing Cylinder Mechanism
The Moen shower cylinder, often referred to as the cartridge, is a critical component in regulating water flow and temperature. Accessing this mechanism is the first step in any repair or replacement process. To begin, ensure the water supply to the shower is completely shut off to prevent accidental spills or pressure issues. This can typically be done via the main water valve or individual shut-off valves near the shower. Once the water is off, remove the handle by either unscrewing a set screw (usually located on the underside or back of the handle) or prying off a decorative cap to access the screw. This step varies by model, so consult your Moen manual or online resources for specific instructions.
After removing the handle, you’ll encounter the escutcheon plate, which is the decorative cover behind the handle. Gently pry this off using a flathead screwdriver or a specialized tool to avoid damaging the finish. Beneath the escutcheon, you’ll find the retaining nut or clip holding the cylinder in place. Use an adjustable wrench or pliers to loosen the nut counterclockwise, but be cautious not to overtighten or strip it. Some models may require a cartridge puller if the nut is stubborn or corroded. Patience is key here, as forcing the mechanism can lead to costly repairs.
Once the retaining nut is removed, the cylinder should be exposed. However, it may still be stuck due to mineral buildup or wear. To free it, apply a penetrating oil (e.g., WD-40) around the edges of the cylinder and let it sit for 10–15 minutes. If the cylinder remains resistant, use a cartridge puller tool, which grips the end of the cylinder and allows you to pull it out evenly. Avoid using excessive force, as this can damage the valve body. For older models or particularly stubborn cylinders, consider using a hairdryer to heat the area slightly, as expansion can help loosen the mechanism.
Accessing the cylinder mechanism is a delicate balance of precision and patience. While the process is straightforward, each step requires attention to detail to avoid complications. For instance, misaligning the cartridge puller can damage the valve, leading to leaks or the need for a full replacement. Similarly, skipping the penetrating oil step can make removal significantly harder. By following these steps methodically and using the right tools, you can successfully access the cylinder mechanism, setting the stage for a smooth repair or replacement. Always keep a record of the order in which parts are removed to simplify reassembly.
Efficiently Removing a Cylinder Sleeve from Your Shower Stem: A Guide
You may want to see also
Explore related products
Extracting Old Cylinder
The Moen shower cylinder, a critical component in your shower's functionality, can deteriorate over time, leading to leaks, reduced water pressure, or complete failure. Extracting an old cylinder requires precision, patience, and the right tools. Begin by shutting off the water supply to prevent accidental spills and ensure a dry work environment. Gather your tools: an adjustable wrench, pliers, a screwdriver, and possibly a Moen cartridge puller if the cylinder is stubborn. Understanding the cylinder's mechanism is key; it's typically held in place by a retaining nut and a series of seals that may have fused over time due to mineral deposits or corrosion.
Once prepared, disassemble the shower handle to expose the cylinder. This often involves prying off a decorative cap and removing a screw that secures the handle. With the handle removed, you’ll see the retaining nut. Use the adjustable wrench to loosen it, turning counterclockwise while stabilizing the cylinder to avoid damaging surrounding components. If the nut is corroded, apply penetrating oil and allow it to sit for 10–15 minutes before attempting to loosen it again. Once the nut is removed, inspect the cylinder for signs of wear, such as cracks or mineral buildup, which can complicate extraction.
Extracting the cylinder itself can be the most challenging step. If it doesn’t slide out easily, avoid forcing it, as this can damage the valve body. Instead, use a Moen cartridge puller, a tool specifically designed to grip and remove stuck cylinders without causing harm. Attach the puller according to the manufacturer’s instructions, ensuring it’s securely fastened to the cylinder. Apply steady, even pressure to pull the cylinder straight out. If a puller isn’t available, try tapping the cylinder gently with a wooden mallet while pulling, but proceed with caution to avoid breaking the valve.
After the cylinder is removed, inspect the valve cavity for debris or old seals. Clean the area thoroughly with a brush and white vinegar to dissolve mineral deposits. This step is crucial for ensuring the new cylinder seats properly and functions smoothly. If the valve body is damaged, consider replacing it entirely to avoid future issues. Finally, compare the old cylinder to the new one to ensure compatibility, as Moen models can vary slightly. Proper extraction not only facilitates a successful replacement but also extends the lifespan of your shower system by addressing underlying issues before they worsen.
Easy Steps to Remove Old Caulking Around Your Shower Drain
You may want to see also
Explore related products
Installing New Cylinder
After removing the old Moen shower cylinder, installing a new one requires precision and attention to detail. Begin by inspecting the replacement cylinder for any defects or damage. Ensure it matches the model specifications of your Moen shower system, as compatibility is crucial for proper function. Align the new cylinder with the valve body, taking care to position it straight to avoid leaks or misalignment. Use a gentle but firm pressure to push it into place, ensuring it seats correctly without forcing it.
Next, reattach the retaining nut or screw that secures the cylinder in place. Tighten it by hand first, then use a wrench or pliers to secure it firmly. Be cautious not to overtighten, as this can damage the cylinder or valve body. A good rule of thumb is to tighten until you feel resistance, then give it an additional quarter turn to ensure stability. If your Moen model includes a cartridge puller or specific tool, use it to avoid damaging the components during installation.
Once the cylinder is secured, reassemble the shower handle and escutcheon plate. Test the handle to ensure smooth operation and verify that the water temperature adjusts correctly. If the handle feels stiff or the temperature is inconsistent, double-check the cylinder’s alignment and seating. Minor adjustments at this stage can prevent future issues. For added assurance, run water through the shower for a few minutes to check for leaks around the cylinder or handle.
Finally, consider applying a small amount of silicone grease to the cylinder’s O-rings or seals during installation. This can improve longevity and reduce friction, especially in older plumbing systems. Keep a towel or rag nearby to catch any drips or spills during the process. With the new cylinder installed and tested, your Moen shower should operate efficiently, providing reliable performance for years to come.
Effective Shower Filters That Successfully Remove Fluoride from Water
You may want to see also
Frequently asked questions
Locate the model number on the shower valve or handle, or use Moen’s identification guide online to determine the specific type of cylinder you need to remove.
Common tools include a Phillips screwdriver, flathead screwdriver, adjustable wrench, pliers, and possibly a puller tool for stubborn cartridges.
Apply penetrating oil (e.g., WD-40) to the cylinder, let it sit for 15-30 minutes, and use a cartridge puller or pliers to gently extract it without damaging the valve.
No, always turn off the water supply to the shower before attempting to remove the cylinder to avoid leaks or water damage.
If the cylinder breaks, use a cartridge removal tool or carefully extract the remaining pieces with pliers. Ensure all debris is cleared before installing a new cylinder.
