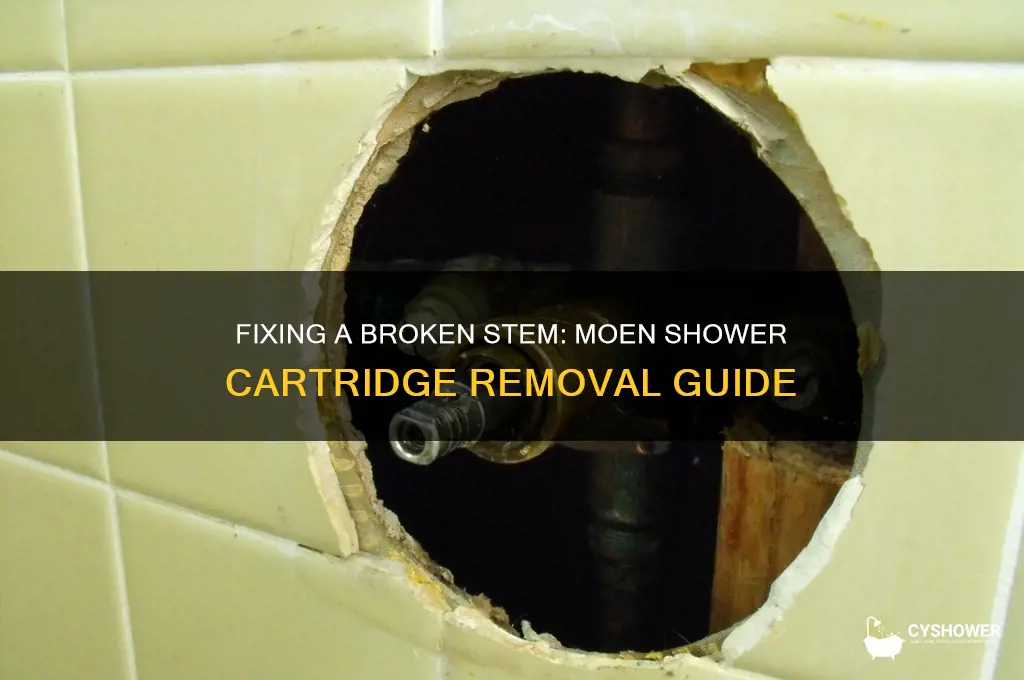

Removing a Moen shower cartridge with a broken stem can be a challenging task, but with the right tools and approach, it’s manageable. The broken stem complicates the process because it prevents the cartridge from being pulled out using the standard extraction tool. To tackle this, you’ll need to carefully disassemble the shower handle and escutcheon to access the cartridge. Using a pair of needle-nose pliers or a small flathead screwdriver, gently grip or pry the remaining stem to extract the cartridge. If the stem is severely damaged, you may need to drill it out or use a cartridge puller designed for broken stems. Always ensure the water supply is turned off before starting, and consider applying penetrating oil to loosen any corrosion. Patience and precision are key to avoiding further damage to the valve or surrounding components.
| Characteristics | Values |
|---|---|
| Tools Required | Adjustable wrench, flathead screwdriver, needle-nose pliers, cartridge puller, penetrating oil |
| Difficulty Level | Moderate to Difficult |
| Time Required | 30 minutes to 1 hour |
| Steps | 1. Turn off water supply. 2. Remove handle and escutcheon. 3. Apply penetrating oil to stem. 4. Use pliers or screwdriver to grip and turn stem. 5. If stem breaks, use cartridge puller to extract cartridge. |
| Common Issues | Broken stem, corroded cartridge, stuck parts |
| Safety Precautions | Wear safety goggles, ensure water is off before starting |
| Alternative Methods | Using a Dremel tool to cut off the stem, drilling out the stem |
| Replacement Parts | New Moen shower cartridge, replacement stem (if available) |
| Cost | $10-$30 for tools and replacement parts |
| Professional Help | Recommended if unable to remove cartridge after multiple attempts |
| Maintenance Tips | Regularly clean and lubricate cartridge to prevent future issues |
Explore related products
What You'll Learn
Gather Tools and Materials
Removing a Moen shower cartridge with a broken stem is a task that demands precision and the right tools. Before you begin, assess the damage: a broken stem often means the cartridge is stuck, and brute force can damage your shower valve. The first step is to gather the necessary tools and materials, ensuring you have everything within arm’s reach to streamline the process.
Analytical Approach: The success of this repair hinges on tool selection. A cartridge puller is essential, as it grips the cartridge securely without slipping, which is critical when the stem is broken. Additionally, a socket wrench or adjustable pliers can provide the torque needed to loosen the retaining nut. For stubborn cases, penetrating oil like WD-40 can be applied 10–15 minutes before removal to reduce friction. Always use tools that fit precisely to avoid stripping screws or damaging the valve body.
Instructive Style: Start by laying out your workspace. You’ll need a cartridge puller (specifically designed for Moen cartridges), an adjustable wrench, penetrating oil, a utility knife, and a clean cloth. If the cartridge is deeply embedded, a flathead screwdriver can help pry it loose, but use it sparingly to avoid scratching the valve. For safety, wear gloves to protect your hands from sharp edges and debris. Organize these tools in the order you’ll use them to maintain efficiency.
Comparative Insight: While some homeowners opt for improvised tools like vise grips or hammers, these often lead to further damage. A cartridge puller, though a specialized tool, is worth the investment for its ability to grip the cartridge’s base securely. Compare this to using a flathead screwdriver, which risks slipping and damaging the valve. Similarly, penetrating oil outperforms soap or water for loosening rusted parts, as it seeps into microscopic gaps to break down corrosion.
Practical Tips: Before applying force, test the cartridge puller’s grip by gently tugging. If it doesn’t budge, reapply penetrating oil and wait 5–10 minutes. For added leverage, attach a wooden handle to the puller or use a cheater bar on the wrench, but avoid excessive force. If the cartridge still resists, inspect the retaining nut for hidden screws or clips that may need removal first. Always clean the valve body with the cloth before reassembly to ensure a smooth fit for the new cartridge.
Effective Tips to Remove Mildew Stains from Fiberglass Showers
You may want to see also
Explore related products
Shut Off Water Supply
Before attempting to remove a Moen shower cartridge with a broken stem, it's crucial to shut off the water supply to prevent flooding and water damage. This step is often overlooked, but it's a critical safety measure that can save you from a messy and costly situation. The process of shutting off the water supply involves locating the appropriate valves and ensuring they are fully closed. In most homes, the shut-off valves for the shower are located in the basement, crawl space, or utility closet, near the main water supply line.
To begin, identify the hot and cold water supply lines leading to your shower. These lines are typically color-coded, with red indicating hot water and blue indicating cold water. Once you've located the supply lines, follow them to the shut-off valves. In some cases, the valves may be hidden behind an access panel or buried beneath insulation. If you're having trouble finding the valves, consult your home's plumbing diagram or contact a professional plumber for assistance. It's essential to exercise caution when working with plumbing systems, as improper handling can lead to leaks, bursts, or other issues.
When you've located the shut-off valves, turn them clockwise to close them. This action will stop the flow of water to your shower, allowing you to work on the cartridge without the risk of flooding. Be sure to test the showerhead and faucet to confirm that the water supply has been completely shut off. If water continues to flow, double-check the valves to ensure they are fully closed. In some cases, you may need to use a wrench or pliers to tighten the valves, especially if they are old or corroded. Remember to apply gentle, even pressure to avoid damaging the valves or surrounding pipes.
In situations where the shut-off valves are inaccessible or not functioning correctly, you may need to shut off the main water supply to your home. This approach should be considered a last resort, as it will disrupt water flow to all fixtures and appliances. To shut off the main water supply, locate the main shut-off valve, typically found near the water meter or where the main water line enters your home. Turn the valve clockwise to close it, and then open a faucet on the lowest level of your home to relieve any residual water pressure. Keep in mind that shutting off the main water supply will affect your entire household, so plan accordingly and communicate with family members or housemates to minimize inconvenience.
As a final precaution, consider placing a bucket or tray beneath the showerhead to catch any residual water that may drain from the pipes. This simple step can help prevent water damage to your bathroom floor and surrounding areas. By taking the time to properly shut off the water supply, you'll create a safe and controlled environment for removing the Moen shower cartridge with a broken stem. This attention to detail will not only protect your home but also make the repair process smoother and more efficient, ultimately saving you time, money, and frustration.
Effective Ways to Remove Limescale from Your Shower Tray Easily
You may want to see also
Explore related products
$12.79 $13.59
Remove Handle and Escutcheon
The first step in tackling a broken Moen shower cartridge stem is to remove the handle and escutcheon, a process that requires precision and the right tools. Begin by identifying the type of handle you’re dealing with—Moen handles often have a screw hidden under a decorative cap or a set screw on the underside. Use a flathead screwdriver to gently pry off the cap, exposing the screw. If there’s no cap, locate the set screw and loosen it with a hex wrench or Allen key. Once the screw is removed, pull the handle straight off the valve, being careful not to damage the finish. This step is critical because a broken stem often prevents the cartridge from turning freely, and removing the handle grants access to the underlying components.
Next, focus on the escutcheon, the decorative plate surrounding the handle. This piece is typically held in place by screws or clips, depending on the model. If screws are visible, remove them with a Phillips screwdriver. For clip-on escutcheons, insert a flathead screwdriver between the escutcheon and the wall, gently prying it loose. Be cautious not to scratch the tile or wall surface. Once removed, set the escutcheon aside, as it won’t be needed until the cartridge replacement is complete. This step reveals the valve cartridge, allowing you to assess the extent of the stem damage and plan the next move.
A common challenge during this process is dealing with corrosion or mineral buildup, especially in older fixtures. If the handle or escutcheon feels stuck, apply a penetrating oil like WD-40 around the edges and let it sit for 10–15 minutes. This can loosen stubborn parts without forcing them and risking breakage. For handles with stubborn screws, use a rubber band between the screwdriver and the screw head to improve grip and prevent stripping. These small precautions can save time and frustration, ensuring the removal process remains smooth.
Comparing this step to other plumbing repairs, removing the handle and escutcheon is relatively straightforward but requires patience. Unlike fixing a leaky faucet, which often involves simple washer replacement, this task demands attention to detail to avoid damaging the valve or surrounding materials. It’s a gateway step—without completing it successfully, accessing the broken cartridge stem becomes nearly impossible. Think of it as the foundation of the repair: done correctly, it sets the stage for a seamless cartridge replacement.
In conclusion, removing the handle and escutcheon is a delicate yet essential part of replacing a Moen shower cartridge with a broken stem. By methodically addressing each component and anticipating potential challenges, you can navigate this step efficiently. Keep your tools organized, work gently but firmly, and remember that this phase is about access—once completed, you’re one step closer to restoring your shower’s functionality.
Easy Steps to Remove Shower Trim Tubes Like a Pro
You may want to see also
Explore related products
Extract Broken Cartridge Stem
A broken cartridge stem in a Moen shower valve can turn a simple repair into a frustrating ordeal. The stem, often made of plastic or brass, is prone to snapping due to corrosion, mineral buildup, or excessive force during removal attempts. Extracting a broken stem requires precision and the right tools to avoid damaging the valve body or surrounding fixtures. Unlike a complete cartridge replacement, this task demands a more delicate approach, focusing on isolating and removing the fragmented piece without compromising the valve’s integrity.
One effective method involves using a cartridge puller tool, specifically designed to grip and extract broken stems. Begin by shutting off the water supply to the shower to prevent leaks. Disassemble the handle and escutcheon to expose the cartridge. If the stem is flush with the cartridge, use a flathead screwdriver to gently pry it out, applying even pressure to avoid further breakage. For deeper breaks, attach the cartridge puller’s claws around the stem’s base, ensuring a secure grip. Slowly tighten the puller’s center screw, applying steady force until the stem dislodges. Avoid excessive torque, as this can deform the cartridge housing.
In cases where a cartridge puller is unavailable, a DIY approach using household items can suffice. Insert a small, flat metal tool (like a butter knife or thin screwdriver) into the stem’s remnants, leveraging it against the cartridge’s edge. Gradually twist and pull upward, working the stem loose. Alternatively, a pair of needle-nose pliers can grip the stem’s exposed portion, but this method carries a higher risk of slippage or damage. Always wrap the pliers’ jaws with tape to minimize scratching.
Preventive measures are crucial to avoid future stem breakage. Regularly inspect the shower valve for signs of wear, such as stiff handles or leaks. Lubricate the cartridge annually with silicone grease to reduce friction during operation. When replacing cartridges, use genuine Moen parts to ensure compatibility and durability. If the stem shows signs of corrosion, consider installing a stainless steel replacement for added longevity.
Extracting a broken cartridge stem is a task that blends patience with technique. Whether using specialized tools or improvising with household items, the goal is to remove the fragment without exacerbating the issue. By understanding the mechanics of the valve and employing careful force, homeowners can restore their shower’s functionality without resorting to costly professional repairs. This process underscores the importance of maintenance and the right tools in tackling plumbing challenges.
Easy Steps to Remove a Shower Arm Valve: DIY Guide
You may want to see also
Explore related products
Install New Shower Cartridge
Replacing a shower cartridge with a broken stem requires precision and the right tools. Before installing a new cartridge, ensure you’ve completely removed the old one, including any debris or remnants in the valve body. Use a cartridge puller if the broken stem is stuck, and inspect the valve for damage—a cracked housing will require replacement before proceeding. This step is critical; skipping it can lead to leaks or improper function, even with a new cartridge in place.
Selecting the correct replacement cartridge is non-negotiable. Moen cartridges are model-specific, so verify compatibility using the faucet’s identification number (found on the original cartridge or shower handle). For example, a Moen 1222B cartridge fits most single-handle models, but older or specialty units may require a 1225 or 1255 variant. Purchasing a universal cartridge might seem cost-effective, but it often results in poor fit and reduced longevity. Always opt for OEM parts for seamless integration.
Installation begins with aligning the new cartridge’s notch or key with the valve body’s corresponding groove. Apply silicone grease to the O-rings to prevent tearing during insertion, but avoid petroleum-based lubricants, which degrade rubber components. Use a cartridge puller’s pusher end or a flathead screwdriver (wrapped in tape to avoid scratches) to gently tap the cartridge into place. Over-tightening can warp the housing, so stop when the cartridge sits flush with the valve body.
After installation, reassemble the handle and test the shower for leaks and smooth operation. Run hot and cold water cycles to ensure the cartridge seats properly. If resistance or dripping persists, disassemble and check for misalignment or debris. Pro tip: Wrap the handle screw threads with Teflon tape to prevent corrosion and ensure future disassembly remains effortless. This final step transforms a functional repair into a durable solution.
Effective Tips to Remove Soap Scum from Shower Grout Easily
You may want to see also
Frequently asked questions
Use a cartridge puller tool specifically designed for Moen cartridges. Attach the tool to the cartridge and twist counterclockwise to extract it carefully.
Use a screw extractor or a small drill bit to carefully remove the broken stem piece, ensuring not to damage the valve body.
Yes, but it’s more difficult. Try using pliers with a cloth to grip the cartridge, or insert a flathead screwdriver into the center and twist gently.
Apply penetrating oil to the cartridge and valve body, let it sit for 15-30 minutes, and use even, steady force when removing it.
If the valve body is damaged, it may need to be replaced. Contact Moen customer service or a plumber for assistance with replacement parts.
