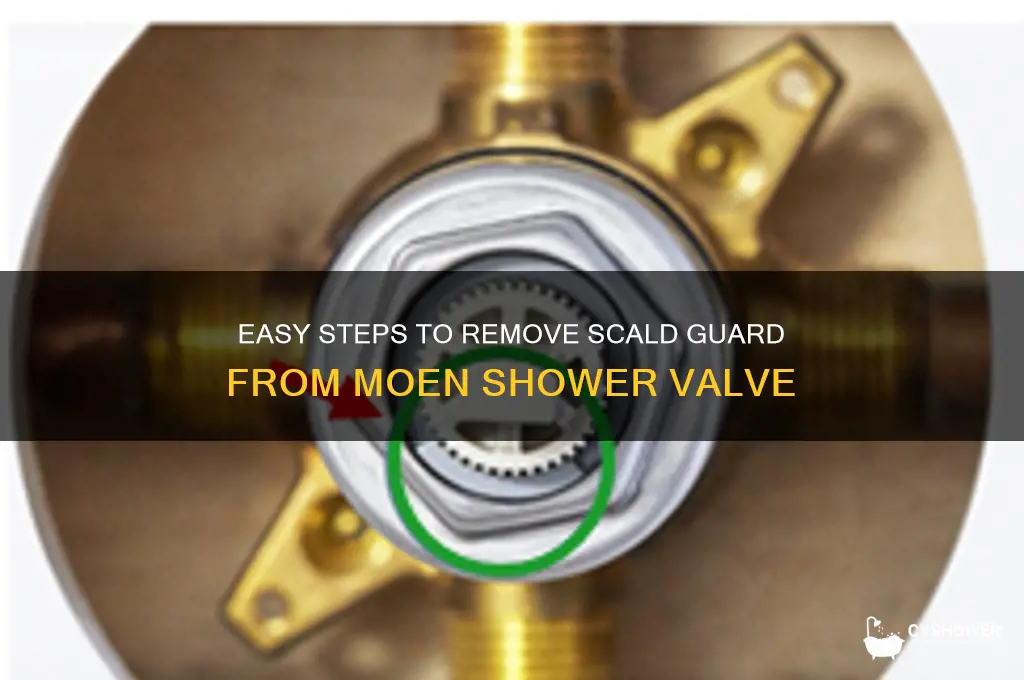

Removing the scald guard from a Moen shower valve can be a necessary step when troubleshooting water temperature issues or replacing the valve cartridge. The scald guard, also known as a temperature limit stop, is designed to prevent water from becoming too hot and causing burns. To remove it, start by shutting off the water supply to the shower. Then, disassemble the shower handle and escutcheon to access the valve cartridge. Depending on the model, the scald guard may be a small plastic piece located on the cartridge or a separate component. Carefully adjust or remove the scald guard using a flathead screwdriver or pliers, ensuring not to damage the cartridge. Always refer to the specific Moen model’s manual for detailed instructions, as designs can vary. Once removed, test the water temperature to ensure it functions correctly before reassembling the shower components.
| Characteristics | Values |
|---|---|
| Tools Required | Phillips screwdriver, flathead screwdriver, adjustable wrench, pliers |
| Steps to Remove Scald Guard | 1. Turn off water supply. 2. Remove handle and escutcheon. 3. Unscrew cartridge retainer. 4. Pull out cartridge and scald guard. |
| Scald Guard Location | Inside the Moen shower valve cartridge |
| Purpose of Scald Guard | Limits water temperature to prevent scalding |
| Compatibility | Specific to Moen shower valves with scald guard feature |
| Replacement Option | Can be replaced with a non-scald guard cartridge for full temperature control |
| Difficulty Level | Moderate; requires basic plumbing skills |
| Safety Precaution | Ensure water supply is off before starting to avoid leaks or accidents |
| Common Issues | Scald guard may restrict hot water flow or fail to regulate temperature |
| Alternative Solutions | Adjust temperature limit stop or install a thermostatic valve for better control |
| Manufacturer Guidelines | Refer to Moen's official instructions or contact customer support for model-specific advice |
Explore related products
What You'll Learn
Tools needed for Moen scald guard removal
Removing the scald guard from a Moen shower valve requires a precise set of tools to ensure efficiency and prevent damage. The primary tool is a 12-point socket wrench with a 7/8-inch socket, specifically designed to fit the Moen cartridge retainer nut. This tool provides the necessary torque to loosen the nut without stripping it, a common issue when using adjustable wrenches. Additionally, a flathead screwdriver is essential for prying off the decorative escutcheon plate, which often conceals the valve assembly. For stubborn nuts, a rubber strap wrench can provide extra grip without marring the finish. These tools, when used correctly, streamline the process and minimize frustration.
While the aforementioned tools are fundamental, a cartridge puller is often overlooked but highly recommended for Moen scald guard removal. This specialized tool is designed to extract the cartridge without causing damage to the valve body. It’s particularly useful when the cartridge is corroded or stuck in place. Pairing the cartridge puller with penetrating oil, such as WD-40, can further ease the removal process. Apply the oil 15 minutes before attempting extraction to loosen any mineral deposits or rust. This combination of tools and techniques ensures a smoother operation, especially in older installations.
For those without access to a cartridge puller, a DIY alternative can be fashioned using a large C-clamp and a piece of flat metal or wood as a spacer. Secure the spacer between the clamp’s screw and the cartridge to distribute pressure evenly, then tighten the clamp gradually. This method requires patience and precision to avoid damaging the valve. However, it’s a cost-effective solution for homeowners without specialized tools. Always test the clamp’s alignment before applying full force to prevent misalignment.
Beyond the physical tools, protective gear is crucial for safety during scald guard removal. Wear safety goggles to shield your eyes from debris and work gloves to protect your hands from sharp edges or slipping tools. A small flashlight or headlamp is also invaluable for illuminating the tight workspace inside the shower valve. These preparatory measures may seem minor, but they significantly reduce the risk of injury and make the task more manageable.
In conclusion, the tools needed for Moen scald guard removal range from specialized equipment like socket wrenches and cartridge pullers to DIY alternatives and safety gear. Each tool serves a specific purpose, from loosening nuts to extracting cartridges safely. By assembling the right tools and understanding their proper use, homeowners can tackle this task with confidence and precision, ensuring a successful and damage-free removal.
Easy DIY Guide: Removing Your Shower Stopper in Simple Steps
You may want to see also
Explore related products
Step-by-step scald guard disassembly process
The scald guard in a Moen shower valve is a critical safety feature designed to prevent water temperatures from exceeding safe levels, typically around 120°F (49°C). However, there are instances—such as troubleshooting low water pressure or replacing the valve cartridge—when you may need to remove it. This process requires precision and familiarity with the valve’s internal components. Before beginning, ensure you have the necessary tools: a Phillips screwdriver, an adjustable wrench, and possibly a cartridge puller if the cartridge is stuck. Always turn off the water supply to avoid accidental spills during disassembly.
Begin by removing the shower handle, which typically involves unscrewing a Phillips screw located under a decorative cap. Once the handle is off, expose the valve cartridge by pulling or prying off the handle adapter. The cartridge is a cylindrical component with a notch or slot at the top. To access the scald guard mechanism, you’ll need to extract this cartridge. If it’s stubborn, use a cartridge puller, aligning its hooks with the cartridge slots and pulling steadily to avoid damaging the valve body. With the cartridge removed, you’ll see the scald guard assembly, often a small plastic or metal component with temperature adjustment stops.
Next, focus on the scald guard itself. In many Moen models, it’s integrated into the valve body and secured by a screw or clip. Carefully remove this fastener using the appropriate tool, taking note of its position for reassembly. Once unsecured, the scald guard can be gently lifted or slid out of its housing. Be cautious not to force it, as excessive pressure can damage the valve’s internal threads. If the scald guard is stuck due to mineral buildup, soak it in white vinegar for 30 minutes to dissolve deposits before attempting removal again.
After removing the scald guard, inspect the valve body for wear or corrosion. If the valve shows signs of damage, consider replacing it entirely to ensure long-term functionality. Reassembly follows the reverse process: reinsert the scald guard (or omit it if replacing with a non-scald guard model), secure it with the screw or clip, reinsert the cartridge, and reattach the handle adapter and handle. Test the shower’s temperature range after reassembly to ensure it operates within safe limits. While removing the scald guard can address specific issues, always weigh the risks of disabling this safety feature against the benefits of the repair.
Effective Ways to Remove Mineral Deposits from Marble Shower Tiles
You may want to see also
Explore related products
Identifying Moen shower valve components
Understanding the components of a Moen shower valve is crucial before attempting to remove the scald guard. The valve assembly typically consists of the cartridge, retaining nut, temperature limit stop, and the scald guard itself. Each part plays a specific role in regulating water temperature and flow. The cartridge, for instance, is the heart of the valve, controlling the mix of hot and cold water. Identifying these components correctly ensures you target the scald guard without damaging other parts.
Analyzing the valve’s design reveals that the scald guard is often integrated into the temperature limit stop, a safety feature that prevents water from becoming too hot. This component is usually located at the back of the cartridge and is adjustable to set the maximum temperature. To identify it, disassemble the valve handle and inspect the cartridge area. Look for a small, notched or grooved piece that restricts the cartridge’s rotation. This is the scald guard, and its position directly affects temperature control.
A step-by-step approach to identifying these components begins with shutting off the water supply to avoid leaks. Next, remove the shower handle by prying off the cap and unscrewing the handle screw. With the handle removed, you’ll expose the retaining nut, which holds the cartridge in place. Loosen this nut carefully to access the cartridge and the temperature limit stop. Inspect the stop closely; it often has a flat-head screw or a notched design that limits the cartridge’s movement. This is where the scald guard is located, and its removal or adjustment requires precision.
Comparing Moen models, newer valves may have a more integrated scald guard, while older models often feature a separate, adjustable stop. For example, the Moen 1222 cartridge has a limit stop that can be rotated to adjust temperature limits. In contrast, the Moen Posi-Temp valves have a fixed stop that requires removal for full temperature control. Knowing your valve model helps in identifying the exact location and type of scald guard, streamlining the removal process.
Finally, a practical tip for identification is to use a flashlight and magnifying glass to inspect the valve components, as they are often small and recessed. Once identified, mark the current position of the temperature limit stop with a permanent marker to ensure you can return it to the correct setting if needed. This attention to detail not only aids in removing the scald guard but also ensures the valve functions safely and efficiently afterward.
Easy Steps to Remove Pfister Venturi Shower Handle: A DIY Guide
You may want to see also
Explore related products
Troubleshooting common removal issues
Removing the scald guard from a Moen shower can sometimes feel like solving a puzzle, especially when common issues arise. One frequent problem is the cartridge becoming stuck due to mineral buildup or corrosion. If you find the cartridge resistant to turning, apply a penetrating oil like WD-40 or PB Blaster around the edges and let it sit for at least 30 minutes. This will help loosen the debris and make removal easier. Avoid forcing the cartridge with excessive pressure, as this can damage the valve body.
Another issue is misidentifying the correct tools for the job. Many homeowners mistakenly use pliers or adjustable wrenches, which can strip the cartridge or damage the surrounding area. Instead, invest in a Moen cartridge puller or a universal cartridge removal tool designed specifically for this task. These tools grip the cartridge securely without causing harm, ensuring a smooth extraction. Always double-check the compatibility of the tool with your specific Moen model to avoid unnecessary complications.
Occasionally, the scald guard’s retaining clip or screw may be difficult to access or remove. If the clip is hidden or recessed, use a flashlight and a small mirror to locate it. A pair of needle-nose pliers or a flathead screwdriver can then be used to carefully pry or unscrew it. Be patient and gentle, as forcing the clip can break it or damage the valve. Once removed, keep the clip or screw in a safe place, as it will be needed for reassembly.
Lastly, some users encounter resistance due to the cartridge’s orientation. Moen cartridges are often notched or keyed, meaning they must be aligned correctly to remove or install. If the cartridge won’t budge, rotate it slightly in both directions to find the correct position. Refer to the user manual or online diagrams for your specific model to identify the proper alignment. This simple step can save you from unnecessary frustration and potential damage.
By addressing these common issues methodically, you can successfully remove the scald guard from your Moen shower without unnecessary hassle. Preparation, the right tools, and patience are key to troubleshooting these challenges effectively.
Step-by-Step Guide to Removing Stand-Up Shower Walls Easily
You may want to see also
Explore related products
Reassembling the shower valve after removal
After removing the scald guard from your Moen shower valve, reassembling the components correctly is crucial to ensure optimal performance and safety. Begin by inspecting all parts for damage or wear; replace any compromised components before proceeding. The reassembly process mirrors the disassembly steps in reverse, but with a focus on precision and alignment. Start by reinserting the temperature limit stop, ensuring it sits securely in its designated slot. This step is vital, as improper placement can affect water temperature regulation.
Next, carefully position the cartridge back into the valve body, aligning the notches with the corresponding grooves. Use a cartridge puller if necessary, but apply gentle force to avoid damaging the cartridge or valve. Once the cartridge is in place, reattach the retaining clip or screw, tightening it just enough to secure the cartridge without over-torquing. Over-tightening can lead to leaks or difficulty adjusting the water temperature later. Follow this by reinstalling the handle adapter, ensuring it engages properly with the cartridge splines.
With the internal components reassembled, focus on the exterior. Reattach the escutcheon plate, ensuring it aligns with the valve body and handle. Secure it with the appropriate screws, but avoid over-tightening to prevent cracking the plate. Finally, reattach the shower handle, ensuring it moves smoothly and engages the cartridge correctly. Test the handle’s full range of motion to confirm proper alignment and functionality.
A critical final step is testing the shower valve. Turn on the water supply and check for leaks at all connection points. Gradually adjust the temperature to ensure the scald guard’s removal hasn’t compromised safety or functionality. If leaks occur or temperature control is inconsistent, disassemble the valve again to identify and correct the issue. Proper reassembly not only restores your shower’s functionality but also ensures long-term reliability and safety.
Easy Steps to Safely Remove and Replace Shower Pot Lights
You may want to see also
Frequently asked questions
The scald guard is a safety feature in Moen showers that limits water temperature to prevent burns. You might need to remove it for maintenance, cleaning, or to adjust the temperature range.
To remove the scald guard, first turn off the water supply. Then, remove the shower handle and escutcheon plate. Use a socket wrench or appropriate tool to unscrew the valve cartridge, and carefully pull out the scald guard mechanism.
You can replace the scald guard yourself if you have the correct replacement part and follow the manufacturer’s instructions. However, if you’re unsure or encounter complications, it’s best to consult a professional plumber.
